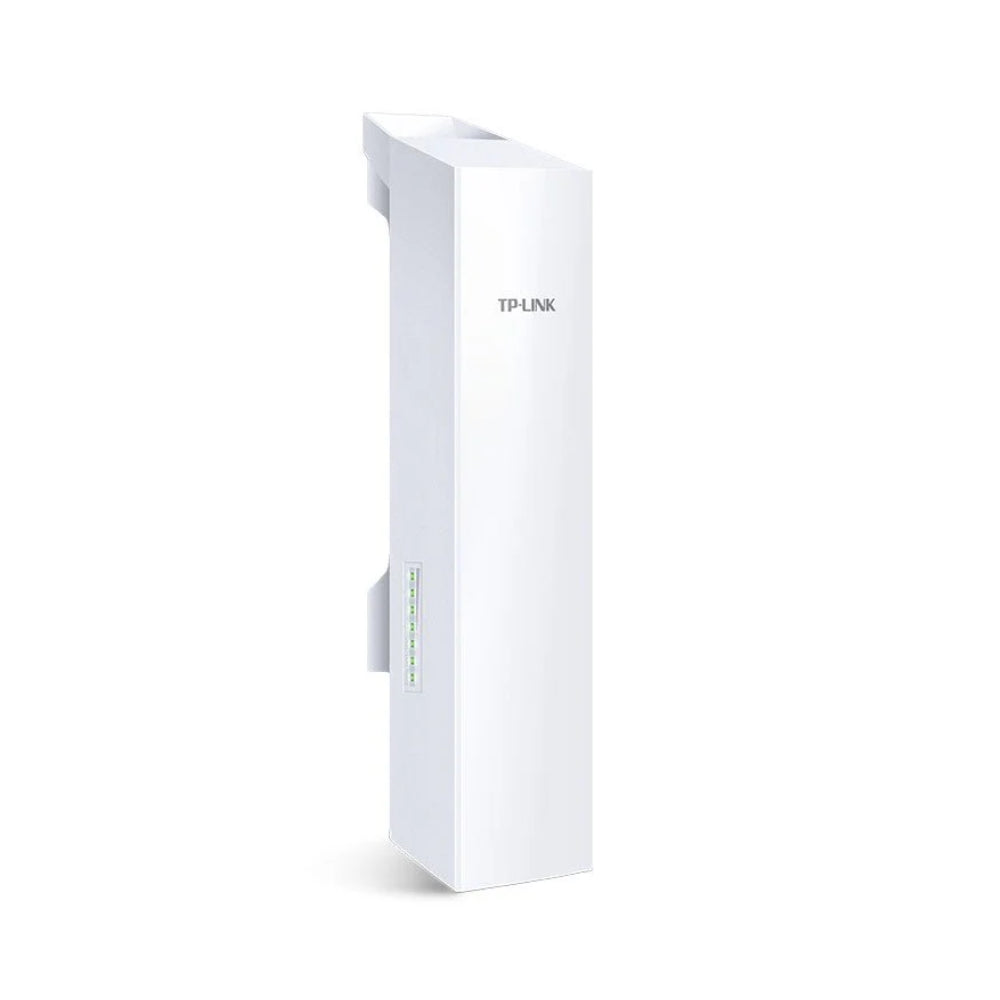

TP-Link CPE220 – 2.4GHz 300Mbps Outdoor CPE Access Point with 12dBi Antenna
The TP-Link CPE220 is a high-power outdoor wireless access point designed for long-range point-to-point and point-to-multipoint deployments on the 2.4GHz band. With a built-in 12dBi dual-polarised directional MIMO antenna, up to 30dBm transmit power, and Pharos MAXtream TDMA technology, it delivers reliable connectivity across distances of up to 13 kilometres — making it a practical choice for wireless ISPs, security installers, and network engineers working across large Australian properties and rural sites.
Key Features
-
12dBi 2×2 Dual-Polarised Directional MIMO Antenna: Built-in high-gain antenna with a 60° horizontal and 30° vertical beam width for focused, long-range signal delivery.
-
High Transmit Power — Up to 30dBm (1000mW): Adjustable from 0 to 30dBm for maximum reach or regulatory compliance, significantly higher than the CPE510’s 23dBm.
-
13km+ Long-Range Transmission: System-level optimisations support wireless links exceeding 13 kilometres under line-of-sight conditions.
-
Pharos MAXtream TDMA Technology: TP-Link’s proprietary Time-Division Multiple Access protocol improves throughput, capacity, and latency — ideal for point-to-multipoint (PTMP) deployments.
-
Multiple Operation Modes: AP, Client, Bridge, Repeater, AP Router, and AP Client Router (WISP) modes for flexible deployment scenarios.
-
Passive PoE Support: Included PoE adapter supports cable runs up to 60 metres, enabling remote mounting without a local power source. PoE passthrough on LAN1 for daisy-chaining.
-
Dual Shielded Ethernet Ports: LAN0 (PoE in) and LAN1 (PoE passthrough) for flexible cabling and device chaining.
-
IPX5 Weatherproof Enclosure: Outdoor ASA-stabilised plastic housing rated for rain and dust — built for Australian outdoor conditions.
-
6kV Lightning Protection & 15kV ESD Protection: Protects equipment and connected infrastructure from electrical surges.
-
Qualcomm Atheros 560MHz CPU: 64MB DDR2 RAM and 8MB Flash for stable, responsive performance under load.
-
Pharos Control: Centralised management for monitoring and configuring multiple CPE devices from a single interface.
-
Selectable Channel Bandwidth: 5, 10, 20, or 40MHz to suit link conditions and local regulatory requirements.
Ideal Use Cases
- Point-to-point wireless bridges between buildings, farms, or remote sites where 2.4GHz penetration is preferred.
- Wireless ISP (WISP) last-mile connectivity for rural and regional Australian communities.
- Backhaul links for IP camera networks and NVR systems across large properties or paddocks.
- Extending network access to outbuildings, sheds, or machinery areas without trenching cable.
- Point-to-multipoint distribution networks for small WISPs or campus environments.
- Temporary site connectivity for construction sites, events, or remote monitoring stations.
Technical Specifications
| Specification |
Detail |
| Model |
CPE220 |
| Frequency Band |
2.4GHz (IEEE 802.11b/g/n) |
| Wireless Speed |
Up to 300Mbps (40MHz) / 144.4Mbps (20MHz) / 72.2Mbps (10MHz) / 36.1Mbps (5MHz) |
| Antenna |
12dBi 2×2 Dual-Polarised Directional MIMO |
| Beam Width |
60° (H-Plane) / 30° (E-Plane) |
| Max Transmit Power |
30dBm / 1000mW (adjustable 0–30dBm) |
| Max Range |
13km+ (line of sight) |
| Operation Modes |
AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) |
| Channel Bandwidth |
5 / 10 / 20 / 40MHz (selectable) |
| Ethernet Ports |
2 × 10/100Mbps Shielded (LAN0: PoE in; LAN1: PoE passthrough) |
| PoE Support |
Passive PoE (16–27VDC, adapter included, up to 60m cable run) |
| Processor |
Qualcomm Atheros 560MHz (MIPS 74Kc) |
| Memory |
64MB DDR2 RAM / 8MB Flash |
| Power Consumption |
10.8W (max) |
| Lightning Protection |
6kV |
| ESD Protection |
15kV |
| Weatherproof Rating |
IPX5 |
| Enclosure Material |
Outdoor ASA stabilised plastic |
| Dimensions |
276 × 79 × 60 mm |
| Weight |
0.74kg |
| Management |
Web UI, Pharos Control (centralised) |
| SKU |
CPE220 |
| Barcode (EAN) |
6935364091583 |
What’s in the Box
- 1 × CPE220 Outdoor Access Point
- 1 × Passive PoE Adapter
- 1 × Power Adapter
- 1 × Mounting Kit
- Quick Installation Guide
Frequently Asked Questions
What is the difference between the CPE220 and the CPE510?
The CPE220 operates on the 2.4GHz band with up to 30dBm transmit power and a 13km range, while the CPE510 operates on the less congested 5GHz band with up to 23dBm and a 15km range. The CPE220’s higher power output and 2.4GHz frequency can offer better penetration through light foliage, while the CPE510 benefits from a cleaner spectrum in urban environments.
Does the CPE220 require a separate PoE injector?
No. A passive PoE adapter is included in the box, supporting cable runs of up to 60 metres. The LAN1 port also supports PoE passthrough for daisy-chaining additional devices.
Can I use the CPE220 as a WISP client router?
Yes. AP Client Router (WISP) mode allows the CPE220 to connect to an upstream wireless ISP signal and share the connection via its Ethernet port — useful for rural properties receiving wireless internet from a tower.
Is the CPE220 suitable for Australian outdoor conditions?
Yes. The IPX5-rated ASA plastic enclosure handles rain and dust, and built-in 6kV lightning protection is essential for exposed outdoor installations in storm-prone Australian regions.
Can I manage multiple CPE220 units from one interface?
Yes. TP-Link’s Pharos Control software provides centralised management for all Pharos-series devices, including the CPE220, from a single dashboard.
Does Pharos MAXtream TDMA require both ends to be TP-Link Pharos devices?
Yes. MAXtream TDMA is a proprietary protocol and requires both the base station and client unit to be Pharos-series TP-Link devices. In standard 802.11b/g/n mode, the CPE220 can interoperate with other compatible 2.4GHz equipment.
