Description

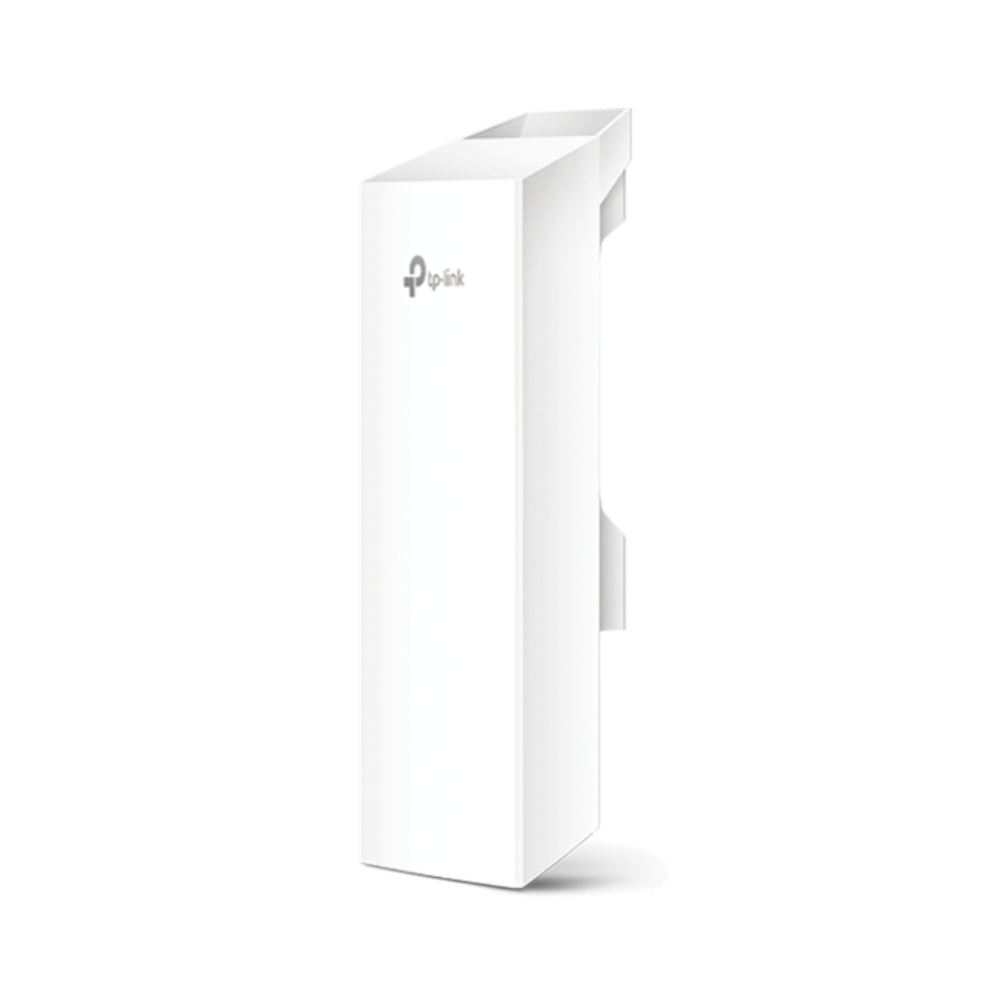

TP-Link CPE210 Outdoor CPE Access Point – 2.4GHz 300Mbps 9dBi
Overview
The TP-Link CPE210 is a purpose-built outdoor CPE (Customer Premises Equipment) access point designed for long-range wireless links across open areas, rural properties, and commercial sites. With a built-in 9dBi dual-polarised MIMO antenna and TP-Link's Pharos MAXtream TDMA technology, it delivers stable, high-throughput connectivity at distances exceeding 5km — making it a go-to choice for Australian installers and network integrators.
Key Features
- Built-in 9dBi 2×2 dual-polarised directional MIMO antenna
- Adjustable TX power from 0 to 27dBm (500mW) for flexible deployment
- System-optimised for 5km+ long-range wireless transmission
- Pharos MAXtream TDMA technology for improved throughput, capacity, and latency in PTMP environments
- Six operation modes: AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP)
- Passive PoE adapter supports up to 60m cable runs with remote reset capability
- Centralised management via Pharos Control software
- 15KV ESD protection and 6KV lightning protection
- IPX5-rated weatherproof enclosure — built for Australian outdoor conditions
Common Use Cases
-
Point-to-multipoint (PTMP) networks — connect multiple remote sites to a central hub
-
CCTV backhaul — wirelessly transmit IP camera feeds across large properties or construction sites
-
Rural internet distribution — extend broadband to sheds, outbuildings, or neighbouring properties
-
WISP deployments — last-mile wireless internet delivery for small ISPs
-
Temporary site connectivity — fast-deploy wireless links for events, mining sites, or remote worksites
Technical Specifications
| Processor |
Qualcomm Atheros 560MHz (MIPS 74Kc) |
| Memory |
64MB DDR2 RAM / 8MB Flash |
| Wireless Standard |
IEEE 802.11b/g/n; Proprietary TDMA (Pharos MAXtream) |
| Frequency |
2.4 – 2.483GHz |
| Wireless Speed |
Up to 300Mbps (40MHz) / 144.4Mbps (20MHz) / 72.2Mbps (10MHz) / 36.1Mbps (5MHz) |
| TX Power |
0 – 27dBm (500mW), adjustable |
| Antenna |
Built-in 9dBi 2×2 Dual-polarised Directional; 65° H-Plane / 35° E-Plane beamwidth |
| Ethernet Ports |
2× 10/100Mbps Shielded (LAN0: Passive PoE in; LAN1: Passive PoE passthrough) |
| Power Supply |
Passive PoE via LAN0 (+4,5 pins; −7,8 pins); 16–27VDC |
| Power Consumption |
10.5W max |
| Dimensions |
224 × 79 × 60mm |
| Weight |
0.7kg |
| Protection |
15KV ESD / 6KV Lightning |
| Weatherproofing |
IPX5 / Outdoor ASA stabilised plastic |
| Barcode (EAN) |
6935364071677 |
| SKU |
CPE210 |
Frequently Asked Questions
Does the CPE210 work as both an access point and a client?
Yes. The CPE210 supports six operation modes including AP, Client, Bridge, Repeater, AP Router, and AP Client Router (WISP), giving you full flexibility for point-to-point and point-to-multipoint deployments.
What is Pharos MAXtream TDMA and why does it matter?
Pharos MAXtream is TP-Link's proprietary Time-Division Multiple Access protocol. It significantly improves throughput, reduces latency, and increases the number of clients that can connect simultaneously — particularly useful in PTMP setups where multiple CPEs connect to a single base station.
How far can the CPE210 transmit?
TP-Link rates the CPE210 for links exceeding 5km under optimal line-of-sight conditions. Real-world range will vary based on terrain, interference, and antenna alignment.
Does it require a special PoE injector?
Yes — the CPE210 uses Passive PoE (not 802.3af/at). A compatible Passive PoE adapter is included in the box. Do not use active 802.3af/at PoE switches without a passive PoE adapter in between.
Is the CPE210 suitable for Australian outdoor conditions?
Yes. The enclosure is rated IPX5 for water resistance and is constructed from UV-stabilised ASA plastic, making it suitable for Australian sun, rain, and coastal environments. It also includes 6KV lightning protection for added peace of mind.
Can I manage multiple CPE210 units centrally?
Yes. TP-Link's free Pharos Control software allows centralised monitoring and management of multiple Pharos-series devices from a single interface.
