Description

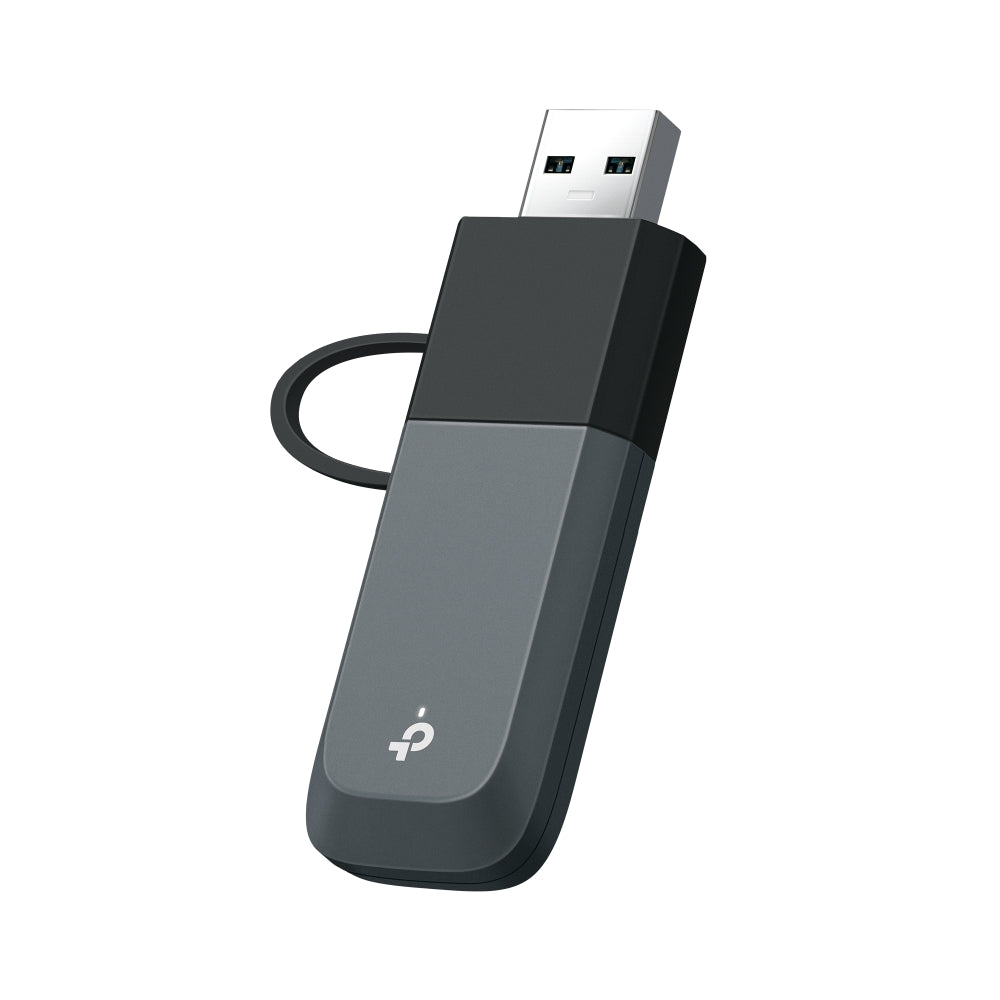

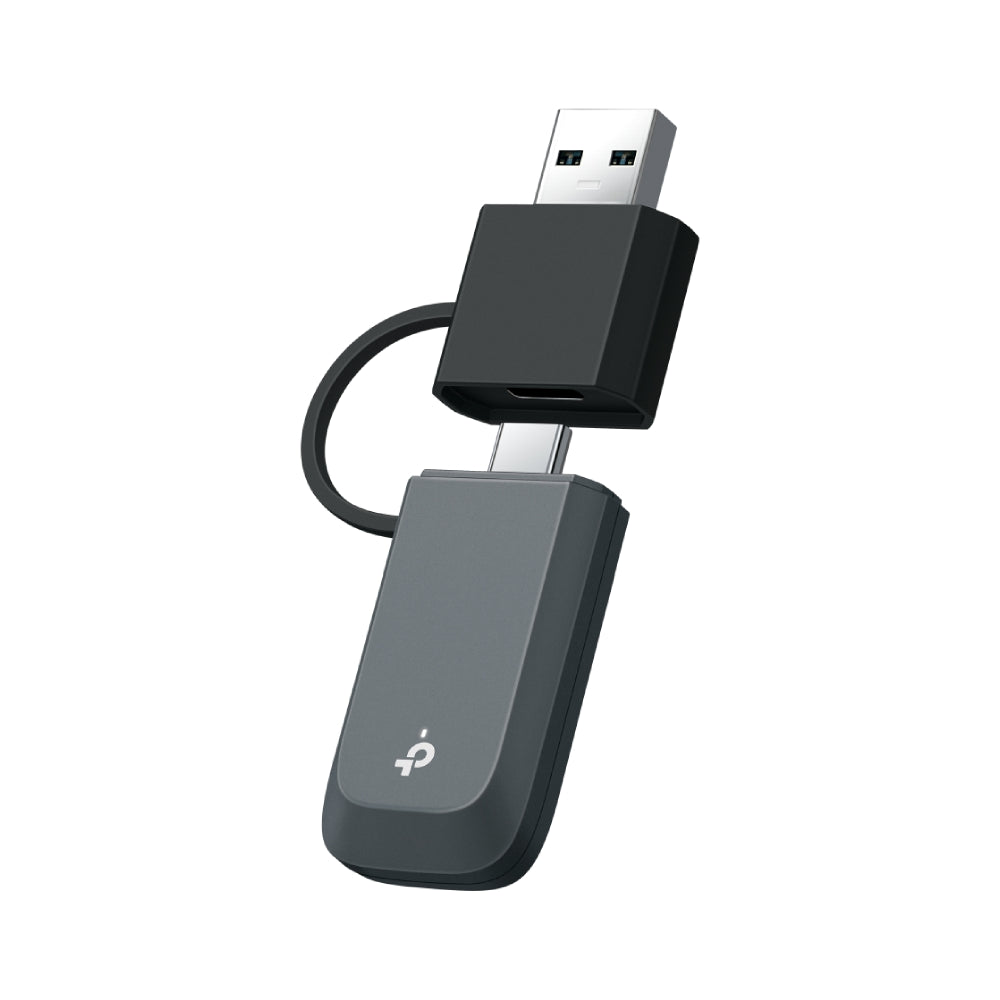

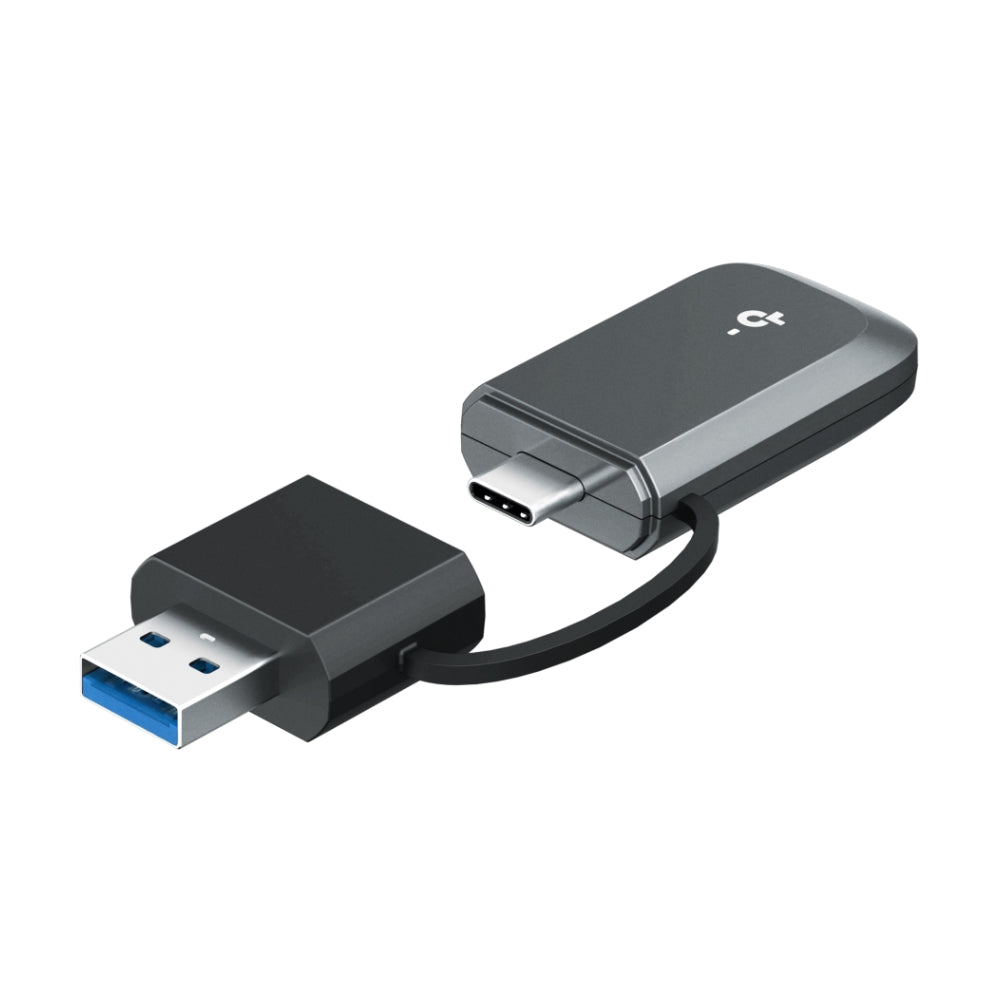

TP-Link Archer TXE70U AXE5400 Tri-Band Wi-Fi 6E USB Adapter
Bring Wi-Fi 6E and the 6 GHz Band to Any Desktop or Laptop
The TP-Link Archer TXE70U is a tri-band AXE5400 Wi-Fi 6E USB adapter that adds 6 GHz band access to any desktop or laptop via USB 3.0. With combined speeds of up to 5400 Mbps across 2.4 GHz, 5 GHz, and 6 GHz, it is the fastest USB Wi-Fi upgrade available for PCs running on older wireless standards.
Description
The 6 GHz band introduced with Wi-Fi 6E is less congested than 2.4 GHz and 5 GHz, delivering lower latency and higher throughput in environments with many wireless devices. The Archer TXE70U unlocks this band for any USB-equipped desktop or laptop, without requiring a PCIe slot or opening the case.
Connecting via USB 3.0, the adapter supports the full suite of Wi-Fi 6 technologies — OFDMA, MU-MIMO, and 1024-QAM — alongside the additional throughput of the 6 GHz band. A high-gain external antenna base provides stronger, more directional signal reception compared to compact dongle-style adapters, making it well suited to larger rooms or environments with significant wireless interference.
Driver installation is required on Windows. The adapter is backward compatible with Wi-Fi 6, 5, and earlier routers and access points.
Key Features
-
Wi-Fi 6E (802.11ax) — Tri-band with 6 GHz support for less congestion and higher throughput
-

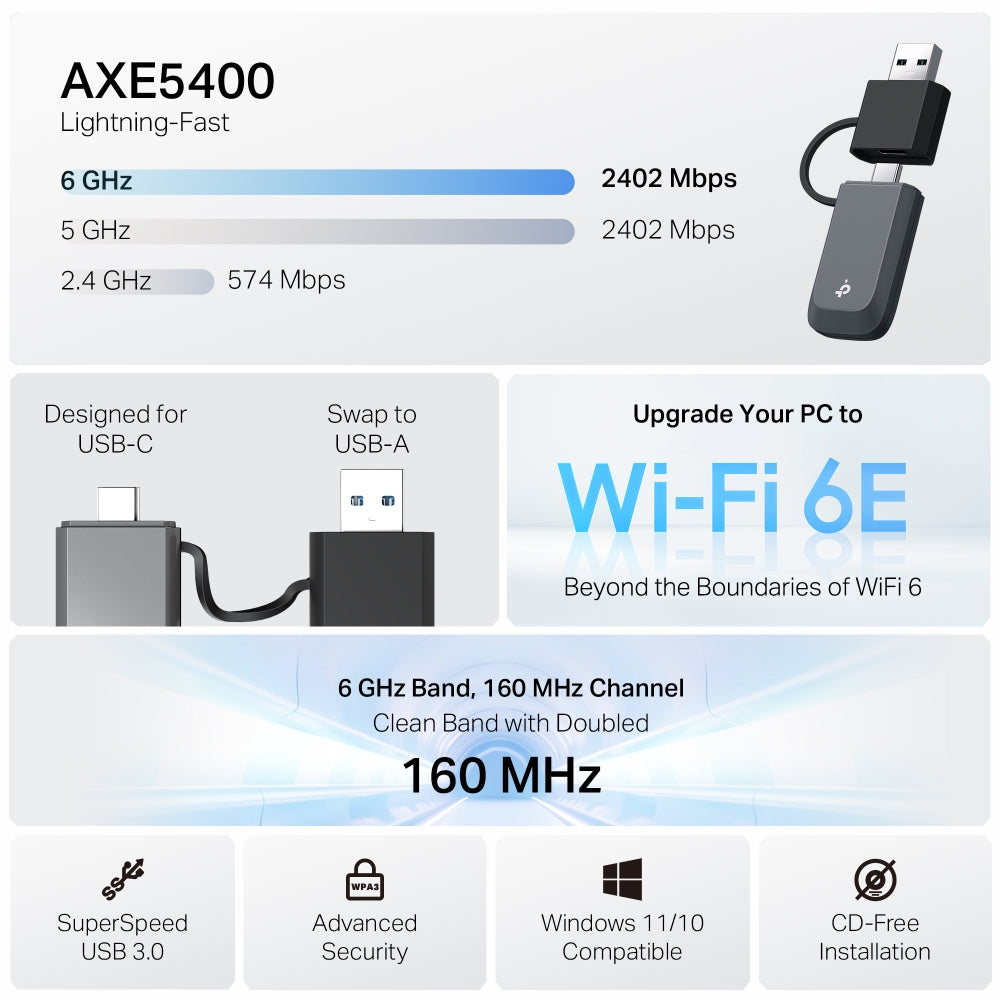

AXE5400 — 2.4 GHz 574 Mbps + 5 GHz 2402 Mbps + 6 GHz 2402 Mbps combined speeds
-
6 GHz Band Access — Exclusive to Wi-Fi 6E and Wi-Fi 7 routers; lower interference and higher performance
-
USB 3.0 Interface — Fast, plug-in connection to any desktop or laptop with a USB-A port
-
High-Gain External Antenna — Adjustable antenna base for stronger, more directional signal reception
-
OFDMA & MU-MIMO — Efficient multi-device communication with reduced congestion
-
1024-QAM — Higher data density for improved real-world throughput
-
WPA3 Security — Latest wireless encryption standard
-
Backward Compatible — Works with Wi-Fi 4, 5, and 6 routers and access points
Use Cases
- Upgrading a desktop PC to Wi-Fi 6E without opening the case or using a PCIe slot
- Adding 6 GHz band access to an older laptop for lower-latency wireless
- Home offices requiring fast, low-latency Wi-Fi for video conferencing and cloud access
- Gamers seeking reduced wireless latency on a desktop PC
- IT installers deploying Wi-Fi 6E clients for testing or network validation
Specifications
| Specification |
Detail |
| Wi-Fi Standard |
IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6E) |
| Wi-Fi Speed |
AXE5400: 2.4 GHz 574 Mbps + 5 GHz 2402 Mbps + 6 GHz 2402 Mbps |
| Bands |
Tri-Band (2.4 GHz / 5 GHz / 6 GHz) |
| Interface |
USB 3.0 |
| Antenna |
High-gain external antenna with adjustable base |
| MU-MIMO |
Yes |
| OFDMA |
Yes (UL/DL) |
| Modulation |
1024-QAM |
| Security |
WPA3, WPA2 |
| OS Compatibility |
Windows 11/10 (64-bit) |
| Operating Temperature |
0°C – 40°C |
| Certifications |
RCM (Australia/NZ) |
| Package Contents |
1× Archer TXE70U adapter, 1× USB 3.0 cable, 1× antenna base, quick installation guide |
Recommended Accessories
-
TP-Link Archer BE700 or Deco BE65 — Pair with a Wi-Fi 6E or Wi-Fi 7 router to unlock the full 6 GHz band performance
-
USB 3.0 Extension Cable — Reposition the adapter for optimal antenna placement away from the PC case
-
TP-Link Archer TX10E (PCIe) — Alternative internal PCIe Wi-Fi 6 adapter for desktops where a USB port is unavailable
Downloads
Frequently Asked Questions
- Do I need a Wi-Fi 6E router to use the Archer TXE70U?
- A Wi-Fi 6E or Wi-Fi 7 router is required to access the 6 GHz band. The adapter is backward compatible with Wi-Fi 6, 5, and 4 routers, but 6 GHz speeds and reduced congestion are only available when connected to a Wi-Fi 6E or Wi-Fi 7 access point.
- Is the Archer TXE70U compatible with macOS?
- The Archer TXE70U officially supports Windows 10 and Windows 11 (64-bit) only. macOS compatibility is not guaranteed and is not supported by TP-Link. For macOS users, a PCIe adapter or a router with built-in macOS driver support may be a better option.
- Can I use the adapter with a USB 2.0 port?
- The adapter uses a USB 3.0 interface for maximum throughput. It may function in a USB 2.0 port, but speeds will be significantly limited by the USB 2.0 bandwidth ceiling of 480 Mbps. A USB 3.0 port is strongly recommended to realise Wi-Fi 6E performance.
- What is the advantage of the 6 GHz band in Australia?
- The 6 GHz band was approved for unlicensed Wi-Fi use in Australia and is currently far less congested than 2.4 GHz and 5 GHz. This means lower interference, more available channels, and higher consistent throughput — particularly in apartments, offices, and dense suburban environments.
- Does the TXE70U support Wi-Fi 7?
- No. The Archer TXE70U is a Wi-Fi 6E adapter and does not support Wi-Fi 7 features such as Multi-Link Operation (MLO) or 4K QAM. For Wi-Fi 7 USB connectivity, consider the TP-Link Archer TBE400U Plus.
