Description
Next-Generation Wi-Fi 6 Speed and Coverage for the Whole Home

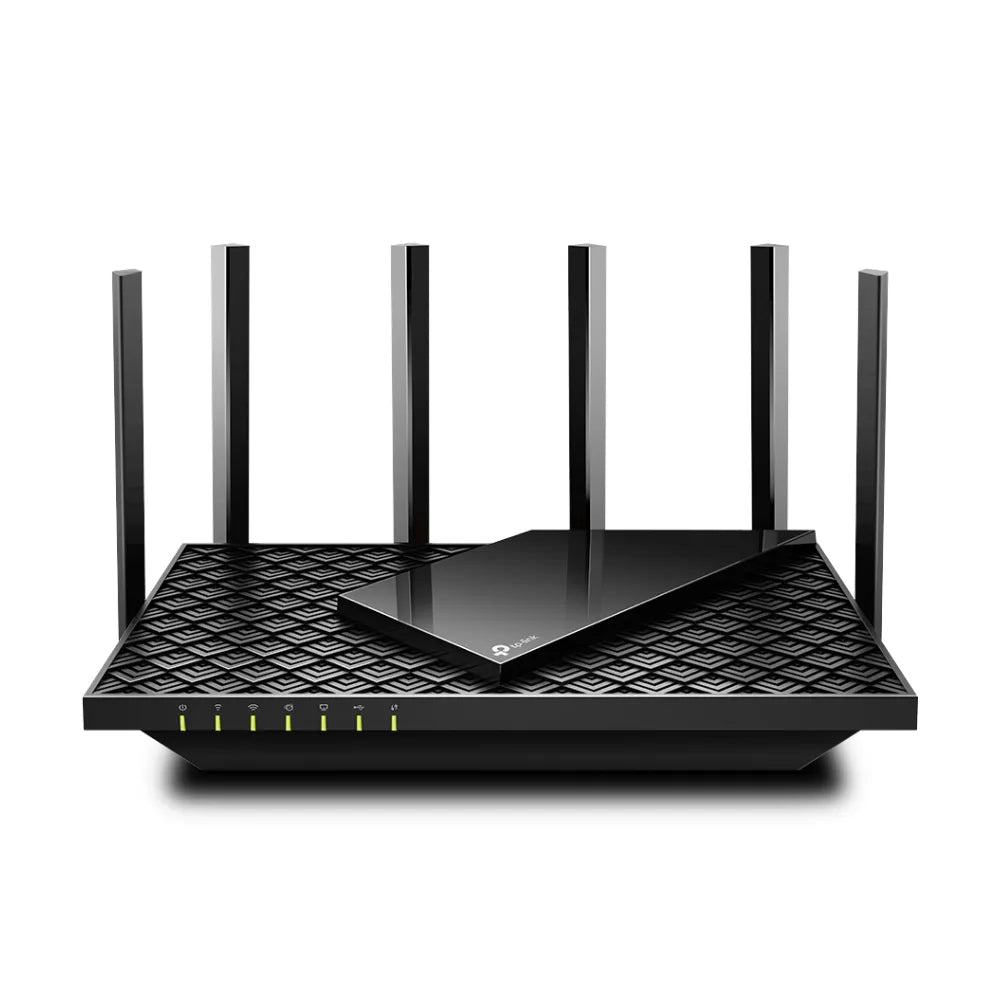

The TP-Link Archer AX72 is an AX5400 dual-band Wi-Fi 6 router built for households that demand fast, reliable wireless connectivity across multiple devices. With combined speeds of up to 5400 Mbps, support for 200+ simultaneous connections, and TP-Link HomeShield security, the AX72 is a significant upgrade for any home or small office network on NBN or fibre.
Key Features
-
AX5400 Wi-Fi 6 — 4804 Mbps on 5 GHz (HE160) + 574 Mbps on 2.4 GHz for combined speeds up to 5400 Mbps
-
4T4R + HE160 — top-tier Wi-Fi 6 structure for maximum 5 GHz throughput and range
-
MU-MIMO & OFDMA — simultaneously serves multiple devices, reducing congestion and quadrupling average throughput
-
Connect 200+ Devices — ideal for smart homes with many concurrent Wi-Fi clients
-
6× Fixed High-Performance Antennas — with Beamforming to concentrate signal towards connected devices
-
HomeShield Security — TP-Link’s premium network and IoT protection suite, including parental controls and real-time threat detection
-

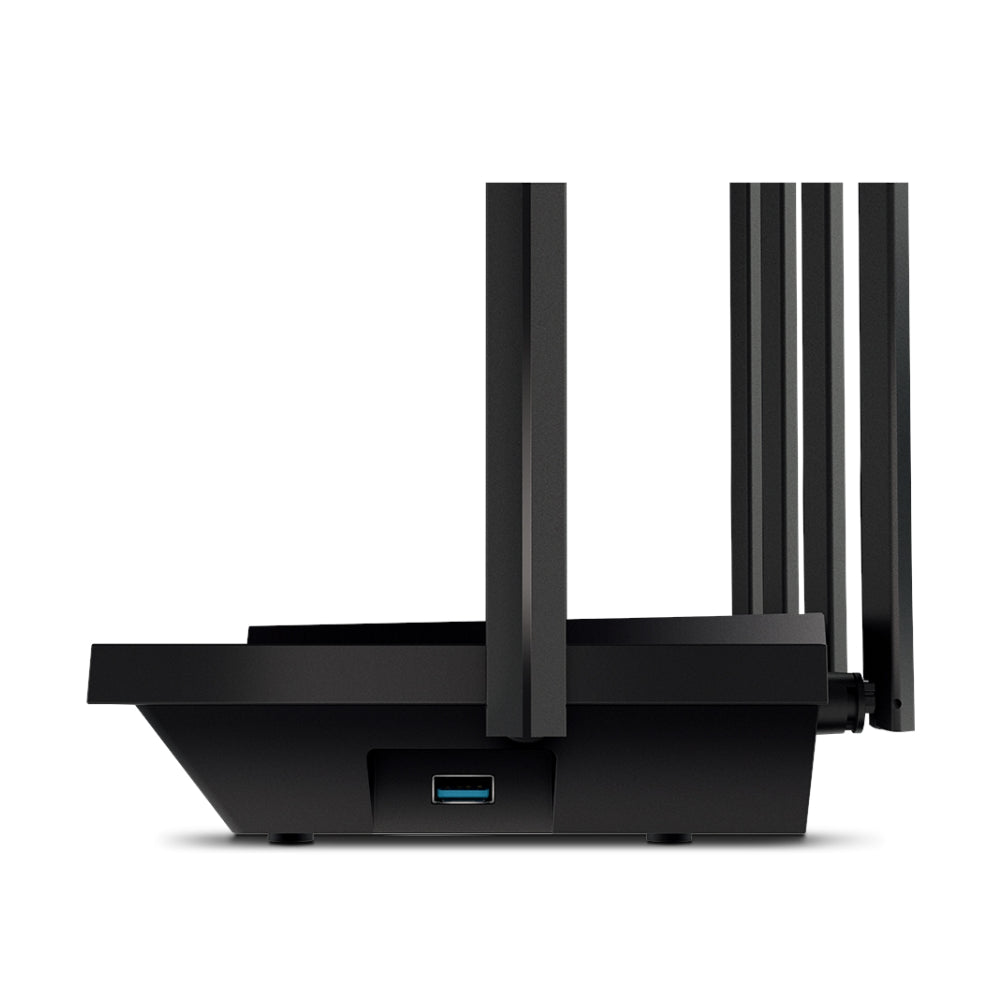

1× USB 3.0 Port — share storage devices or build a private cloud across your network
-
DFS Support — accesses additional 5 GHz channels to reduce wireless congestion
-
Easy Setup — configure in minutes via the TP-Link Tether app
Typical Use Cases
- High-speed NBN or fibre home networking for 3-bedroom houses and larger
- 4K/8K streaming and online gaming with low latency
- Smart home hubs managing 50+ IoT devices simultaneously
- Home offices requiring fast, stable Wi-Fi for video conferencing and large file transfers
- USB network-attached storage (NAS) for media sharing across the home
Technical Specifications
| Specification |
Detail |
| Model |
Archer AX72 |
| Wi-Fi Standard |
Wi-Fi 6 (IEEE 802.11ax/ac/n/a 5GHz, 802.11ax/n/b/g 2.4GHz) |
| Wi-Fi Speed |
AX5400: 4804 Mbps (5GHz, HE160) + 574 Mbps (2.4GHz) |
| Antennas |
6× Fixed High-Performance External Antennas |
| MIMO |
4×4 MU-MIMO |
| OFDMA |
Supported (2.4GHz & 5GHz) |
| WAN Port |
1× Gigabit WAN |

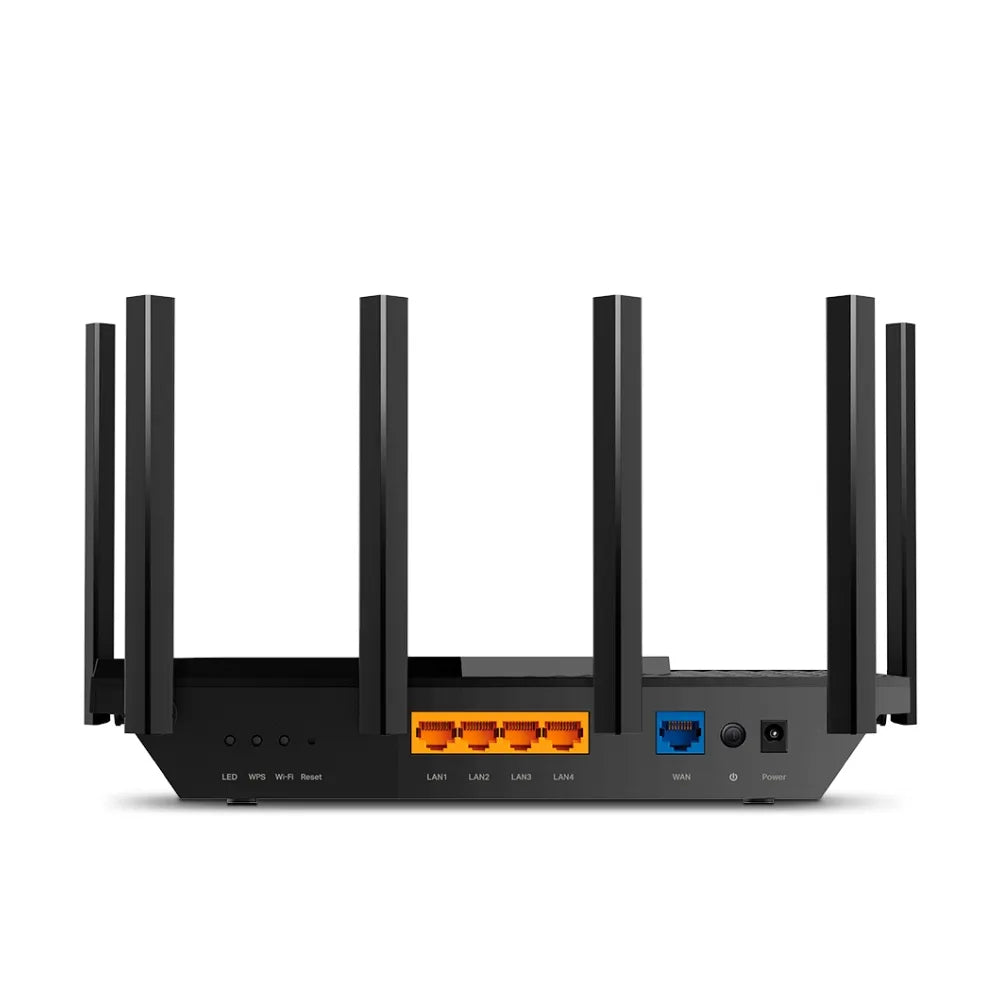

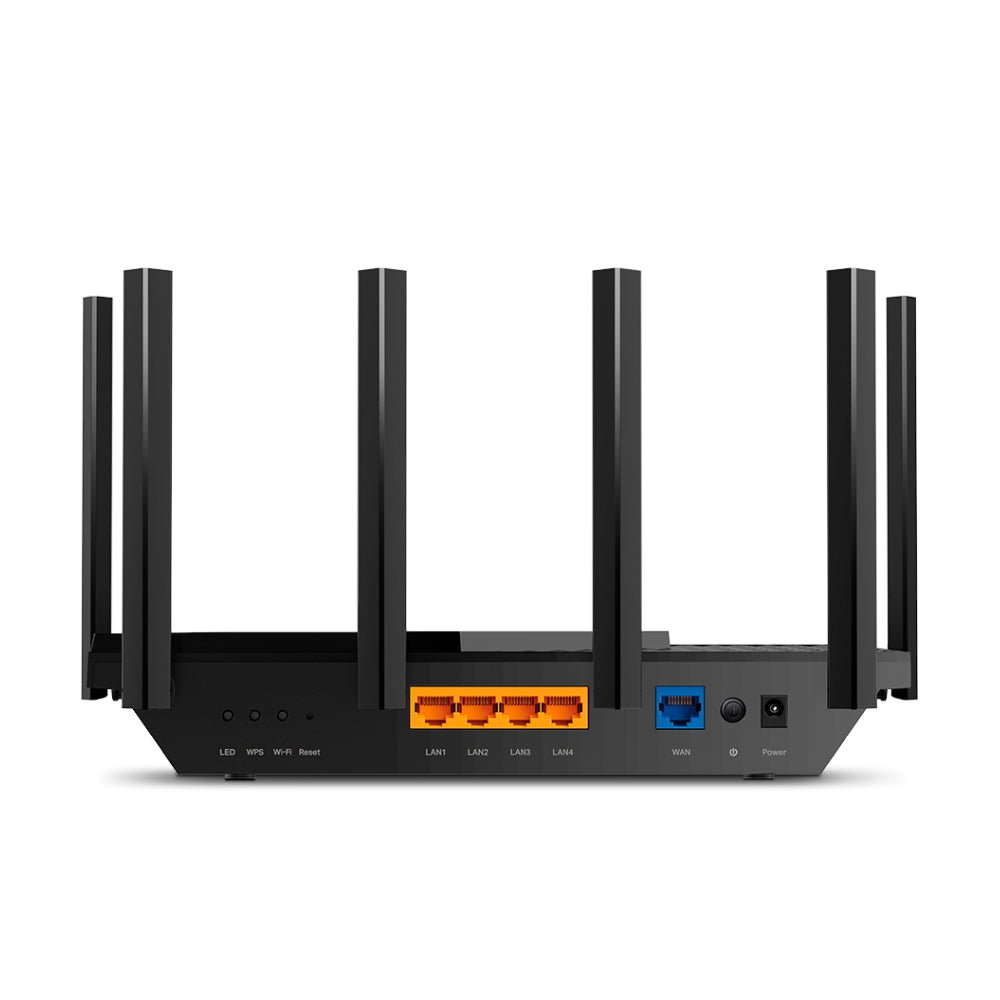

| LAN Ports |
4× Gigabit LAN |
| USB |
1× USB 3.0 |
| Operating Modes |
Router Mode, Access Point Mode |
| Security |
WPA/WPA2/WPA3, HomeShield, SPI Firewall, Guest Network |
| Management |
TP-Link Tether App, Web Interface |
| Certifications |
CE, FCC, RoHS |
| Warranty |
3 Years |
Frequently Asked Questions
- Is the Archer AX72 compatible with Australian NBN connections?
- Yes. The AX72 supports PPPoE, Dynamic IP, and Static IP WAN types, covering all NBN connection methods including FTTP, FTTC, FTTN, and HFC. Connect it directly to your NBN modem or gateway via the Gigabit WAN port.
- What is the difference between Wi-Fi 6 and Wi-Fi 5 (AC)?
- Wi-Fi 6 (802.11ax) delivers faster speeds, lower latency, and significantly better performance in environments with many connected devices compared to Wi-Fi 5 (802.11ac). Technologies like OFDMA and MU-MIMO allow the AX72 to serve multiple devices simultaneously rather than sequentially.
- Do I need Wi-Fi 6 devices to benefit from the Archer AX72?
- No. The AX72 is backwards compatible with Wi-Fi 5, Wi-Fi 4, and older devices. However, the full speed and efficiency benefits of Wi-Fi 6 are only realised when connecting Wi-Fi 6-capable devices.
- What is HomeShield and is it free?
- HomeShield is TP-Link’s network security platform offering parental controls, IoT device protection, and real-time threat detection. Basic features are free; advanced features require a HomeShield Pro subscription.
- Can I use the USB 3.0 port for network storage?
- Yes. You can connect a USB hard drive or flash drive to the USB 3.0 port and share it across your network as a basic NAS (Network Attached Storage) device, accessible via the Tether app or web interface.
