TOSHIBA DT02-V SERIES · PURPOSE-BUILT FOR 24/7 SURVEILLANCE
Reliable Storage for CCTV and NVR Recording
The Toshiba DT02-V Series is engineered for continuous video surveillance in home, retail and commercial security systems. Available in 2TB, 4TB and 6TB, every model combines quiet 5400 RPM operation, a 128 MiB buffer and support for up to 32 high-definition camera streams.
Available Capacities
2TB · 4TB · 6TB
Recording Profile
24/7 Surveillance
Camera Support
Up to 32 HD Streams
Workload Rating
180 TB per Year
Choose Your Capacity

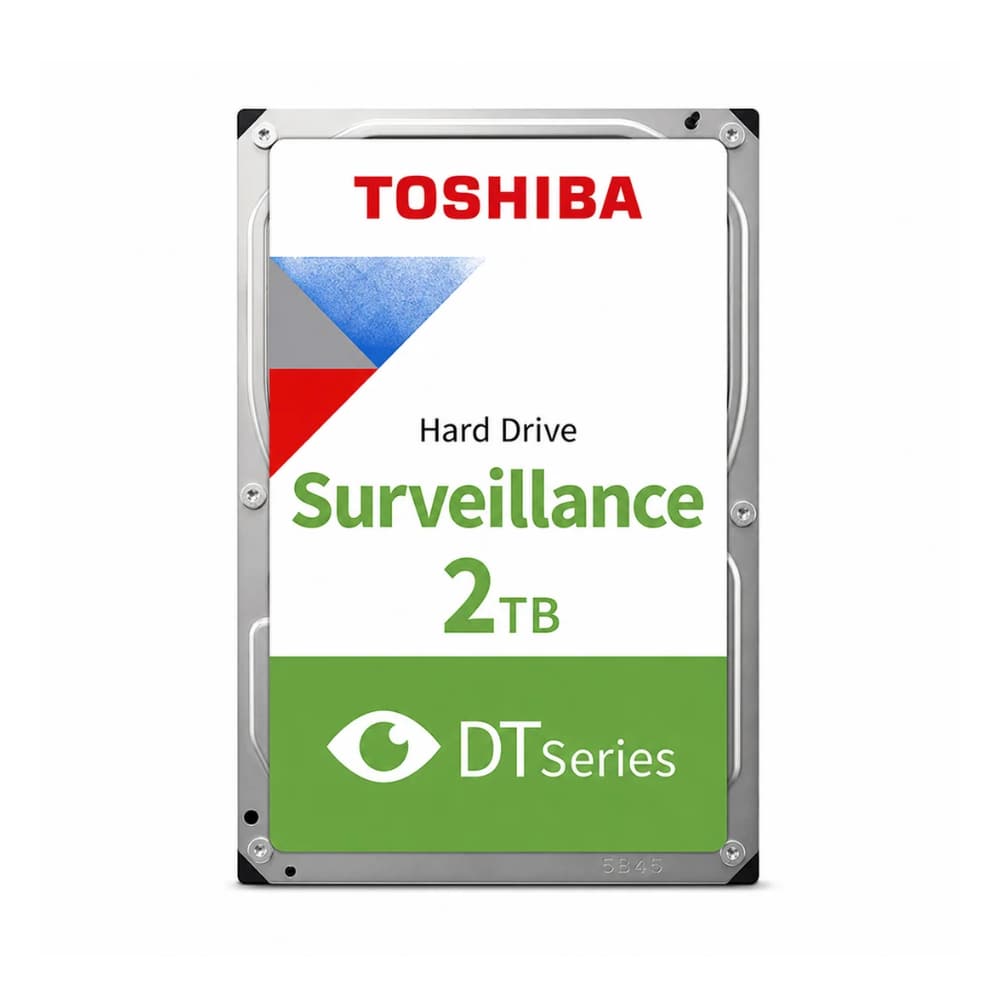

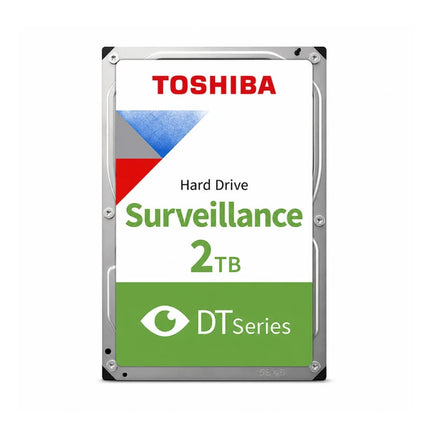

2TB — DT02ABA200VIdeal for compact CCTV systems, motion-based recording and shorter retention requirements.
4TB — DT02ABA400VA balanced choice for multi-camera home and small-business systems requiring more recording history.

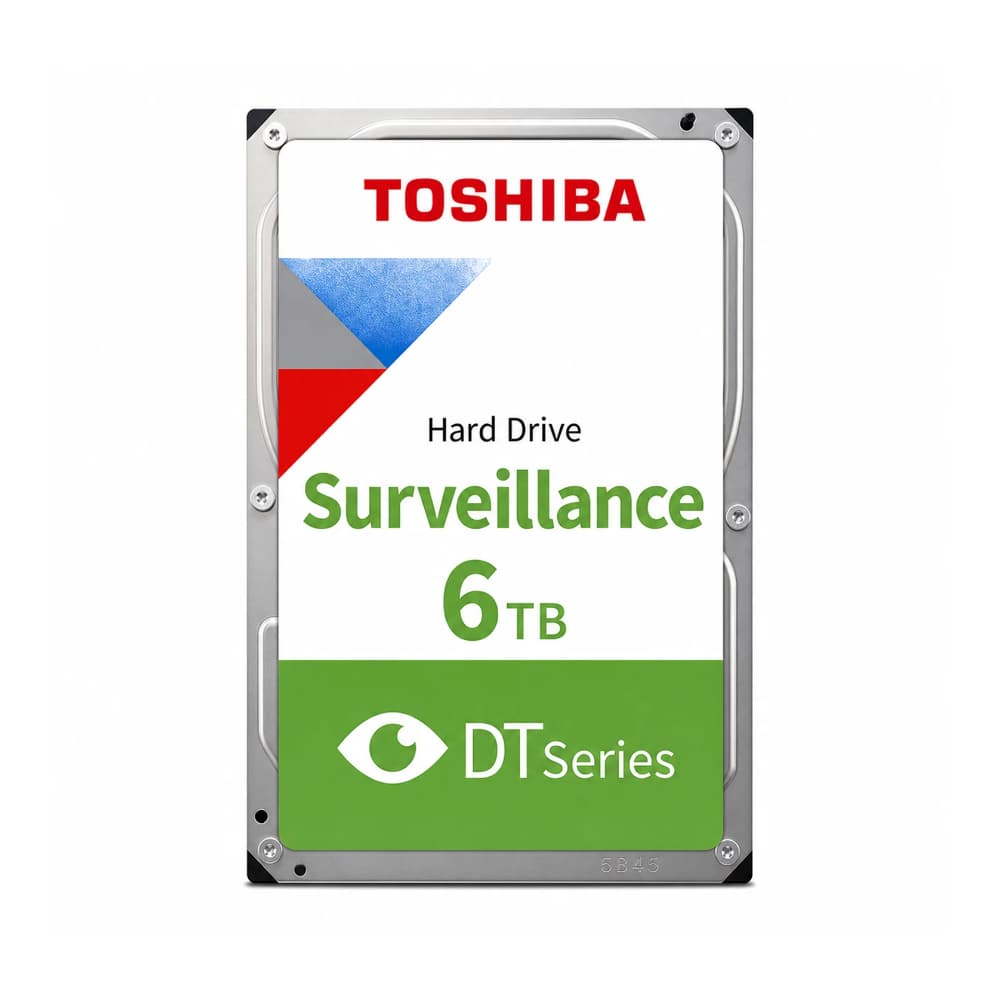

6TB — DT02ABA600VExtended capacity for higher camera counts, higher resolutions and longer footage retention.
DT02-V Technical Specifications
| Capacities / Models |
2TB DT02ABA200V · 4TB DT02ABA400V · 6TB DT02ABA600V |
| Form Factor / Interface |
3.5-inch · SATA 6 Gbit/s |
| Rotational Speed |
5400 RPM |
| Buffer |
128 MiB |
| Maximum Sustained Transfer |
176.4 MiB/s |
| Recording Support |
Up to 32 HD camera streams |
| Workload Rating |
180 TB/year |
| Reliability |
1,000,000-hour MTTF · 0.88% AFR |
| Recording Technology |
Drive-managed SMR · Advanced Format 512e |
| Operating Temperature |
0°C to 60°C ambient |
Designed Around Surveillance Workloads
Unlike a standard desktop drive, the DT02-V family is tuned for always-on, write-intensive video recording. Its 3.5-inch SATA format makes it suitable for compatible DVR and NVR recorders, while efficient power use and low acoustic output support quiet installations.
Will it work with my recorder?The drives use a standard 3.5-inch SATA connection. Check your DVR or NVR documentation for its maximum supported capacity before ordering.
How much storage do I need?Retention varies with camera count, resolution, frame rate, compression, recording schedule and scene activity. Select a larger capacity when longer retention is required.
Does every capacity support 32 cameras?Toshiba rates the DT02-V Series for up to 32 HD camera streams. Actual capability depends on recorder configuration and stream bitrate.
Is this suitable for continuous recording?Yes. The DT02-V Series is specified for 24/7 surveillance operation and a workload of up to 180 TB per year.
Genuine Toshiba DT02-V Models
24/7 Surveillance Storage
Australia-Wide Delivery
Specifications are based on Toshiba DT02-V Series Product Overview, Rev. 03 (September 2020). Capacity support and recording performance depend on the connected surveillance system.
