Description

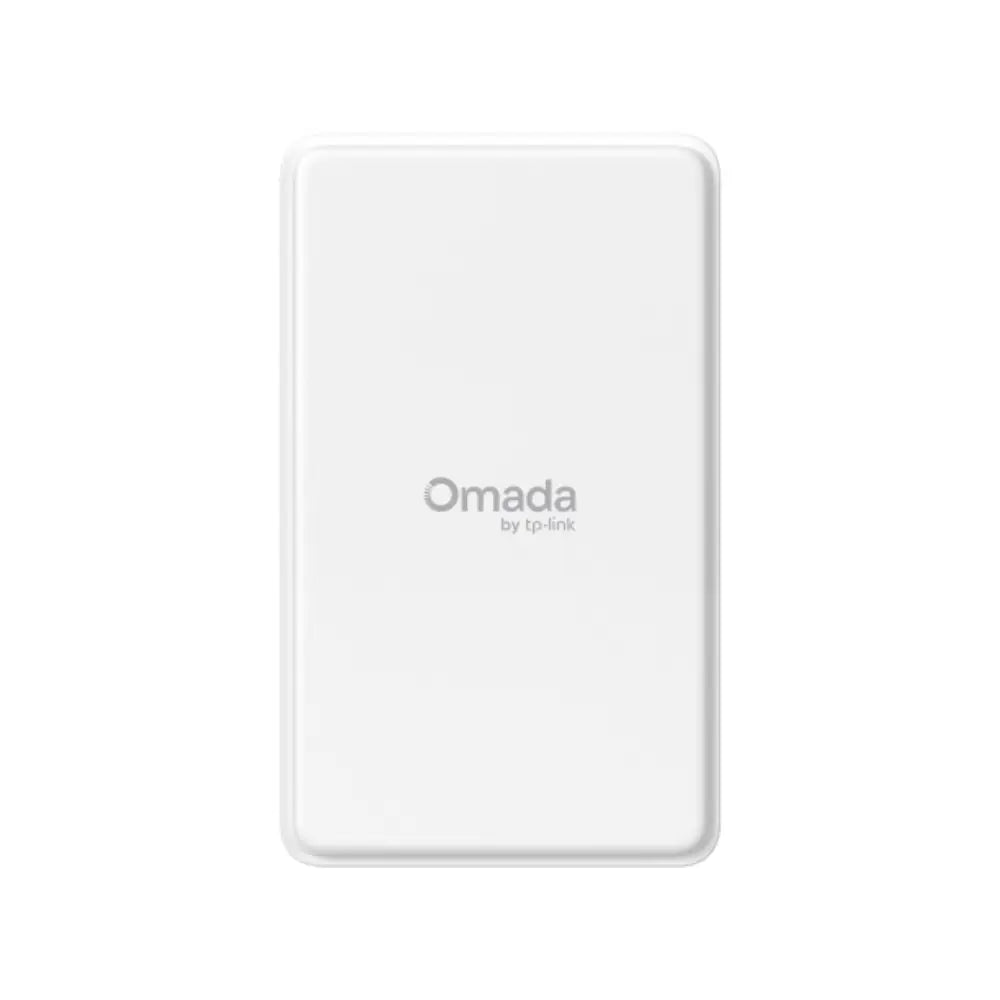

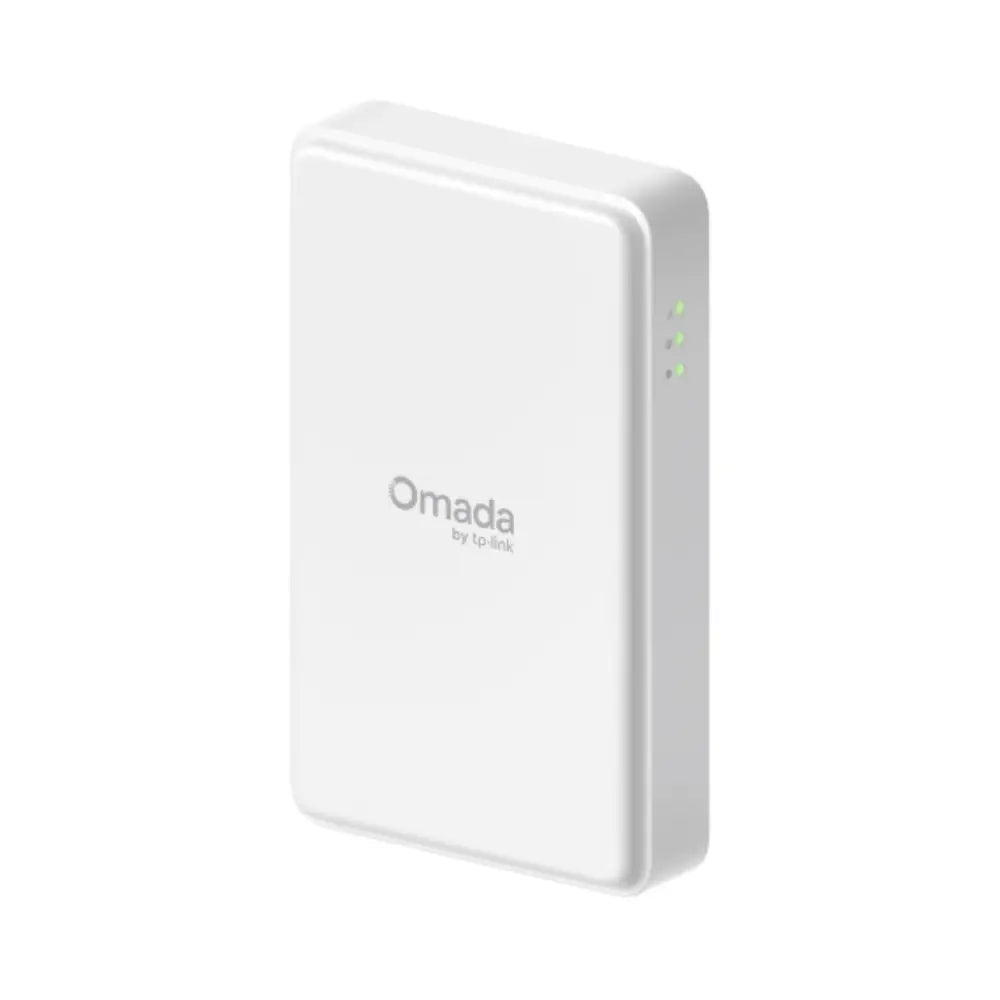

Omada ER701-5G Outdoor 5G Router
Business-Grade 5G Connectivity Built for the Outdoors
The TP-Link Omada ER701-5G is a ruggedised outdoor 5G router engineered for demanding environments where reliable, high-speed connectivity is non-negotiable. Whether you're deploying at a remote worksite, securing a car park, or extending network coverage to an outdoor venue, the ER701-5G delivers enterprise-grade performance in a weatherproof enclosure — without the need for an indoor equipment room.
Key Features
-
5G Sub-6GHz & 4G LTE Failover — Dual-SIM support with automatic WAN failover keeps your network online even when one carrier drops out.
-
IP67 Weatherproof Enclosure — Fully dust-tight and protected against temporary water immersion; built to withstand harsh Australian outdoor conditions.
-
PoE Powered (802.3bt) — Single-cable installation via PoE eliminates the need for a separate power run to the mounting location.
-
Omada SDN Integration — Centralised cloud or on-premises management via the Omada Software Defined Networking platform for multi-site deployments.
-
Dual-SIM with Auto Failover — Insert SIM cards from two different carriers for seamless redundancy and load balancing.
-
Integrated 5G Antennas — High-gain internal antennas optimised for Sub-6GHz 5G bands to maximise signal strength in the field.
-
VPN Support — Supports IPsec, OpenVPN, L2TP, and PPTP for secure remote access and site-to-site tunnels.
-
Gigabit WAN/LAN Ports — Wired fallback and local network connectivity via integrated Gigabit Ethernet.
Ideal Use Cases
- Remote construction sites and mining operations requiring temporary or permanent 5G WAN connectivity
- Outdoor CCTV and surveillance networks needing a ruggedised backhaul router
- Car parks, stadiums, and public spaces with no existing fibre or cable infrastructure
- Retail kiosks, pop-up events, and temporary deployments
- Multi-site business networks managed centrally via Omada SDN
- Failover WAN for critical business locations where downtime is unacceptable
Technical Specifications
| Specification |
Detail |
| Model |
ER701-5G |
| Cellular Standard |
5G Sub-6GHz, 4G LTE, 3G |
| SIM Slots |
2 × Nano-SIM (Dual-SIM with failover) |
| WAN Ports |
1 × Gigabit Ethernet (PoE In) |
| LAN Ports |
1 × Gigabit Ethernet |
| Power Input |
802.3bt PoE (PoE++) |
| IP Rating |
IP67 |
| Operating Temperature |
-30°C to 60°C |
| VPN Support |
IPsec, OpenVPN, L2TP, PPTP |
| Management |
Omada App, Omada Cloud, Omada Software Controller |
| Mounting |
Pole mount / Wall mount (hardware included) |
| Certifications |
CE, RoHS, RCM (Australia/NZ) |
Official Product Video
Watch the official TP-Link Omada ER701-5G overview to see how it integrates into an Omada SDN deployment:
View on YouTube — TP-Link Omada ER701-5G
Recommended Accessories
-
Omada PoE++ Switch (e.g. TL-SG2210MP) — Provides 802.3bt PoE power to the ER701-5G over a single Ethernet cable.
-
Omada Hardware Controller (OC300) — On-premises SDN controller for managing multiple Omada devices without cloud dependency.
-
Omada Access Points (e.g. EAP670-Outdoor) — Extend Wi-Fi coverage outdoors using the same Omada SDN ecosystem.
-
Outdoor-rated Cat6 Cable — UV-stabilised, direct-burial rated cable for reliable PoE runs to the mounting location.
Downloads
Frequently Asked Questions
Does the ER701-5G work with Australian 5G networks?
Yes. The ER701-5G supports Sub-6GHz 5G bands compatible with major Australian carriers including Telstra, Optus, and TPG. Always confirm specific band compatibility with your carrier before deployment.
Does it need a separate power supply?
No. The ER701-5G is powered via 802.3bt PoE (PoE++) over the Ethernet cable, so a single Cat6 run from a compatible PoE++ switch or injector is all that's needed at the mounting point.
Can I manage multiple ER701-5G units from one dashboard?
Yes. The ER701-5G integrates with the Omada SDN platform, allowing centralised management of multiple sites and devices via the Omada Cloud portal, Omada Software Controller, or the OC300 hardware controller.
What is the IP67 rating?
IP67 means the enclosure is fully dust-tight (6) and protected against temporary immersion in water up to 1 metre for 30 minutes (7). It is suitable for outdoor installation in Australian weather conditions including rain and dust.
Does it support VPN for remote access?
Yes. The ER701-5G supports IPsec, OpenVPN, L2TP, and PPTP VPN protocols, making it suitable for secure remote access and site-to-site connectivity.
What's the difference between the two SIM slots?
The dual-SIM design allows you to insert SIM cards from two different carriers. The router can be configured for automatic failover — if the primary SIM loses connectivity, traffic switches to the secondary SIM seamlessly.
