Description

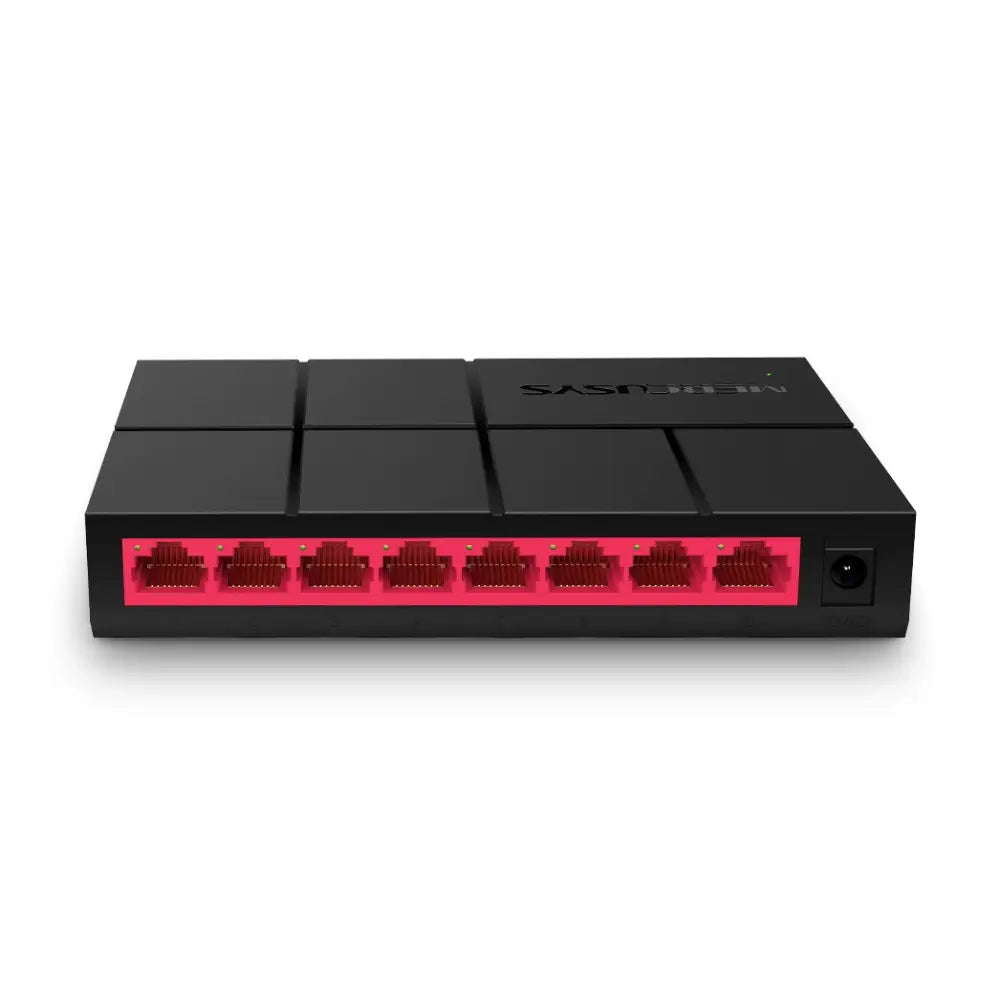

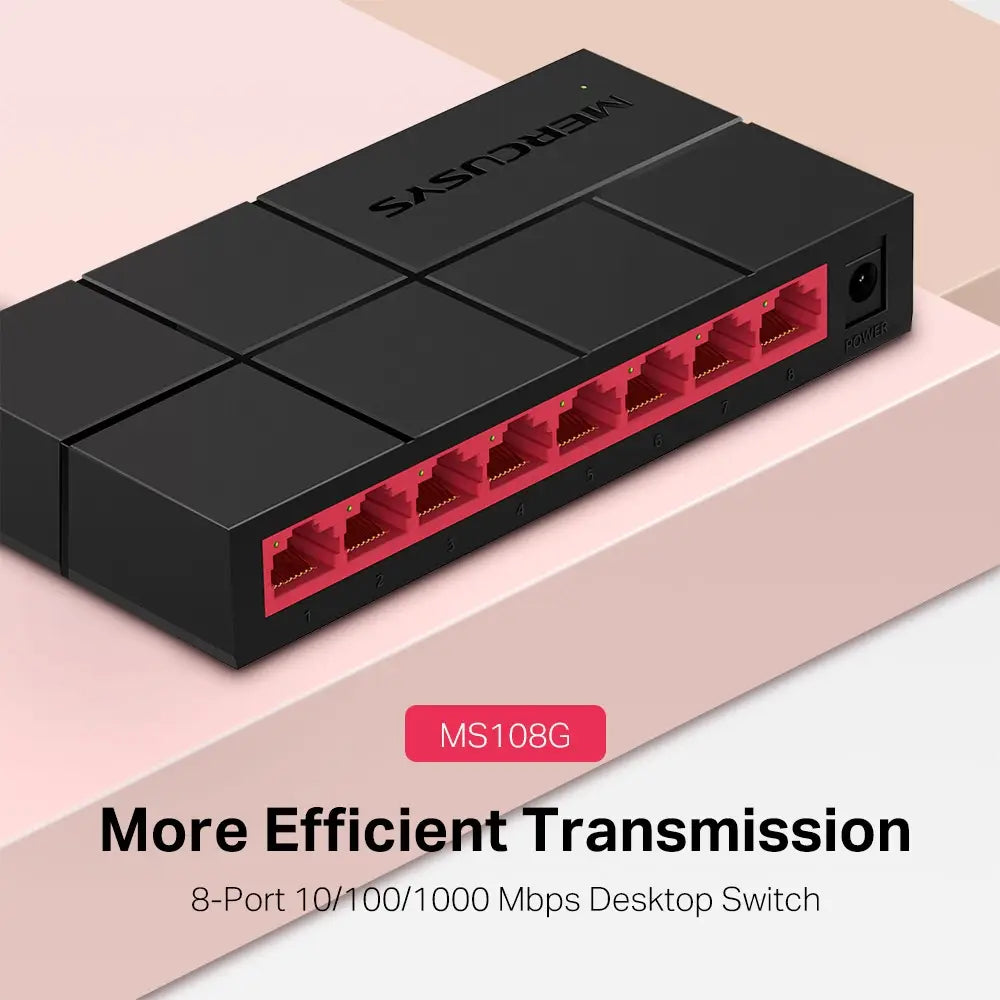

Mercusys MS108G 8-Port Gigabit Desktop Switch
Instant Gigabit Network Expansion — Plug In and Go
The Mercusys MS108G is a compact, plug-and-play 8-port Gigabit desktop switch that instantly expands your wired network with no configuration required. With eight 10/100/1000 Mbps auto-negotiation ports, Green Ethernet power-saving technology, and a smartphone-sized form factor, it’s the straightforward choice for adding wired Gigabit connectivity to homes, small offices, and study spaces across Australia.
Key Features
- 8 × 10/100/1000 Mbps Gigabit RJ45 ports with Auto-Negotiation and Auto MDI/MDIX
- Plug-and-play — no configuration, no software, no setup required
- Green Ethernet technology — automatically adjusts power consumption based on link status and cable length, saving up to 82% energy
- Compact desktop form factor — approximately smartphone-sized at 127 × 60.3 × 22 mm
- Store-and-forward switching for reliable, error-free data transmission
- 9 KB Jumbo Frame support for large data transfers
- Compatible with 4K TVs, computers, printers, IP cameras, gaming consoles, and more
Use Cases
-
Home Networks: Add 8 wired Gigabit ports to your router or modem to connect smart TVs, gaming consoles, desktop PCs, and NAS devices simultaneously.
-
Small Offices: Quickly expand a wired network at a desk or workstation cluster without any IT configuration.
-
IP Camera Installations: Provide wired Gigabit connections for IP cameras or NVRs in small surveillance setups where PoE is not required.
-
Student Accommodation: Compact size and plug-and-play operation make it ideal for dorm rooms or shared living spaces.
-
Home Entertainment: Connect multiple media devices in a lounge or entertainment room to a single wired Gigabit network.
Specifications
| Specification |
Detail |
| Model |
MS108G |
| Ports |
8 × 10/100/1000 Mbps RJ45 (Auto-Negotiation, Auto MDI/MDIX) |
| Data Rates |
10/100/1000 Mbps half-duplex; 20/200/2000 Mbps full-duplex |
| Transfer Method |
Store and Forward |
| Buffer Capacity |
64 KB |
| Jumbo Frame |
9 KB |
| Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, CSMA/CD |
| Power Supply |
External adapter — 9 V / 0.6 A |
| Green Ethernet |
Yes — up to 82% power saving |
| Dimensions (W × D × H) |
127 × 60.3 × 22 mm |
| Weight |
0.24 kg |
| Configuration |
Plug-and-play — none required |
Frequently Asked Questions
Does the MS108G require any setup or software?
No. Simply connect the switch to your router or modem via an Ethernet cable, plug in the power adapter, and connect your devices. No software, login, or configuration is required.
Can I use the MS108G to connect IP cameras?
Yes, for cameras that use their own power supply (non-PoE). The MS108G does not supply Power over Ethernet — if you need to power cameras via the network cable, consider a PoE switch such as the TP-Link TL-SG105PE or TL-SG2210MP.
Is the MS108G compatible with my existing router?
Yes. The MS108G is a standard unmanaged Gigabit switch compatible with any router, modem, or network device with an Ethernet port, regardless of brand or ISP.
What does Green Ethernet do?
Green Ethernet automatically detects the cable length and link status of each port and reduces power output accordingly. Ports with shorter cables or no active connection use significantly less power — saving up to 82% compared to standard switches.
Can I stack or daisy-chain multiple MS108G switches?
Yes. You can connect multiple unmanaged switches together to expand your network further. Connect one port on the second switch to a port on the first switch via Ethernet. Note that each additional switch hop adds a small amount of latency.
