IDIS DIRECTCX SERIES · NDAA & TAA COMPLIANT
Enterprise-Grade HD Analog Surveillance Infrastructure

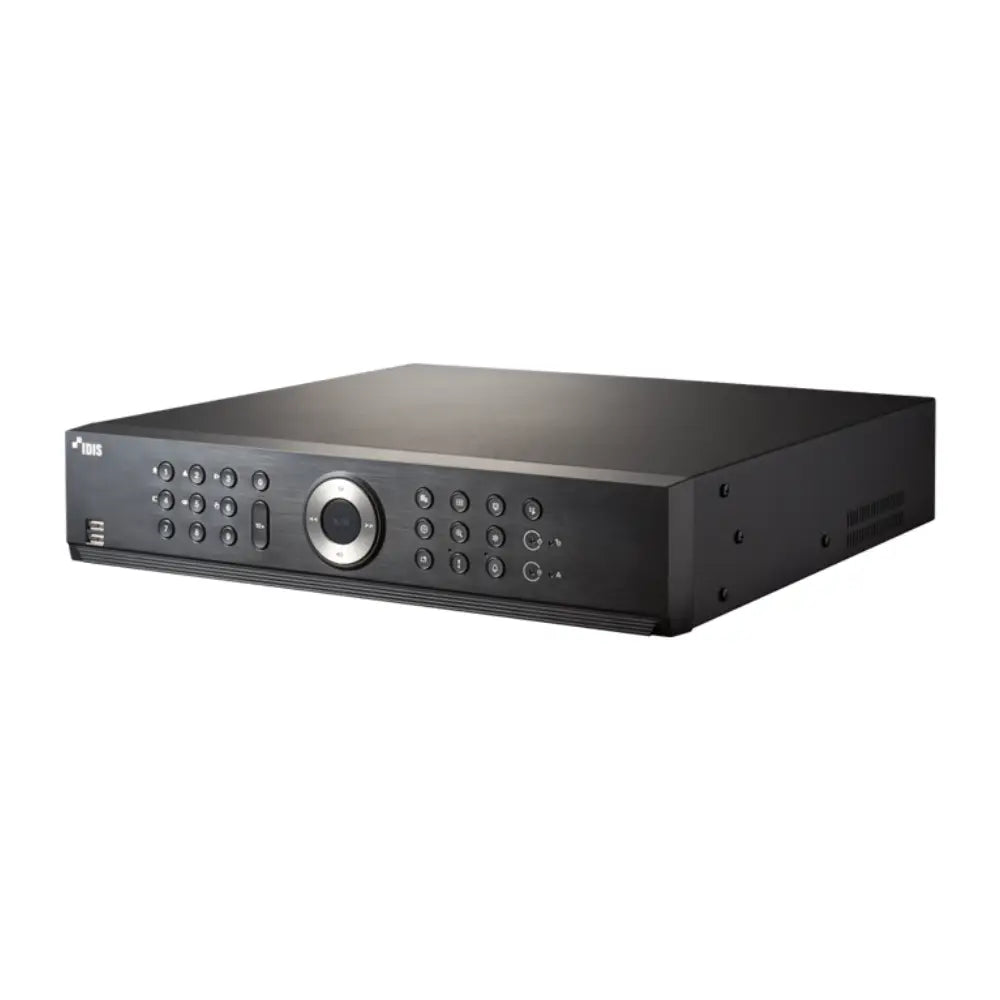

The IDIS TR-4516-4TB is a high-performance 16-channel digital video recorder built on the proprietary DirectCX framework, engineered to transition traditional legacy coax infrastructure into high-density, high-definition surveillance assets. Optimally deployed in high-security commercial applications such as corporate campuses, multi-site retail banking operations, and expansive logistics fulfillment nodes, this enterprise recorder seamlessly processes multi-standard HD-TVI, AHD, and legacy CVBS signaling at up to 5MP resolution. By leveraging advanced video processing, it scales standard coaxial lines to modern security demands without requiring a costly total network overhaul.
Resolution
Up to 5MP Input
Optics/Video
H.265 / 4K UHD Out
Performance
480ips Full HD Rec
Storage / Cyber
4TB (Up to 40TB Max)
Advanced Bandwidth Optimization & Network Configuration
Engineered for maximum operational efficiency, the IDIS TR-4516-4TB integrates Intelligent Codec H.265 data compression. This significantly mitigates storage costs and external WAN bandwidth constraints while retaining pristine, pixel-perfect structural clarity. Security engineers can bypass intricate firewall routing through the native For Every Network (FEN) network configuration service, achieving secure, multi-tenant remote access via an automated one-click protocol mapping. Integrated cybersecurity hardening, synchronous 16-channel playback capability, and robust diagnostic command structures deliver unparalleled long-distance stability across distributed coaxial networks.
Intelligent Codec Storage Efficiency
Combining structural H.265 compression protocols with IDIS Intelligent Codec delivers a massive reduction in bitrates compared to legacy systems. This allows enterprise operators to retain extensive archival periods of multi-megapixel footage across all 16 analog channels without ballooning internal hard-drive costs.
Redundancy Protection & Long Distance Coax Linkage
Supports robust data protection frameworks over exceptionally long transmission links without any sign of degradation. With structural expandability up to 40TB via 4 internal SATA interfaces and 1 external eSATA port, your physical storage framework scales smoothly as coverage specifications or higher resolution demands grow.
Technical Specification Matrix
Camera Model
TR-4516-4TB
Video Inputs
16 BNC Channels
Supported Formats
HD-TVI (5MP, 4MP, 3MP, 1080P, 720P), AHD (5MP, 4MP, 3MP, 1080P, 720P), CVBS (NTSC/PAL)
Video Outputs
1 HDMI (up to 3840 x 2160), 1 VGA, 1 BNC Spot Monitor
Max Display Speed
Up to 480ips (images per second)
Video Compression
H.265, H.264, IDIS Intelligent Codec
Storage Interface
SATA x4 + eSATA x1 (Pre-configured with 4TB Enterprise Storage)
External Interfaces
Gigabit Ethernet x1, 4x RCA Audio In, 1x RCA Audio Out, 16x Alarm In / 4x Relay Out
Power Consumption
100-240V~, 50/60Hz, 1.0-0.5A, 80W Maximum
Does the TR-4516-4TB support modern high-resolution analog formats?
Yes, the unit provides comprehensive multi-standard cross-compatibility, supporting advanced 5MP, 4MP, 3MP, 1080p, and 720p resolutions across both HD-TVI and AHD formats, alongside traditional analog CVBS signals.
What is the maximum recording and display output capacity?
The unit supports input display speeds up to 480ips and features a dedicated Ultra HD 4K HDMI monitor output (3840 x 2160) alongside a supplementary VGA interface for legacy system setups.
Can I scale the physical storage capacity past the base 4TB configuration?
Absolutely. The internal structure is built around 4 dedicated high-speed SATA interfaces alongside an external eSATA storage interface, allowing system administrators to scale archival depth up to 40TB.
Is this unit compliant with government installation parameters?
Yes, the TR-4516-4TB is fully NDAA and TAA compliant, enabling deployment within high-security federal facilities, international airports, and state-backed critical infrastructure environments.
