32-channel Turbo HD · AcuSense · 4 SATA · 4K HDMI
A high-capacity hybrid recorder for serious CCTV upgrades

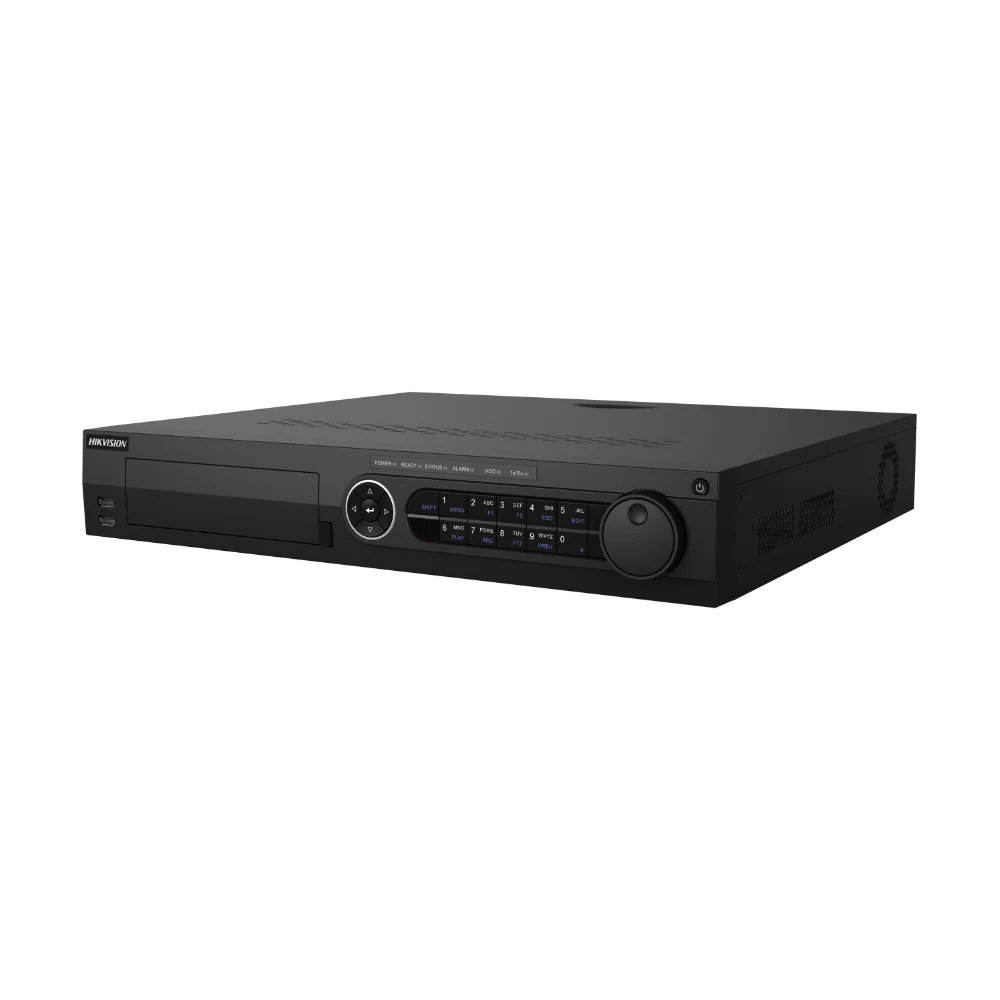

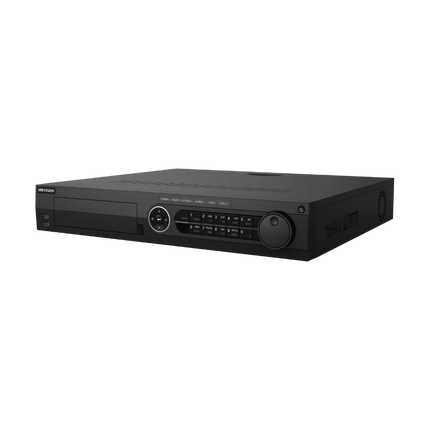

The Hikvision iDS-7332HUHI-M4/S is a 1.5U, 32-channel Turbo HD DVR designed for larger homes, retail sites, schools, warehouses and commercial premises. It accepts up to 32 analogue cameras over BNC/coax, can be expanded for up to 64 IP camera channels, and adds AcuSense human and vehicle filtering to help operators find meaningful events faster.
It is particularly useful when you want to retain an existing coaxial cable network while moving to higher-resolution cameras, smarter event detection and a larger storage platform.
Hybrid expansion
Up to 64 IP channels
Internal storage
4 SATA · up to 48 TB
High-resolution recording
Up to 8 MP
Smart filtering
AcuSense human & vehicle
Main display
Up to 4K HDMI
Hikvision Australia specifications
Official PDFs hosted locally
Australian product support
Before you buy: DVR, not a PoE NVR
- This recorder has 32 BNC inputs for HDTVI, AHD, HDCVI and CVBS cameras.
- It does not include built-in PoE network ports. IP cameras require a separate PoE switch or suitable power supply.
- No hard drives are included unless they are specifically selected or stated in the offer.
- High-resolution analogue frame rates vary: 8 MP records at up to 8 fps, while 5 MP records at up to 12 fps.
Best suited to
Large coaxial CCTV upgrades
Keep existing BNC cabling while upgrading cameras, recording resolution and event search.
Retail and POS monitoring
POS-triggered recording and transaction text overlay can help connect footage with point-of-sale activity.
Schools, warehouses and campuses
Thirty-two analogue inputs, four drive bays and remote access suit sites that need longer retention and broad coverage.
Mixed analogue and IP systems
Use HDTVI, AHD, HDCVI or CVBS cameras alongside compatible IP cameras as the site develops.
Channel capacity explained
The model name refers to its 32 physical analogue inputs. Hikvision also lists 32 IP inputs, expandable to a maximum of 64 IP channels. Actual mixed-channel configuration and performance depend on enabled analogue channels, camera resolution, bandwidth and recorder settings.
| Capability |
What it supports |
What it means for you |
| Analogue cameras |
32 × BNC |
Direct connection for HDTVI, AHD, HDCVI and CVBS cameras over coax. |
| IP cameras |
32 channels, expandable up to 64 |
Suitable for a staged move towards network cameras; separate network power is required. |
| IP camera resolution |
Up to 12 MP |
Higher-resolution IP cameras can be added within the recorder's bandwidth limits. |
| Network bandwidth |
320 Mbps incoming · 256 Mbps outgoing |
Camera bitrates and remote viewing streams must remain within these limits. |
AcuSense intelligence that reduces search time
Motion Detection 2.0
Human and vehicle classification is enabled by default on all analogue channels, helping reduce alerts caused by rain, animals or vegetation.
Perimeter protection
Human and vehicle analysis is available on up to 16 analogue channels: 1–4, 9–12, 17–20 and 25–28.
Targeted event search
Search recordings by person, vehicle or event type instead of reviewing every motion clip.
POS-linked evidence
Trigger recording from POS events and overlay transaction information where supported by the site configuration.
See Motion Detection 2.0 in action
This official Hikvision overview explains how AcuSense-based human and vehicle filtering can make everyday event review more useful.
Official Hikvision: Introducing Motion Detection 2.0
Technical specifications
Video and audio inputs
| Analogue video inputs |
32 × BNC, coaxitron supported |
| Supported analogue formats |
HDTVI, AHD, HDCVI and CVBS |
| IP video inputs |
32 channels, expandable up to 64 channels |
| IP camera compatibility |
Up to 12 MP; H.265+, H.265, H.264+ and H.264 |
| Audio inputs |
4 × RCA |
| Audio output |
1 × RCA |
| Two-way audio |
1 × independent RCA input |
Recording and playback
| Video compression |
H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 |
| Encoding resolution |
8 MP, 3K, 5 MP, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA and CIF |
| Main-stream frame rates |
8 MP at 8 fps; 3K and 5 MP at 12 fps; 4 MP at 15 fps; 3 MP at 18 fps; 1080p and below at 25 fps (PAL) or 30 fps (NTSC) |
| Video bitrate |
32 Kbps to 10 Mbps |
| Dual stream |
Supported |
| Synchronous playback |
Up to 16 channels |
| Audio codec |
G.711u at 64 Kbps |
Display outputs
| HDMI 1 |
Up to 1920 × 1080 at 60 Hz |
| HDMI 2 |
Up to 3840 × 2160 at 30 Hz |
| VGA |
Up to 1920 × 1080 at 60 Hz |
| Display relationship |
HDMI 1 and VGA are simultaneous; HDMI 2 provides an independent output |
| CVBS output |
1 × BNC; PAL 704 × 576 or NTSC 704 × 480 |
Storage, network and interfaces
| Internal storage |
4 × SATA interfaces |
| Current listed disk capacity |
Up to 12 TB per HDD, up to 48 TB total internal capacity |
| External storage |
1 × eSATA |
| Network ports |
2 × RJ45 10/100/1000 Mbps self-adaptive Ethernet |
| Remote connections |
Up to 128 |
| Network protocols |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF and SNMP |
| Alarm input/output |
16 inputs / 4 outputs |
| Serial interfaces |
RS-232, full-duplex RS-485 and keyboard interface |
| USB |
Front: 2 × USB 2.0; rear: 1 × USB 3.0 |
Power and physical details
| Power supply |
100 to 240 VAC, 50/60 Hz |
| Consumption |
Up to 55 W without hard drives |
| Operating temperature |
-10°C to +55°C |
| Operating humidity |
10% to 90% |
| Dimensions |
440 × 399 × 72 mm |
| Weight |
Up to 7 kg without hard drives |
Frequently asked questions
Is this a 32-channel or 64-channel recorder?It has 32 physical BNC inputs for analogue cameras. Hikvision lists 32 IP inputs, expandable up to 64 IP channels, subject to the recorder's configuration, bandwidth and resolution limits.
Does it power IP cameras through PoE?No. It has two Gigabit Ethernet ports but no built-in PoE switch. IP cameras need a separate PoE switch or suitable power supply.
Does it record 8 MP at real-time frame rates?No. The official maximum is 8 MP at 8 fps. It records 5 MP at up to 12 fps, while 1080p and lower resolutions can reach 25 fps PAL or 30 fps NTSC.
How many hard drives can it take?It has four internal SATA bays. Hikvision Australia's current product page lists up to 12 TB per drive, giving a maximum listed internal capacity of 48 TB.
Is AcuSense available on every analogue channel?Motion Detection 2.0 human and vehicle classification is available on all analogue channels. Perimeter protection supports up to 16 specified analogue channels.
Can it replace an older analogue DVR?Often, yes. It accepts HDTVI, AHD, HDCVI and CVBS inputs, but camera format, resolution, frame rate, power and cabling should be checked before ordering.
Can it show different views on two monitors?Yes. HDMI 2 is independent, while HDMI 1 and VGA display the same output. HDMI 2 supports up to 4K resolution.
Which firmware should I install?Use firmware that explicitly matches the exact iDS-7332HUHI-M4/S model and Australian/Asia region. Do not install European or iDS-7332HUHI-M4/S(S) firmware unless Hikvision support confirms compatibility.
Downloads & resources
These PDFs are sourced from the official Hikvision Australia product page and hosted in Shopify Files for stable access. The live Australian product page currently lists up to 12 TB per drive; older documents may show an earlier storage limit.
Need help sizing storage?
Tell us your camera count, recording resolution, frame rate and required retention period. We can help estimate suitable surveillance-grade hard-drive capacity before you order.
