Hikvision AX PRO · Wireless Wall Switch · 433MHz

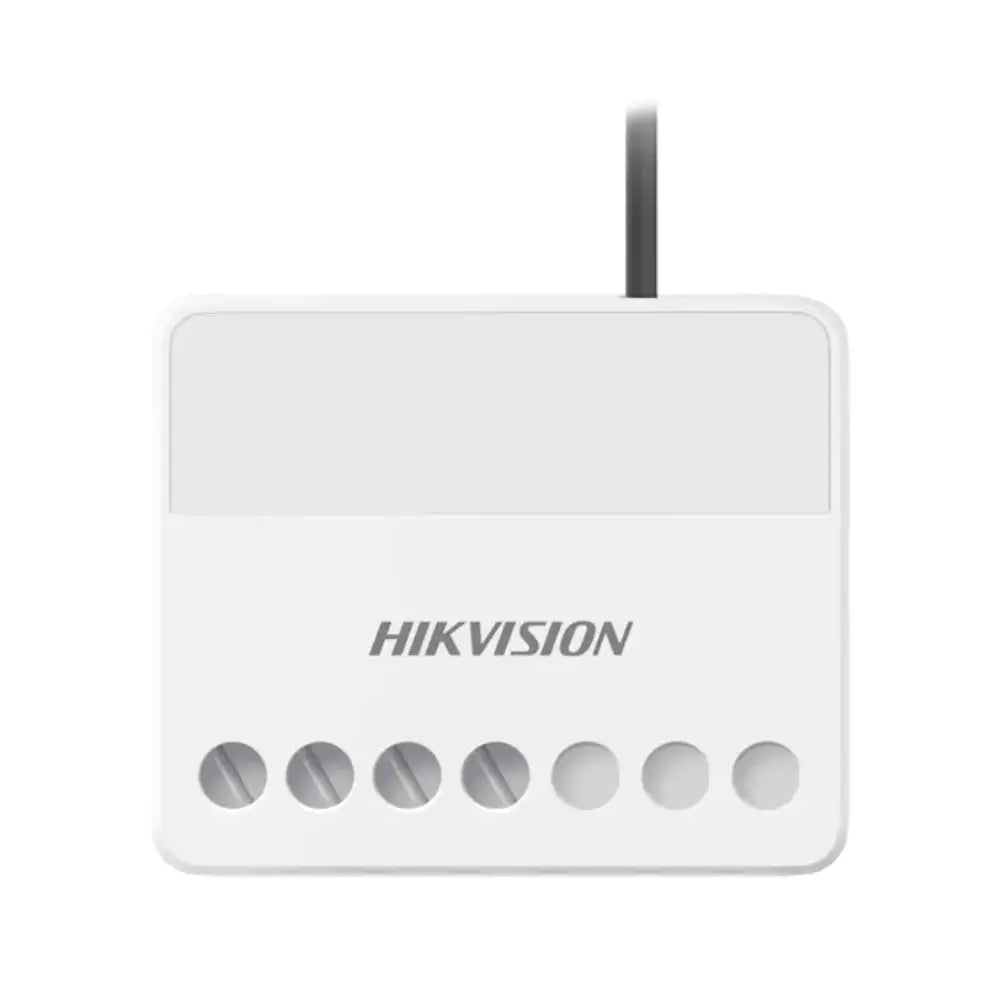

DS-PM1-O1H-WB — Hikvision AX PRO Wireless Wall Switch (433MHz)
The Hikvision DS-PM1-O1H-WB is a wireless wall switch for the AX PRO ecosystem, letting you control connected loads and automation scenarios from the app, a keyfob or a keypad. 433MHz two-way communication with AES-128 encryption keeps the link secure and confirmed.
A built-in LED shows device status and relay on/off state, and the small case can be tucked into discreet locations. One button can turn loads on or off, and scenarios can be triggered by different events.
Two-Way 433MHz
Confirmed wireless communication with the AX PRO system.
AES-128 Encryption
Secure, encrypted control of connected loads.
Multi-Source Control
Switch on/off from app, keyfob or keypad.
Scenario Automation
Trigger preset scenarios from different events.
Technical Specifications
| Model |
DS-PM1-O1H-WB |
| Type |
Wireless wall switch |
| Frequency |
433MHz, two-way |
| Encryption |
AES-128 |
| Control |
App / keyfob / keypad |
| Indicator |
LED status + relay on/off display |
| Ecosystem |
Hikvision AX PRO |
How is it controlled?
Via the app, a paired keyfob or keypad — one button toggles the connected load on or off.
Is the link secure?
Yes — two-way 433MHz communication is protected with AES-128 encryption.
A compact, encrypted wireless wall switch that adds automation and remote control to a Hikvision AX PRO alarm system.
