DS-KAD706Y-SP — Y-Series 2-Wire Intercom Distributor

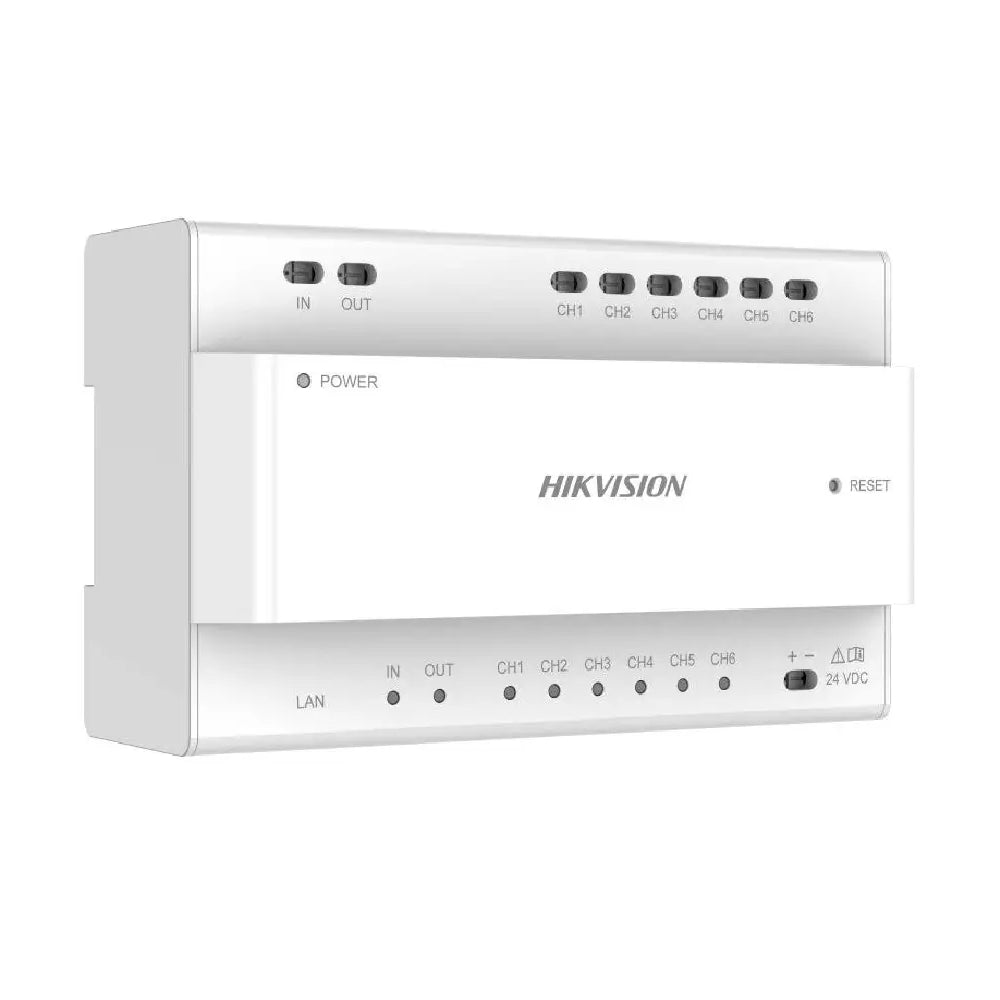

The Hikvision DS-KAD706Y-SP is a Y-Series 2-wire IP distributor for audio/video intercom systems. It connects door stations and indoor stations over a simple two-wire topology, supporting up to six devices per unit.
Wiring: 2-Wire IP — Signal Distributor
The DS-KAD706Y-SP’s six cascade ports carry signal only; they do not supply power to connected intercom devices. The distributor itself requires its specified supply and the system needs the appropriate powered equipment. Do not substitute it for a powered DS-KAD706Y-P or an Ethernet PoE switch.
Existing cable can be reused only after checking conductor size, cable condition, distance, polarity where applicable and the manufacturer’s wiring diagram. Matching the wire count alone does not establish compatibility. Locks, gate controls and their power requirements must be checked separately.

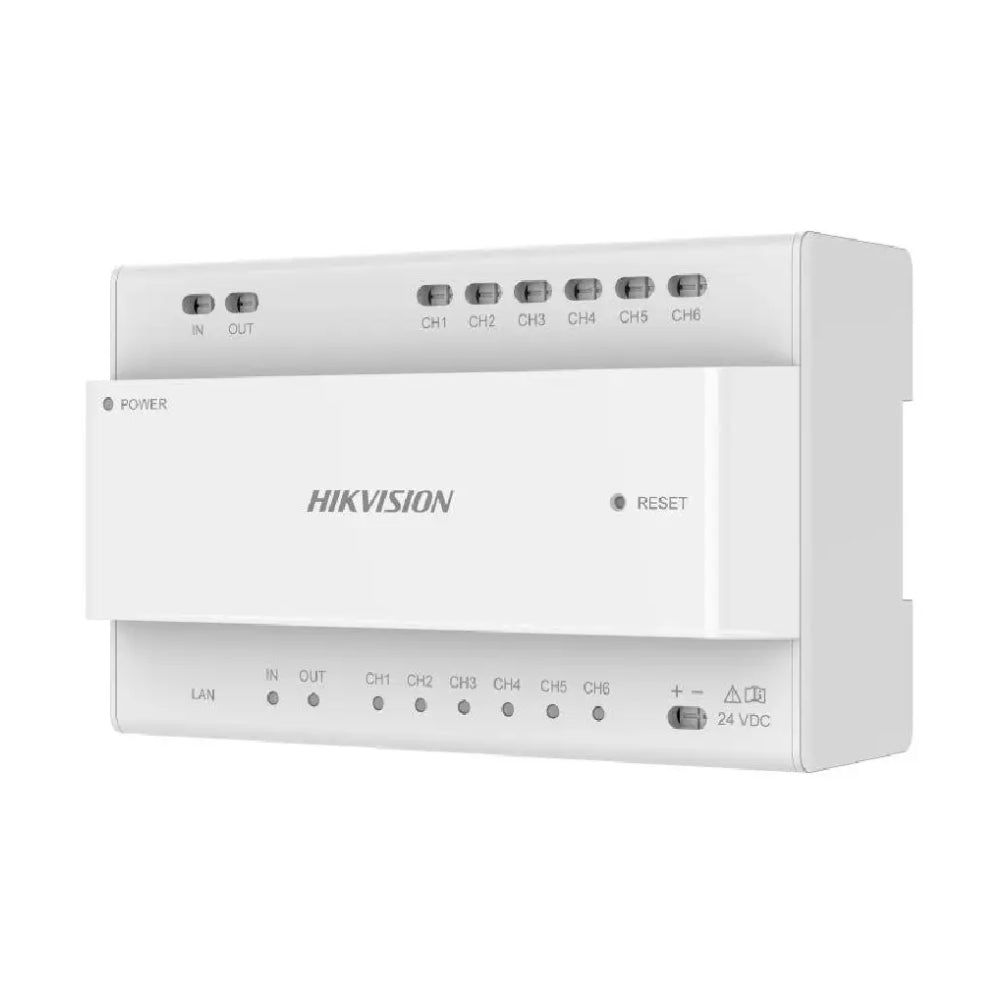

Its six 2-wire cascade ports carry audio and video signalling (without device power), and two further cascade interfaces allow expansion with DS-KAD704Y, DS-KAD706Y and DS-KAD706Y-S series distributors.
6 cascade ports
Connects up to 6 devices over 2-wire cabling (signal, no device power).
Cascadable
Two ports link DS-KAD704Y / DS-KAD706Y / DS-KAD706Y-S units.
Network ready
RJ-45 interface, 8 status indicators and reset button.
DIN rail, 24VDC
DIN-rail mountable with 24VDC input power supply.
Technical specifications
| Wiring platform |
2-Wire IP — Signal Distributor |
| Wiring power requirements |
24 V DC input to distributor; cascade outputs are signal-only, not device power |
| Model |
DS-KAD706Y-SP |
| Type |
Y-Series 2-wire IP distributor |
| 2-wire ports |
6 × cascade (without device power) |
| Cascade ports |
2 (DS-KAD704Y / 706Y / 706Y-S) |
| Network |
1 × RJ-45 |
| Indicators |
8 interface indicators, reset button |
| Mounting |
DIN rail |
| Power |
24VDC input |
Expand your Y-Series 2-wire intercom system with the DS-KAD706Y-SP distributor, backed by Australian warranty and local tech support.
Frequently asked questions
Which wiring system does this product use?The DS-KAD706Y-SP’s six cascade ports carry signal only; they do not supply power to connected intercom devices. The distributor itself requires its specified supply and the system needs the appropriate powered equipment. Do not substitute it for a powered DS-KAD706Y-P or an Ethernet PoE switch.
Can I reuse my existing intercom cable?Existing cable can be reused only after checking conductor size, cable condition, distance, polarity where applicable and the manufacturer’s wiring diagram. Matching the wire count alone does not establish compatibility. Locks, gate controls and their power requirements must be checked separately.
How many devices does it support?Up to six devices via its six 2-wire cascade ports.
Does it supply power to devices?No — the cascade ports carry signal only; power is supplied separately.
What can it cascade with?DS-KAD704Y, DS-KAD706Y and DS-KAD706Y-S series distributors.
