Hikvision Gen2 2-Wire Intercom Accessory

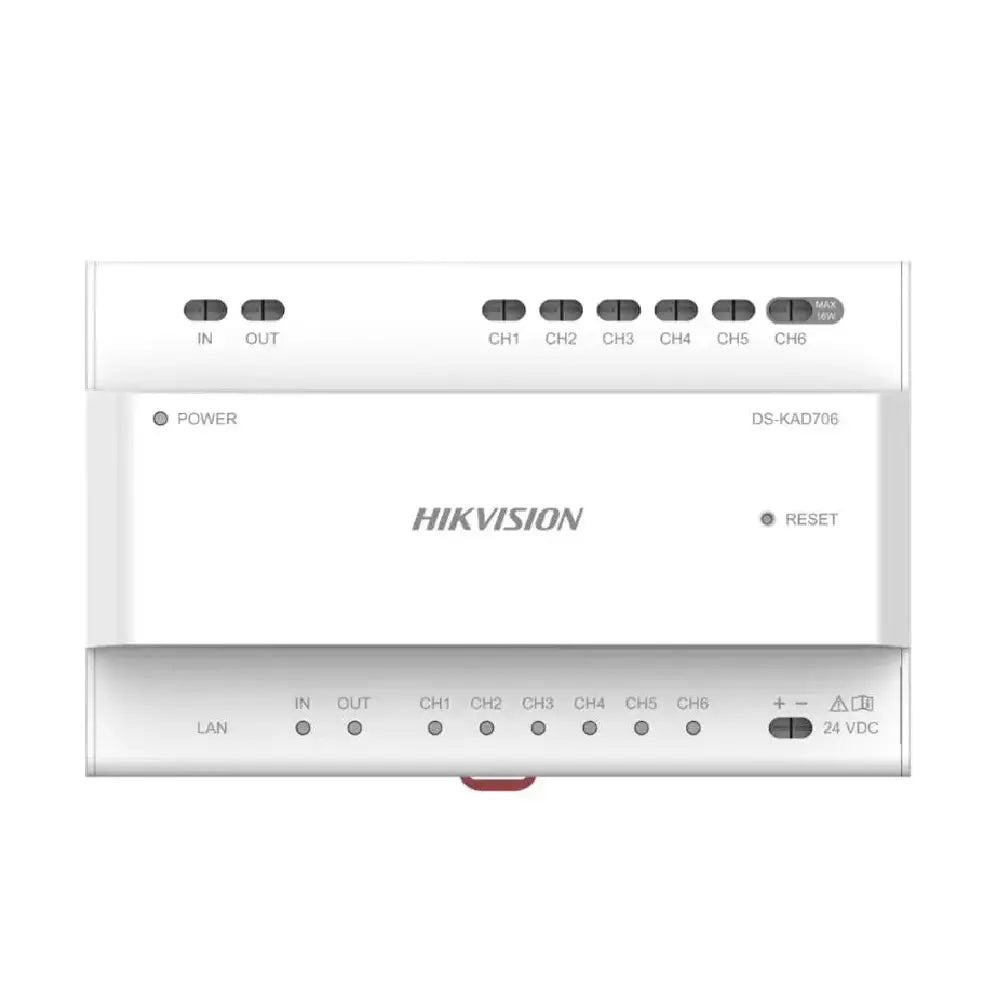

DS-KAD706-P — Gen2 2-Wire Distributor + AU Power Adaptor
The Hikvision DS-KAD706-P is a 2-wire IP distributor bundle for Gen2 2-wire intercom systems. It powers and connects door stations and indoor stations over a simple two-wire cabling topology, and ships with an AU power adaptor ready to install.
Wiring: 2-Wire IP
DS-KAD706-P belongs to Hikvision’s two-wire IP intercom platform. Match the exact door station, monitor and distributor generation; the Y-series and earlier products must not be mixed on wire count alone. Do not treat the two-wire terminals as a standard Ethernet PoE connection.
Existing cable can be reused only after checking conductor size, cable condition, distance, polarity where applicable and the manufacturer’s wiring diagram. Matching the wire count alone does not establish compatibility. Locks, gate controls and their power requirements must be checked separately.
Six 2-wire cascade interfaces supply device power, while two further cascade ports allow expansion with additional DS-KAD706 / DS-KAD706-S distributors.
6 powered 2-wire ports
Six 2-wire cascade interfaces with device power supply.
Cascadable
Two cascade ports link further DS-KAD706 / DS-KAD706-S units.
Network ready
RJ-45 interface, 8 status indicators and reset button.
AU adaptor included
Supplied with an Australian power adaptor; DIN-rail mountable, 24VDC.
Technical specifications
| Wiring platform |
2-Wire IP |
| Wiring power requirements |
24 V DC input; use the model-specific powered distributor wiring diagram |
| Model |
DS-KAD706-P |
| Type |
2-wire IP distributor bundle |
| 2-wire ports |
6 × cascade with device power |
| Cascade ports |
2 (for DS-KAD706 / DS-KAD706-S) |
| Network |
1 × RJ-45 |
| Indicators |
8 interface indicators, reset button |
| Mounting |
DIN rail |
| Power |
24VDC (AU adaptor included) |
Build out your Gen2 2-wire intercom system with the DS-KAD706-P distributor bundle, backed by Australian warranty and local tech support.
Frequently asked questions
Which wiring system does this product use?DS-KAD706-P belongs to Hikvision’s two-wire IP intercom platform. Match the exact door station, monitor and distributor generation; the Y-series and earlier products must not be mixed on wire count alone. Do not treat the two-wire terminals as a standard Ethernet PoE connection.
Can I reuse my existing intercom cable?Existing cable can be reused only after checking conductor size, cable condition, distance, polarity where applicable and the manufacturer’s wiring diagram. Matching the wire count alone does not establish compatibility. Locks, gate controls and their power requirements must be checked separately.
What does the distributor do?It powers and connects Gen2 door and indoor stations over 2-wire cabling.
How many devices can it power?Six 2-wire cascade ports each supply device power.
Does it include a power adaptor?Yes, an Australian power adaptor is included in this bundle.
