Hikvision Intercom Accessory

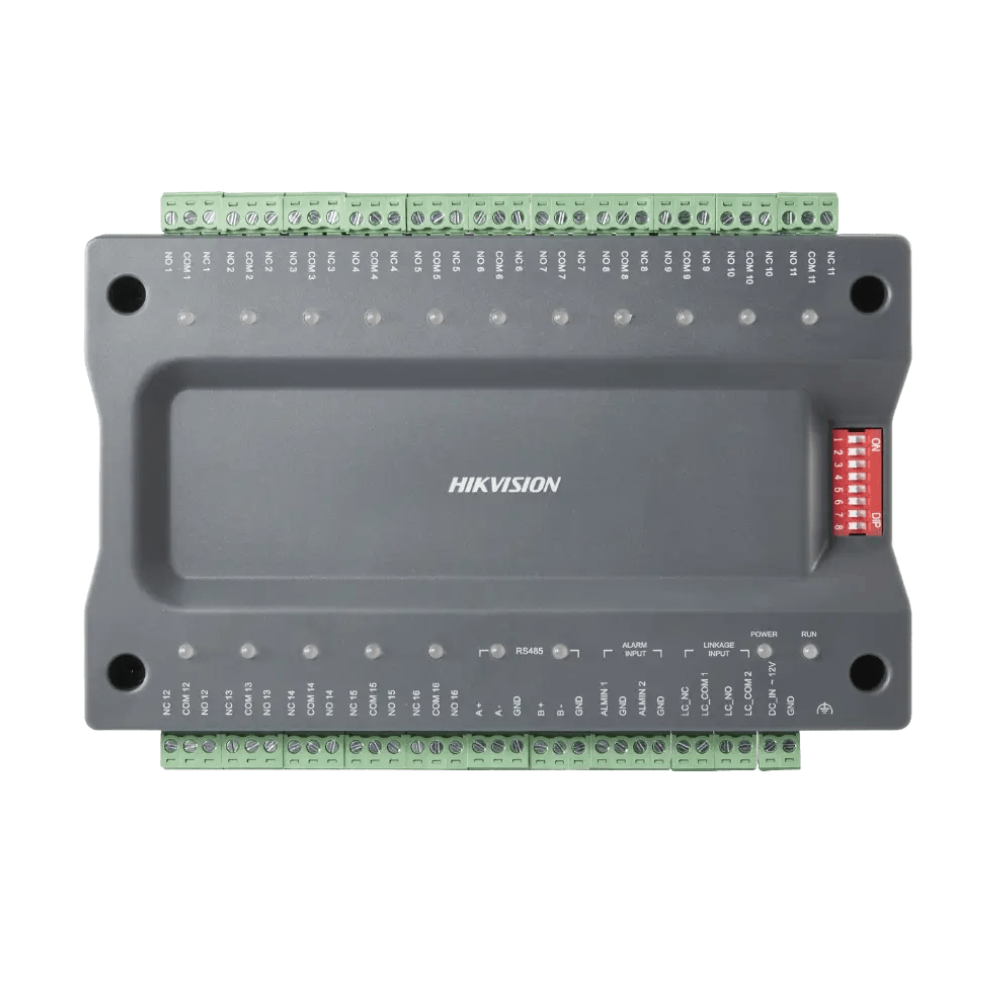

DS-K2M0016A — 16-Relay Distributed Elevator Sub-Controller
The Hikvision DS-K2M0016A is a distributed elevator sub-controller that drives floor-button relays inside a lift car. It links over RS-485 to a master elevator controller, extending access-controlled floor selection across larger buildings.
Each unit controls up to 16 relays, and up to 8 sub-controllers can be connected to a single master for high floor counts.
16 relay outputs
Controls up to 16 elevator floor buttons per unit.
RS-485 communication
Connects to the master elevator controller over a reliable RS-485 bus.
Scalable
Up to 8 sub-controllers link to one master for multi-storey buildings.
DIP configuration
On-board DIP switches set device address and relay type.
Specifications
| Model |
DS-K2M0016A |
| Type |
Distributed elevator sub-controller |
| Relay outputs |
16 |
| Communication |
RS-485 to master controller |
| Configuration |
DIP switch (address & relay type) |
| Max sub-controllers per master |
8 |
Does this work on its own?
No. It is a sub-controller that connects to a Hikvision master elevator controller via RS-485.
How many floors can it manage?
Up to 16 relays (floor buttons) per unit; combine multiple units for more.
How is it addressed?
Via on-board DIP switches for device address and relay type.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Add the DS-K2M0016A to extend access-controlled lift floor selection across your building, supported by local Australian warranty and tech support.
