Hikvision Intercom Accessory

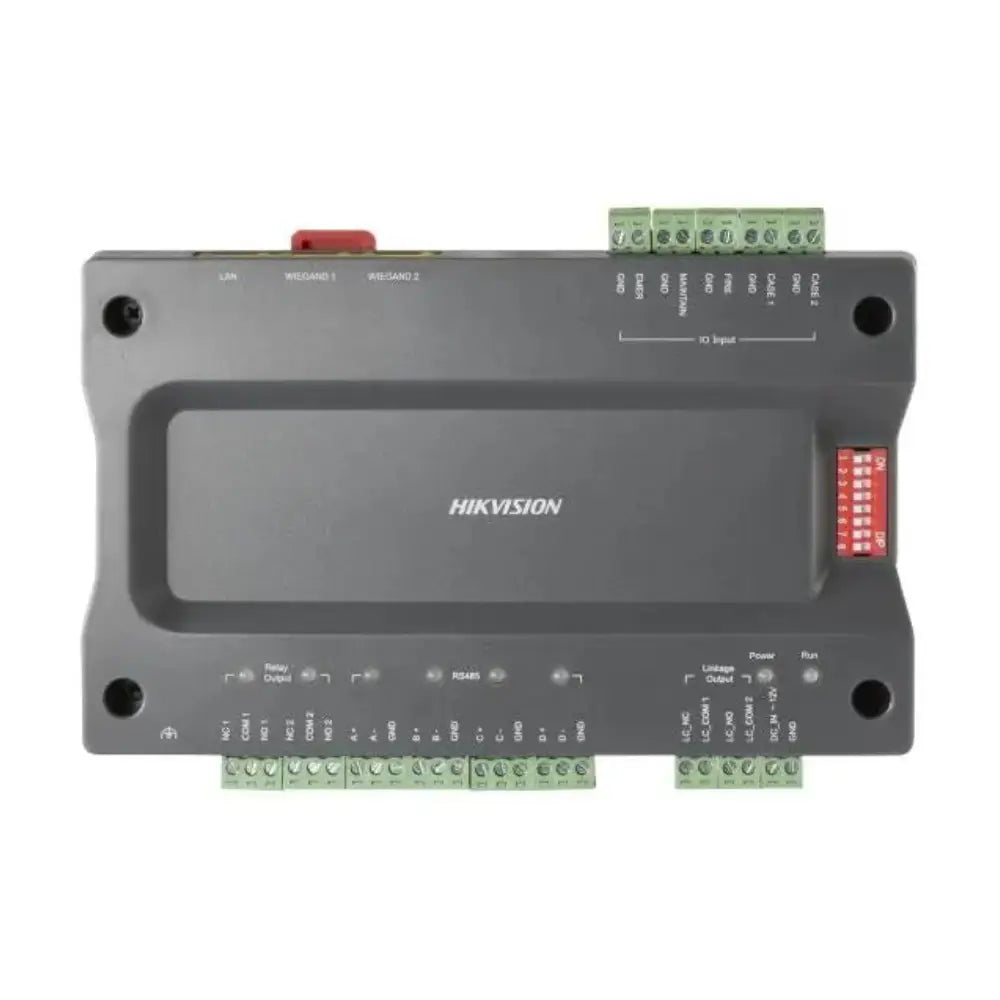

DS-K2210 — Master Elevator Controller
The Hikvision DS-K2210 is a master elevator controller that manages access-controlled floor permissions across a building. It coordinates distributed sub-controllers to deliver secure, card-based lift access for up to 128 floors.
With on-board storage for 20,000 cards and 50,000 events, plus TCP/IP and RS-485 uplinks, it integrates cleanly with Hikvision access and intercom systems.
128-floor control
Manages access permissions across up to 128 floors.
Large capacity
Stores 20,000 cards and 50,000 events on-device.
Flexible uplinks
TCP/IP and RS-485 communication to network and sub-controllers.
Secure & managed
Multiple authentication modes, watchdog and tamper-proof design; configured via web or client software.
Specifications
| Model |
DS-K2210 |
| Type |
Master elevator controller |
| Floors |
Up to 128 |
| Card capacity |
20,000 |
| Event storage |
50,000 |
| Uplink |
TCP/IP and RS-485 |
| Card readers |
2 Wiegand or 2 RS-485 |
| Management |
Web client and client software |
How many floors does it support?
Up to 128 floors of access-controlled permissions.
How does it connect?
Via TCP/IP to the network and RS-485 to distributed sub-controllers.
How is it managed?
Through Hikvision web client and client software.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Choose the DS-K2210 as the brain of your access-controlled elevator system, backed by Australian warranty and local technical support.
