Hikvision Pro Series
Choose the Right Reader for Your Door

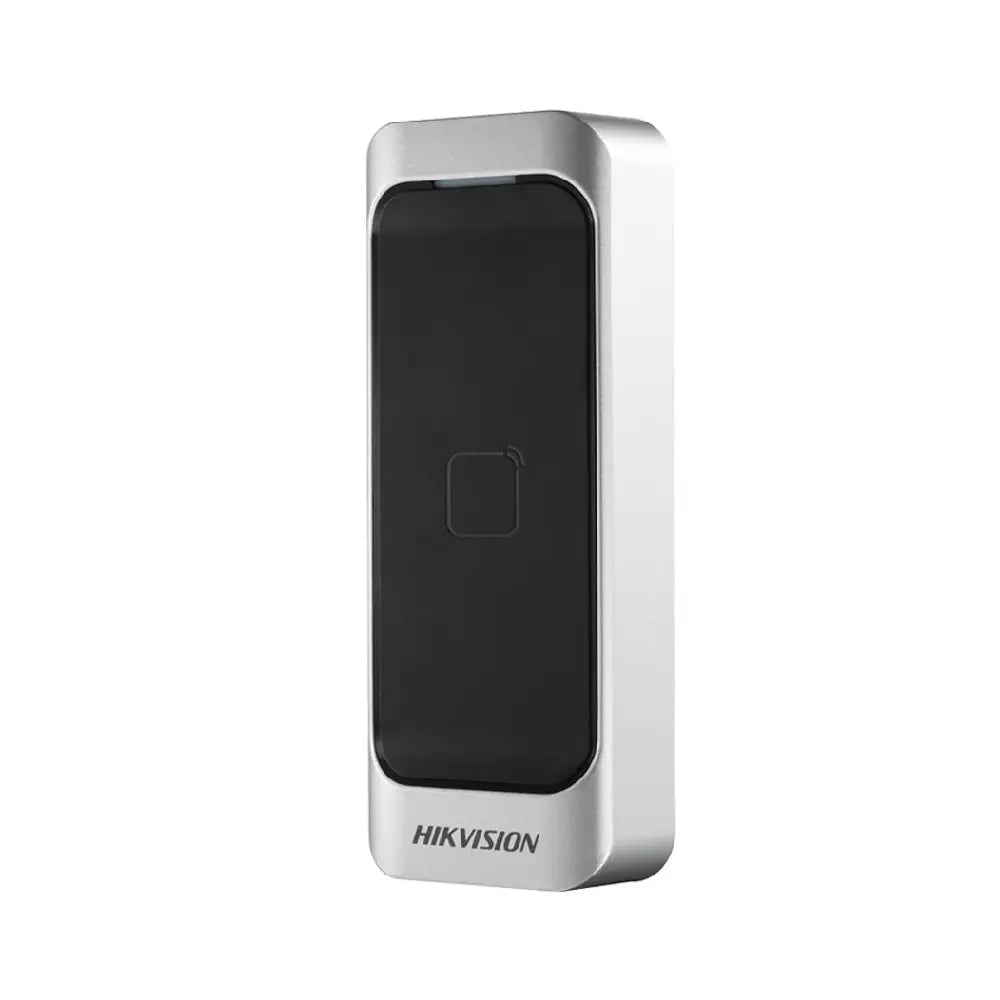

The Hikvision DS-K1107AM Series provides dependable 13.56 MHz MIFARE card authentication in a slim, IP65-rated reader. Choose the standard DS-K1107AM for card access, or the DS-K1107AMK when a built-in 12-key keypad is required for PIN or card-and-PIN entry.
Card Technology
13.56 MHz MIFARE
Connectivity
RS-485, Wiegand & OSDP
Outdoor Protection
IP65 Rated
Keypad Option

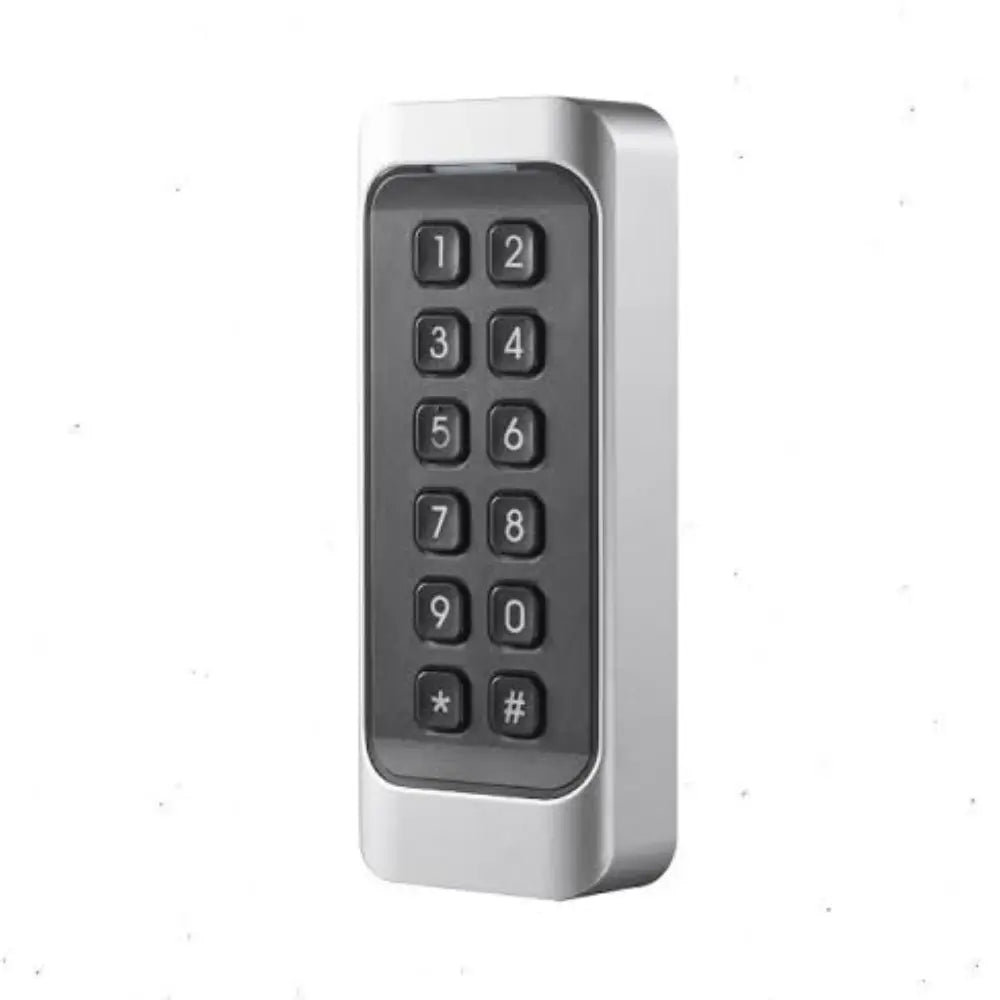

12 Keys on DS-K1107AMK
DS-K1107AM vs DS-K1107AMK
Both models share the same core reader platform. The keypad is the main difference, so select the model that matches your authentication requirements.
| Feature |
DS-K1107AM |
DS-K1107AMK |
| Reader type |
MIFARE card reader |
MIFARE card reader with keypad |
| Authentication |
Card |
Card, PIN or card + PIN* |
| Keypad |
No |
12 keys (0–9, * and #) |
| Card frequency |
13.56 MHz |
13.56 MHz |
| Reading distance |
Up to 50 mm |
Up to 50 mm |
| Communication |
RS-485, Wiegand and OSDP |
RS-485, Wiegand and OSDP |
| Protection |
IP65 |
IP65 |
| Dimensions |
115 × 44 × 22 mm |
115 × 44 × 22 mm |
*Available authentication modes depend on the connected access controller and system configuration.
Built for Reliable Access Control
Fast MIFARE ReadingA 32-bit processor provides responsive 13.56 MHz card authentication with a reading distance of up to 50 mm.
Flexible IntegrationSupports RS-485, Wiegand 26/34 and OSDP for integration with compatible Hikvision access controllers.
Clear User FeedbackPower and status indicators plus a built-in buzzer provide immediate feedback during authentication.
Indoor or Outdoor UseThe IP65-rated housing, tamper support and watchdog design suit protected indoor and outdoor entry points.
Shared Technical Specifications
| Models / SKUs |
DS-K1107AM; DS-K1107AMK |
| Processor |
32-bit high-speed processor |
| Card technology |
MIFARE 1, 13.56 MHz, ISO 14443-A |
| Communication |
1 × RS-485 with OSDP support; Wiegand selectable by DIP switch |
| Indicators and buzzer |
Power indicator, status indicator and built-in buzzer |
| Security |
Tamper support and self-recovering watchdog |
| Power |
12 VDC, ≤ 2 W |
| Operating conditions |
−20°C to 65°C; 10% to 90% humidity, non-condensing |
| Protection |
IP65 |
| Installation |
Wall mounting with screws; gang box mounting is not supported |
Which model should I choose?Choose DS-K1107AM for straightforward MIFARE card access. Choose DS-K1107AMK when you also need a keypad for PIN entry.
Can these readers be installed outdoors?Yes. Both models are IP65 rated and operate from −20°C to 65°C when installed correctly.
Which cards are compatible?Both readers support 13.56 MHz MIFARE 1 credentials compliant with ISO 14443-A.
Do both models support OSDP?Yes. Both support OSDP over RS-485, as well as selectable Wiegand communication.
