Hikvision DS-2CD6425G1-20-2M-3 — 2MP Covert Pinhole Camera with 3.7mm Block-Shaped Lens, 2m Cable & Audio

Description

Hikvision 2MP · Covert Pinhole · 120dB WDR · Block Lens

Hikvision DS-2CD6425G1-20-2M-3 — 2MP Covert Pinhole Camera with 3.7mm Block-Shaped Lens, 2m Cable & Audio

The Hikvision DS-2CD6425G1-20-2M-3 is a discreet 2 MP covert pinhole camera fitted with a 3.7 mm block-shaped pinhole lens — the flat block form factor sits neatly behind a wall or panel for clean, concealed installation in reception areas, ATMs, retail counters and sensitive interior spaces. A 2 m lens cable connects the lens to the camera body so the main unit can be hidden out of sight. 120 dB true Wide Dynamic Range keeps imaging clear against strong backlight, 3D DNR delivers clean visuals in low light, and efficient H.265+ compression saves bandwidth and storage. Integrated audio and alarm interfaces extend monitoring for professional security applications. Australian stock, 3-year Australian warranty.

Resolution
2 MP · 1920 × 1080
Lens
3.7 mm Block-Shaped Pinhole
Lens Cable
2 m Detached Run
WDR
120 dB True WDR
Audio & Alarm
Audio + Alarm I/O
Compression
H.265+ · 3D DNR
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support

Flat Block Form Factor for Clean Concealment

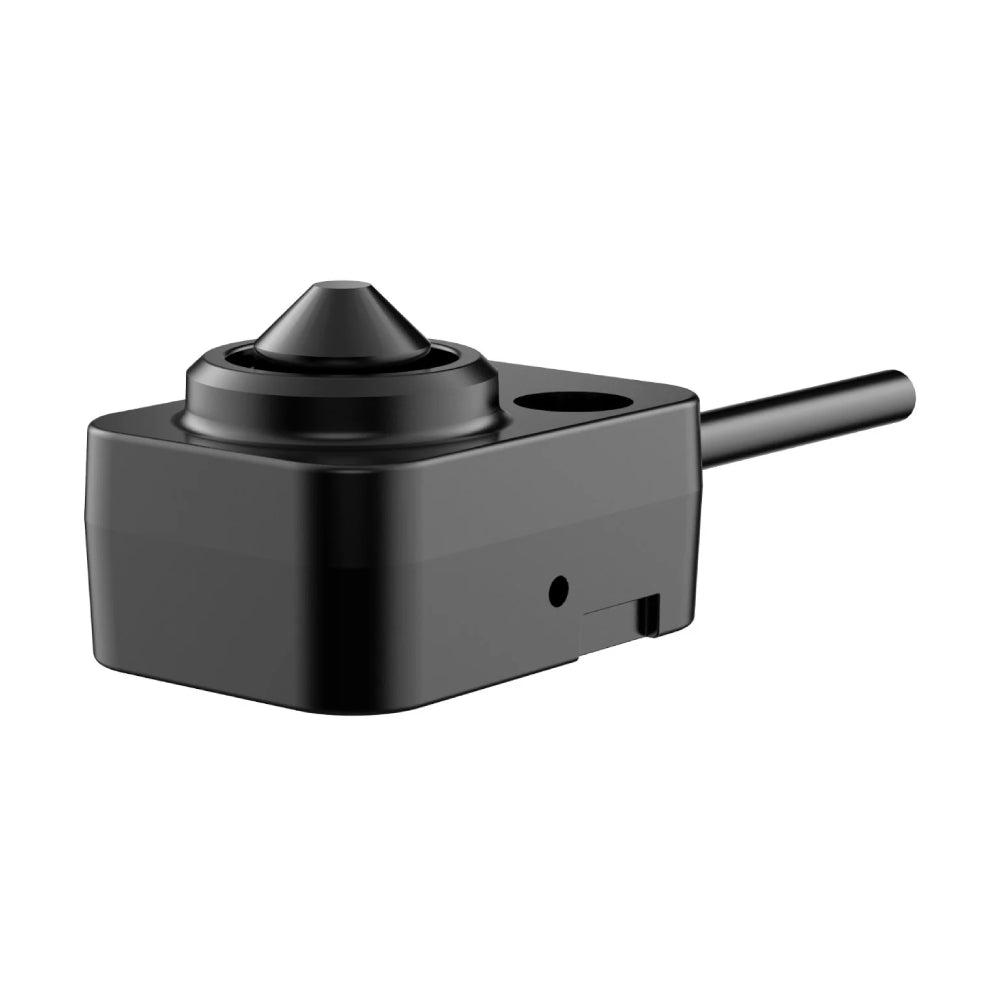

3.7 mm Block-Shaped Pinhole Lens

The flat block-shaped lens module sits neatly behind a wall, panel or fixture for a clean, virtually invisible install — ideal for reception areas, ATMs, retail counters and any space where a discreet, professional-looking concealment is required.

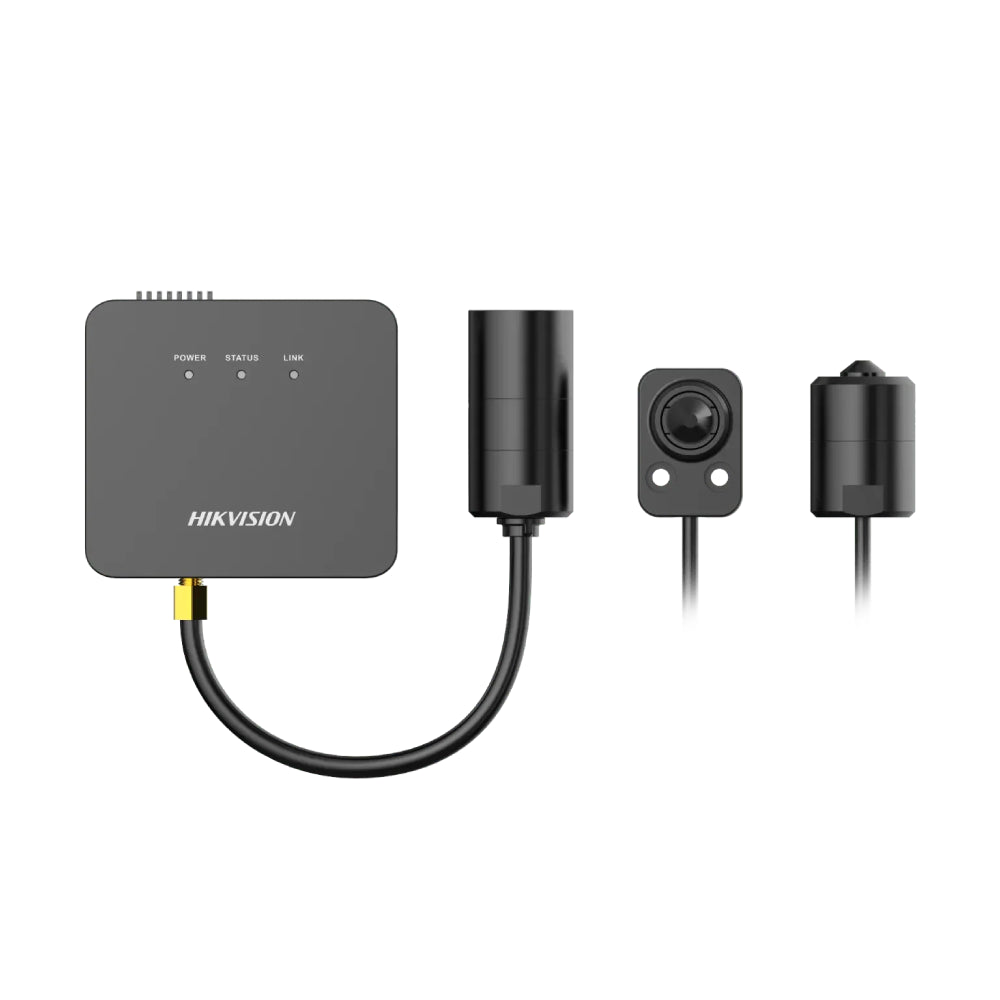

2 m Detached Lens Cable

A 2 m lens cable separates the lens from the camera body, so the main unit can be concealed out of sight while only the small block lens is exposed — flexible covert installation.

120 dB True WDR + 3D DNR

120 dB true WDR keeps imaging clear against strong backlight at doorways and windows, while 3D DNR reduces noise to deliver clean, sharp visuals even in challenging low-light interiors.

Audio, Alarm & H.265+

Integrated audio and alarm interfaces extend monitoring capability, while efficient H.265+ compression optimises bandwidth and storage for cost-effective continuous recording.

Technical Specifications

DS-2CD6425G1-20-2M-3 · Specifications
SKU DS-2CD6425G1-20-2M-3
Camera Type Hikvision Covert Series · 2 MP Pinhole Network Camera
Max Resolution 2 MP · 1920 × 1080
Lens 3.7 mm block-shaped pinhole lens
Lens Cable 2 m detached lens cable
Wide Dynamic Range 120 dB true WDR
Noise Reduction 3D DNR
Video Compression H.265+ · H.265 · H.264+ · H.264
Audio Audio interface
Alarm I/O Alarm interface
Warranty 3-Year Australian Warranty

Frequently Asked Questions

What is the difference between the block and cylindrical lens?

This model uses a flat block-shaped pinhole lens that sits neatly behind a wall or panel, while the cylindrical version uses a rounded barrel lens. Both are 3.7 mm and virtually invisible once installed — the choice comes down to the mounting surface and concealment method.

What is a covert pinhole camera used for?

It is used where surveillance must remain discreet — reception areas, ATMs, retail counters, lifts and sensitive interior spaces. The tiny pinhole lens is virtually invisible once installed.

Does it handle difficult lighting?

Yes. 120 dB true WDR keeps imaging clear against strong backlight, and 3D DNR reduces noise for clean, sharp visuals in low-light interiors.

Does it support audio?

Yes — it includes integrated audio and alarm interfaces, extending its monitoring capability beyond video for professional security applications.

Downloads & Resources

DS-2CD6425G1 Datasheet Hikvision Network Camera Quick Start Guide Hikvision Network Camera User Manual

Order the Hikvision DS-2CD6425G1-20-2M-3 from CCTV Guru

CCTV Guru is an authorised Australian reseller of Hikvision covert cameras. The DS-2CD6425G1-20-2M-3 is the right choice for discreet professional surveillance with a clean block-lens concealment. Order with fast Australia-wide dispatch, expert pre-sales advice and full local warranty support. Request a free quote or contact our Australian team.
