Hikvision CAT6 UTP · 305m · Solid Bare Copper

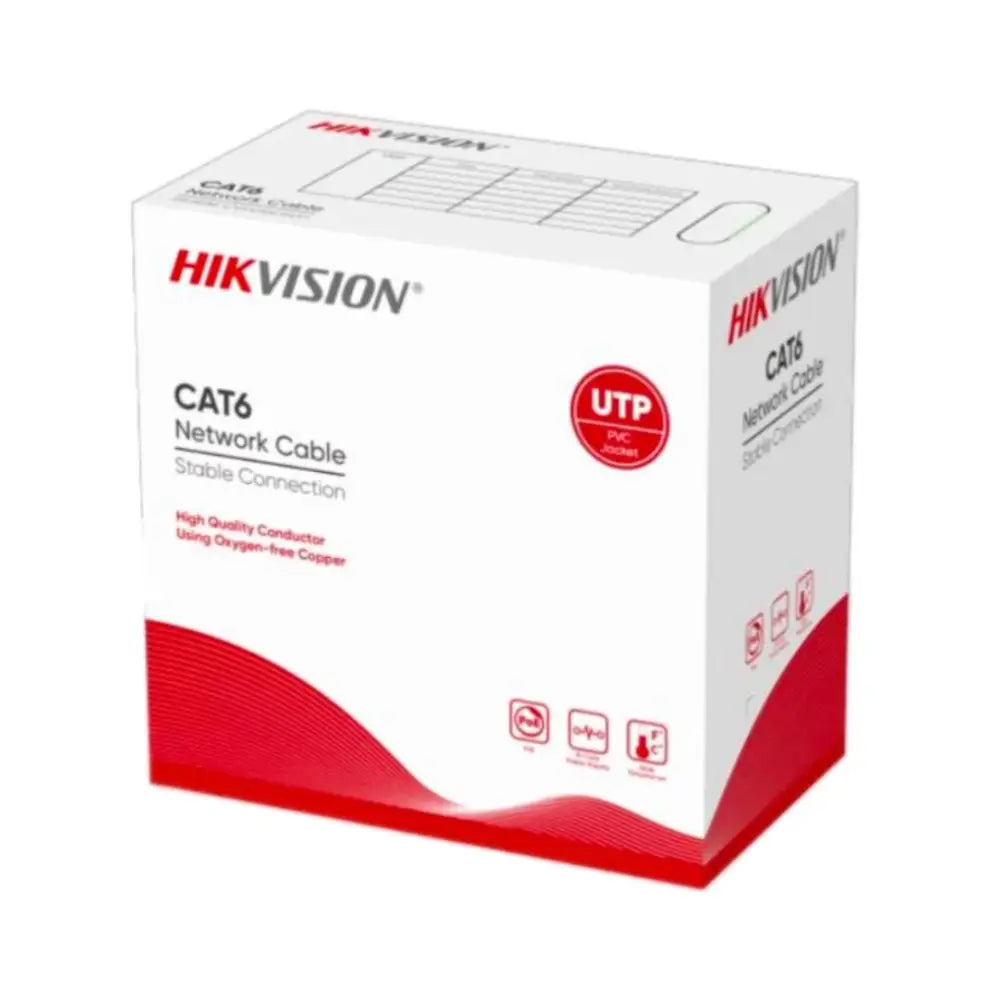

DS-1LN6UZC0 — Hikvision CAT6 UTP 305m Solid Copper Network Cable (Yellow)
The Hikvision DS-1LN6UZC0 in yellow is a 305 m CAT6 U/UTP installation cable for reliable, high-performance data and IP CCTV networks — the bright jacket makes it easy to identify in busy comms cabinets and conduit. Its 0.5 mm solid bare copper conductors give low resistance and superior electrical properties, built to ANSI/TIA-568.2-D, IEC61156 and ISO/IEC11801 standards.
It holds performance in the Fluke 90 m permanent-link test at a continuous 50 °C, and in the 100 m channel test under 57 V / 1 A DC PoE load. A high-tensile sheath reduces damage on conduit pulls. Fully RoHS 2.0 compliant.
Solid Bare Copper
0.5 mm true copper cores — low resistance, stable PoE delivery.
High-Visibility Yellow
Easy circuit identification across structured-cabling runs.
PoE & Heat Tested
Fluke-verified at 50 °C and under 57 V / 1 A PoE load.
Standards Compliant
ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801, RoHS 2.0.
Technical Specifications
| Model |
DS-1LN6UZC0 (Yellow) |
| Category |
CAT6 U/UTP, 4 pair |
| Conductor |
Solid bare copper, 0.5 mm |
| Length |
305 m |
| Standards |
ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801 |
| Compliance |
RoHS 2.0 |
Is this safe for PoE?
Yes. The solid bare copper cores are channel-tested under 57 V / 1 A DC load, suitable for PoE and PoE+ cameras.
Is it copper or CCA?
100% solid bare copper — not copper-clad aluminium — for stable resistance and full PoE compliance.
A genuine Hikvision 305 m CAT6 solid-copper cable in high-visibility yellow — standards-certified, PoE-ready and easy to trace.
