Hikvision CAT6 · 305m Cable + 100 RJ45 Plugs
CG-DS-CCB — Hikvision CAT6 305m Cable (Blue) + 100-Pack 30µ Gold RJ45 Plugs Bundle

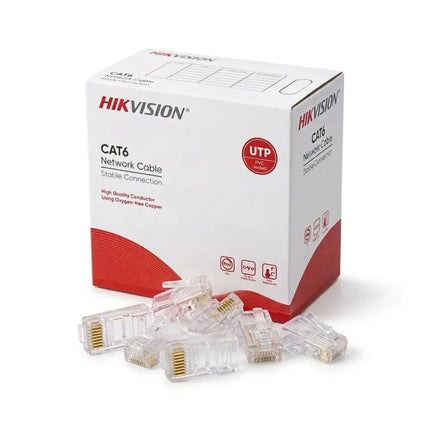

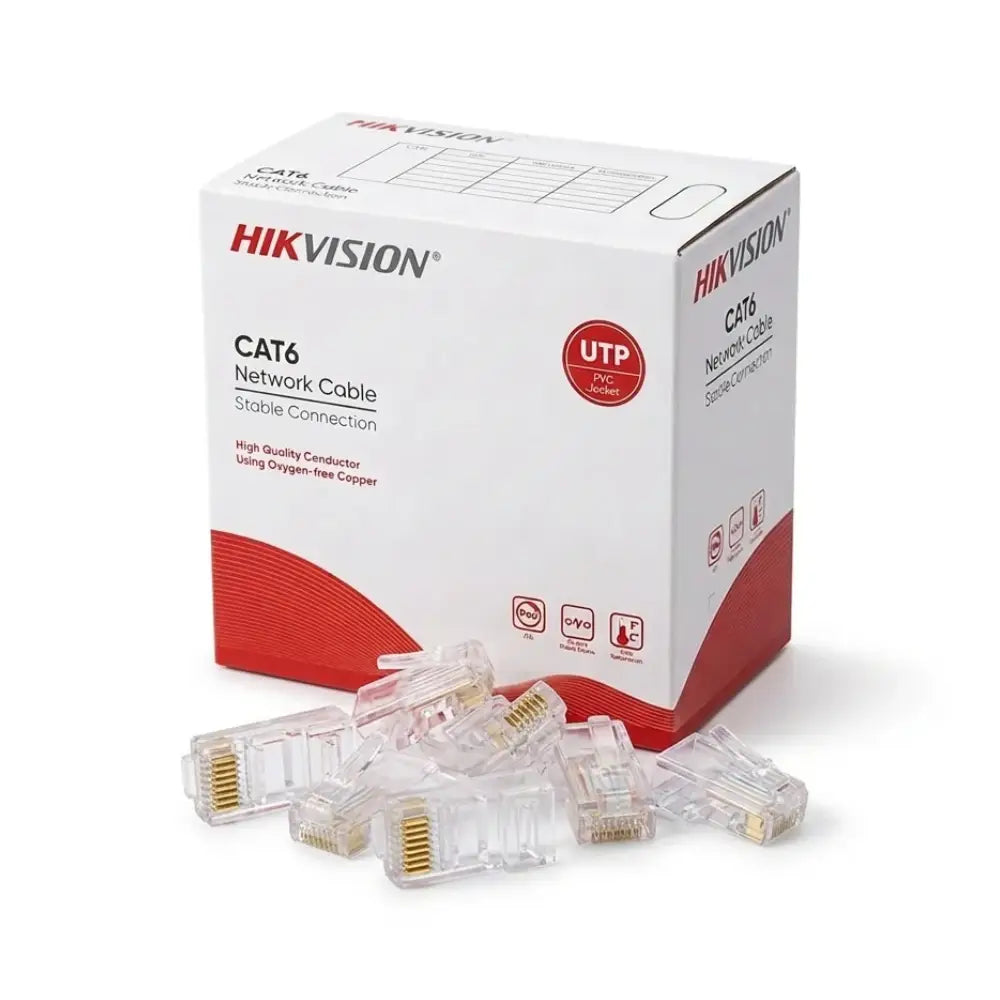

A matched, single-brand infrastructure kit that pairs Hikvision's 305 m CAT6 UTP cable (DS-1LN6UZC0, Blue) with a 100-pack of 30µ gold-plated RJ45 plugs (DS-1M6UA-30U-100). Sticking to one Hikvision path guarantees correct physical sizing and certified channel performance for high-bitrate IP CCTV networks.
The solid bare copper cable is channel-tested to 100 m under 57 V / 1 A PoE load, while the thick 30-micron gold contacts resist corrosion and insertion wear for stable field connections.
Matched Single-Brand Path
Hikvision cable + plugs for guaranteed fit and certified performance.
PoE-Optimised Cable
DS-1LN6UZC0 solid bare copper, channel-tested under PoE load.
30µ Gold Plugs
100 connectors with heavy gold plating for durable, low-loss terminations.
Standards Compliant
ANSI/TIA-568.2-D and ISO/IEC11801; UL94V-2 plug housing.
What's Included
| Cable |
1 × Hikvision DS-1LN6UZC0 305 m CAT6 UTP (Blue), solid bare copper 0.5 mm |
| Connectors |
1 × Hikvision DS-1M6UA-30U-100, 100-pack unshielded RJ45 (30µ gold) |
| Transmission |
Gigabit Ethernet ready (1000Base-T) |
| Standards |
ANSI/TIA-568.2-D, ISO/IEC11801, RoHS 2.0 |
Is the cable real copper or CCA?
It is 100% solid bare copper — safe and certified for PoE and PoE+ runs, unlike cheaper copper-clad aluminium.
Are the plugs pass-through?
No. The DS-1M6UA-30U-100 plugs are standard non-pass-through, unshielded 8P8C connectors sized for the cable's 0.5 mm cores.
A complete single-brand Hikvision cabling kit — 305 m of PoE-ready CAT6 plus 100 gold RJ45 plugs to terminate the whole run.
