Dahua · Intercom Door Stations2MP Keypad IP & 2-Wire Apartment Door Station

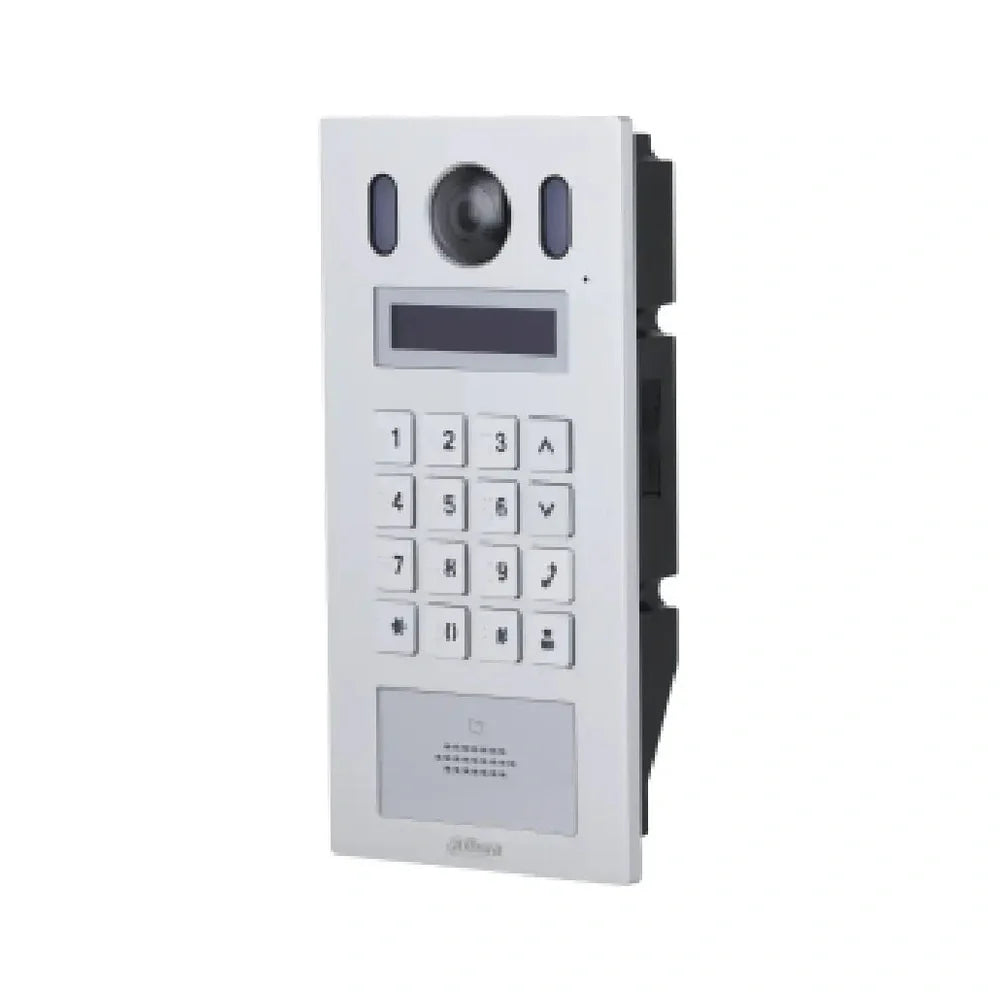

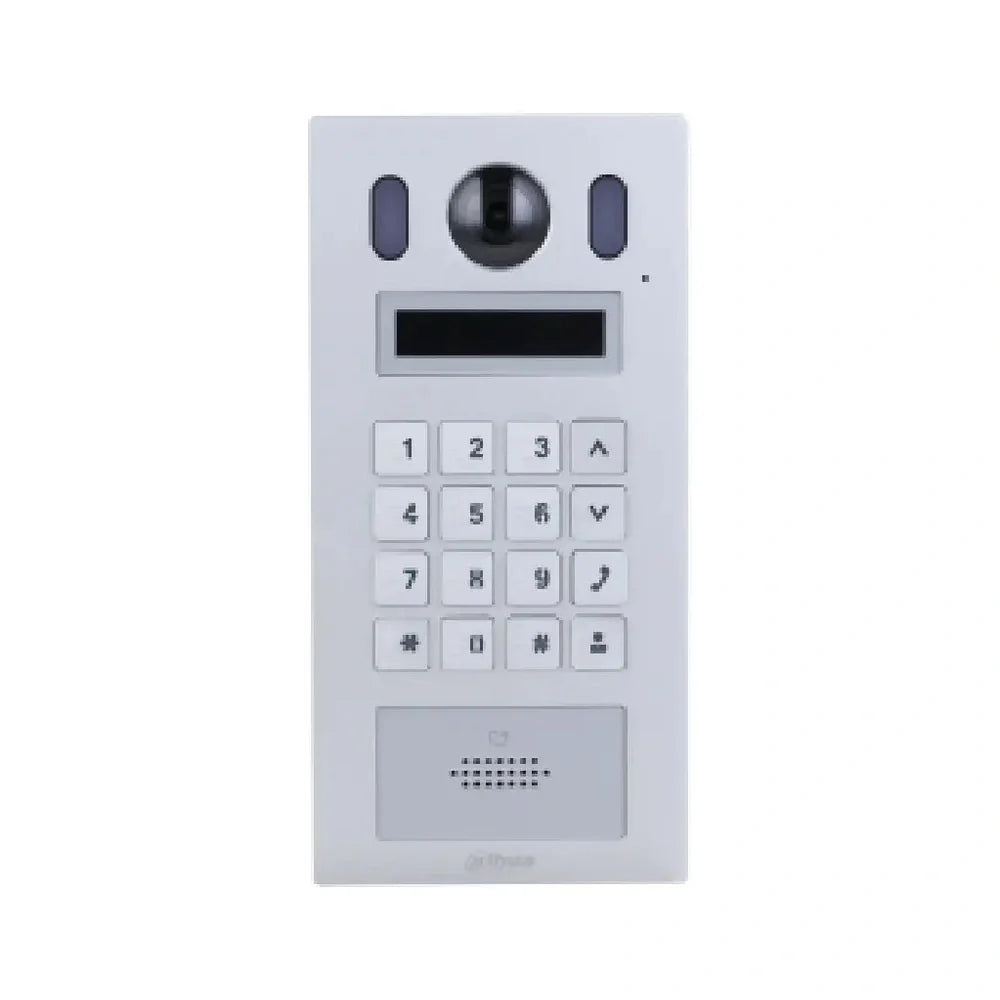

DHI-VTO6222E-P — Manage a shared entrance with a 2MP video door station combining a 16-button keypad, IC-card access and a 2.3-inch OLED information display. It supports planned IP or compatible Dahua 2-wire installations for apartment and multi-user access.
Key features
Keypad and card access
Offer authorised users more than one way to request entry.
2MP visitor view
A wide lens and built-in audio support entrance communication.
IP or compatible 2-wire design
Select the correct power and distributor architecture for the building.
Compact OLED interface
A dedicated information display works alongside physical keypad controls.
Applications & installation
Select the compatible indoor stations, distributor and lock power arrangement as a system. The small OLED is an information display, not a touchscreen. Weather resistance depends on correct mounting and silicone sealing; check the chosen surface or flush-mount hardware before ordering.
Technical Specifications
| Model |
DHI-VTO6222E-P |
| Camera |
2MP, 1/2.9-inch CMOS |
| Field of view |
140° horizontal / 80° vertical / 160° diagonal |
| Display |
2.3-inch OLED |
| Controls |
16-button keypad |
| User capacity |
Up to 5,000 users |
| Card capacity |
Up to 10,000 Mifare cards |
| Access methods |
Card, password and supported remote unlocking |
| Night illumination |
White light |
| Storage |
microSD up to 256 GB |
| Interfaces |
RS-485, Wiegand, alarm input/output and lock connection |
| Network options |
Ethernet or supported Dahua 2-wire system |
| Power |
48 V DC, 0.4 A or supported IEEE 802.3af/at PoE |
| External output |
12 V DC, 600 mA; IEEE 802.3at PSE required when using the external powered load |
| Consumption |
7 W |
| Protection |
IP65 with correct silicone sealing; IK08 |
| Housing |
Aluminium |
| Dimensions |
200 × 98 × 35.4 mm |
| Warranty |
36 months — subject to warranty terms |
Compatible options & add-ons
Optional items are sold separately. Select the components needed for your installation; mounting parts may need to be used together.
Frequently asked questions
Is the 2.3-inch screen a touchscreen?
No. It is an OLED information display used with the physical keypad.
Can I connect it to any old two-wire intercom?
No. It requires a compatible Dahua 2-wire system and suitable cabling, power and configuration. Confirm the complete system before replacing existing equipment.
Downloads
Manufacturer documentation: the datasheet identifies the product or stated product family; general guides cover the applicable equipment type. Confirm model-specific instructions before installation.
