Dahua Smart Pencil · 2.4 GHzDahua Smart Pencil · 2.4 GHz

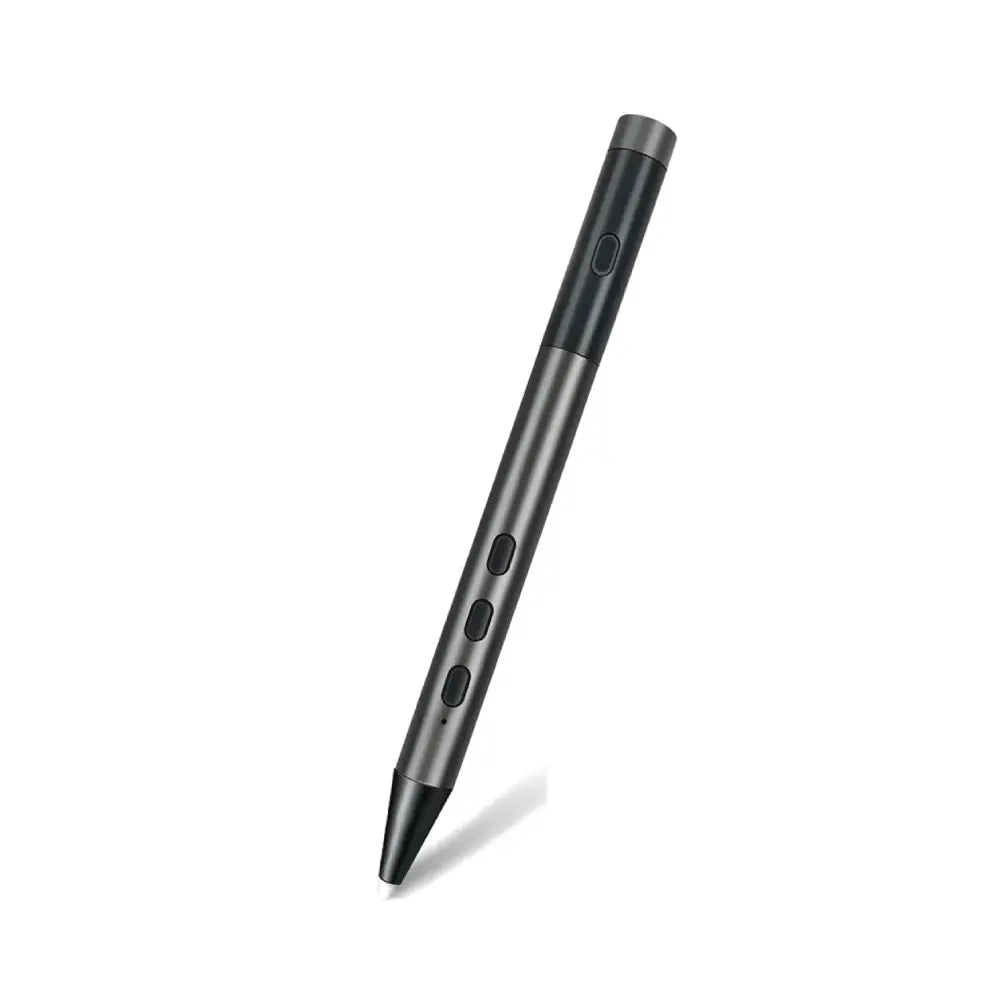

DHI-PKP-IP0A — Dahua Smart Interactive Whiteboard Pencil
The Dahua DHI-PKP-IP0A is an intelligent writing pencil for smart interactive whiteboards. It uses 2.4 GHz RF wireless technology with a remote-control distance of up to 15 m in open space, and a fine 2.8 mm nano tip that works with both infrared and capacitive panels. A built-in rechargeable battery keeps it ready to go, with a red charging indicator and automatic power-saving mode when the pencil is idle.
Specifications
| Model |
DHI-PKP-IP0A |
| Pencil Tip |
Infrared & capacitive compatible, 2.8 mm nano tip |
| Wireless |
2.4 GHz RF (2402–2480 MHz), 1 Mbps |
| Effective Distance |
Up to 15 m |
| Power |
Built-in 150 mAh lithium battery; Micro USB charging |
| Operating Current |
About 10 mA |
| Supported OS |
Windows 7 / 8 / 10, XP, Android |
| Compatible Ports |
USB 1.1, USB 2.0, USB 3.0 |
| Operating Temperature |
−30 °C to +55 °C |
| Warranty (Australia) |
3 years · CCTV Guru Australia |
