Dahua IP Video Intercom Kit · White 7" Monitor · App Unlock
Dahua KTP03W-S2 IP Video Intercom Kit with White 7" Monitor & Door Station
The Dahua KTP03W-S2 is a modern IP video intercom kit for Australian homes, townhouses, offices, clinics and small businesses that want a cleaner way to see, speak to and manage visitors at the front door. It combines a white 7-inch indoor touch screen monitor, a Dahua IP villa door station and a Dahua PoE switch in one practical smart entry package.
When someone presses the door station, you can answer from the indoor monitor, talk through two-way audio and unlock a compatible door or gate. With app support, you can also manage visitor calls from your phone, making it a strong upgrade from basic doorbells and old audio-only intercoms.
Indoor Monitor
White 7" Touch Screen
Door Station
2MP IP Villa Station
Remote Access
App Voice Call
PoE Switch
4 PoE + 2 Uplink
Unlock Options
Card · App · Monitor
Night Vision
Auto IR Support
Authorised Dahua Reseller
Fast Australia-Wide Shipping

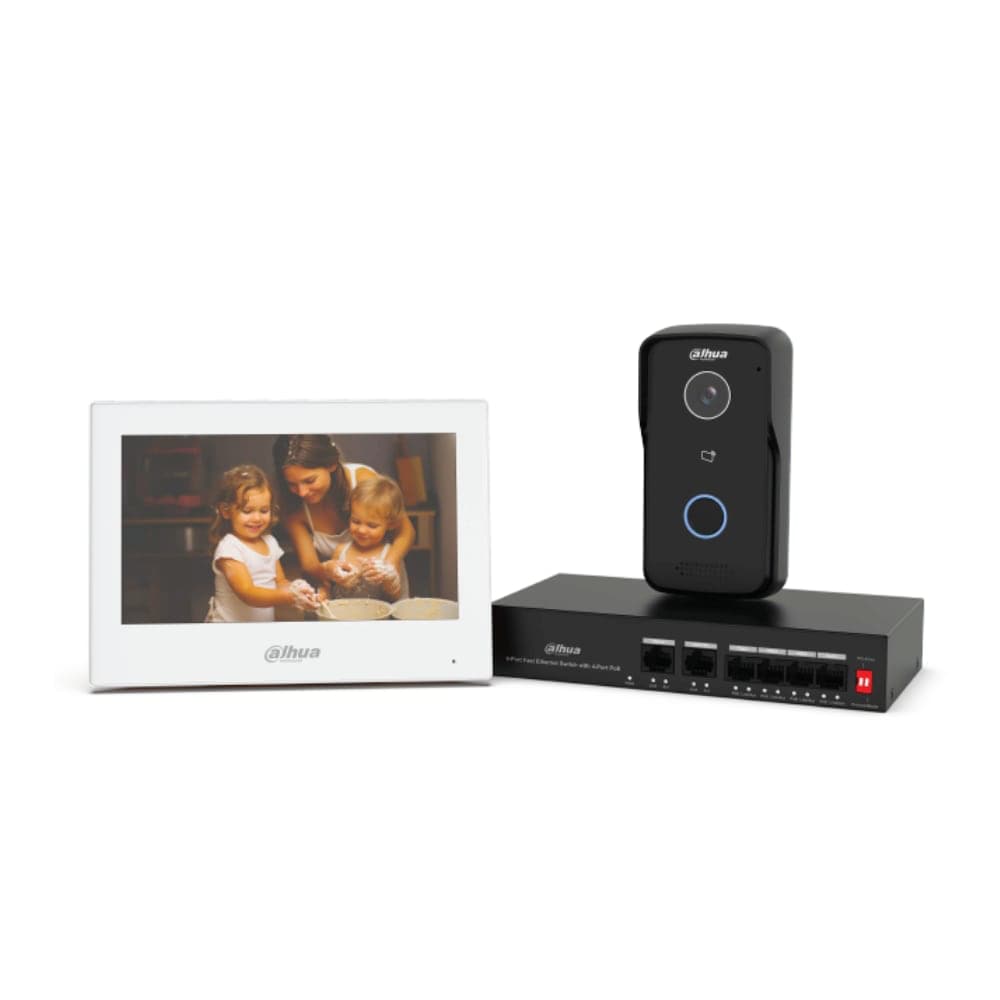

What’s in the Box
1 × Dahua DHI-VTO2111D-P-S3 IP Villa Door Station
2MP IP door station with IR illumination, two-way audio, app voice call support, card unlock, indoor monitor unlock, app remote unlock, tamper alarm and surface-mount installation.
1 × Dahua DHI-VTH2621GW-P White Indoor Monitor
White 7-inch capacitive touch screen monitor with 1024 × 600 resolution, two-way voice talk, door station monitoring, IPC monitoring, 6 alarm inputs and 1 alarm output.
1 × Dahua DH-PFS3006-4ET-36 PoE Switch
Compact Dahua PoE switch with 4 PoE ports and 2 uplink ports, designed to power and connect the intercom system cleanly over network cabling.
Mounting Accessories Included
The kit includes the required mounting accessories for the door station and indoor monitor, helping create a cleaner install for homes, villas and business entrances.
Why Choose the Dahua KTP03W-S2 Video Intercom Kit?
The KTP03W-S2 is designed for customers who want a proper intercom system, not just a consumer video doorbell. You get a dedicated indoor monitor, a commercial-grade IP door station, app-based access and a PoE network setup that suits long-term use.
A Cleaner White Monitor for Modern Interiors
The white 7-inch indoor monitor blends neatly into homes, townhouses, offices and reception areas where a clean wall-mounted screen is preferred over a bulky handset.
Answer Visitors from the Screen or App
You can answer from the indoor monitor when you are inside, or use the mobile app to speak with visitors and unlock compatible access points remotely.
Safer Access Control for Doors and Gates
The system supports card unlock, indoor monitor unlock and remote app unlock, helping you manage family, staff, guests and deliveries more conveniently.
Built for Real Entry Points
The outdoor station supports IR illumination, IP65 protection when installed and sealed correctly, and a wide 107° horizontal view to help frame visitors clearly.
Recommended For
Homes & Townhouses
See who is at the front door, speak to visitors and unlock a compatible gate or electric strike without leaving the indoor monitor.
Villas & Duplexes
A practical single-entry intercom solution for properties that need a proper screen, outdoor station and app-based remote answering.
Offices & Reception Entries
Allow staff to screen visitors before granting access to reception, side entries, staff-only doors or controlled business areas.
Clinics & Professional Suites
Ideal for small practices and consulting rooms where secure visitor screening and controlled access matter.
Expand Your Dahua Intercom System
This kit gives you a strong starting point for a smarter access setup. Depending on your site, you can add compatible accessories such as extra indoor monitors, access cards, an electric strike, a gate release interface, UPS backup or extra PoE/network equipment.
Add Extra Indoor Monitors
Add another compatible Dahua indoor monitor for upstairs, a second living area, office reception or a back room so more people can answer the same entrance.
Add MIFARE / IC Cards
The door station supports card unlocking, making it easier for regular users to enter without always relying on keys or phone access.
Add an Electric Strike or Gate Release
Pair the system with a compatible lock, electric strike or gate trigger to turn your intercom into a practical access control solution.
Add UPS Backup Protection
A small UPS can help keep the intercom, switch and network running during short power interruptions.
Technical Specifications
Door Station — DHI-VTO2111D-P-S3
| Camera |
1/2.8" 2MP CMOS high definition, low illumination, DWDR, colour and IR |
| Field of View |
H: 107° · V: 60° · D: 122° |
| Video Compression |
H.264 / H.265 |
| Light Compensation |
Auto IR |
| Audio |
Two-way audio with echo suppression and digital noise reduction |
| Unlock Methods |
Card, app and indoor monitor |
| Card Capacity |
10,000 cards |
| Lock Control |
1 port, normally closed by default |
| Network Port |
1 × 10/100 Mbps network port |
| Power |
12 VDC 1A or Standard PoE |
| Installation |
Surface mount |
| Protection |
IP65 when sealed correctly with silicone sealant, IK04 |
| Operating Temperature |
-30°C to +60°C |
| Dimensions |
135.1 mm × 70.6 mm × 34.6 mm |
Indoor Monitor — DHI-VTH2621GW-P
| Display |
7" TFT capacitive touch screen |
| Resolution |
1024 × 600 |
| Audio |
Two-way voice talk with built-in speaker |
| Video Decoding |
H.265 and H.264 |
| Door Station / IPC Monitor |
Supported |
| Alarm Input |
6 channels |
| Alarm Output |
1 channel |
| Storage |
MicroSD card, max 64GB reserved for software |
| Network Port |
1 × 10/100 Mbps Ethernet port |
| Power |
12 VDC 1A or Standard PoE |
| Installation |
Surface mount |
| Colour |
White |
| Dimensions |
189.6 mm × 134.6 mm × 26.0 mm |
| Operating Temperature |
-10°C to +55°C |
PoE Switch — DH-PFS3006-4ET-36
| PoE Ports |
4 × 10/100 Mbps PoE ports |
| Uplink Ports |
2 × 10/100 Mbps uplink ports |
| Certifications |
CE, FCC |
| Dimensions |
194.0 mm × 108.1 mm × 35.0 mm |
| Gross Weight |
0.56 kg |
| Colour |
Black |
FAQs
What is the difference between KTP03-S2 and KTP03W-S2?
The KTP03W-S2 includes the white indoor monitor version, making it a better match for modern interiors where a clean white wall-mounted screen is preferred.
Can I answer visitors from my phone?
Yes. The door station supports voice calls through the app, allowing you to speak with visitors and unlock compatible access remotely.
Does the kit include a PoE switch?
Yes. The kit includes the DH-PFS3006-4ET-36 PoE switch with 4 PoE ports and 2 uplink ports.
Can it unlock a door or gate?
Yes. The system supports card unlock, indoor monitor unlock and app remote unlock when connected to compatible lock or gate hardware.
Is the door station suitable outdoors?
Yes. The door station is designed for outdoor use and supports IP65 protection when sealed correctly during installation.
Can I add more monitors later?
Yes. Dahua IP intercom systems can support additional compatible indoor monitors depending on the final system design and configuration.
More Information
Order Your Dahua KTP03W-S2 from CCTV Guru Australia
CCTV Guru supplies genuine Dahua video intercom products for Australian homes, offices, clinics and small businesses. Order the Dahua KTP03W-S2 IP Video Intercom Kit today for fast Australia-wide shipping, expert pre-sales advice and local support when choosing extra monitors, access cards, electric strikes, PoE switches and installation accessories.
