Description

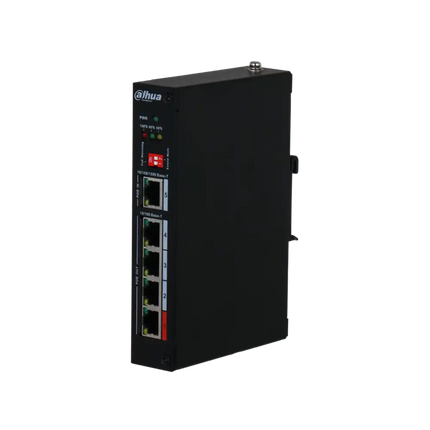

Dahua DH-PFT1500 5-Port PoE Extender with Long-Distance Transmission

The Dahua DH-PFT1500 is an industrial-grade PoE extender designed to significantly extend Ethernet and PoE transmission distance for CCTV and network deployments. Working alongside standard PoE switches and injectors, the DH-PFT1500 extends PoE transmission up to 250 metres, making it ideal for large sites where cameras are installed far from the network core.

Featuring 1 × Gigabit PoE input and 4 × 100Mbps PoE output ports, including Hi-PoE and IEEE 802.3bt support on red ports, the DH-PFT1500 can power high-demand devices such as PTZ cameras, AI cameras and multi-sensor cameras. Its full-metal, fanless design and wide operating temperature range ensure stable operation in harsh outdoor and industrial environments.

Key Features

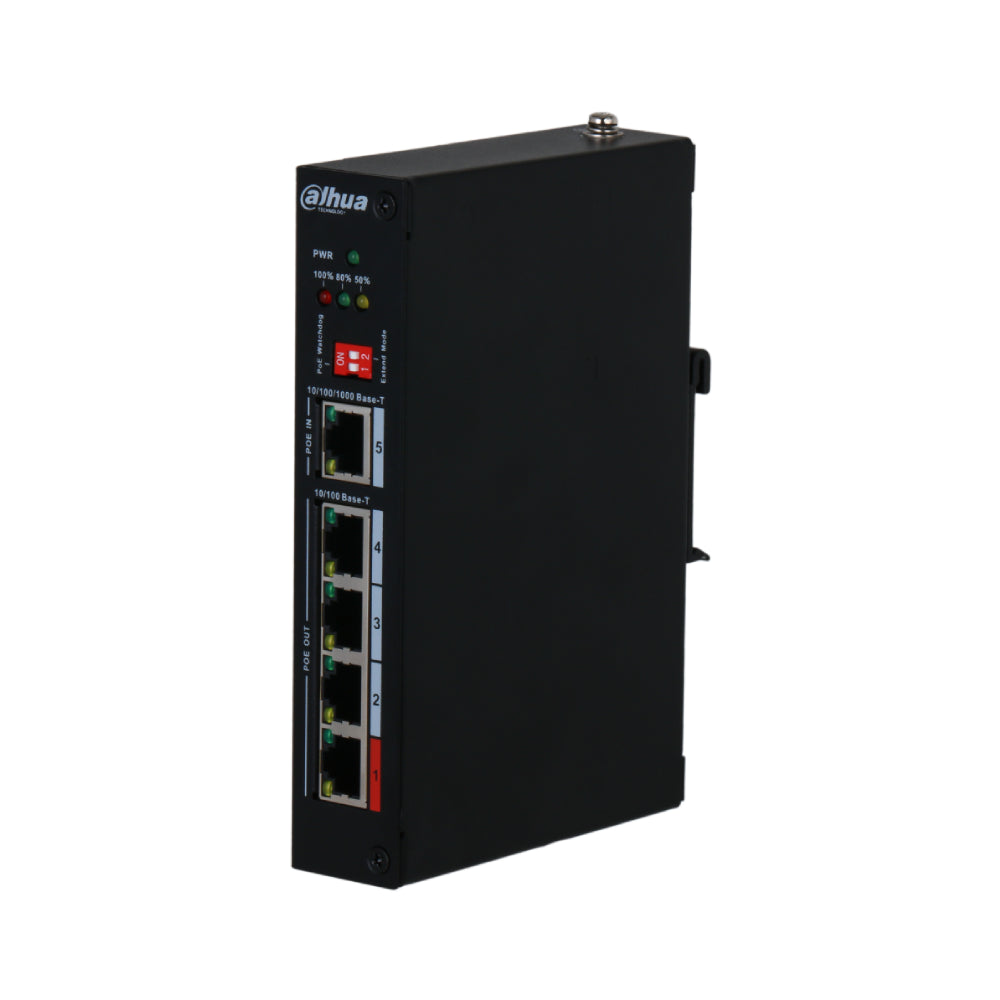

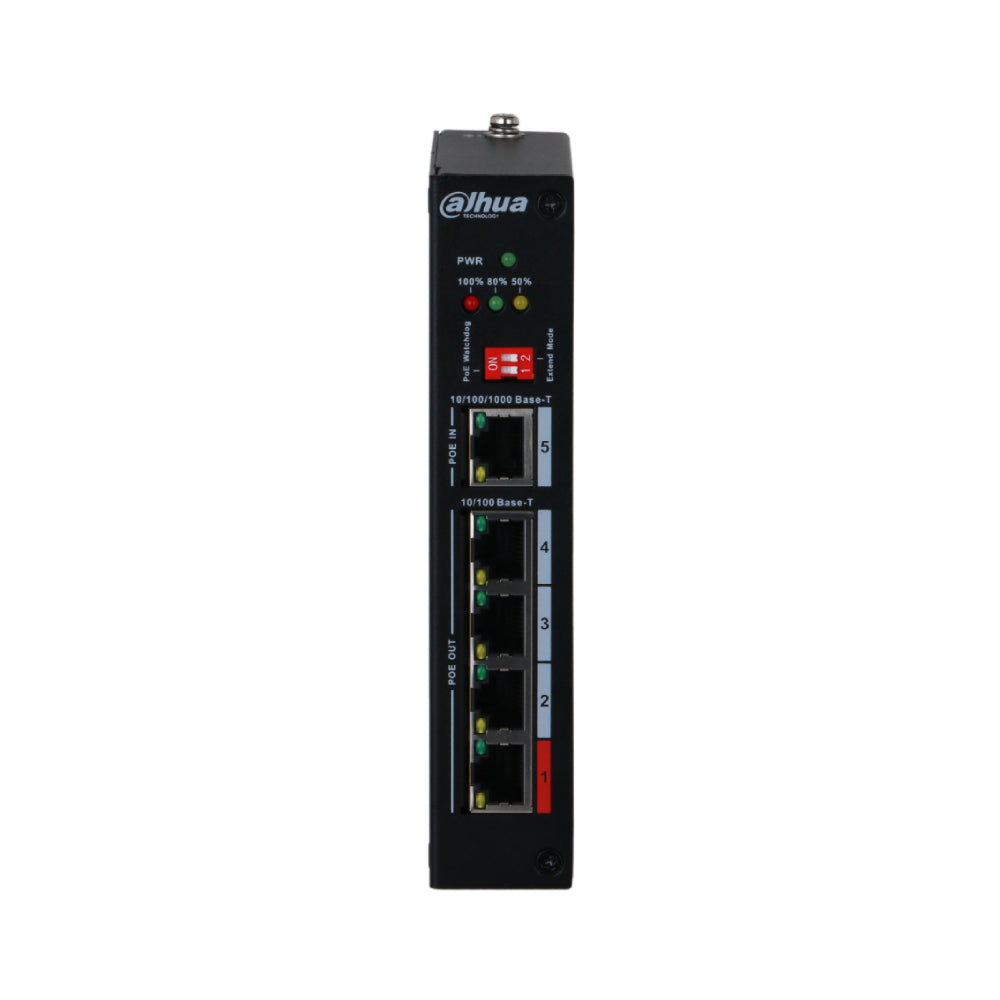

1 × Gigabit PoE input and 4 × 100Mbps PoE output ports
Supports IEEE 802.3af / at / bt and Hi-PoE standards
Long-distance PoE transmission up to 250m (10Mbps mode)
Red ports support up to 90W Hi-PoE output
PoE Watchdog automatically restarts unresponsive devices
Full-metal, fanless industrial design
Lightning protection: 4kV common mode / 2kV differential mode

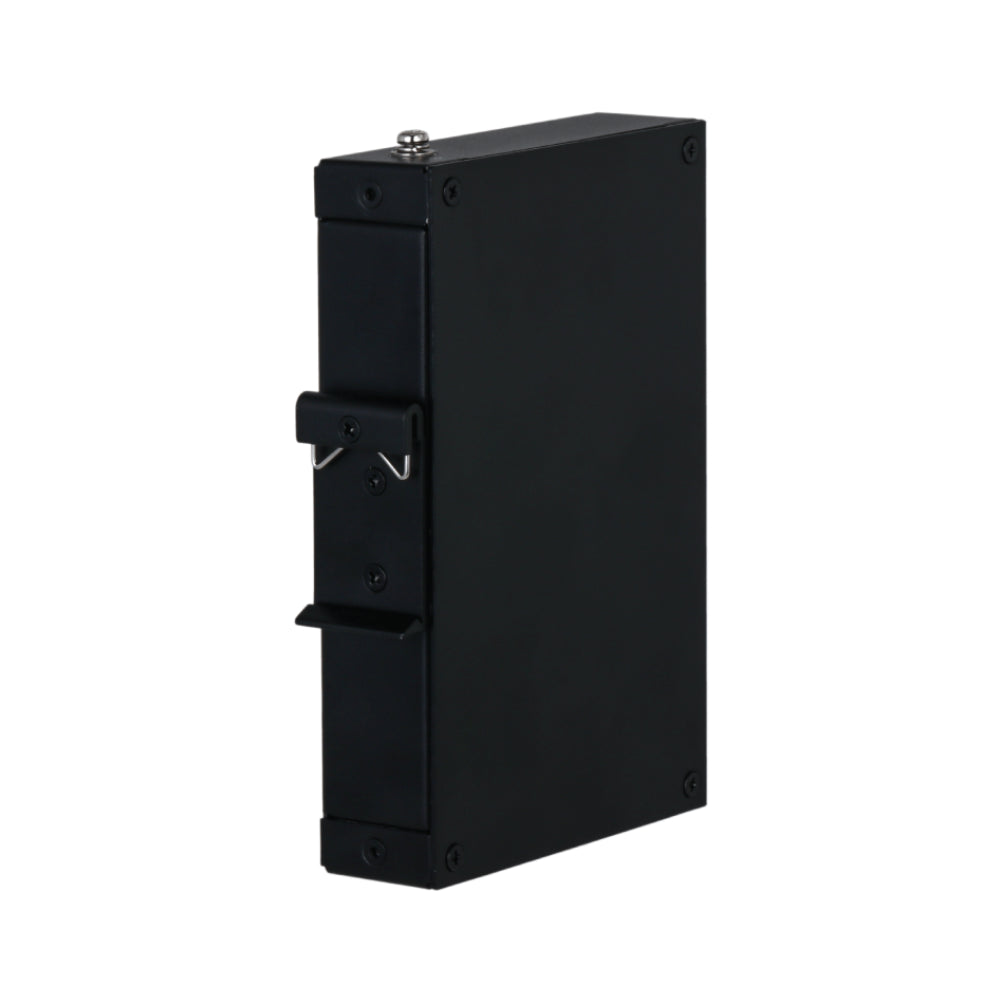

Desktop and DIN-rail mounting supported
Designed for parks, roads, malls, factories and construction sites

Specification	Details
Model / SKU	DH-PFT1500
Ports	4 × RJ45 10/100 Mbps PoE output, 1 × RJ45 10/100/1000 Mbps PoE input
PoE Standards	IEEE 802.3af / 802.3at / IEEE 802.3bt / Hi-PoE
PoE Power Output	Port 1 ≤ 90W, Ports 2–4 ≤ 30W, Total ≤ 90W
Long-Distance PoE	Up to 250m (bandwidth reduced to 10Mbps)
Switching Capacity	2.8 Gbps
Forwarding Rate	2.08 Mpps
Packet Buffer	1 Mbit
MAC Address Table	4K
Jumbo Frame	9K Bytes
Operating Temperature	–30°C to +65°C
Operating Humidity	5%–95% RH
Power Consumption	Idle: 5W \| Full Load: 90W
Protection	ESD: 8kV air / 6kV contact; Lightning: 4kV common / 2kV differential
Installation	Desktop mount or DIN-rail mount
Dimensions	150 × 100 × 30 mm
Net Weight	0.47 kg
Certifications	CE, FCC

More Information

DH-PFT1500 Datasheet
