Dahua · IP Security Cameras4MP WizMind X Motorised AI Bullet Camera

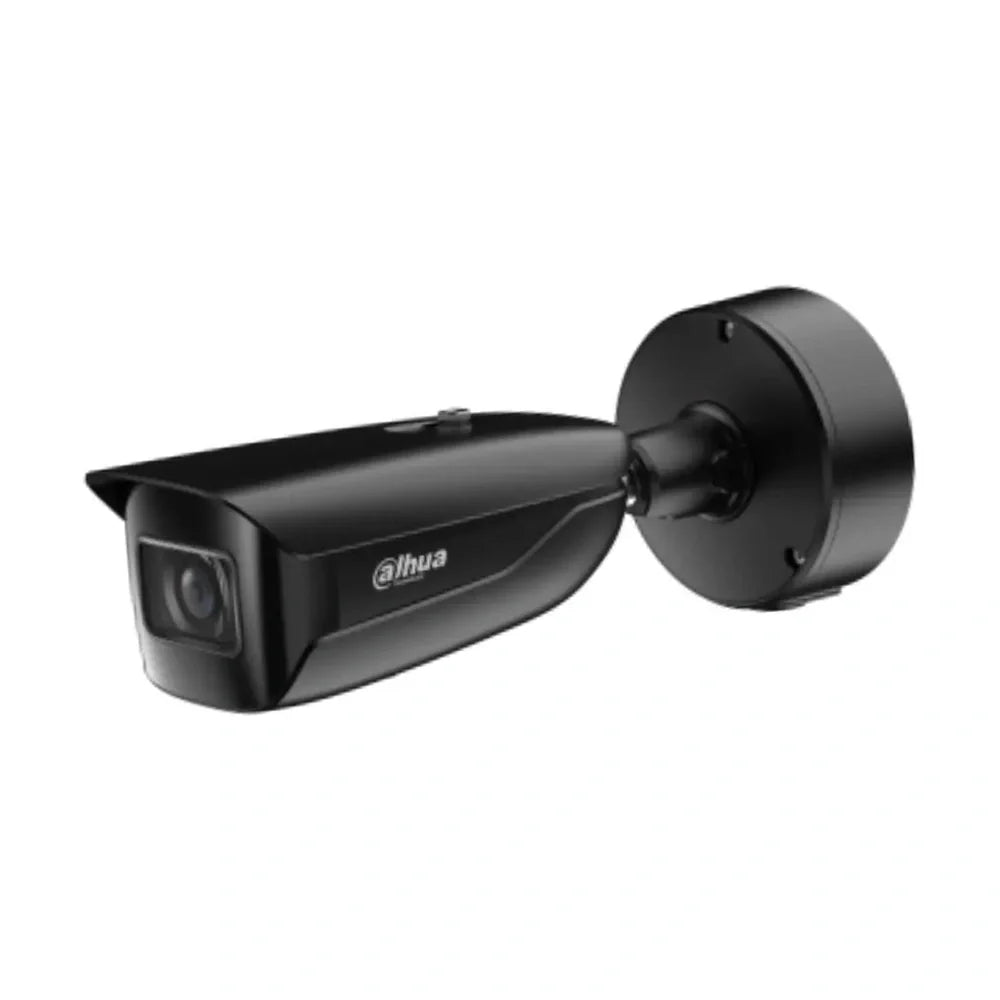

DH-IPC-HFW7442H-Z-X — Specify advanced scene analysis alongside a high-frame-rate 4MP image. This WizMind X bullet pairs a 1/1.8-inch sensor with a 2.7–12 mm motorised lens, 140 dB WDR and infrared illumination rated to 60 m for demanding commercial surveillance projects.
Key features
High-frame-rate 4MP
Up to 50/60 fps provides more frames for suitable high-motion scenes.
Motorised P-iris lens
Adjust the viewing area remotely with a 2.7–12 mm optical range.
WizMind X analysis
Plan specialised detection tasks around the required scene and supported smart plan.
140 dB WDR
Helps manage scenes with strong brightness differences, supported by careful exposure setup.
Applications & installation
Designed for planned installations requiring functions such as metadata, ANPR, face recognition, PPE detection or people counting. These are configuration-dependent capabilities, not a promise that every function will work simultaneously or at every distance. ANPR in particular requires suitable positioning, lighting and tuning.
Technical Specifications
| Model |
DH-IPC-HFW7442H-Z-X |
| Sensor |
1/1.8-inch CMOS |
| Maximum video |
2688 × 1520, 4MP at 50/60 fps |
| Lens |
2.7–12 mm motorised P-iris, F1.2 |
| Horizontal view |
107° to 48° |
| Night vision |
IR up to 60 m |
| Wide dynamic range |
140 dB |
| AI functions |
Metadata, ANPR, PPE detection, face recognition and people counting |
| Smart plans |
Supported dual-AI combinations depend on resource allocation |
| Storage |
microSD up to 512 GB |
| Interfaces |
Gigabit Ethernet, RS-485 and BNC |
| Audio and alarms |
1 audio input/output; 3 alarm inputs and 2 outputs |
| Power |
12 V DC, 24 V AC or IEEE 802.3at PoE+; ePoE supported |
| Power planning |
Maximum PoE figure 24.3 W; allow for the specified operating/heater conditions |
| Protection |
IP67 and IK10 |
| Net weight |
1.65 kg |
| Warranty |
60 months — subject to warranty terms |
Compatible options & add-ons
Optional items are sold separately. Select the components needed for your installation; mounting parts may need to be used together.
Frequently asked questions
Can I use a basic 802.3af PoE port?
Specify an IEEE 802.3at PoE+ supply and check the full power budget. The camera also supports the stated DC/AC power options.
Is number-plate recognition automatic at any installation angle?
No. Lens position, plate size, approach angle, shutter speed, lighting and firmware configuration all affect ANPR performance.
Downloads
Manufacturer documentation: the datasheet identifies the product or stated product family; general guides cover the applicable equipment type. Confirm model-specific instructions before installation.
