Dahua · DH-HAC-HDBW2501EP · 5MP HDCVI Dome · Starlight · 2.8mm / IR 30m
5MP Vandal Dome

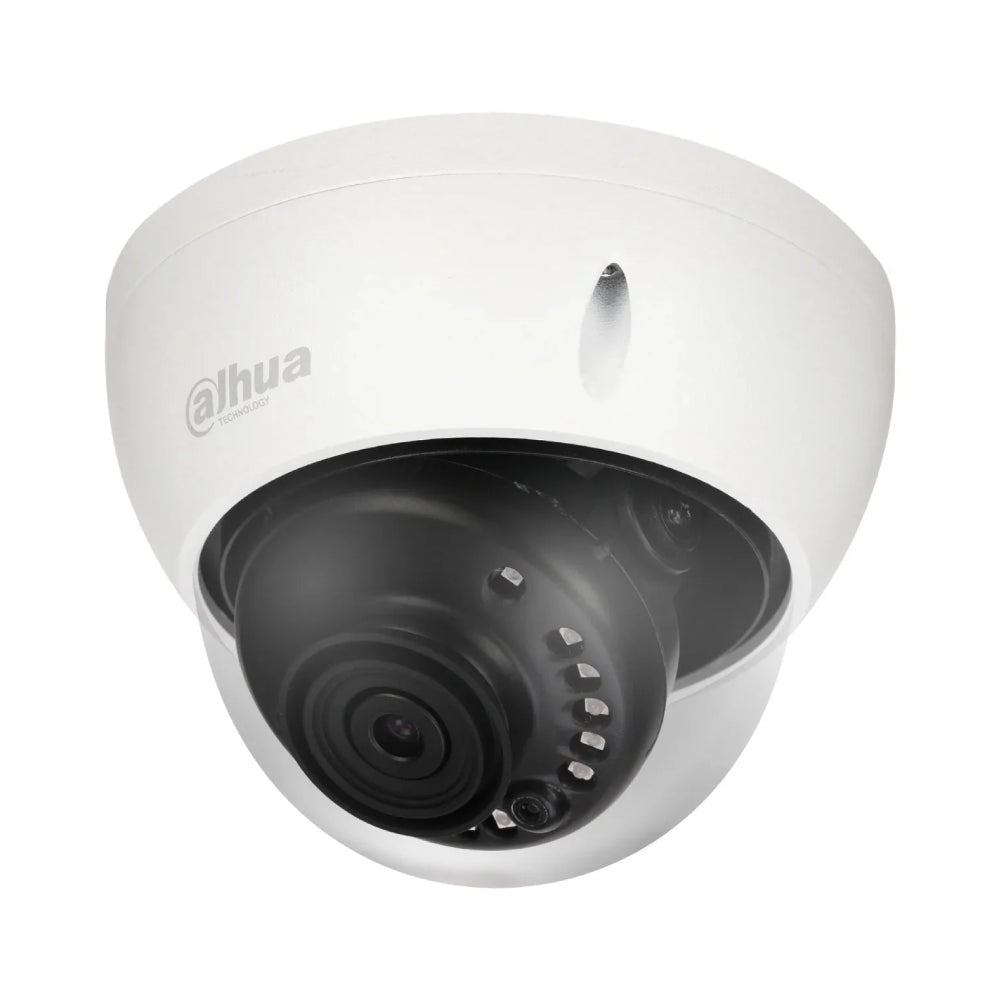

Dahua DH-HAC-HDBW2501EP 5MP Starlight HDCVI Dome Camera
The Dahua DH-HAC-HDBW2501EP is a 5MP Starlight HDCVI vandal dome built for discreet, tamper-resistant coverage. A 2.8mm fixed lens gives a wide view, the Starlight sensor holds detail in low light, Smart IR reaches up to 30m at night, and 120dB true WDR balances harsh contrast. The IK10 metal housing and IP67 rating resist impact and weather. As an HDCVI camera it connects to a Dahua XVR (Penta-brid DVR) over coax — not an IP NVR.
Night Vision
Smart IR 30m
Technology
HDCVI Starlight
5MP Detail
Records more pixels than 1080p for clearer faces and activity across entries, hallways and shopfronts.
Starlight Low-Light
The Starlight sensor keeps footage usable in low light where standard domes go dark or grainy.
IK10 Vandal Housing
An impact-rated metal dome resists tampering and knocks — ideal for public, retail and accessible mounting points.
HDCVI Over Coax
Multi-format output (HDCVI/AHD/TVI/CVBS) connects to a Dahua XVR over existing coax, with no network rewiring.
Specifications — DH-HAC-HDBW2501EP
| Model |
DH-HAC-HDBW2501EP (2.8mm) |
| Resolution |
5MP (up to 25 fps, 16:9) |
| Lens |
2.8mm fixed |
| Night Vision |
Smart IR up to 30m |
| Low-Light |
Starlight technology |
| WDR |
120dB true WDR, 3D NR |
| Form Factor |
Vandal dome, IK10 |
| Weatherproof |
IP67 |
| Power |
12V DC |
| Signal Type |
HDCVI (also AHD/TVI/CVBS) — connect to a Dahua XVR |
| Warranty (Australia) |
3 years · CCTV Guru Australia |
Downloads & Resources
What recorder do I need?
A Dahua HDCVI XVR (Penta-brid DVR) that supports 5MP input. Note 5MP 16:9 mode may require an XVR firmware update (V4.001.0000001.0.R.200908 or later).
Is it vandal resistant?
Yes, the metal dome carries an IK10 impact rating plus IP67 weatherproofing, suiting exposed and accessible locations.
How wide is the view?
The 2.8mm fixed lens provides a wide field of view ideal for doorways, rooms and shop floors.
How far does the IR reach?
Smart IR illuminates up to 30m, and the Starlight sensor keeps detail under low ambient light.
