Dahua · DH-PFS3106-4ET-60-V2 · 6-Port Unmanaged · 60W
4-PoE + SFP

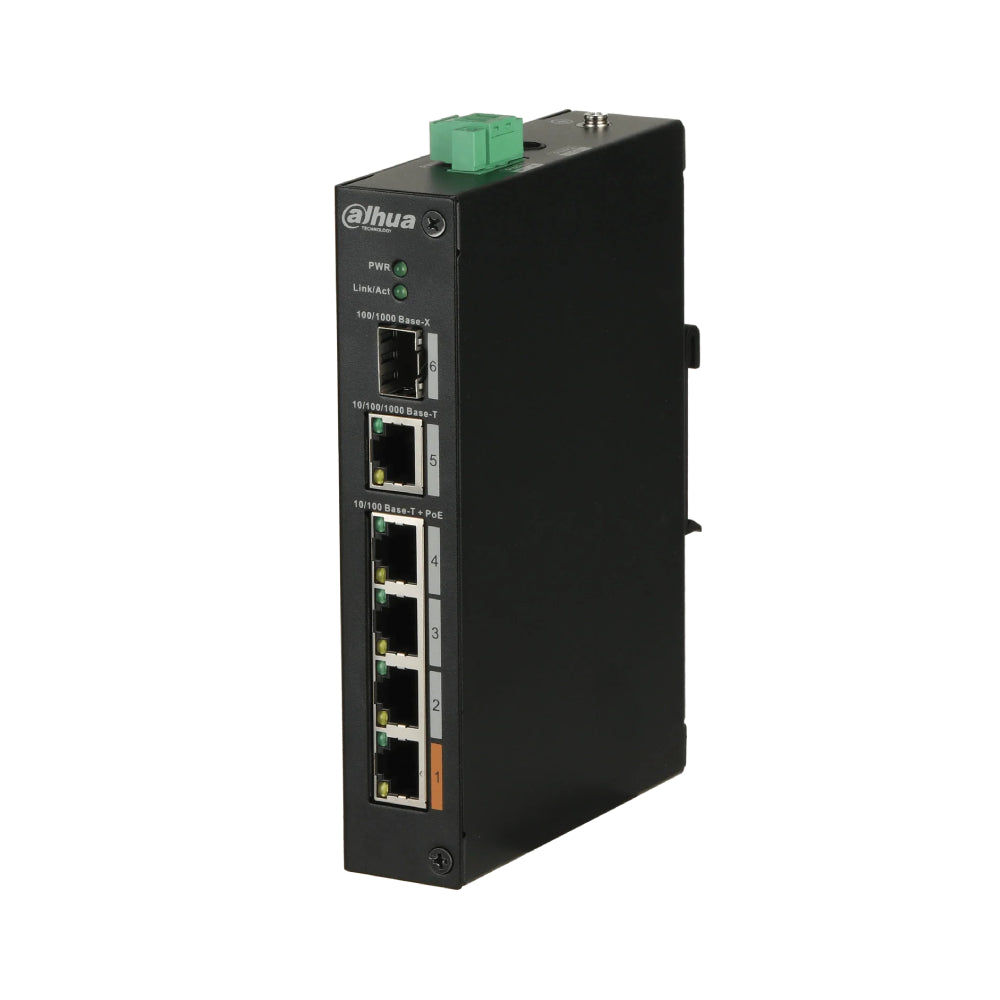

Dahua DH-PFS3106-4ET-60-V2 6-Port Unmanaged PoE Switch
The Dahua DH-PFS3106-4ET-60-V2 is a plug-and-play unmanaged switch with 4 PoE ports, a 60W budget, plus an SFP optical port and an uplink. It powers Dahua and standard IP PoE cameras — the orange Port 1 supplies up to 60W Hi-PoE — with 250m long-distance PoE and a PoE watchdog in a wide-temperature metal body.
Uplinks
1 × SFP + 1 uplink
SFP Fibre Uplink
The onboard SFP optical port lets you run a fibre uplink — handy for connecting a remote 4-camera cluster back to the core.
Hi-PoE on Port 1
The orange Port 1 supplies up to 60W Hi-PoE for a higher-draw camera; every PoE port supports up to 30W PoE+.
250m Long-Distance PoE
Extended-reach mode pushes power and data up to 250m for cameras beyond the standard 100m limit.
Wide-Temp & Watchdog
−30°C to +65°C operation plus a PoE watchdog that auto-restarts frozen camera ports for reliable uptime.
Specifications — DH-PFS3106-4ET-60-V2
| Model / SKU |
DH-PFS3106-4ET-60-V2 |
| Ethernet Ports |
4 (PoE) |
| Optical (SFP) Ports |
1 |
| Uplink Ports |
1 |
| PoE Standards |
IEEE 802.3af / 802.3at, Hi-PoE |
| PoE Budget |
Port 1 ≤ 60W (Hi-PoE); Ports 2–4 ≤ 30W; Total ≤ 60W |
| Long-Distance PoE |
Up to 250m |
| Layer |
Layer 2 |
| Management |
Unmanaged (plug & play) |
| Operating Temperature |
−30°C to +65°C |
| PoE Watchdog |
Yes |
| Mounting |
Desktop |
| Warranty (Australia) |
3 years · CCTV Guru Australia |
Downloads & Resources
What's the SFP port for?
It accepts a fibre SFP module so you can run a fibre uplink back to the core — useful for a remote camera cluster.
Does it need configuration?
No — it's a fully unmanaged plug-and-play switch. Connect cameras and uplink and it works immediately.
How many cameras can it power?
Up to four PoE cameras within the shared 60W budget; Port 1 delivers up to 60W Hi-PoE for a higher-draw camera.
