Dahua · DH-PFS4226-24ET-360 · 26-Port Managed · 360W
24-PoE Managed Switch

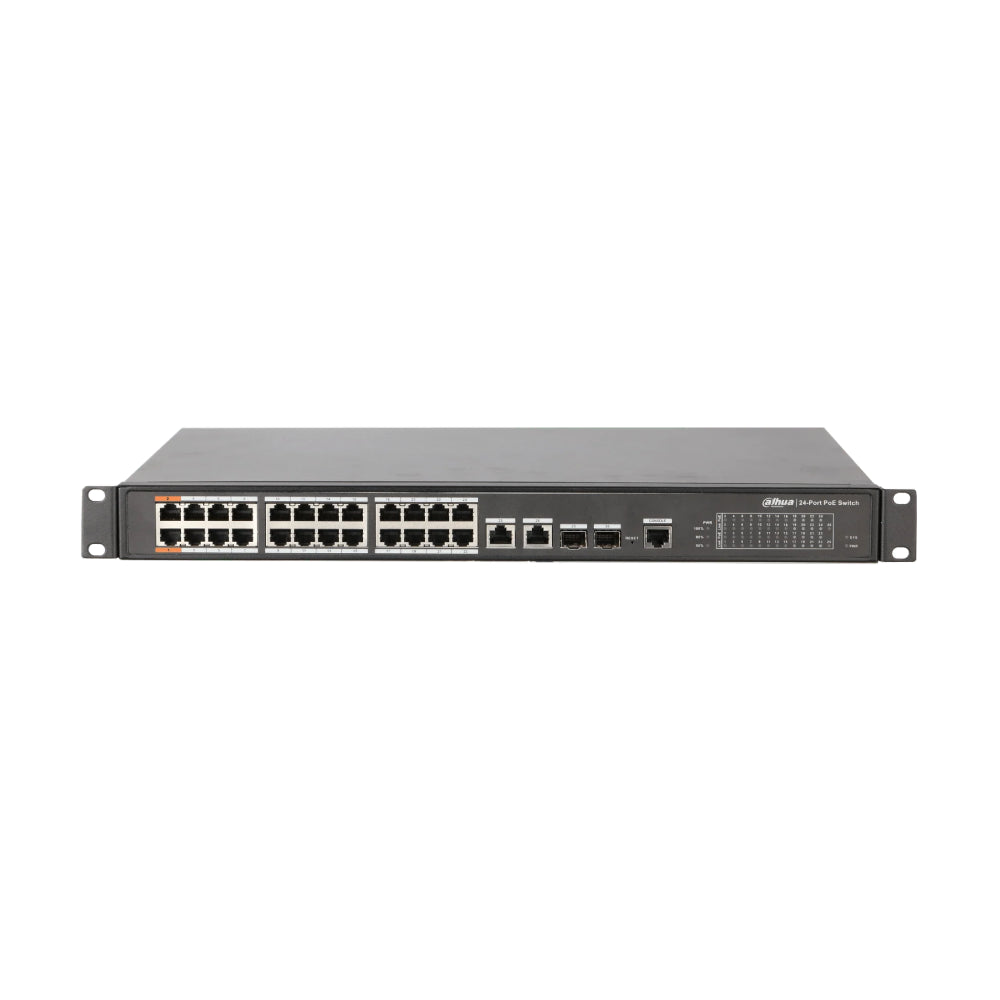

Dahua DH-PFS4226-24ET-360 26-Port Layer 2 Managed PoE Switch
The Dahua DH-PFS4226-24ET-360 is a Layer 2 web-managed switch with 24 PoE ports, a 360W budget and 2 SFP uplinks. It powers Dahua and standard IP PoE cameras — the red ports deliver up to 90W (IEEE 802.3bt) for PTZ models — with a friendly web interface, PoE watchdog and 250m long-distance PoE for larger surveillance sites.
Management
Web managed (L2)
24 Cameras, 360W
Powers a full 24-port PoE load — red ports deliver up to 90W (802.3bt) for PTZ, the rest up to 30W PoE+.
Web Management
A clean Layer 2 web interface gives you VLANs, port control and PoE management with no cloud account required.
PoE Watchdog
Automatically power-cycles a frozen camera port to restore the IPC connection and keep coverage live.
250m + SFP Uplinks
Long-distance PoE to 250m for far cameras, plus two SFP optical ports for a fibre backbone to the NVR or core.
Specifications — DH-PFS4226-24ET-360
| Model / SKU |
DH-PFS4226-24ET-360 |
| Ethernet Ports |
24 (PoE) |
| Optical (SFP) Ports |
2 |
| Uplink Ports |
2 |
| PoE Standards |
IEEE 802.3af / 802.3at / 802.3bt, Hi-PoE |
| PoE Budget |
Port 1–2 ≤ 90W, Port 3–24 ≤ 30W, Total ≤ 360W |
| Long-Distance PoE |
Up to 250m |
| Layer |
Layer 2 |
| Management |
Web managed |
| PoE Watchdog |
Yes |
| Mounting |
Desktop / rack mount |
| Warranty (Australia) |
3 years · CCTV Guru Australia |
Downloads & Resources
Is this cloud managed?
No — it's a Layer 2 web-managed switch. You configure VLANs, ports and PoE through its local web interface. For DoLynk cloud management, see the CS-series switches.
How many cameras can it power?
A full 24-port PoE load within the 360W budget; red ports supply up to 90W Hi-PoE for PTZ cameras.
Are the uplinks fibre?
Yes — two SFP optical ports let you run a fibre backbone to your NVR or core switch.
