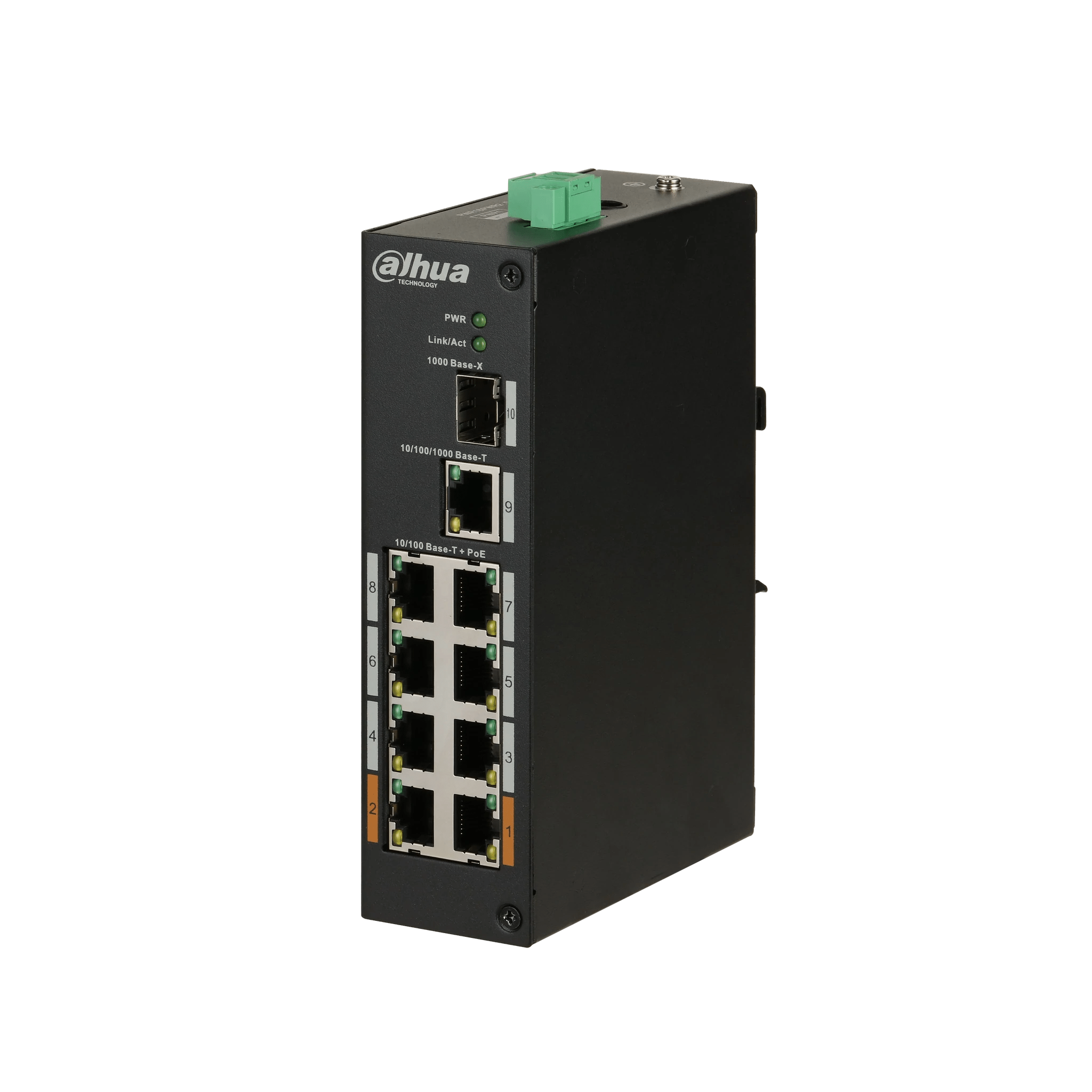

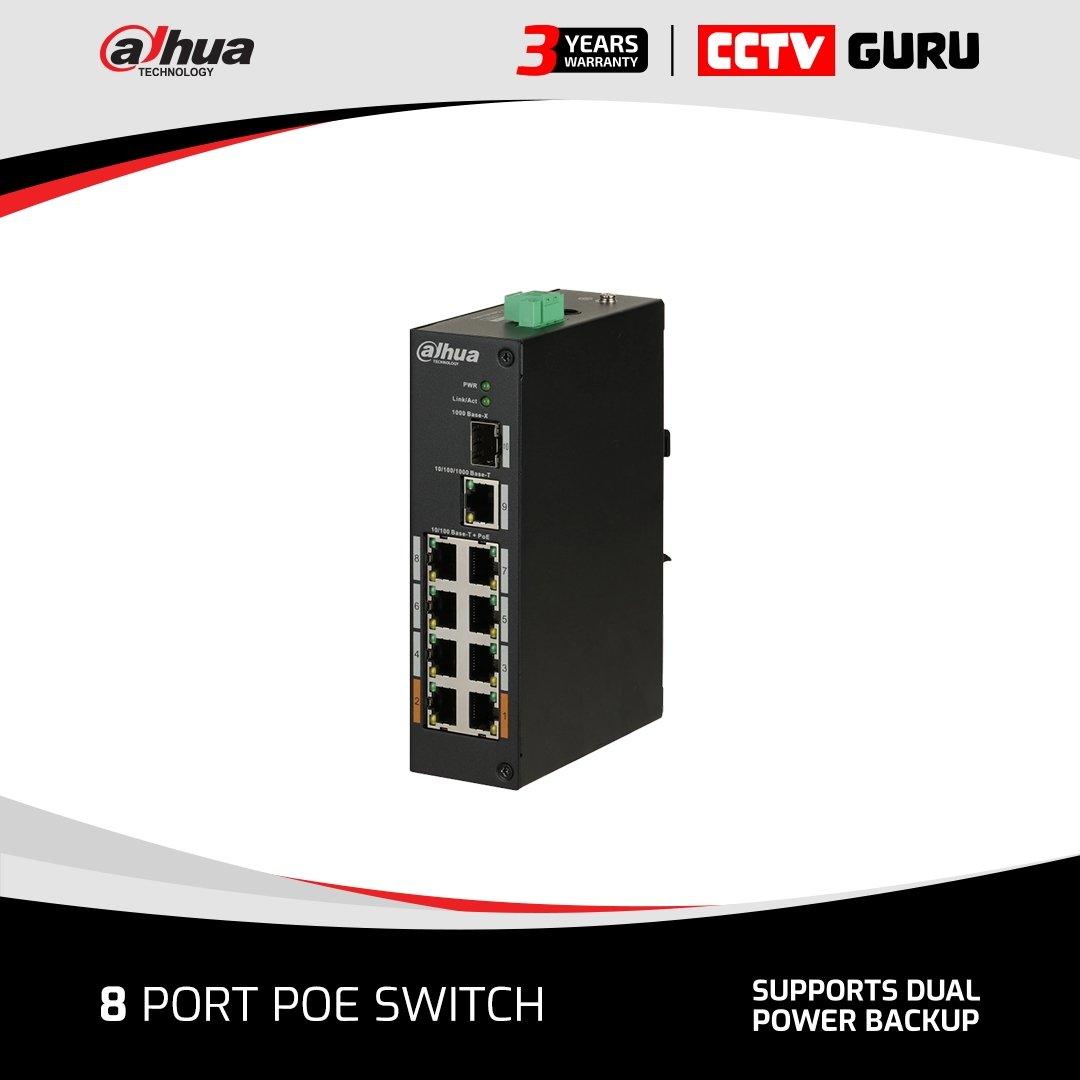

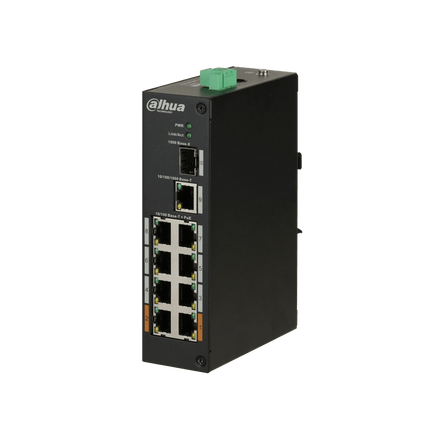

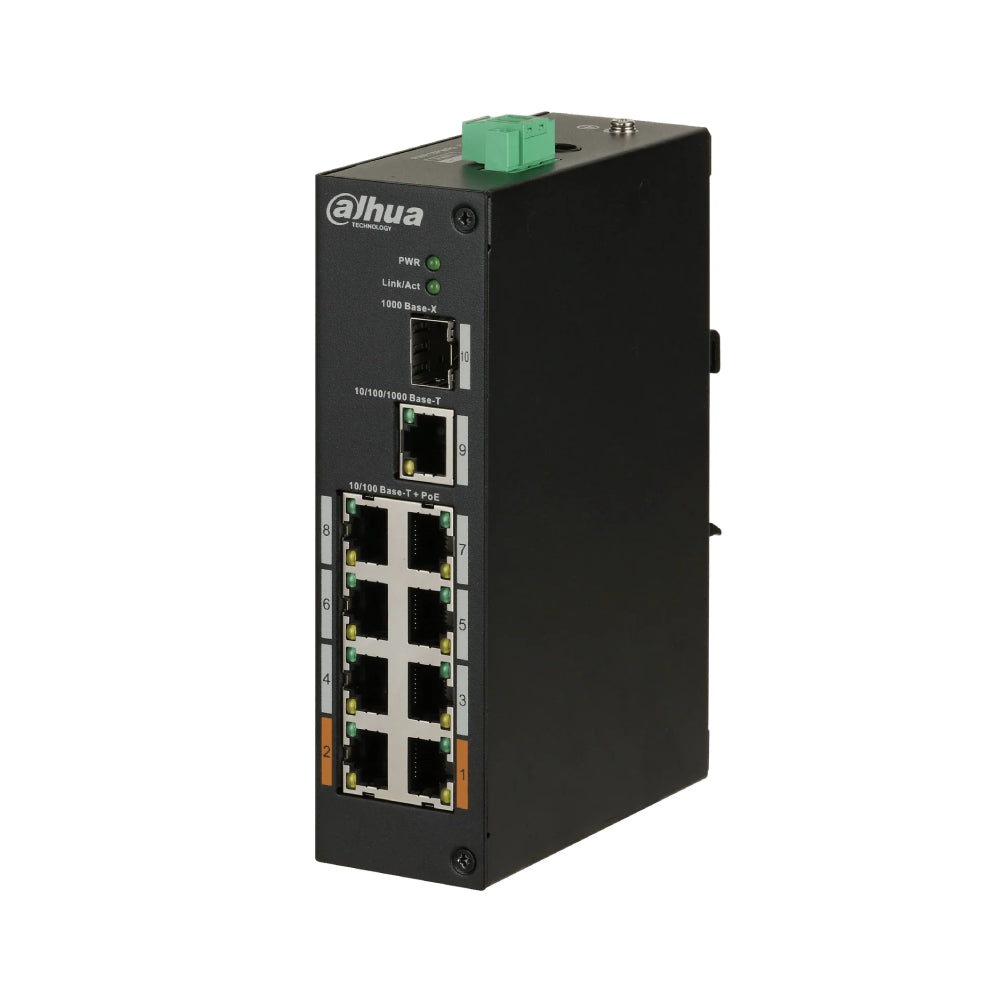

Dahua DH-PFS3110-8ET-96-V2 10-Port Unmanaged PoE Switch
The Dahua DH-PFS3110-8ET-96-V2 is a plug-and-play unmanaged switch with 8 PoE ports, a 96W budget, plus an SFP optical port and an uplink. It powers Dahua and standard IP PoE cameras — the red port supports 90W (IEEE 802.3bt) — with intelligent PoE, 250m long-distance PoE and a PoE watchdog in a wide-temperature metal body.
Uplinks
1 × SFP + 1 uplink
SFP Fibre Uplink
The onboard SFP optical port lets you run a fibre uplink back to the core — ideal for a remote 8-camera cluster.
90W on the Red Port
The red port supports up to 90W (IEEE 802.3bt) for a PTZ or other high-draw camera; other PoE ports supply up to 30W.
250m Long-Distance PoE
Extended-reach mode delivers power and data up to 250m for cameras beyond the standard 100m run.
Wide-Temp & Watchdog
−30°C to +65°C operation plus a PoE watchdog that auto-restarts frozen camera ports for reliable uptime.
Specifications — DH-PFS3110-8ET-96-V2
| Model / SKU |
DH-PFS3110-8ET-96-V2 |
| Ethernet Ports |
8 (PoE) |
| Optical (SFP) Ports |
1 |
| Uplink Ports |
1 |
| PoE Standards |
IEEE 802.3af / 802.3at / 802.3bt, Hi-PoE |
| PoE Budget |
Port 1 ≤ 60W; Ports 2–8 ≤ 30W; Total ≤ 96W (red port up to 90W) |
| Long-Distance PoE |
Up to 250m |
| Layer |
Layer 2 |
| Management |
Unmanaged (plug & play) |
| Operating Temperature |
−30°C to +65°C |
| PoE Watchdog |
Yes |
| Mounting |
Desktop |
| Warranty (Australia) |
3 years · CCTV Guru Australia |
Downloads & Resources
What's the SFP port for?
It accepts a fibre SFP module for a fibre uplink back to the core — useful for a remote camera cluster on a longer run.
Does it need configuration?
No — it's a fully unmanaged plug-and-play switch. Connect cameras and uplink and it works immediately.
How much power per port?
The red port supplies up to 90W (802.3bt) for a high-draw camera; the rest deliver up to 30W each, within a 96W total budget.
