Dahua · DH-PFS3010-8ET-96-V2 · 10-Port Unmanaged · 96W
8-PoE Switch

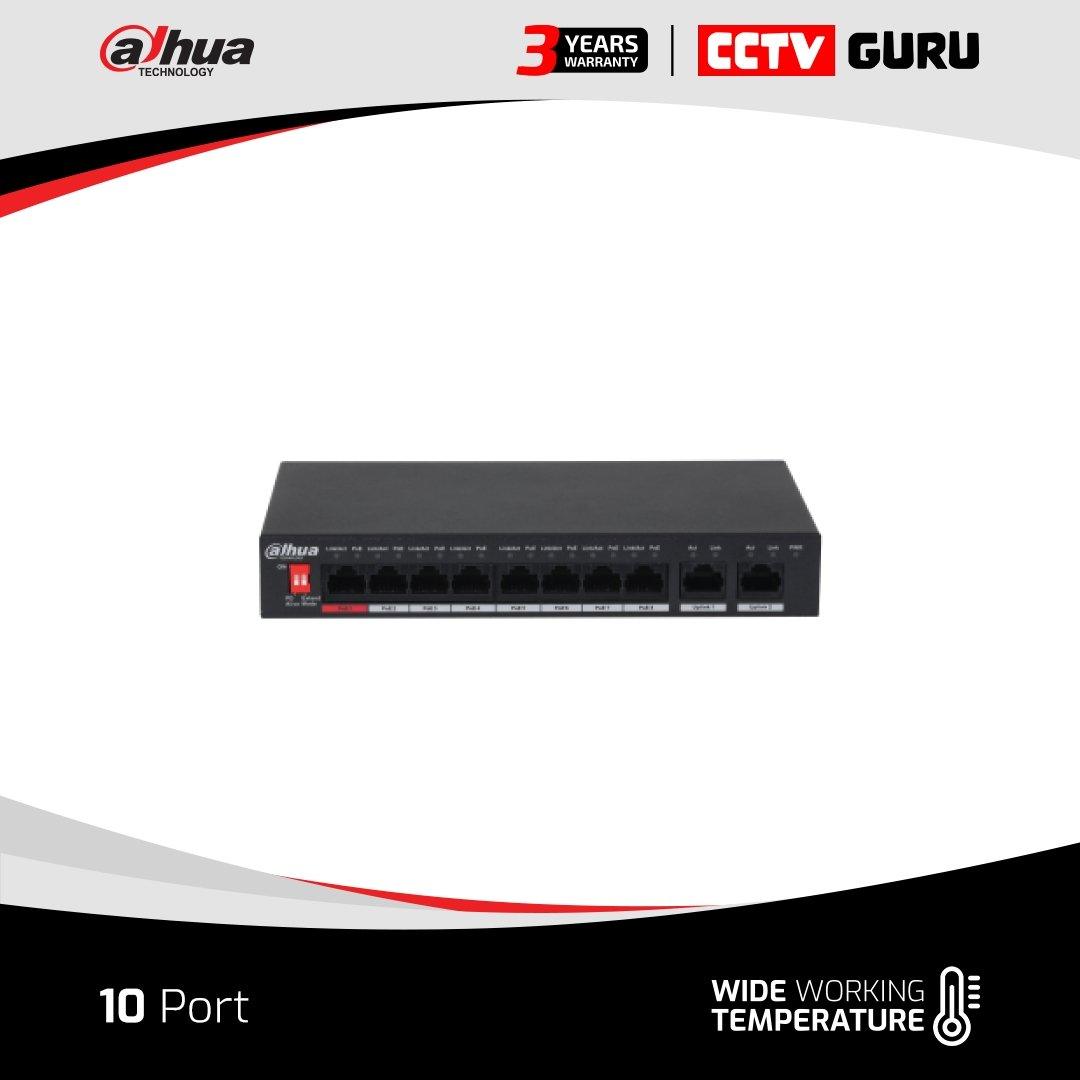

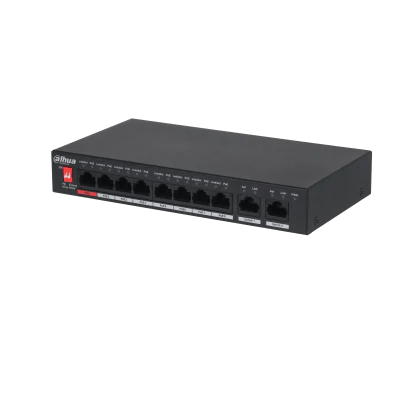

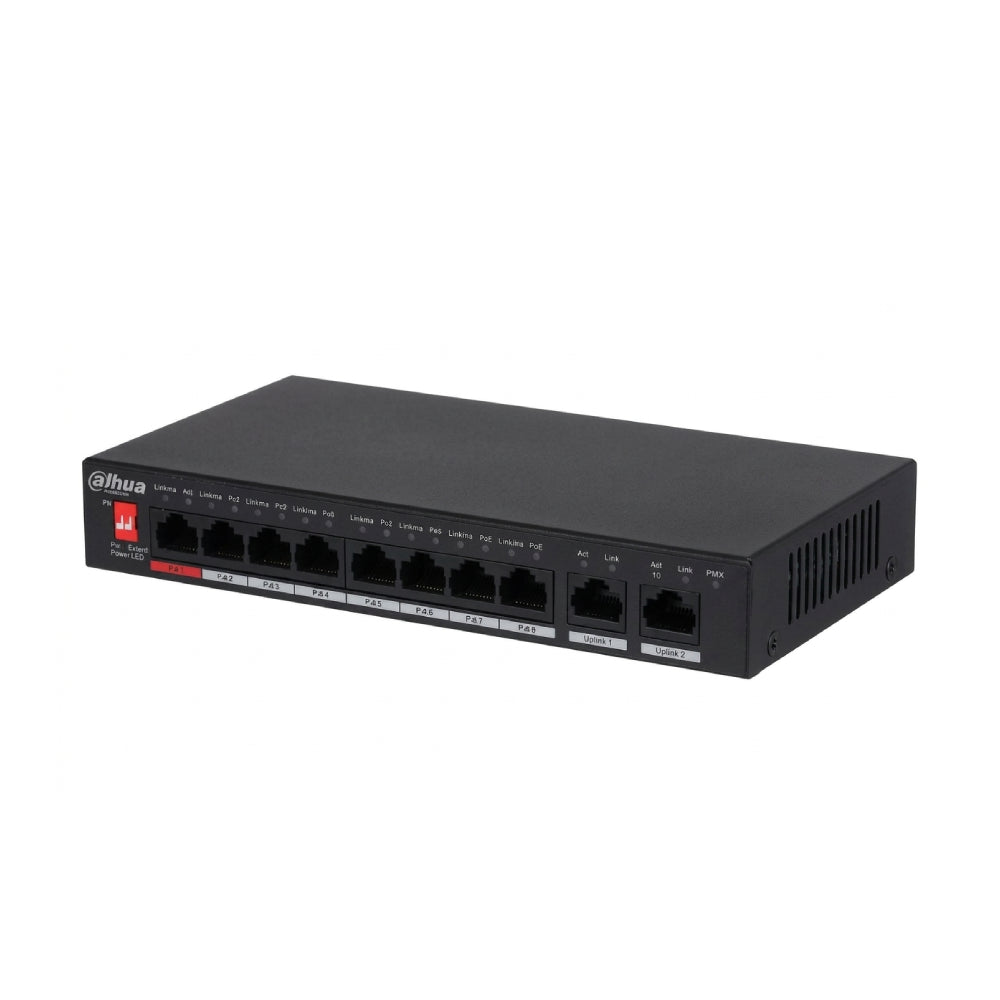

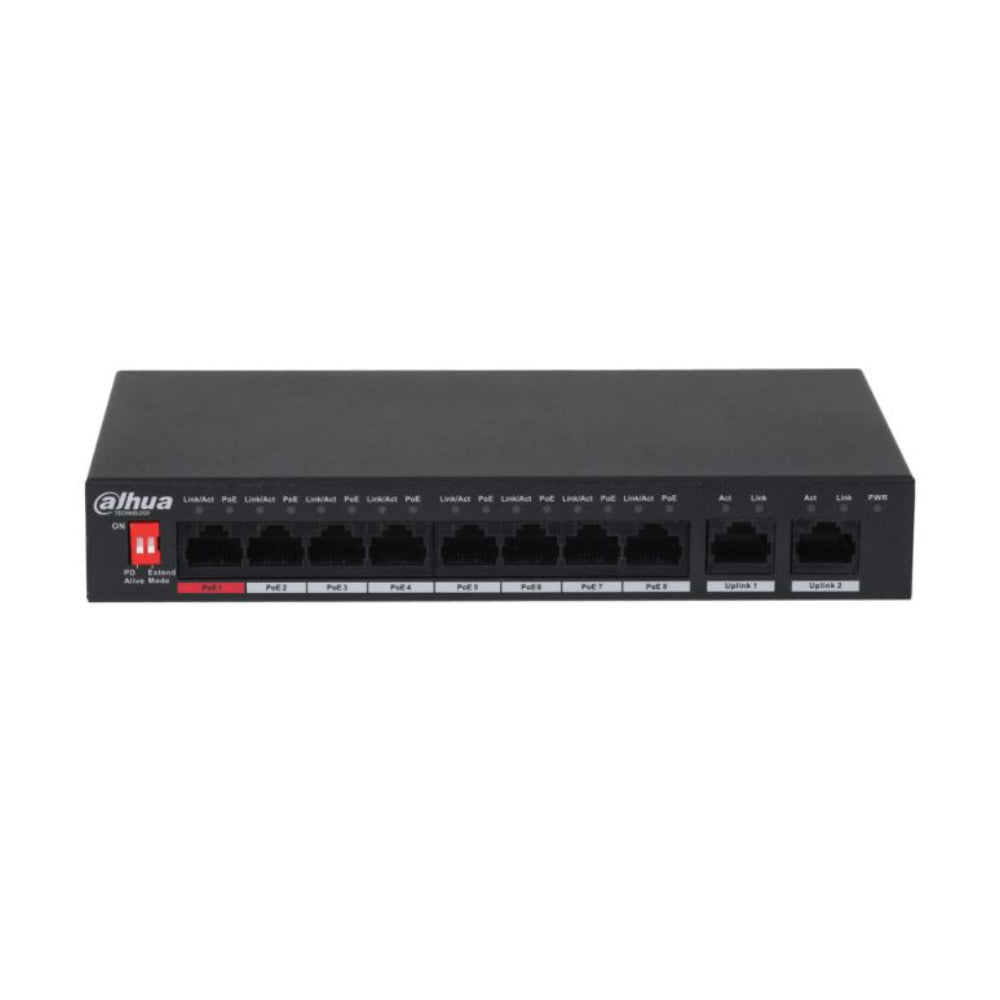

Dahua DH-PFS3010-8ET-96-V2 10-Port Unmanaged PoE Switch
The Dahua DH-PFS3010-8ET-96-V2 is a plug-and-play unmanaged switch with 8 PoE ports, a 96W budget and 2 uplink ports. It powers Dahua and standard IP PoE cameras with intelligent PoE, a PoE watchdog and 250m long-distance PoE — a simple, reliable backbone for an 8-camera system.
8 Cameras, Plug & Play
Powers up to eight PoE cameras with zero configuration — connect and go, perfect for a typical home or small-business kit.
Intelligent PoE
Smart power management allocates the 96W budget efficiently and protects against overload on each port.
250m Long-Distance PoE
Extended-reach mode delivers power and data up to 250m for cameras beyond the standard 100m run.
PoE Watchdog
Detects a frozen camera and power-cycles the port automatically to bring the stream back online.
Specifications — DH-PFS3010-8ET-96-V2
| Model / SKU |
DH-PFS3010-8ET-96-V2 |
| Ethernet Ports |
10 (8 PoE) |
| Optical Ports |
Not supported |
| Uplink Ports |
2 |
| PoE Budget |
Total 96W (idle 3W) |
| Long-Distance PoE |
Up to 250m |
| Layer |
Layer 2 |
| Management |
Unmanaged (plug & play) |
| PoE Watchdog |
Yes |
| Mounting |
Desktop |
| Warranty (Australia) |
3 years · CCTV Guru Australia |
Downloads & Resources
Does it need configuration?
No — it's a fully unmanaged plug-and-play switch. Connect cameras and uplink and it works immediately.
How many cameras can it power?
Up to eight PoE cameras drawing within the shared 96W budget — ideal for a standard 8-camera system.
Can it run cameras past 100m?
Yes — long-distance PoE mode extends power and data up to 250m on quality cable.
