Bosch CM797B — LAN & Power Isolator Module (Sol 16i/144/E Series)

Description

Sol 16i/144/E Series · LAN & Power Isolator · 250mABus Isolator

CM797B LAN & Power Isolator — Australian Stock & 3-Year Warranty

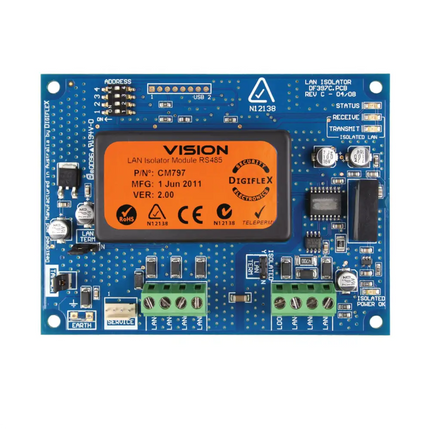

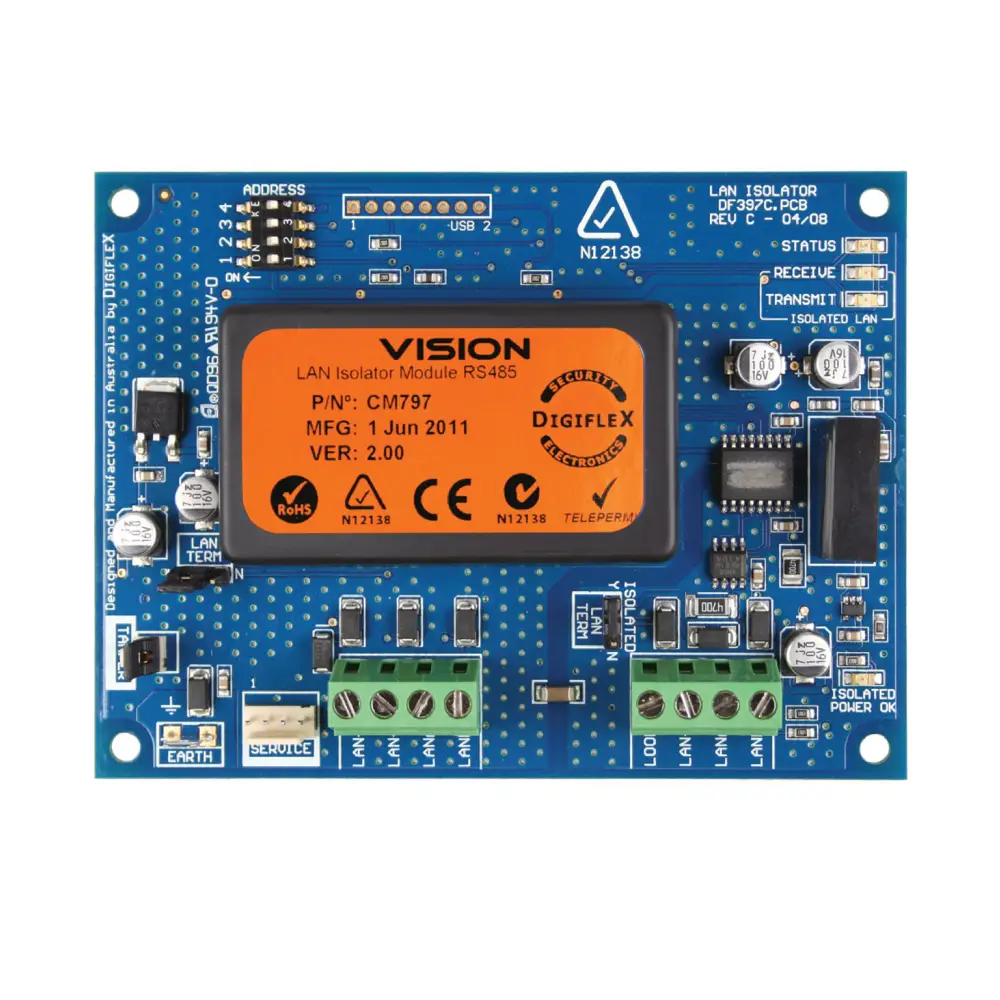

The Bosch CM797B isolates and protects the LAN data bus and power on Bosch Solution 16i, 144 and E Series systems. By separating downstream devices from the main panel, it helps extend bus runs and shields the control panel from wiring faults, short circuits and interference on connected peripherals. The module is built on a compact blue PCB designed to sit neatly inside your enclosure, drawing 10–14 VDC at 250 mA. It keeps your hardwired data bus stable and reliable across larger installations. Backed by a 3-year Australian warranty.

Function
LAN & Power Isolation
Current
250 mA
Power
10–14 VDC
Fits
Sol 16i/144/E

Protect the Data Bus

Isolates the LAN data bus so faults on downstream devices don't disrupt the main control panel.

Extend Bus Runs

Regenerates and isolates bus signals to help you run longer, more reliable cable distances.

Fault Isolation

Shields the panel from short circuits, wiring faults and interference on connected peripherals.

Compact Enclosure Fit

Small blue PCB that mounts cleanly inside your alarm panel enclosure to save space.

Technical Specifications
Model / SKU Bosch CM797B (BOSCM797B)
Type LAN & power isolator module
Function Isolates LAN data bus & power
Current 250 mA
Compatibility Solution 16i / 144 / E Series
Colour Blue PCB
Mounting Enclosure mount
Power 10–14 VDC
Weight 100 g
Warranty 3 Years (Australia)

Downloads

CM797B DatasheetBosch Isolator Module Quick Start GuideBosch Isolator Module User Manual

Frequently Asked Questions

What does the Bosch CM797B do?

It is a LAN and power isolator module that separates and protects the data bus and power supply between the Bosch control panel and downstream devices, keeping the system stable if a fault occurs on a connected peripheral.

Which panels is it compatible with?

The CM797B is designed for Bosch Solution 16i, Solution 144 and E Series alarm systems.

When should I use a bus isolator?

Use it when you have long bus cable runs, many devices on the LAN bus, or want to protect the panel from wiring faults, short circuits and electrical interference on downstream devices.

Does it extend the bus distance?

Yes. By isolating and regenerating the bus signal it helps you run longer, more reliable cable distances than a single unisolated bus segment.

How is the module powered?

It draws power from the system bus at 10–14 VDC, using approximately 250 mA of current.

Where does it mount?

The compact blue PCB is designed to mount inside your alarm panel enclosure for a tidy, protected installation.

3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
