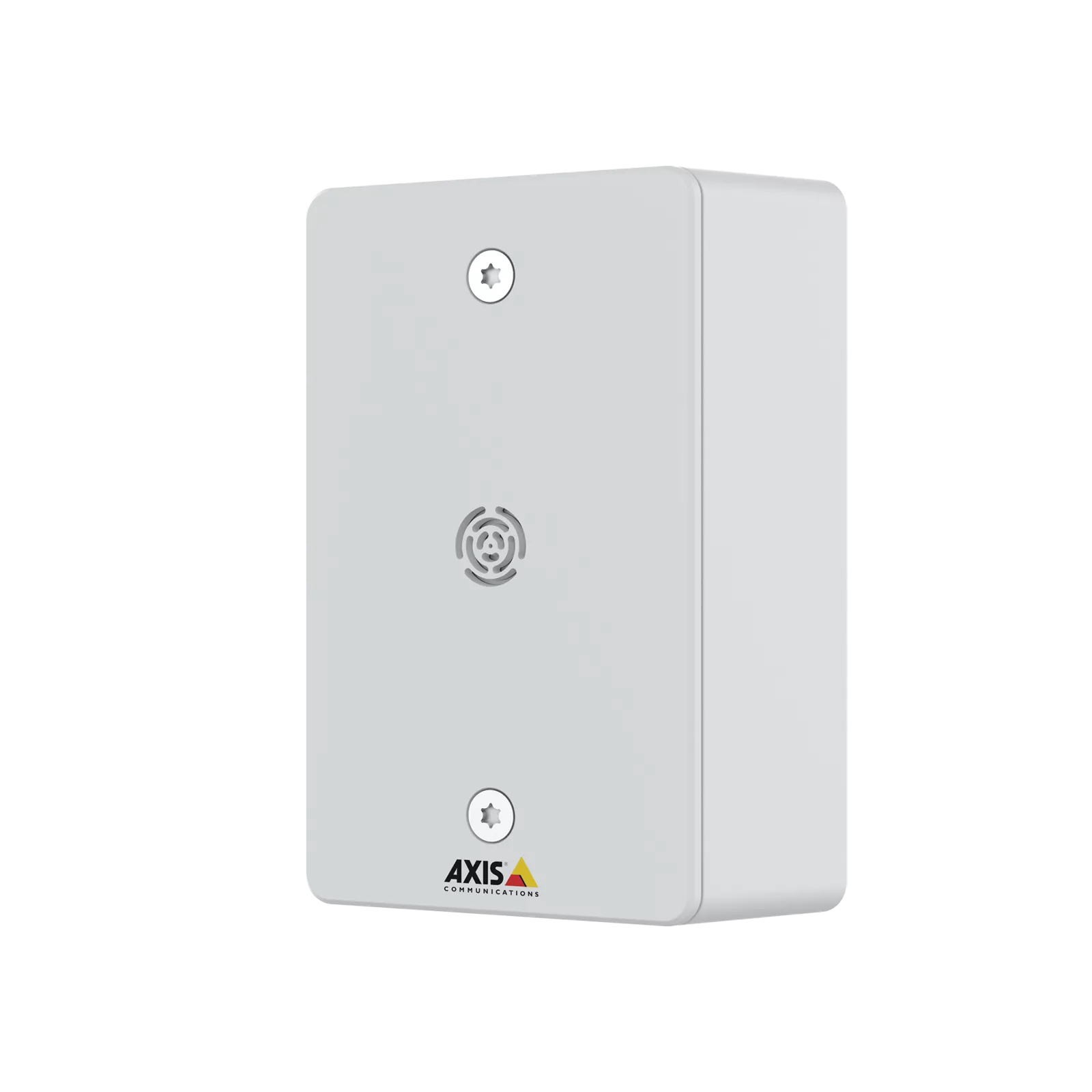

NDAA Compliant • Outdoor-Ready Vandal-Resistant MicrophoneAXIS TU1001-VE (02269-001) Outdoor Microphone — Australian Stock & Genuine Axis Warranty
The AXIS TU1001-VE is a robust outdoor-ready microphone that adds high-quality audio capture to any Axis network device with a 3.5 mm microphone input — cameras, audio modules or audio bridges. It uses a hemispherical pickup pattern to collect sound from every direction across a 20 Hz – 20 kHz range, and it is built to survive outdoors: an IP66-rated aluminium casing and IK10 impact rating mean rain, dust and deliberate abuse are all accounted for. Power is drawn from the host Axis device (2–10 V DC, 0.006 W max), so there is no separate supply to install. Wall or ceiling mountable, with optional AXIS ACI Conduit Adapters for a fully protected cable run.
DIRECTIONALITY
Hemispherical
FREQUENCY RANGE
20 Hz – 20 kHz
CONNECTION
3.5 mm Stereo Plug
Audio evidence where cameras alone fall short
Video tells you what happened; audio often tells you why. Adding a TU1001-VE to an existing Axis camera or audio bridge captures verbal exchanges at a gate, an intercom point, a loading dock or a car park — without running a second network drop. Because the microphone is passive and powered by the host device, it can be retrofitted to installed cameras that already have a microphone input, making it one of the least disruptive upgrades in an Axis system.
Built for the weather
IP66-rated aluminium casing with a supplied M16 3 mm cable gasket, rated for continuous operation from –20 °C to 60 °C and 10–100% relative humidity (condensing).
Vandal-resistant to IK10
The highest impact rating in the IEC/EN 62262 scale, so the microphone stands up to knocks and deliberate attack in exposed public-facing positions.
Hemispherical pickup
Collects sound evenly from every direction above the mounting surface — ideal for open forecourts, entrances and covered walkways where the sound source moves.
No extra power run
Draws 2–10 V DC directly from the host Axis product at a maximum of 0.006 W. One 3.5 mm cable does both signal and power.
Technical Specifications
AUDIO
| Supported devices |
Axis network products with microphone input |
| Frequency range |
Within 20 Hz – 20 kHz |
| Sensitivity |
-32.1 dB ±3 dB (relative 1 kHz) |
| Max SPL |
115.3 dB (10% THD) |
| Signal-to-noise ratio |
71.4 dB A-weighted (relative 1 kHz @ 1 Pa, 94 dB SPL) |
| Directionality |
Hemispherical |
GENERAL & POWER
| Part number |
02269-001 |
| Casing |
IP66-rated aluminium, colour NCS S 9002-B |
| Sustainability |
PVC free |
| Power |
2–10 V DC (supplied by the Axis network product) |
| Maximum consumption |
0.006 W |
| Connector |
3.5 mm stereo plug (Ø 6.2 mm) |
ENVIRONMENT & APPROVALS
| Operating conditions |
–20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity |
10–100% RH (condensing) |
| Storage conditions |
–40 °C to 70 °C (–40 °F to 158 °F) |
| EMC |
EN 55035, FCC Part 15 Subpart B Class B |
| Safety |
IEC/EN 62368-1 |
| Environmental |
IEC/EN 60529 IP66, IEC/EN 62262 IK10 |
PHYSICAL & IN THE BOX
| Dimensions (L x H x W) |
51 x 119 x 75 mm (2 x 4.69 x 2.95 in) |
| Weight |
409 g (0.9 lb) |
| Included accessories |
Installation guide, cable gasket M16 3 mm |
| Optional accessories |
AXIS Audio Extension Cable B 5 m, Terminal Block to 3.5 mm Audio Extender, AXIS ACI Conduit Adapter 3/4" U-shape 30 mm, AXIS ACI Conduit Adapter 3/4" NPS, AXIS T91B21 Stand, AXIS T91A13 Threaded Ceiling Mount, AXIS T91A27 Pole Mount |
| Warranty |
Axis 3-year warranty |
Downloads
Frequently Asked Questions
What does the TU1001-VE connect to?Any Axis network product with a 3.5 mm microphone input — a network camera, an audio module or an audio bridge. It is not a standalone network device and does not connect directly to a switch.
Does it need its own power supply?No. The host Axis product supplies 2–10 V DC through the 3.5 mm connection, and the microphone draws a maximum of 0.006 W.
What pickup pattern does it have?Hemispherical, so it picks up sound from all directions above the mounting surface rather than from a single narrow axis.
Can it be installed outdoors?Yes. The aluminium casing is IP66-rated against dust and powerful water jets and it is rated for –20 °C to 60 °C operation with 10–100% condensing humidity.
How impact-resistant is it?It is IK10-rated under IEC/EN 62262 — the top level of the standard — which suits exposed, public-facing mounting positions.
How do I mount it?Wall or ceiling. A cable gasket M16 3 mm is included, and AXIS ACI Conduit Adapters can be fitted where the cable needs to run inside conduit.
Can I extend the cable?Yes. Axis offers the AXIS Audio Extension Cable B 5 m and a Terminal Block to 3.5 mm Audio Extender as optional accessories.
What is the audio quality like?The response sits within 20 Hz – 20 kHz with a sensitivity of -32.1 dB ±3 dB, a 71.4 dB A-weighted signal-to-noise ratio and a maximum SPL of 115.3 dB at 10% THD.
What warranty applies in Australia?Axis states a 3-year warranty for this microphone. CCTV Guru supplies genuine Australian stock and supports the warranty locally.
