The T8508 is a fan-less switch that relies on constant airflow around the chassis, so how it is mounted matters. Using the bracket kit Axis designed for the chassis means the screw pattern lines up correctly, the switch sits square in the rack, and nothing is improvised with third-party shelves or cable ties. It is a passive mechanical accessory — there are no electronics, no power and no configuration involved.
Purpose-Made Fit

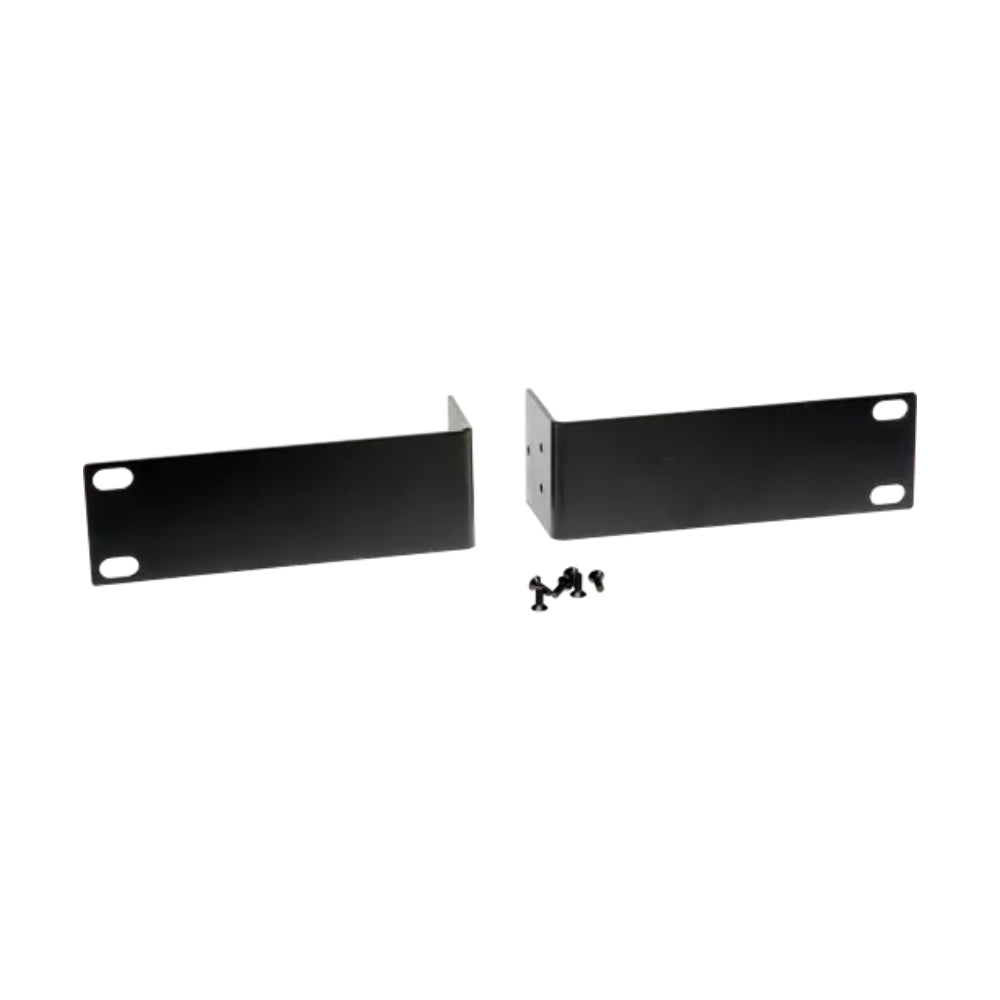

Axis lists Rack Mount Kit A as the optional rack accessory for the AXIS T8508 PoE+ Network Switch, so the bracket holes match the chassis exactly.
Simple Five-Screw Install
Per the Axis installation guide, each bracket takes three screws into the side of the chassis, then two screws into the rack post.
Keeps Airflow Clear
The T8508 has no cooling fan and needs constant airflow. A proper rack mount keeps the chassis positioned correctly instead of stacked or shelved.
Genuine Axis Part
Ordered under Axis part number 01232-001 for the AU region — not a generic aftermarket bracket.
Which switch does this kit fit?Axis lists the AXIS T8508 PoE+ Network Switch as the compatible product for AXIS T85 Rack Mount Kit A. The T8508 datasheet in turn lists this kit as its optional rack-mount accessory.
Do I need this kit for an AXIS T8524?No. The AXIS T8524 PoE+ Network Switch already includes a rack mounting kit in the box, so you do not need to buy Rack Mount Kit A for it.
Does the switch come with rack brackets?No. The AXIS T8508 ships with an installation guide, drill template, power cord and four rubber feet. The Axis installation guide states the rack mounting brackets for the T8508 are sold separately — that is this kit.
Is the switch included with this listing?No. This is the mounting bracket kit only. The AXIS T8508 PoE+ Network Switch is a separate purchase.
How is it installed?Attach a bracket to each side of the switch chassis with three screws per bracket, place the switch on a rack shelf, slide it in until the oval bracket slots line up with the rack post holes, then secure each bracket to the post with two screws.
Will it fit a standard comms rack?Yes — Axis describes it as a bracket for standard racks, which covers the usual 19-inch equipment racks and cabinets used in Australian comms rooms.
How much rack space does the switch take?The T8508 chassis is 44 mm high, which is exactly 1U. Note that Axis instructs the switch to be supported on a rack shelf rather than hanging on the brackets alone.
Does it need power or configuration?No. It is a purely mechanical, passive accessory — there is nothing to wire up, power or configure.
Can I use it on a non-Axis switch?We do not recommend it. The bracket hole pattern is designed for the T8508 chassis, so fit on other hardware is not guaranteed.
Does the fan-less design affect mounting?Yes, worth planning for. The T8508 has no cooling fan and needs constant airflow, so leave clear space around it in the rack rather than sandwiching it between hot equipment.
