ACPS14.3 — 14.3VDC 2.5A Power Pack for Hikvision Hybrid Alarm

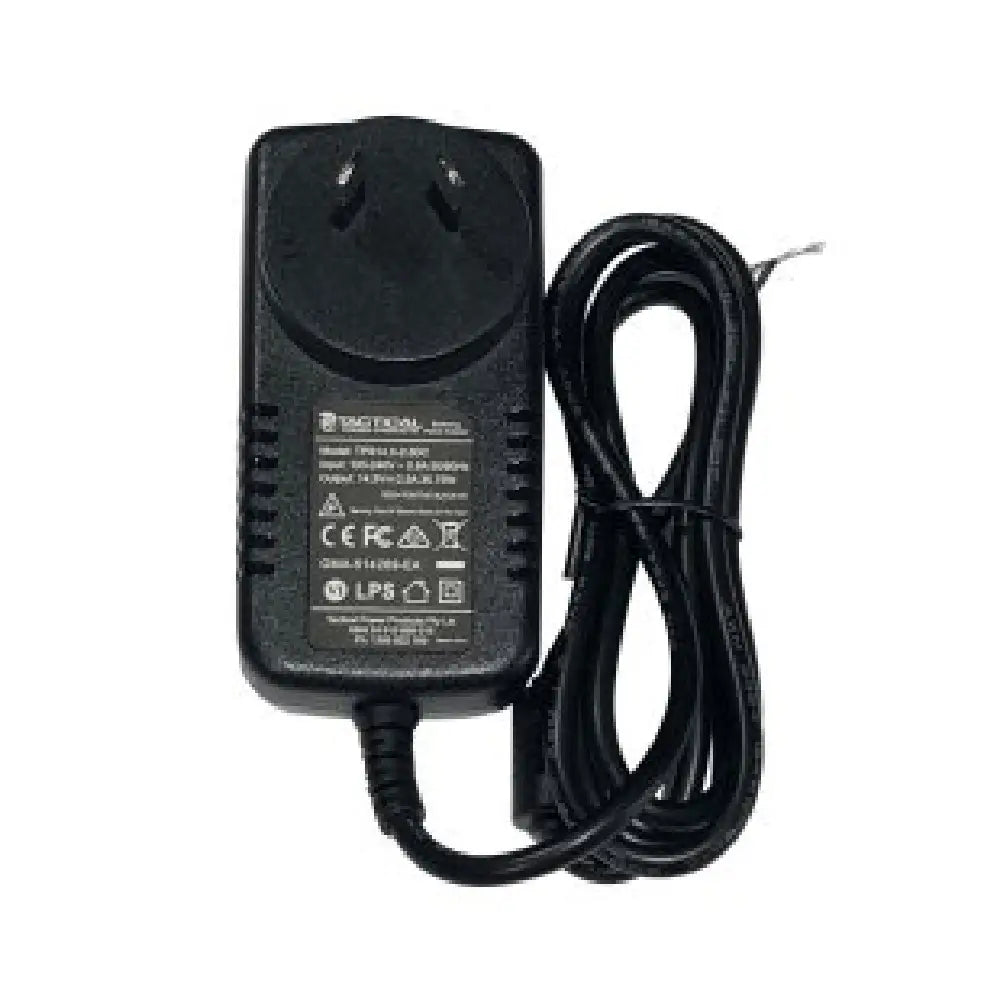

The ACPS14.3 (TPS14.3-2.5DC) is a continuously rated 14.3 V DC, 2.5 A switching plug-pack power supply — the required power adaptor for the Hikvision Hybrid Alarm panel. It is designed for ITE and indoor use, delivering clean, stable power to keep the alarm running reliably.
Built-in overload and short-circuit protection shuts the supply down on a fault and restores normal operation once the fault is cleared. A blue LED confirms mains power, and the unit ships with an integrated approved 240 V plug.
Required Adaptor
Purpose-matched power pack for the Hikvision Hybrid Alarm.
14.3VDC / 2.5A
Continuously rated switching supply for stable alarm power.
Fault Protection
Overload / short-circuit protection that auto-recovers when cleared.
AS/NZS Certified
Compliant with AS/NZS 62368 and AS/NZS 3112 safety standards.
Technical Specifications
| Model |
TPS14.3-2.5DC (ACPS14.3) |
| Output Voltage |
14.3 V DC |
| Output Current |
2.5 A continuous |
| Output Lead |
2-core lead |
| Output Ripple |
< 50 mVp-p @ full load |
| Input |
100–240 V AC (±10%), 50 Hz, 0.8 A @ full load |
| Indicator |
Blue LED — mains applied |
| Dimensions |
110 mm L × 55 mm W |
| Mains Connection |
Integrated approved 240 V plug |
| Compliance |
AS/NZS 62368:2018, AS/NZS 3112:2017, AS/NZS CISPR 32 (Class B) |
| Manufacturer Warranty |
2 years |
What is this for?
It is the required 14.3 V DC plug-pack power supply for the Hikvision Hybrid Alarm panel.
What happens on a fault?
Overload or short-circuit protection shuts the supply down; clearing the fault returns it to normal operation.
The matched, AS/NZS-certified power pack your Hikvision Hybrid Alarm needs — stable, protected power in a compact plug-pack.
