Description

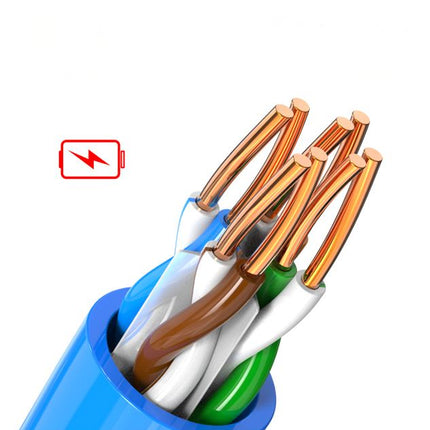

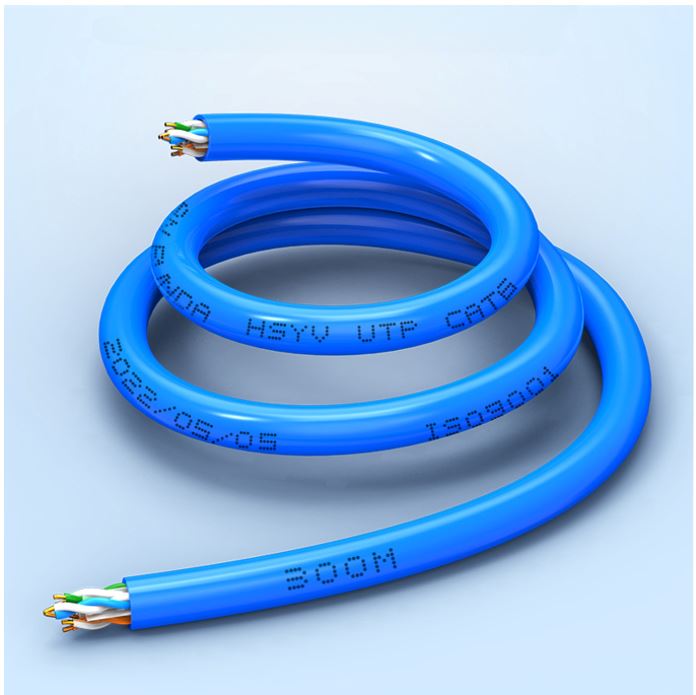

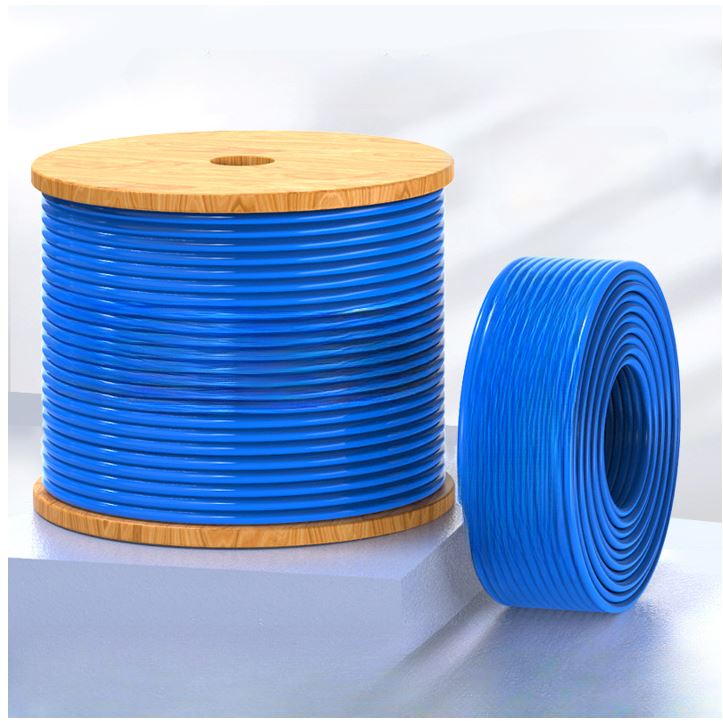

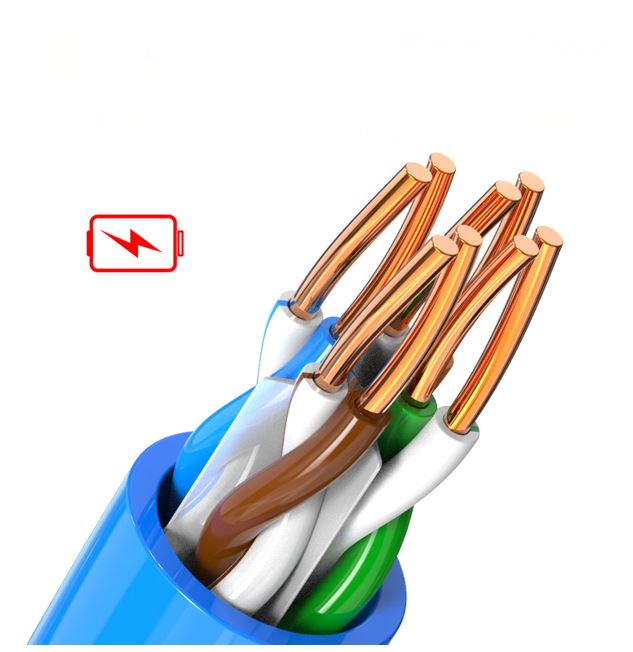

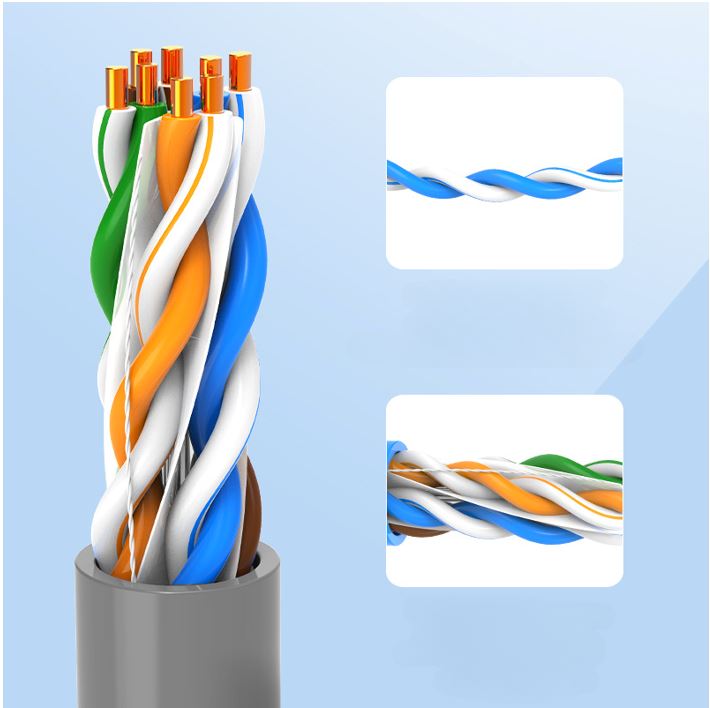

8Ware 350m CAT6A Ethernet 24AWG 30V LAN Cable Bare Copper Twisted Core PVC Jacket Reel Box Blue >305m
Expertly designed with 8Ware's industry-leading technology, the 350m CAT6A Ethernet LAN Cable Roll offers high-speed and reliable connection for all your networking needs. Featuring a sturdy Bare Copper Twisted Core and PVC Jacket, this cable boasts a whopping length of over 305m, making it perfect for larger installations.
Features
- Conductor Construction(mm) 1/0.508±0.005
- Material Bare Copper
- Cabling OD (mm) 0.508
- Insulation Material HDPE
- OD(mm) 0.90±0.05
- Avg. Thickness (mm) 0.18
- Color 1、2、3、4
- Cores Twisted Yes
- Drain Construction(mm) -----
- Material -----
- Al Constructive Side -----
- Overlap Rate -----
- Mylar Overlap Rate -----
- Assemble Cabling OD (mm) 5.00 (Ref.) + Filler
- Mylar Overlap Rate -----
- Al Constructive Side -----
- Drain Construction(mm) -----
- Material -----
- Braid Construction(mm) -----
- Material -----
- Coverage -----
- Jacket Material PVC (Bright)
- OD(mm) 6.20±0.20
- Avg. Thickness (mm) 0.6
- Color BLUE (PVC001-6027)PT287C
- Jet Print Color BLACK
Electrical Characters:
- Voltage Rating: 30V Temperature Rating: 60℃
- Dielectric Strength: AC-500V/MIN
- Insulation resistance: 100M (OHMS * KM MIN at 20℃）
Physical Characters:
- Test Object Jacket
-
AWG 24
