Hikvision Ultra Series · 4MP · 42× Zoom · DarkFighter 2.0 · 400 m IR Hikvision DS-2DF8442IXG1-ELWY — 4MP 42× Zoom DarkFighter 2.0 Ultra Series PTZ (6-250 mm, 400 m IR, IP67/IK10) The Hikvision DS-2DF8442IXG1-ELWY is a flagship Ultra Series PTZ speed dome built for long-range, wide-area surveillance. A 42× optical zoom (6-250 mm) plus 16× digital reaches right across ports, yards, perimeters and large public spaces, while DarkFighter 2.0 delivers clean colour down to 0.0003 lux @ F1.2 and IR up to 400 m in full darkness. 150 dB adaptive WDR handles extreme contrast, on-board smart analytics drive face capture and vehicle detection, and the camera offers 360° continuous pan with −20° to +90° tilt and auto-flip. A built-in wiper and rugged IP67 / IK10 housing keep it working in harsh Australian outdoor sites. Australian stock, 3-year Australian warranty. Resolution 4 MP · 2688 × 1520 Optical Zoom 42× · 6-250 mm Night Vision DarkFighter 2.0 · 400 m IR Smart AI Face Capture · Vehicle Detect Pan / Tilt 360° · −20° to +90° Protection IP67 · IK10 · 150 dB WDR 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support Why Choose the DS-2DF8442IXG1-ELWY 42× Long-Range Zoom A 6-250 mm motorised lens with 42× optical (plus 16× digital) reads faces and number plates right across ports, yards and perimeters far beyond any fixed camera. DarkFighter 2.0 · 400 m IR Holds colour to 0.0003 lux and switches to 400 m IR in full darkness — clear long-range footage day and night across huge sites. Smart Analytics On-board face capture and vehicle detection with traffic analytics surface the events that matter from wide, busy scenes. Built-in Wiper · IP67 / IK10 An integrated wiper clears rain and dust from the dome, while IP67 weatherproofing and IK10 vandal resistance suit exposed, high-risk locations. Technical Specifications DS-2DF8442IXG1-ELWY · Full Specifications SKU DS-2DF8442IXG1-ELWY Camera Type Hikvision Ultra Series 4 MP DarkFighter 2.0 Network PTZ Speed Dome Image Sensor 1/1.8" Progressive Scan CMOS Max Resolution 2688 × 1520 (4 MP) Optical Zoom 42× · 6-250 mm motorised lens Digital Zoom 16× Min. Illumination Colour 0.0003 lux @ F1.2 · B/W 0.0001 lux · 0 lux with IR Low-Light Tech DarkFighter 2.0 IR Range Up to 400 m (smart IR) Wide Dynamic Range 150 dB adaptive WDR Pan / Tilt Pan 360° continuous · Tilt −20° to +90° · auto-flip Smart Analytics Face capture · vehicle detection · traffic analytics Video Compression H.265+ · H.265 · H.264+ · H.264 Extras Built-in wiper · "Y" anti-corrosion variant available Network & Protocols RJ-45 · ONVIF · Hik-Connect Protection IP67 · IK10 Warranty 3-Year Australian Warranty Frequently Asked Questions How far can it see and identify detail?The 42× optical zoom (6-250 mm) plus DarkFighter 2.0 and 400 m IR pick up faces and number plates well across large car parks, ports, yards and perimeters — far beyond any fixed camera. How is it powered?A PTZ of this class requires Hi-PoE or a 24 VAC supply — confirm the exact power input on the datasheet and budget for it; a standard 802.3af port is not sufficient. Will it work with my NVR?Yes — it's ONVIF compatible and integrates fully with Hikvision NVRs and Hik-Connect for live view, PTZ control, recording and playback. Is this NDAA Section 889 compliant?No. Hikvision is not NDAA Section 889 compliant. For Australian commercial, council and most projects without an NDAA contractual requirement, this camera is freely usable. Downloads & Resources DS-2DF8442IXG1-ELWY Datasheet Hikvision Speed Dome Quick Start Guide Hikvision Speed Dome User Manual Order the Hikvision DS-2DF8442IXG1-ELWY from CCTV Guru CCTV Guru is an authorised Australian reseller of Hikvision Ultra Series PTZ cameras. The DS-2DF8442IXG1-ELWY pairs 4 MP imaging, a 42× long-range zoom, DarkFighter 2.0 low-light and 400 m IR for serious perimeter, port and large-area surveillance. Australian stock, 3-year Australian warranty, fast Australia-wide dispatch. Request a free quote or contact our Australian team.

Read more less

Hikvision Ultra Series · 7A PTZ · 4MP · 36× Optical · DarkFighter 2.0 · 300 m IR · 150 dB AWDR · NEMA 4X Hikvision DS-2DF7A436IXG-EL(Y) — 4MP 36× DarkFighter 2.0 PTZ Network Speed Dome with 300 m IR (NEMA 4X Anti-Corrosion) The Hikvision DS-2DF7A436IXG-EL(Y) is the IR-equipped flagship of Hikvision's 7A Ultra-Series PTZ line — a 4MP outdoor pan/tilt/zoom speed dome that pairs a 1/1.8" progressive-scan CMOS sensor and a 36× motorised optical zoom (6.0–216 mm · F1.2) with a built-in IR illuminator out to 300 m. DarkFighter 2.0 sensor technology, 150 dB AWDR, Smart Pan-Tilt Correction and a built-in gyroscope EIS round out the imaging chain. The -Y suffix on this Australian-stocked SKU denotes Hikvision's moderate anti-corrosion housing — NEMA 4X-rated for coastal Australian sites within roughly 2 km of the shoreline and for areas exposed to acid rain. The base DS-2DF7A436IXG-EL (no -Y) ships with no specific corrosion protection; we stock the -Y variant by default. This is the camera Hikvision builds for completely dark long-range surveillance — rural property boundaries with no street lighting, dark mining haul roads, unlit perimeter walls, river and forest monitoring at scenic spots, unlit rail-yard aprons, scenic-spot and large-venue overwatch. The IR LED array adds 300 m of reliable illumination at full telephoto zoom, while the DarkFighter 2.0 sensor takes over at any time the scene has even modest ambient light. PTZ kinematics are tuned for incident response: 360° continuous pan at up to 550°/s (700°/s max), tilt −20° to +90° auto-flip, 300 presets, 8 patrol routes and 3D click-to-frame positioning. Powered by PoE 802.3bt Type 4 Class 8 (90 W class) or 36 VDC, with built-in heater and demist. Cyber-hardened with TPM 2.0 (FIPS 140-2 Level 2). Australian stock, 3-year Australian warranty. Optical Zoom 36× · 6–216 mm · F1.2 Long-Range IR Up to 300 m · 850 nm Resolution 4MP · 2688 × 1520 · up to 120 fps AI Engine Auto-Tracking 3.0 · Face Capture Protection IP67 · IK10 · NEMA 4X (-Y) Power PoE 802.3bt Class 8 · 36 VDC · 90 W 3-Year Australian Warranty Fast Australia-Wide Shipping Australian Tech Support Why Choose the 7A IR PTZ over the 6A Both the 6A and 7A Ultra-Series PTZs share the same 1/1.8" DarkFighter 2.0 sensor, the same 36× optical zoom, the same 150 dB AWDR and the same on-camera deep-learning AI stack. The deciding question is how dark the scene actually gets at the far end of the zoom range. The 7A's built-in 300 m IR illuminator is the difference-maker: it lights an entire perimeter wall, dark haul road or rural property boundary at full telephoto, in zero ambient light. If the scene has streetlights, dock lighting or moonlight, the 6A's DarkFighter 2.0 alone is enough. If the scene is genuinely dark, the 7A is what gets the shot. 300 m IR — Zero-Light Identification Smart IR illumination out to 300 m at 850 nm wavelength. The IR LED array is matched to the 36× zoom optics — at telephoto, the beam tightens with the zoom to keep target illumination consistent across the working range. 36× Optical Zoom · F1.2 · 6–216 mm The same long-zoom lens as the 6A — but here paired with the IR ring for completely dark scenes. Identify at 297.9 m tele (EN 62676-4), recognise at 595.9 m, detect to 2,979 m. DarkFighter 2.0 + 150 dB AWDR Same sensor and same wide-dynamic-range as the 6A — 0.0003 lux colour, 0.0001 lux monochrome, 150 dB AWDR. At dawn / dusk / mixed lighting the camera produces colour and switches to IR-aided monochrome only when needed. 550°/s Pan · 300°/s Tilt Pan preset speed up to 550°/s (max 700°/s), tilt to 300°/s. Faster than the 6A's 300°/s — important for incident response on big sites where the camera has to swing from one preset to a diagonally-opposite one in well under a second. Smart Pan-Tilt Correction + Gyroscope EIS Smart Pan-Tilt Correction automatically compensates for mechanical drift over time, keeping presets accurate to the original setpoint. Combined with the built-in gyroscope EIS, the image stays steady on tall pole mounts in coastal wind. Lighter, Smaller, IR-Equipped At 5 kg and ⌀ 215 × 297 mm, the 7A is actually smaller and lighter than the 6A (6 kg / ⌀ 231 × 356 mm) despite adding the IR LED ring — Hikvision re-engineered the optical assembly to gain the IR without growing the camera body. Important Install Note — PoE 802.3bt Class 8 (90 W) or 36 VDC The 7A IR PTZ does not run on standard PoE+ (802.3at, 25.5 W) or even Hi-PoE 60 W. Total camera power draw with the IR LED ring and heater active is up to 90 W on either 36 VDC or PoE 802.3bt Type 4 Class 8 — the camera reserves 6.4 W for IR, 8 W for the heater and 52 W for the camera body. Standardise on one of the following: PoE 802.3bt Type 4 Class 8 injector or switch on the camera's network run — provides the full 90 W via single Cat 6 cable, the simplest install. 36 VDC dedicated supply at the camera — used where you're running fibre to the camera or where you prefer to feed power separately from the data drop. Standard PoE+ switches (15 W or 25.5 W class) will not reliably power this camera, especially when the IR ring and heater are both active in cold weather. Contact our Australian team for the right 90 W PoE++ injector or 36 VDC supply for your install. On-Camera Deep-Learning AI The 7A PTZ runs Hikvision's deep-learning engine on the camera itself, classifying objects and triggering only on the targets that matter. The full AI stack is identical to the 6A sibling — the 7A's value-add is purely the IR illuminator for dark scenes. Perimeter Protection Line crossing, region entrance, intrusion and region exiting detection — each filtered by target type (human / vehicle) to suppress nuisance alarms from rain, foliage, animals and headlight glare. Multi-Target-Type Detection Simultaneous detection across three target classes with rich feature extraction: face (7 features), human (14 features) and vehicle (8 features). Feeds searchable metadata into your NVR for fast post-incident review. Face Capture — 30 Simultaneous Detects up to 30 faces in frame, grades face quality, and uploads the best frame plus context. Useful at port gates, mining-camp entry points and large-venue access control. Face Comparison — 150,000 Total 10 face libraries × 30,000 faces = 150,000 total with encrypted on-camera storage — enterprise-scale watchlist comparison without a separate face server. Smart Tracking 3.0 — Auto-Follow Locks onto detected human or vehicle targets and pans / tilts / zooms automatically to keep them framed. Person arming mode flags specific faces or human IDs that trigger alarms plus tracking when detected. Audio & Behaviour Events Audio exception detection, video tampering, vandal-proof alarm, scene change, unattended baggage and object removal detection — useful for unmanned dock aprons, rail-yard sidings and large-venue overwatch. Pan / Tilt / Zoom — Faster Kinematics for Incident Response 360° Continuous Pan · 550°/s Preset 360° continuous pan with preset speed up to 550°/s (max 700°/s) — the camera moves from a preset on one side of the site to the opposite-side preset in well under a second. Tilt −20° to +90° · Auto-Flip Tilt range from −20° (below horizon, useful for tall-pole overviews of the ground below) to +90° with auto-flip support for tracking a target straight under the dome. 300 Presets · 8 Patrols 300 presets per camera, 8 patrol routes with up to 32 presets each. Schedule the camera to walk a perimeter route automatically every shift change. 3D Positioning · Power-Off Memory Click any target on the live image to centre-frame and zoom in one motion. Power-off memory returns the camera to its previous orientation after a brown-out. Smart Pan-Tilt Correction The PTZ self-corrects mechanical drift over time, keeping presets accurate to their original setpoint without manual re-calibration. Built-in Gyroscope EIS The gyroscope drives electronic image stabilisation — critical for tall pole installs in coastal wind, where mount vibration would otherwise blur the image and confuse the AI engine. Technical Specifications DS-2DF7A436IXG-EL(Y) · Full Specifications SKU DS-2DF7A436IXG-ELY (AU-stocked default — NEMA 4X anti-corrosion) Camera Type Hikvision Ultra Series 7A · 4MP 36× DarkFighter 2.0 IR Network Speed Dome PTZ Image Sensor 1/1.8" Progressive Scan CMOS · DarkFighter 2.0 Max Resolution 2688 × 1520 (4MP) Min. Illumination Colour 0.0003 lux @ F1.2 (AGC ON) · B/W 0.0001 lux @ F1.2 · 0 lux with IR Shutter Speed 1/30 s to 1/30,000 s · Slow Shutter Lens Motorised · 6.0–216 mm · 36× optical · F1.2 max aperture · auto / semi-auto / manual / rapid focus Digital Zoom 16× Field of View Horizontal 59.1° → 2.0° · Vertical 34.1° → 1.1° · Diagonal 67.1° → 2.3° Zoom Speed Approx. 4.5 s (wide ↔ tele) IR Illumination Smart IR · up to 300 m · 850 nm wavelength Day & Night ICR (IR cut filter, mechanical) Wide Dynamic Range 150 dB AWDR · BLC · HLC · 3D DNR · optical defog Image Stabilisation Built-in gyroscope · electronic image stabilisation · Smart Pan-Tilt Correction Pan Range / Speed 360° continuous · 0.1°–550°/s preset · MAX 700°/s · proportional pan Tilt Range / Speed −20° to +90° (auto-flip) · 0.1°–300°/s · preset 300°/s Presets / Patrols 300 presets · 8 patrols (32 presets each) Park Action Preset · patrol scan 3D Positioning Yes — click-to-frame on live view Preset Freezing Yes Power-Off Memory Yes — returns to last orientation after power restore Scheduled Task Preset · patrol scan · dome reboot · dome adjust · aux output Frame Rate (Main) 50 Hz: 50 fps @ 4MP / 100 fps @ 1080p · 60 Hz: 60 fps @ 4MP / 120 fps @ 1080p Video Compression H.265+ · H.265 · H.264+ · H.264 · MJPEG (sub-stream) Streams 3 simultaneous (main / sub / third) Video Bit Rate 32 Kbps – 16,384 Kbps · CBR / VBR · SVC · ROI (fixed region) Deep-Learning AI Perimeter Protection (line crossing / intrusion / region entry & exit · human + vehicle classification) Multi-Target Detection Simultaneous face (7 features) / human (14 features) / vehicle (8 features) Face Capture Up to 30 simultaneous faces · grade / select / upload best frame + context Face Comparison 10 libraries × 30,000 faces = 150,000 total · encrypted face library storage Smart Tracking Auto-Tracking 3.0 · manual + automatic · person arming Basic Events Motion · video tampering · vandal-proof alarm · audio exception · unattended baggage · object removal · exceptions Linkage FTP / NAS / microSD upload · centre notify · email · trigger recording · PTZ actions (preset / patrol) Audio 1 line-in (max 2–2.4 Vpp, 1 KΩ ±10%) · 1 line-out (600 Ω) · G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC Alarm I/O 7 inputs · 2 outputs RS-485 1 × RS-485 — HIKVISION / Pelco-P / Pelco-D self-adaptive Ethernet 1 × RJ-45 10/100 Mbps self-adaptive On-Board Storage microSD / SDHC / SDXC up to 1 TB · NAS (NFS / SMB) Video Output CVBS · 1.0 V[p-p] / 75 Ω · PAL / NTSC · BNC (debug) API & Protocols ISAPI · SDK · ISUP · ONVIF (Profile S / G / T / M) · 20 concurrent live-view sessions Cyber Security TPM 2.0 (FIPS 140-2 Level 2) · TLS 1.3 · 802.1X (EAP-TLS / EAP-LEAP / EAP-MD5) · HTTPS · IP filter · watermark · audit log · host authentication (MAC) Client Software iVMS-4200 · Hik-Connect · HikCentral Pro Power Source 36 VDC ±25% (max 90 W) · PoE 802.3bt Type 4 Class 8 (max 90 W) · 52 W camera + 6.4 W IR + 8 W heater Heater + Demist YES + YES Operating Temperature −40 °C to +70 °C · ≤95% humidity Material / Dimensions Outdoor speed dome · ⌀ 214.95 mm × 297.1 mm · ~5 kg Weatherproof Rating IP67 (IEC 60529-2013) Vandal Resistance IK10 (IEC 62262:2002) Anti-Corrosion NEMA 4X (NEMA 250-2018) — Y variant · moderate Hikvision protection tier Lightning Protection ±6 kV line-to-ground · ±3 kV line-to-line (IEC 61000-4-5) · surge + voltage transient DORI (Tele) Detect 2,979.3 m · Observe 1,182.3 m · Recognise 595.9 m · Identify 297.9 m Approvals CE-EMC · CE-LVD · RCM (AS/NZS CISPR 32:2015) · IC ICES-003 · KC · CB · LOA · RoHS · WEEE · REACH Warranty 3-Year Australian Warranty (back-to-base) DS-2DF7A436IXG-EL(Y) vs DS-2DF6A436XG1-EL(Y) — Built-in IR or Ambient-Light Only? The 6A and 7A Ultra-Series PTZs are essentially the same camera with one decisive difference: the 7A has a built-in 300 m IR illuminator; the 6A does not. Everything else — sensor, zoom, WDR, low-light spec, deep-learning AI, face capture, face comparison, auto-tracking, IP/IK protection, cyber-security baseline — is essentially identical. The 7A is also faster (550°/s pan vs 300°/s on the 6A) and surprisingly lighter (5 kg vs 6 kg). The cost of the IR ring is more power — the 7A needs PoE 802.3bt Class 8 (90 W) vs the 6A's Hi-PoE (60 W class). DS-2DF7A436IXG-EL(Y) (7A · with 300 m IR) vs DS-2DF6A436XG1-EL(Y) (6A · DarkFighter 2.0 only) Feature DS-2DF7A436IXG-EL(Y) (this 7A IR PTZ) DS-2DF6A436XG1-EL(Y) (6A no-IR PTZ) Series Position Hikvision Ultra Series 7A (higher tier) Hikvision Ultra Series 6A IR Illuminator Built-in · Smart IR up to 300 m · 850 nm None — DarkFighter 2.0 sensor only Image Sensor 1/1.8" CMOS · DarkFighter 2.0 1/1.8" CMOS · DarkFighter 2.0 Max Resolution 4MP · 2688 × 1520 4MP · 2688 × 1520 Optical Zoom 36× · 6–216 mm · F1.2 36× · 6–216 mm · F1.2 Min. Illumination 0.0003 lux colour · 0 lux with IR 0.0003 lux colour (no IR option) Wide Dynamic Range 150 dB AWDR 150 dB AWDR Shutter Speed 1/30 s to 1/30,000 s 1/1 s to 1/30,000 s (longer slow shutter) Frame Rate 4MP @ 50/60 fps · 1080p @ 100/120 fps 4MP @ 50/60 fps · 1080p @ 100/120 fps Pan / Tilt Range 360° · −20° to +90° 360° · −20° to +90° Pan Preset Speed 550°/s (max 700°/s) 300°/s Smart Pan-Tilt Correction Yes — Pattern Scans — (not listed in datasheet) 4 pattern scans Park Action Options Preset · patrol scan only Preset · patrol · auto / tilt / random / frame / panorama scan Deep Learning Perimeter · multi-target · face capture (30) · face comparison (150k) · auto-tracking 3.0 Same AI stack + vehicle arming mode Object Arming Person arming Person + vehicle arming Cyber Security TPM 2.0 · FIPS 140-2 L2 · TLS 1.3 TPM 2.0 · FIPS 140-2 L2 · TLS 1.3 Protection IP67 · IK10 · NEMA 4X (-Y) IP67 · IK10 · NEMA 4X (-Y) Power Source PoE 802.3bt Class 8 (90 W) · 36 VDC · max 90 W Hi-PoE (60 W class) · 36 VDC · max 45 W Heater / Demist / Wiper Heater + Demist · No Wiper Heater + Demist · No Wiper Weight / Dimensions 5 kg · Ø 215 × 297 mm 6 kg · Ø 231 × 356 mm Best For Completely dark long-range sites: rural property boundaries, dark mining haul roads, unlit power-station and substation yards, river / forest / scenic-spot overwatch, unlit perimeter walls. The 300 m IR array unlocks identification at full telephoto in zero ambient light. Ambient-lit Australian sites: lit carparks, port aprons under dock lighting, council CBDs, school perimeters with security lighting, marinas with mast lighting. Lighter on power, still uses DarkFighter 2.0 for very low light. For the 6A sibling referenced in the comparison, see: DS-2DF6A436XG1-EL(Y) (Ultra 6A · no IR) → Recording NVRs — Any Modern Hikvision NVR Works The 7A PTZ streams to any modern Hikvision NVR over ONVIF Profile S/G/T/M and Hikvision ISAPI. For multi-site rollouts with rich AI metadata, the VPro AcuSeek and DeepinMind NVRs unlock natural-language search across the recording. DS-7608NXI-I2/8P/VPro — 8CH · AcuSeek AI Eight-channel VPro AcuSeek AI NVR with 8 built-in PoE ports — a clean partner for a single-site PTZ deployment with mixed perimeter cameras. View DS-7608NXI-I2/8P/VPro → DS-7616NXI-I2/16P/VPro — 16CH · AcuSeek AI Sixteen channels at full PoE — room for the PTZ plus a fleet of perimeter and overview cameras across the whole site. View DS-7616NXI-I2/16P/VPro → DS-7732NXI-I4/16P/VPro — 32CH · AcuSeek AI Thirty-two channels with 16 PoE and 4 HDD bays — typical VPro AcuSeek platform for council, port, mining and multi-building campus rollouts. View DS-7732NXI-I4/16P/VPro → iDS-7716NXI-M4/16P/X — 16CH · DeepinMind DeepinMind X-Series — Hikvision's most capable 16-channel AI NVR for face-recognition workloads and AcuSearch natural-language search across the fleet. View iDS-7716NXI-M4/16P/X → Important: the PTZ does not draw power from these NVRs' built-in PoE ports — it needs a separate PoE 802.3bt Class 8 (90 W) injector or a 36 VDC supply. Data goes over the Ethernet; power comes from the injector or supply. Browse the full Hikvision NVR range: Hikvision Network Video Recorders →. Compatible Mounts & Accessories Hikvision DS-4612ZJ-PA — Pendant Mount Hikvision's pendant mount kit for the 7A speed dome — sized for the ⌀ 215 mm / 5 kg body. Used where the camera hangs from a horizontal beam, eave or carport gantry. Hikvision DS-4603ZJ-PA — Wall Mount Heavy-duty wall mount for the 7A — compatible with rendered, masonry and treated-timber substrates. The most common install partner for building-eave and façade mounts. Hikvision DS-1674ZJ-P — Junction Box Junction box for clean cable termination behind the wall or pendant mount. Pairs with the DS-4603ZJ-PA wall bracket. Hikvision DS-1684ZJ-P / DS-1673ZJ-P — Pole Mounts Vertical pole mount (DS-1684ZJ-P) and horizontal pole mount (DS-1673ZJ-P) — for installing the PTZ on light poles, fence posts, gate columns and tower mounts. Pairs with the DS-4603ZJ-PA wall bracket. Hikvision DS-1276ZJ-P / DS-4660ZJ-PC — Corner Mounts Corner-mount kits for situating the PTZ at the corner of a building overlooking a carpark, dock apron, perimeter line or large-venue ground level. PoE 802.3bt Class 8 (90 W) Injector / Switch Required if you're not powering the camera from a separate 36 VDC supply. Make sure the injector or switch is genuinely Type 4 Class 8 (90 W) — standard PoE+ (25.5 W) and Hi-PoE (60 W) will not reliably power this camera with IR active. Contact our Australian team for the right injector. Frequently Asked Questions What does the "-Y" suffix mean and which variant do you stock? The -Y suffix indicates Hikvision's moderate anti-corrosion housing — NEMA 4X-rated, designed for coastal Australian sites within ~2 km of the shoreline and areas affected by acid rain. We stock the DS-2DF7A436IXG-ELY (with -Y) as our Australian default. The base DS-2DF7A436IXG-EL (no -Y) has "no specific anti-corrosion protection" per the datasheet — we don't stock it. How does the 300 m IR work — does it light the full 300 m at wide-angle? The IR illumination range scales with the zoom. At full telephoto, the IR beam tightens and reaches up to 300 m with the smart-IR supplement adjusting intensity to avoid over-exposing close-range targets. At wide-angle, the beam spreads to cover the wider field of view at a shorter effective distance. The combination keeps target illumination consistent across the zoom range. Why doesn't it run on standard PoE+ or Hi-PoE? Total camera power draw with the IR LED ring and heater active is up to 90 W. Standard PoE+ (IEEE 802.3at) tops out at 25.5 W, and Hi-PoE (60 W class) doesn't have the headroom for the IR ring at full output. The camera requires PoE 802.3bt Type 4 Class 8 (90 W) or a dedicated 36 VDC supply. Should I buy the 7A or the 6A sibling? If the scene has any reasonable ambient lighting at night (streetlights, dock lights, security floodlights, mast lighting, moonlight) the 6A's DarkFighter 2.0 sensor alone is enough — and you'll save on the 90 W power chain. Choose the 7A specifically for genuinely dark long-range sites: rural property boundaries, dark mining haul roads, unlit power-station yards, scenic-spot and river overwatch. Compare side-by-side: DS-2DF6A436XG1-EL(Y) → Does it support number-plate recognition (ANPR)? This is not marketed as an ANPR camera. The 7A PTZ is built for long-range surveillance, perimeter protection and auto-tracking. For on-camera number-plate recognition, choose a dedicated DeepinView ANPR bullet — for example the iDS-2CD7A46G2/P-IZHSY with its purpose-built LPR engine and 10,000-record plate database. How far away can the camera identify a target? Per EN 62676-4 criteria at full telephoto: Detect 2,979 m · Observe 1,182 m · Recognise 596 m · Identify 297.9 m. "Identify" means the image is detailed enough to recognise a specific individual — that's a usable working distance for almost any large-site security application. Detection extends nearly 3 km. How does Smart Pan-Tilt Correction work? Over thousands of pan/tilt cycles, mechanical drift can shift preset positions by a few degrees from their original setpoints. Smart Pan-Tilt Correction measures and compensates for that drift automatically, keeping all presets accurate to the original setpoint without manual re-calibration — important for unmanned sites where a technician can't easily re-set presets in person. Is this NDAA Section 889 compliant? No. Hikvision is subject to NDAA Section 889 restrictions in the United States. For NDAA-compliant long-range PTZ projects (typically US federally-funded), we stock alternative brands — please contact our team for a recommendation. For Australian commercial, council, port-authority, private and most state-government projects without an NDAA contractual requirement, this camera is freely usable. Will the camera record locally if the NVR drops? Yes. microSD up to 1 TB — when the network link to the NVR drops, the camera continues writing locally and the footage is available for retrieval once the link returns. What's the warranty and where is it serviced? This camera ships with a 3-year Australian Hikvision warranty, serviced back-to-base through Hikvision Australia. CCTV Guru manages the entire RA process from our Sydney office and provides Australian-based pre-sales and technical support for the life of the product. Do you ship Australia-wide and is stock genuine? Yes — Australian stock from authorised Hikvision Australia channels (not parallel imports). We ship Australia-wide every business day with same-day dispatch on orders placed before 2 pm AEST to Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra, Darwin and regional addresses. Downloads & Resources DS-2DF7A436IXG-ELY Datasheet Hikvision PTZ Quick Start Guide Hikvision Speed Dome User Manual Order the Hikvision DS-2DF7A436IXG-EL(Y) from CCTV Guru CCTV Guru is an authorised Australian reseller of Hikvision Ultra Series PTZ cameras. Order the DS-2DF7A436IXG-ELY 4MP 36× DarkFighter 2.0 IR PTZ with 300 m smart IR and NEMA 4X anti-corrosion housing for fast Australia-wide dispatch, expert pre-sales advice, project pricing for multi-camera and multi-PTZ rollouts, and full local warranty support. Designing a long-range zero-light surveillance project for a rural property, mining site, power station, port apron, scenic-spot overwatch or large industrial campus? Request a free quote or contact our Australian team for tailored camera-and-NVR sizing — we'll spec the right 90 W PoE++ injector or 36 VDC supply at the same time.

Read more less

Hikvision Ultra Series · 8MP 4K · 42× Zoom · DarkFighter 2.0 · 500 m IR Hikvision DS-2DF8C842IXG1-ELWY — 8MP 4K 42× Zoom DarkFighter 2.0 Ultra Series PTZ (7.5-315 mm, 500 m IR, IP67/IK10) The Hikvision DS-2DF8C842IXG1-ELWY is an enterprise-grade Ultra Series PTZ engineered for the largest outdoor and critical-infrastructure sites. A large 1/1.2" Progressive Scan CMOS delivers 8 MP / 4K (3840 × 2160) imaging with DarkFighter 2.0 low-light performance to 0.0005 lux, while a 42× optical zoom (7.5-315 mm) plus 16× digital and IR up to 500 m cover vast distances. 140 dB WDR, on-board face capture, vehicle detection and traffic analytics, Smart Pan-Tilt Correction, 360° pan and −20° to +90° tilt make it ideal for airports, ports, city surveillance, stadiums and large venues. Rugged IP67 / IK10 build. Australian stock, 3-year Australian warranty. Resolution 8 MP · 3840 × 2160 · 4K Optical Zoom 42× · 7.5-315 mm Night Vision DarkFighter 2.0 · 500 m IR Smart AI Face Capture · Vehicle Detect Pan / Tilt 360° · −20° to +90° Protection IP67 · IK10 · 140 dB WDR 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support Why Choose the DS-2DF8C842IXG1-ELWY 8 MP 4K · 42× Zoom A large 1/1.2" sensor plus a 7.5-315 mm 42× optical lens reads faces and plates at extreme range — enterprise coverage from a single camera. DarkFighter 2.0 · 500 m IR Holds colour to 0.0005 lux and reaches 500 m IR in full darkness for long-range night surveillance across the largest sites. Smart Analytics On-board face capture, vehicle detection and traffic analytics surface the events that matter from wide, busy scenes. Smart Pan-Tilt Correction Stabilised tracking and movement keep distant targets framed, with 360° pan and −20° to +90° tilt for full coverage. Technical Specifications DS-2DF8C842IXG1-ELWY · Full Specifications SKU DS-2DF8C842IXG1-ELWY Camera Type Hikvision Ultra Series 8 MP DarkFighter 2.0 Network PTZ Speed Dome Image Sensor 1/1.2" Progressive Scan CMOS Max Resolution 3840 × 2160 (8 MP / 4K) Optical Zoom 42× · 7.5-315 mm motorised lens Digital Zoom 16× Min. Illumination Colour 0.0005 lux · 0 lux with IR Low-Light Tech DarkFighter 2.0 IR Range Up to 500 m Wide Dynamic Range 140 dB Pan / Tilt Pan 360° · Tilt −20° to +90° · Smart Pan-Tilt Correction · preset & patrol Smart Analytics Face capture · vehicle detection · traffic analytics Video Compression H.265+ · H.265 · H.264+ · H.264 Network & Protocols RJ-45 · ONVIF · Hik-Connect Protection IP67 · IK10 (excluding glass window) Warranty 3-Year Australian Warranty Frequently Asked Questions What sites is this PTZ built for?It's an enterprise-grade Ultra Series PTZ for the largest sites — airports, ports, city surveillance, stadiums and large venues — where 8 MP 4K detail and 500 m night reach are needed from a single camera. How is it powered?A PTZ of this class requires Hi-PoE or a 24 VAC supply — confirm the exact power input on the datasheet and budget for it; a standard 802.3af port is not sufficient. Will it work with my NVR?Yes — it's ONVIF compatible and integrates fully with Hikvision NVRs and Hik-Connect for live view, PTZ control, recording and playback. Is this NDAA Section 889 compliant?No. Hikvision is not NDAA Section 889 compliant. For Australian commercial, council and most projects without an NDAA contractual requirement, this camera is freely usable. Downloads & Resources DS-2DF8C842IXG1-ELWY Datasheet Hikvision Speed Dome Quick Start Guide Hikvision Speed Dome User Manual Order the Hikvision DS-2DF8C842IXG1-ELWY from CCTV Guru CCTV Guru is an authorised Australian reseller of Hikvision Ultra Series PTZ cameras. The DS-2DF8C842IXG1-ELWY brings 8 MP 4K detail, a 42× long-range zoom, DarkFighter 2.0 low-light and 500 m IR to enterprise perimeter, port, airport and city-surveillance deployments. Australian stock, 3-year Australian warranty, fast Australia-wide dispatch. Request a free quote or contact our Australian team.

Read more less

Hikvision Smart IP · 8MP 4K · Smart Dual-Light · DarkFighter-S · HEOP AI Hikvision 8MP 4K Smart Dual-Light Dome Hikvision DS-2CD3786G2HT-LIZSUY — 8MP 4K Smart Dual-Light Motorised Varifocal Dome with DarkFighter-S, HEOP 1.5 TOPS AI & 40 m IR/White Light (IP67/IK10, NEMA 4X) The Hikvision DS-2CD3786G2HT-LIZSUY sits in Hikvision's Smart IP / Ultra Series commercial dome line — a step above the Pro Series EasyIP cameras and one of the most capable 8 MP domes you can install on a standard PoE+ run. A 1/1.8" progressive-scan CMOS sensor delivers 4K UHD (3840 × 2160) imaging; a motorised 2.7-13.5 mm F1.2 varifocal lens covers everything from a 112° wide view down to a 41° telephoto frame without ever needing a service trip; DarkFighter-S drives the colour floor to 0.0028 lux; and the Smart Dual-Light (also marketed as Smart Hybrid Light) illuminator delivers up to 40 m of IR or white-light supplementation with three blend modes — covert IR, 24/7 colour with white light, or smart auto-blend that switches by scene. The camera runs Hikvision's HEOP open platform with 1.5 TOPS of on-camera AI compute, supports third-party AI applications alongside Hikvision's native AcuSense deep-learning analytics, and is housed in an IP67 + IK10 vandal-rated chassis with NEMA 4X anti-corrosion (the -Y suffix) for coastal Australian sites within ~2 km of the shoreline. Australian stock, 3-year Australian warranty, runs on standard PoE 802.3at — no special supply needed. Resolution 8 MP · 3840 × 2160 · 4K UHD Motorised Lens 2.7-13.5 mm · F1.2 · 5× zoom Smart Dual-Light IR + White · 3 modes · 40 m AI Compute HEOP · 1.5 TOPS · AcuSense Low Light DarkFighter-S · 0.0028 lux Protection IP67 · IK10 · NEMA 4X (-Y) 3-Year AU Warranty Fast AU Shipping Australian Tech Support Why the Smart IP / Ultra Series 3 Tier Is the Right Step Up Three things separate the Smart IP / Ultra Series 3 from the more affordable Pro Series EasyIP cameras: a motorised varifocal lens that lets you set framing once and forget it (no return trip to adjust a fixed 2.8 mm), HEOP open platform AI for running custom analytics directly on the camera, and Smart Dual-Light at 40 m (vs the 30 m fixed-lens Pro Series). If your site is bigger than a residential front door, has a longer driveway, or you want one camera that can re-frame across multiple shifts, the 3786G2HT pays for itself in install simplicity alone. Motorised 2.7-13.5 mm Varifocal Lens Remote zoom + remote focus from 112° ultra-wide down to 41° tele — adjusted from the NVR, the web UI or Hik-Connect. No service-trip to adjust a fixed lens after the install. Mount it once, set the framing remotely, adjust later if the site layout changes. Smart Dual-Light — 40 m IR or White Light Hikvision's Smart Dual-Light (officially also called Smart Hybrid Light) drives IR + white LEDs to up to 40 m supplementary range — significantly more than the 30 m Pro Series equivalent. Three modes: IR-only (covert, B/W image), white-only (24/7 colour, deterrent value), or smart blend (IR fill + white-light burst on AcuSense events). DarkFighter-S — 0.0028 lux Low-Light The DarkFighter-S low-light pipeline takes the F1.2 motorised lens and pairs it with Hikvision's newer ISP — delivering 0.0028 lux colour imaging in any ambient-lit scene before the Smart Dual-Light even kicks in. Result: clean, low-noise colour at dusk, dawn and overcast sites without flooding the scene with white light. HEOP 1.5 TOPS Open Platform The camera ships with 1.5 TOPS of on-board AI compute, 40 MB system memory, 350 MB smart RAM and a 2 GB eMMC partition for the HEOP platform — letting Hikvision's technology partners deploy custom analytics (queue counting, dwell time, retail-conversion tracking, industrial safety) on-camera alongside the native AcuSense human + vehicle classification. See Hikvision Smart Dual-Light / Smart Hybrid Light in Action Hikvision's official demonstration of the Smart Dual-Light / Smart Hybrid Light system shows the three illumination modes on the same scene — IR-only at night, white-light-only for 24/7 colour, and the smart auto-blend that triggers a white-light burst when AcuSense detects a human or vehicle. The same illuminator architecture (scaled to 40 m here) powers this DS-2CD3786G2HT-LIZSUY dome. Smart Dual-Light — The Three Modes Explained Smart Dual-Light is the single most useful feature on this camera once it's installed. The illuminator combines white LEDs and 850 nm IR LEDs in one housing — both rated to up to 40 m range at the relevant zoom level. The camera lets you choose how the two light sources work together, per camera, per time-of-day schedule, or per AcuSense event. Smart IR Mode — Covert Night Recording IR LEDs only at 850 nm, no visible light. The image goes black-and-white at night, invisible to the human eye. Best for back-of-house car parks, side-perimeter coverage and any install where you don't want a bright white floodlight running 24/7. Range up to 40 m at the wider zoom settings. Smart White-Light Mode — 24/7 Colour White LEDs always on at night. Full natural-colour image around the clock, which doubles as a passive deterrent — lit-up commercial frontages and car parks are statistically less likely to be targeted. Useful for retail shopfronts, hospitality entries, council-zone parking and student-housing access points. Smart Blend Mode — Best of Both IR fills the background continuously for general motion sensing. When AcuSense classifies a human or vehicle inside your defined zone, the white LEDs briefly burst to capture a colour evidence frame before returning to IR. Lowest visible disturbance to neighbours, best evidence-quality colour shots on actual events. AcuSense + HEOP — On-Camera AI That Works for Your Site The 3786G2HT runs two AI workloads at once: Hikvision's native AcuSense deep-learning engine for human + vehicle classification and perimeter protection, and the HEOP open platform for third-party AI applications running on the camera's 1.5 TOPS compute budget. For most sites the native AcuSense is enough; HEOP is the headroom for when you need something specific. AcuSense Perimeter Protection Line crossing, intrusion, region entrance and region exiting detection — each filtered by target classification (human or vehicle). Filters out the ~90 % of motion alerts caused by foliage, rain, possums and headlight glare on typical Australian outdoor sites. Face Capture & Multi-Target Detection Simultaneous detection of face, human body and vehicle classes with rich feature extraction. Useful at entrances, gate cams, school drop-off zones and any location where post-incident review benefits from indexable AI metadata. HEOP Third-Party Applications 1.5 TOPS of dedicated AI compute (40 MB system + 350 MB smart RAM + 2 GB eMMC) for Hikvision technology partners' applications — queue analytics, dwell-time tracking, retail conversion, industrial safety, traffic counting. Run them directly on the camera, no central server required. Hik-Connect + iVMS-4200 + HikCentral Pro Native support for the full Hikvision client stack — Hik-Connect (mobile), iVMS-4200 (desktop Windows / Mac client), HikCentral Professional (enterprise VMS). ONVIF Profile S / G / T plus Hikvision ISAPI for third-party integration. Technical Specifications DS-2CD3786G2HT-LIZSUY · Full Specifications SKU DS-2CD3786G2HT-LIZSUY (AU-stocked default — NEMA 4X anti-corrosion -Y suffix) Camera Type Hikvision Smart IP / Ultra Series 3 · 8 MP / 4K UHD Smart Dual-Light Motorised Varifocal Dome Image Sensor 1/1.8" Progressive Scan CMOS · DarkFighter-S low-light pipeline Max Resolution 3840 × 2160 (8 MP · 4K UHD) Min. Illumination Colour 0.0028 lux @ F1.2 (AGC ON) · 0 lux with supplement light Shutter Speed 1 s to 1/100,000 s · Slow Shutter Lens Motorised varifocal · 2.7-13.5 mm · F1.2 max · 5× optical zoom range · auto / semi-auto / manual focus Field of View Horizontal 112.3° → 41.2° · Vertical 58.1° → 23.1° · Diagonal 137.4° → 47.3° Lens Control Remote zoom + remote focus via NVR, web UI, Hik-Connect or HikCentral Pro Day & Night ICR (IR cut filter, mechanical) Wide Dynamic Range 130 dB Scene-Adaptive WDR Image Enhancement BLC · HLC · 3D DNR · distortion correction · digital defog · EIS SNR ≥ 52 dB Supplement Light Smart Dual-Light (Smart Hybrid Light) — white + 850 nm IR · up to 40 m · 3 modes (IR / White / Smart Blend) Angle Adjustment Pan 0°-355° · Tilt 0°-75° · Rotation 0°-355° (3-axis dome) Frame Rate (Main) 50 Hz: 25 fps @ 8 MP · 60 Hz: 30 fps @ 8 MP (4K UHD) Streams 3 simultaneous (main / sub / third) Video Compression H.265+ · H.265 · H.264+ · H.264 · MJPEG (sub / third) Video Bit Rate 32 Kbps – 16 Mbps · CBR / VBR · SVC (H.264 + H.265) · ROI AI Compute HEOP open platform · 1.5 TOPS · 40 MB system memory · 350 MB smart RAM · 2 GB eMMC AI — AcuSense Human + vehicle classification · perimeter protection (line crossing / intrusion / region entry & exit) · face capture · multi-target detection Basic Events Motion (human + vehicle trigger filter) · video tampering · scene change · exception Linkage FTP / NAS / microSD upload · centre notify · email · trigger recording · capture Audio Built-in microphone (-U suffix) · 1 line-in · 1 line-out · G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC Alarm I/O 1 input · 1 output (max 24 VDC/VAC, 1 A) Ethernet 1 × RJ-45 10/100 Mbps self-adaptive On-Board Storage microSD / SDHC / SDXC up to 512 GB · NAS (NFS / SMB-CIFS) · ANR auto network replenishment API & Protocols ONVIF (Profile S / G / T) · ISAPI · SDK · ISUP · HEOP SDK Cyber Security TLS 1.2 · HTTPS · 802.1X · IP filter · watermark · MAC host authentication · audit log · password protection Client Software iVMS-4200 · Hik-Connect · HikCentral Pro Power Source 12 VDC ±25% (1.05 A, max 12.6 W) OR PoE 802.3at Class 4 (max 15 W) — runs on any Hikvision NVR PoE+ port Dimensions / Weight Ø ~ 130 mm housing · ≈ 820 g Operating Temperature −30 °C to +60 °C · ≤95 % humidity (non-condensing) Weatherproof Rating IP67 (IEC 60529-2013) Vandal Resistance IK10 (IEC 62262:2002) Anti-Corrosion NEMA 4X (NEMA 250-2018) — Y variant · moderate Hikvision protection tier (coastal AU within ~2 km of shoreline) Approvals CE-EMC · CE-LVD · UL · RCM (AS/NZS CISPR 32:2015) · IC · KC · CB · RoHS Warranty 3-Year Australian Warranty (back-to-base) DS-2CD3786G2HT-LIZSUY vs DS-2CD2387G3-LIS2UY/SL — Smart IP Series vs Pro Series The closest sibling at the same 8 MP / 4K resolution is the Pro Series G3 ColorVu Live-Guard turret (DS-2CD2387G3-LIS2UY/SL). The 3786G2HT is the step up: motorised varifocal lens, longer-range Smart Dual-Light, HEOP open platform AI, and the dome form factor for ceiling installs. The G3 turret wins on price and on the /SL Live-Guard active-deterrence package (white strobe + 110 dB speaker + dual mic + 2-way audio). DS-2CD3786G2HT-LIZSUY (Smart IP / Ultra) vs DS-2CD2387G3-LIS2UY/SL (Pro Series G3) Feature DS-2CD3786G2HT-LIZSUY (this — Smart IP) DS-2CD2387G3-LIS2UY/SL (Pro Series G3) Series Position Smart IP / Ultra Series 3 (higher tier) Pro Series / EasyIP G3 Form Factor Outdoor Dome (3-axis) Outdoor Turret (3-axis) Resolution 8 MP · 3840 × 2160 (4K UHD) 8 MP · 3840 × 2160 (4K UHD) Image Sensor 1/1.8" CMOS · DarkFighter-S 1/1.8" CMOS · ColorVu 3.0 · HikAI-ISP Min. Illumination 0.0028 lux @ F1.2 colour 0.0005 lux @ F1.0 colour (lower floor) Lens Motorised 2.7-13.5 mm · 5× zoom · F1.2 Fixed 2.8 mm or 4 mm · F1.0 Supplement Light Smart Dual-Light · up to 40 m · 3 modes Smart Hybrid Light · up to 30 m · 3 modes WDR 130 dB Scene-Adaptive 130 dB Scene-Adaptive AI Engine AcuSense + HEOP 1.5 TOPS open platform AcuSense (no HEOP) Active Deterrence — /SL Live-Guard: white strobe + 110 dB speaker + 2-way audio Audio Built-in microphone Built-in dual mic + built-in 2 W speaker Protection IP67 · IK10 · NEMA 4X (-Y) IP67 · NEMA 4X (-Y) Vandal Rating IK10 Not rated Power PoE 802.3at Class 4 · 12 VDC · ~15 W PoE 802.3at Class 4 · 12 VDC · ~17 W Warranty 3-Year Australian Warranty 3-Year Australian Warranty Best For Commercial sites needing motorised remote framing, 40 m supplementary light reach, HEOP open-platform AI, IK10 vandal-rated dome housing — schools, retail centres, hospitality entrances, council CBD, port aprons, larger commercial frontages. Residential / small-business sites where the fixed-lens form factor is fine and the /SL Live-Guard active-deterrence package (white strobe + 110 dB speaker + 2-way audio) adds value at the front door. For the Pro Series G3 sibling: DS-2CD2387G3-LIS2UY/SL (8 MP 4K ColorVu Live-Guard Turret) → Recording NVRs — Pair with an Affordable M-Series PoE NVR The DS-2CD3786G2HT-LIZSUY runs on standard PoE 802.3at and plugs directly into the built-in PoE+ ports of any Hikvision NVR. For commercial installs that want to keep the entry cost in check, the Hikvision M-Series NVRs are the right pairing — 4K HDMI output, H.265+ compression, PoE built-in, plug-and-play. Step up to the AcuSeek or DeepinMind AI NVRs if you'll be running HEOP applications across multiple cameras and want central metadata search. DS-7604NI-M1/4P — 4CH · 4 PoE · Budget Pick Four-channel M-Series NVR with 4 built-in PoE ports, 4K HDMI output, single HDD bay. Right size for a small commercial install with this dome as the centrepiece plus three perimeter cameras. View DS-7604NI-M1/4P → DS-7608NI-M2/8P — 8CH · 8 PoE · 2 HDD Bay Eight-channel M-Series NVR with 8 built-in PoE ports, 4K HDMI output, two HDD bays (up to 20 TB). Sweet spot for shopfront, restaurant, school front-of-house and small council site installs. View DS-7608NI-M2/8P → DS-7616NI-M2/16P — 16CH · 16 PoE · 2 HDD Bay Sixteen channels at full PoE, 160 Mbps M-Series engine for stutter-free 4K playback. Standard pairing for larger commercial sites, body-corporate, multi-shop strata and small-campus installs running multiple Smart IP domes. View DS-7616NI-M2/16P → Running HEOP at Scale? AcuSeek / DeepinMind NVRs If you're running HEOP applications across multiple cameras and want natural-language search across the recording fleet, step up to a Hikvision AcuSeek (VPro) or DeepinMind AI NVR. Indexes face, human and vehicle metadata. Browse AcuSeek & DeepinMind NVRs → Compatible Mounts & Accessories DS-1273ZJ-DM45 — Wall Mount Wall-mount bracket sized for the Ultra Series dome — facade, column or building-wall installs looking outward across a perimeter or approach. DS-1271ZJ-DM45 — Pendant / Ceiling Mount Pendant mount for hanging from horizontal surfaces — undercover gantry, ceiling, soffit, carport. Common for retail and hospitality ceiling-down installs. DS-1275ZJ-SUS / DS-1276ZJ-SUS — Pole & Corner Stainless-steel-banded pole mount and corner-of-building bracket for fence posts, light poles, gate columns and corner installs. microSD Card for Local Storage Supports microSD / SDHC / SDXC up to 512 GB with ANR (Auto Network Replenishment). Camera keeps recording locally during NVR outages, back-fills automatically when network returns. Frequently Asked Questions What does "Smart IP / Ultra Series" mean — is this above or below the Pro Series?The Smart IP / Ultra Series (DS-2CD37xx prefix) sits one tier above the Pro Series EasyIP (DS-2CD23xx prefix) in Hikvision's line-up. It adds motorised varifocal lenses, longer-range supplement lighting, the HEOP open platform, and IK10 vandal rating. It sits below the DeepinView Series (iDS-2CD7xxx prefix) which adds enterprise face recognition and ANPR. Is "Smart Dual-Light" the same as "Smart Hybrid Light"?Yes — they're the same illumination system, Hikvision uses different marketing names for different product families. Both refer to the integrated white + IR LED array with three blend modes (IR-only / white-only / smart-blend). The 3786G2HT delivers it at up to 40 m range; the Pro Series G3 equivalent delivers it at 30 m. What is HEOP and do I actually need it?HEOP — Hikvision Embedded Open Platform — lets Hikvision technology partners deploy custom AI applications directly on the camera. Most buyers don't deploy a HEOP app initially, but the headroom matters if you're planning queue analytics, dwell-time measurement, retail conversion tracking or industrial safety monitoring with a specific vendor app. Future-proofing. What does each letter in "LIZSUY" mean?L = Smart Dual-Light illuminator. I = built-in IR. Z = motorised varifocal Zoom lens. S = audio & alarm I/O. U = built-in microphone. Y = NEMA 4X anti-corrosion housing. We stock the LIZSUY variant as our Australian default — the right configuration for the vast majority of AU commercial outdoor installs. Does the motorised lens add maintenance overhead?No. Motorised zoom + focus is electrically driven and rated for the camera's full service life. The advantage is enormous on install: you mount once, set the zoom and focus from the NVR or web UI, and you can re-adjust later if site layout changes — without a service trip up a ladder. Will it run on a standard Hikvision NVR PoE port?Yes — PoE 802.3at Class 4 (max 15 W), standard PoE+ delivered by every Hikvision PoE NVR built-in port. No special injector or Hi-PoE switch needed. Single Cat 6 cable from NVR to camera. Can I install this within 2 km of the coast?Yes — the -Y suffix denotes Hikvision's NEMA 4X moderate anti-corrosion housing, designed for coastal Australian sites within ~2 km of the shoreline and for areas exposed to acid rain. Right rating for Sydney Harbour, Brisbane River, Gold Coast, Perth waterfront, Wollongong, Newcastle, Hobart and similar sites. How does AcuSense filter out false alarms?AcuSense runs deep-learning classification on the camera itself, identifying whether motion is a human, a vehicle or "other" (animals, foliage, rain, headlight glare). Only human or vehicle detections trigger alerts and recording. Typical sites see ~90 % fewer false alerts than with traditional motion-only cameras. Is this NDAA Section 889 compliant?No. Hikvision is not NDAA Section 889 compliant. For NDAA-required projects (typically US federally-funded), contact our team for alternatives. For Australian commercial, council, school, retail, hospitality, body-corporate and most state-government projects without an NDAA contractual requirement, this camera is freely usable. Downloads & Resources DS-2CD3786G2HT-LIZSUY Datasheet Hikvision Dome Quick Start Guide Hikvision Dome User Manual Order the Hikvision DS-2CD3786G2HT-LIZSUY from CCTV Guru CCTV Guru is an authorised Australian reseller of the Hikvision Smart IP / Ultra Series 3 commercial dome range. The DS-2CD3786G2HT-LIZSUY is the right camera for Australian commercial sites that need motorised varifocal framing, 40 m Smart Dual-Light, HEOP open-platform AI compute, IK10 vandal resistance and NEMA 4X anti-corrosion — schools, retail centres, hospitality entrances, council CBD, port aprons, body-corporate sites and large commercial frontages. Australian stock, 3-year Australian warranty, fast Australia-wide dispatch, multi-camera project pricing, and pre-sales advice from our Sydney team. Designing a complete commercial system? Request a free quote or contact our Australian team for camera-and-NVR sizing tailored to your project.

Read more less

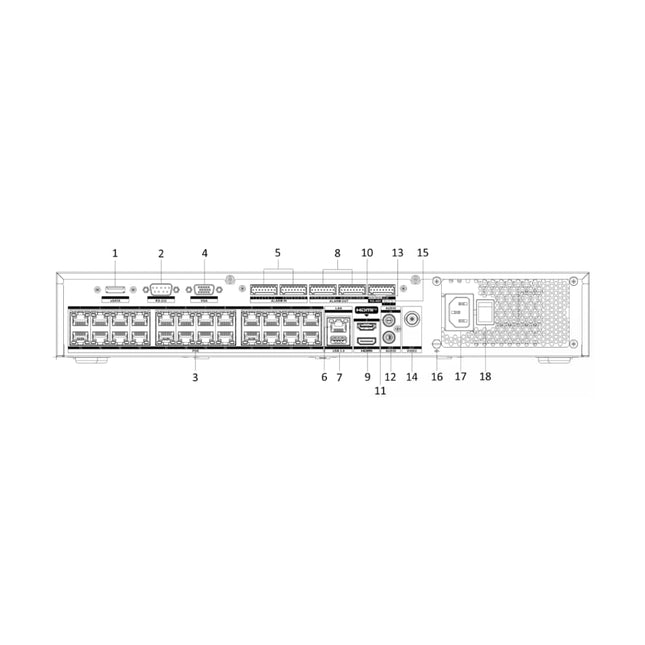

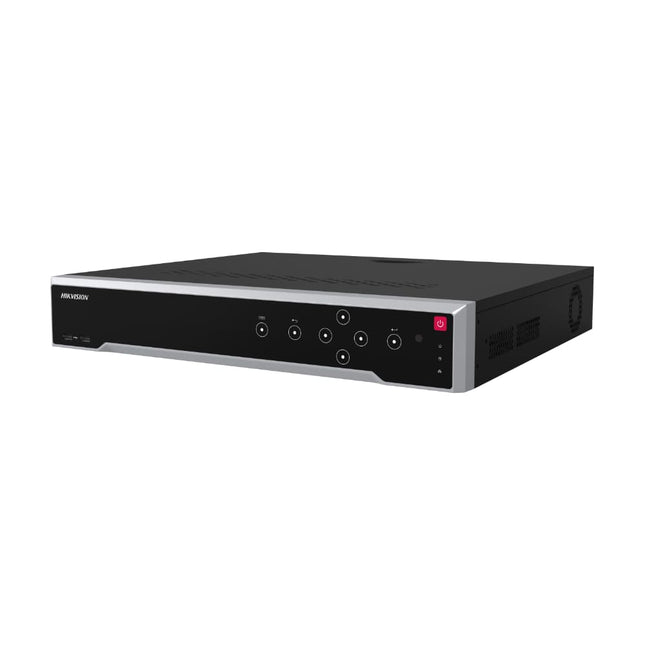

Hikvision M Series · 8K · 32 Channel · 24 PoE The Hikvision DS-7732NI-M4/24P is a 32-channel 8K Network Video Recorder built for serious Australian sites — large factories, multi-building campuses, schools, hotels, car yards, logistics centres and high-end residential estates. The standout feature: 24 built-in PoE ports — eight more than the standard 16-PoE model — so you can power and connect up to 24 cameras directly from the recorder without needing an extra PoE switch. The remaining 8 channels accept IP cameras from your wider network for ANPR, panoramic, fisheye or third-party ONVIF models. Four internal SATA bays accept up to 16 TB drives each (64 TB total), delivering months of continuous 24/7 recording even with all 32 channels at full 4K. AcuSense-ready firmware adds deep-learning human and vehicle classification, line-crossing, intrusion detection and perimeter protection across every channel — drastically reducing nuisance alerts and turning multi-day playback searches into seconds. Channels 32 CH · Up to 32 MP PoE Ports 24 × PoE (af/at) Display True 8K HDMI Output Storage 4 × SATA · Up to 64 TB Why 24 PoE ports change the install economics On a typical 32-channel site, you'd usually need the NVR plus a separate 24-port managed PoE switch — that's another rack unit, another power supply, another point of failure, and another piece of hardware to commission and document. The DS-7732NI-M4/24P collapses all of that into a single 1.5U chassis. Your installer plugs up to 24 cameras directly into the back of the recorder via Cat6 (up to 100 m runs), and the NVR handles power, data and discovery automatically. Faster install, fewer parts, lower total cost of ownership. 24 PoE Ports Built-In Power and data over a single Cat6 run to 24 cameras, up to 100 m. IEEE 802.3 af/at compliant with a generous 210 W total PoE budget (max 30 W per port) — enough for a full perimeter without an extra PoE switch. True 32-Channel 32 MP Input Every channel supports cameras up to 32 MP — mix PanoVu, fisheye, ColorVu and 4K+ AcuSense cameras across a single NVR without throttling resolution or frame rate. AcuSense Smart Detection When paired with AcuSense cameras, the NVR runs deep-learning human and vehicle classification across all 32 channels — filtering false alarms from leaves, animals and shadows. Quad-SATA, 64 TB Capacity Four internal SATA bays accept enterprise-grade surveillance HDDs up to 16 TB each, delivering month-long retention even with all 32 cameras at full 4K H.265+. 320 Mbps Incoming Bandwidth Designed to run a full deployment of 4K ColorVu, AcuSense and PanoVu cameras simultaneously — without the bottlenecks of lower-tier NVRs. IP Speaker Integration Connect up to 8 Hikvision IP speakers for two-way audio warnings, scheduled announcements or live security-officer talk-down — directly from the NVR. Watch the M Series 8K NVR in action AcuSense NVR + Standard Camera — Smart False-Alarm Filtering Hikvision AcuSense — Installation & Operation Guide Engineered for Australian commercial sites Every M Series NVR sold by CCTV Guru ships from our Australian warehouse with local stock, local firmware, and full Australian Hikvision warranty. The DS-7732NI-M4/24P operates reliably from −10 °C to 55 °C, accepts standard 100–240 V AC mains, and is purpose-built to handle the heat, humidity and dust typical of Australian commercial, industrial, and outdoor-adjacent sites. Hik-Connect P2P Free remote viewing on iOS and Android via the Hik-Connect app — no static IP or port forwarding required. ONVIF Compatible Pairs with third-party ONVIF cameras as well as the full Hikvision IP range, giving you flexibility for hybrid and multi-vendor sites. RAID 0 / 1 / 5 / 6 / 10 Quad-SATA design supports RAID configurations for redundancy and performance — critical for sites where footage loss is not an option. Smart Playback Search recordings across all 32 channels by face, human, vehicle, line-crossing or intrusion event — days of footage reviewed in seconds. Full technical specifications Hikvision M Series NVR — DS-7732NI-M4/24P Model DS-7732NI-M4/24P Series Hikvision M Series 8K NVR (Ultra Series) Form Factor 1.5U Desktop / Rack-Mount Compatible Video Inputs 32-channel IP, up to 32 MP per channel Incoming Bandwidth 320 Mbps Outgoing Bandwidth 400 Mbps Video Compression H.265+ / H.265 / H.264+ / H.264 Decoding Capability 2-ch @ 32 MP (30 fps) + 2-ch @ 8 MP (30 fps) · 10-ch @ 8 MP · 20-ch @ 4 MP · 32-ch @ 1080p Recording Resolution 32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA Synchronous Playback Up to 32 channels HDMI 1 Output 8K (7680 × 4320) @ 30 Hz · 4K @ 60 Hz · 2K · 1080p HDMI 2 Output 4K (3840 × 2160) @ 60 Hz · 1920 × 1080 @ 60 Hz VGA Output 1920 × 1080 @ 60 Hz (independent output) CVBS Output 1 channel Audio Output 1-ch RCA, linear, 1 Vp-p, 1 kΩ IP Speaker Support Up to 8-ch IP speakers connectable Smart Function AcuSense — Human/Vehicle classification, perimeter protection, facial detection (with compatible cameras) Network Interface 2 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet PoE Interfaces 24 × Independent 10/100 Mbps PoE (IEEE 802.3 af/at) PoE Budget 210 W total, max 30 W per port Network Protocols TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF, OTAP HDD 4 × SATA, up to 16 TB per drive (64 TB total capacity) RAID RAID 0, 1, 5, 6, 10 supported USB Interfaces 1 × USB 3.0 (front) · 1 × USB 2.0 (rear) Alarm In / Out 16 in / 4 out Power Supply 100–240 V AC, 50/60 Hz Power Consumption ≤ 30 W (without HDD and PoE off) Working Temperature −10 °C to 55 °C Working Humidity 10% – 90% Dimensions (W × D × H) 445 × 400 × 73 mm Weight (without HDD) ≤ 5 kg Mobile Apps Hik-Connect, Hik-Central, iVMS-4200 Australian Warranty 3 Years — CCTV Guru / Hikvision Australia Downloads & resources Download official Hikvision documents for setup, specifications, and recorder details. DS-7732NI-M4/24P Datasheet Quick Start Guide PDF User Manual PDF LiveGuard Setup (Web GUI) LiveGuard Setup (NVR GUI) Frequently asked questions Why choose the 24-PoE version over the 16-PoE model? If your site needs to power more than 16 cameras directly from the NVR — typical for large warehouses, retail, multi-floor offices, schools and gated estates — the 24-PoE version saves you the cost and complexity of adding a separate PoE switch. How does it handle 32 cameras with only 24 PoE ports? Twenty-four cameras connect directly to the NVR's onboard PoE ports for power + data. The remaining 8 channels accept IP cameras from your wider network — either powered by an external PoE switch or by their own power supplies. Does the DS-7732NI-M4/24P come with hard drives? The recorder ships as a chassis only. CCTV Guru offers pre-fitted Seagate SkyHawk or WD Purple surveillance drives from 4 TB up to 16 TB per bay — choose your configuration at checkout. Can it be rack-mounted? Yes — the 1.5U chassis is compatible with optional rack-mount ears for standard 19" racks. Order the rack-mount kit alongside the NVR if required. What RAID levels are supported? RAID 0, 1, 5, 6 and 10 are all supported across the 4 SATA bays — letting you balance storage capacity, redundancy and performance for your site. Do you ship to my city? We ship Australia-wide from our local warehouse — Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra and Darwin — with most metro orders arriving in 1–3 business days. 3-Year Warranty Australia-Wide Shipping Australian Tech Support

Read more less

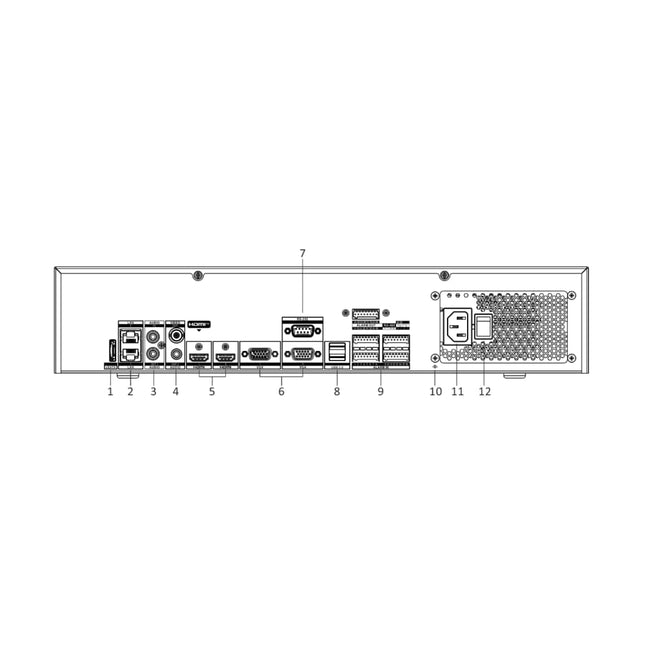

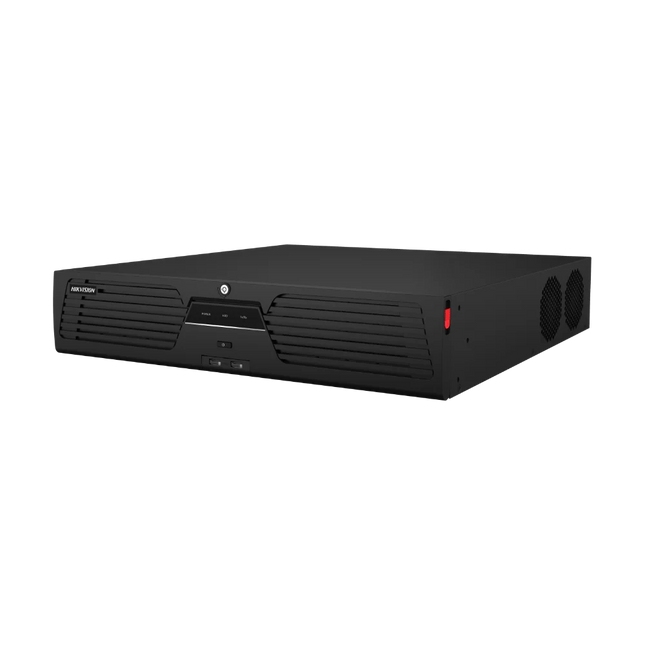

Hikvision M Series · 8K · 32 Channel · 2U Enterprise The Hikvision DS-9632NI-M8 is a 32-channel 2U enterprise Network Video Recorder — the right-sized choice for medium-to-large Australian sites that need the full enterprise feature set (RAID, hot spare, dual HDMI, dual VGA, rack mount) without the rack space or storage overhead of a 3U chassis. Schools, mid-sized hotels, warehouses, distribution centres, retail chains and multi-tenant offices that run 24-32 cameras and need a recorder built for 24/7 reliability. This is a non-PoE enterprise chassis — designed for sites that already run a managed PoE switch backbone (or non-PoE camera infrastructure like fibre, wireless backhaul or third-party power injectors). Pair the M8 with your existing switching infrastructure and let it handle recording, AI processing, multi-monitor display and RAID redundancy for all 32 channels in a compact 2U footprint. Channels 32 CH · Up to 32 MP Bandwidth 320 Mbps Incoming Display 2 × HDMI · 2 × VGA Storage 8 × SATA · Up to 128 TB Enterprise reliability in a compact 2U footprint The DS-9632NI-M8 hits the sweet spot for sites that need real enterprise features — RAID, hot spare, redundant network, multi-monitor outputs, rack mounting — but don't need the 256 TB storage or 64-channel scale of the larger M16 chassis. At 2U high and 442 mm wide, it slots cleanly into a comms rack or AV cabinet without dominating it. Up to 128 TB of internal storage across 8 SATA bays gives you 3 months of continuous 4K retention for a typical 32-channel deployment — well beyond most compliance and insurance requirements. 32-Channel 32 MP Input Every channel supports cameras up to 32 MP — mix PanoVu, fisheye, ColorVu and 4K+ AcuSense cameras across a single NVR without throttling resolution or frame rate. 128 TB Storage Capacity Eight internal SATA bays accept enterprise-grade surveillance HDDs up to 16 TB each, delivering 3+ months of continuous 4K retention across all 32 cameras. RAID 0/1/5/6/10 + N+M Hot Spare Configure full RAID across the 8 SATA bays, plus N+M hot-spare drives that automatically take over if a working drive fails — zero operator intervention, zero footage loss. Dual HDMI + Dual VGA Four independent display outputs — HDMI 1 drives a true 8K monitor, HDMI 2 a 4K monitor, plus two independent VGA workstations. Perfect for multi-operator 24/7 control rooms. 320 Mbps Incoming Bandwidth Comfortably runs all 32 channels at full 4K H.265+ simultaneously — generous bandwidth headroom per camera, so you can fit higher-bitrate streams without compromise. ANPR, People Counting & Fisheye Native support for specialty cameras — ANPR for entry/exit gates, people counting for retail or building occupancy, and fisheye / panoramic for wide-area coverage. Watch the M Series 8K NVR in action AcuSense NVR + Standard Camera — Smart False-Alarm Filtering Hikvision AcuSense — Installation & Operation Guide Engineered for Australian enterprise & multi-site projects Every M Series NVR sold by CCTV Guru ships from our Australian warehouse with local stock, local firmware, and full Australian Hikvision warranty. The DS-9632NI-M8 operates reliably from −10 °C to 55 °C, accepts standard 100–240 V AC mains, ships with rack-mount ears for a standard 19" rack, and is purpose-built to handle the heat, humidity and continuous-duty cycles typical of Australian enterprise sites. Hik-Connect & Hik-Central Free remote viewing on Hik-Connect, or integrate into a Hik-Central Pro VMS for centralised management across multiple sites and multiple NVRs. ONVIF Compatible Pairs with third-party ONVIF cameras as well as the full Hikvision IP range, giving you flexibility for hybrid and multi-vendor enterprise sites. Dual Gigabit Ethernet Two independent self-adaptive Ethernet ports for network redundancy, load balancing or dual-network segregation (camera VLAN vs viewing VLAN). Smart Playback & Search Search recordings across all 32 channels by face, human, vehicle, line-crossing or intrusion event — days of footage reviewed in seconds. Full technical specifications Hikvision M Series NVR — DS-9632NI-M8 Model DS-9632NI-M8 Series Hikvision M Series 8K NVR (Ultra Series) Form Factor 2U Rack-Mount (19" rack-mount ears included) Video Inputs 32-channel IP, up to 32 MP per channel Incoming Bandwidth 320 Mbps Outgoing Bandwidth 400 Mbps Video Compression H.265+ / H.265 / H.264+ / H.264 Decoding Capability 2-ch @ 32 MP · 2-ch @ 24 MP · 4-ch @ 12 MP · 8-ch @ 8 MP · 16-ch @ 4 MP · 32-ch @ 1080p Recording Resolution 32 MP / 24 MP / 12 MP / 8 MP / 7 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA Synchronous Playback Up to 16 channels @ 1080p HDMI 1 Output 8K (7680 × 4320) @ 30 Hz · 4K @ 60 Hz · 2K · 1920 × 1080 @ 60 Hz HDMI 2 Output 4K (3840 × 2160) @ 60 Hz · 2K · 1920 × 1080 @ 60 Hz · independent source from HDMI 1 VGA Outputs 2 × 1920 × 1080 @ 60 Hz (independent sources — paired with HDMI 1 and HDMI 2) Audio In / Out 1-ch RCA in · 2-ch RCA out Smart Function AcuSense · ANPR · People Counting · Fisheye · Perimeter Protection (with compatible cameras) Network Interface 2 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet PoE Interfaces None (non-PoE chassis — use external managed PoE switch) Network Protocols TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF, OTAP HDD Bays 8 × SATA, up to 16 TB per drive (128 TB total capacity) eSATA 1 × eSATA for additional storage expansion RAID RAID 0, 1, 5, 6, 10 supported · N+M hot spare USB Interfaces 2 × USB 3.0 (front and rear) Alarm In / Out 16 in / 4 out Power Supply 100–240 V AC, 50/60 Hz (single PSU — see DS-9632NI-M8/R for redundant dual PSU) Power Consumption ≤ 35 W (without HDD) Working Temperature −10 °C to 55 °C Working Humidity 10% – 90% Dimensions (W × D × H) 442 × 462 × 88 mm Weight (without HDD) ≤ 10 kg Mobile Apps Hik-Connect, Hik-Central, iVMS-4200 Australian Warranty 3 Years — CCTV Guru / Hikvision Australia Downloads & resources Download official Hikvision documents for setup, specifications, and recorder details. DS-9632NI-M8 Datasheet Quick Start Guide User Manual LiveGuard Setup (Web GUI) LiveGuard Setup (NVR GUI) Frequently asked questions What's the difference between the M8 and the DS-9632NI-M16? Same 32 channels, same 320 Mbps bandwidth. The M16 has double the SATA bays (16 vs 8) and double the maximum storage (256 TB vs 128 TB), in a slightly taller 3U chassis. Choose the M8 for normal retention needs and tight rack space; choose the M16 if you need 6–12 months of 4K retention. Why choose this over a PoE NVR like the DS-7732NI-M4/24P? The DS-7732NI-M4/24P has 24 built-in PoE ports, which is ideal for greenfield small-to-medium sites. The DS-9632NI-M8 has no PoE but offers 8 SATA bays (vs 4), RAID + N+M hot spare, dual HDMI + dual VGA, dual Ethernet and an enterprise 2U chassis — better for sites that already have managed PoE switches and need real enterprise features. Is there a redundant-power version available? Yes — the DS-9632NI-M8/R has dual hot-swappable PSUs for sites where power redundancy is mandatory (data centres, critical infrastructure, government). Contact our Australian team if you need the /R variant. Does it come with hard drives? The recorder ships as a chassis only. CCTV Guru offers pre-fitted enterprise surveillance drives from 8 TB up to 16 TB per bay — choose your RAID-ready configuration at checkout. What RAID levels are supported? RAID 0, 1, 5, 6 and 10 are all supported across the 8 SATA bays, plus N+M hot spare. For most enterprise deployments we recommend RAID 5 (single drive redundancy) or RAID 6 (dual drive redundancy). Do you ship to my city? We ship Australia-wide from our local warehouse — Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra and Darwin — with most metro orders arriving in 1–3 business days. Larger enterprise orders shipped by carrier with tracking and signature. 5-Year Warranty Australia-Wide Shipping Australian Tech Support

Read more less

Hikvision M Series · 8K · 32 Channel · 16 PoE The Hikvision DS-7732NI-M4/16P is a 32-channel 8K Network Video Recorder built for serious Australian sites — large factories, multi-building campuses, schools, car yards, logistics centres, hotels and high-end residential estates. Sixteen built-in PoE ports power your perimeter and high-traffic cameras directly, while the remaining 16 channels accept IP cameras from your wider network — giving you up to 32 IP cameras at 32 MP each on a single, silent 1.5U chassis. Four internal SATA bays accept up to 16 TB drives each (64 TB total), delivering months of continuous 24/7 recording even with all 32 channels running at full 4K bitrate. AcuSense-ready firmware adds deep-learning human and vehicle classification, line-crossing, intrusion detection and perimeter protection across every channel — drastically reducing nuisance alerts and turning multi-day playback searches into seconds. Channels 32 CH · Up to 32 MP PoE Ports 16 × PoE (af/at) Display True 8K HDMI Output Storage 4 × SATA · Up to 64 TB Why this 32-channel NVR is built for large-site security When 16 cameras aren't enough — and a rack-mount enterprise recorder is overkill — the DS-7732NI-M4/16P sits exactly in the middle. Sixteen onboard PoE ports remove the need for an extra PoE switch on the critical 16 cameras, and another 16 channels are free to add ANPR, panoramic, fisheye, thermal or third-party ONVIF cameras across your network. With 320 Mbps incoming bandwidth and 4 × SATA bays, this NVR is designed for projects where downtime is unacceptable and footage retention is measured in months, not days. True 32-Channel 32 MP Input Every channel supports cameras up to 32 MP — mix PanoVu, fisheye, ColorVu and 4K+ AcuSense cameras across a single NVR without throttling resolution or frame rate. AcuSense Smart Detection When paired with AcuSense cameras, the NVR runs deep-learning human and vehicle classification across all 32 channels — filtering false alarms from leaves, animals and shadows. 16 PoE Ports Built-In Power and data over a single Cat6 run to 16 cameras, up to 100 m. IEEE 802.3 af/at compliant with 200 W total PoE budget — enough for a full perimeter without an extra switch. Quad-SATA, 64 TB Capacity Four internal SATA bays accept enterprise-grade surveillance HDDs up to 16 TB each, delivering month-long retention even with all 32 cameras at full 4K H.265+. 320 Mbps Incoming Bandwidth Designed to run a full deployment of 4K ColorVu, AcuSense and PanoVu cameras simultaneously — without the bottlenecks of lower-tier NVRs. IP Speaker Integration Connect up to 8 Hikvision IP speakers for two-way audio warnings, scheduled announcements or live security-officer talk-down — directly from the NVR. Watch the M Series 8K NVR in action AcuSense NVR + Standard Camera — Smart False-Alarm Filtering Hikvision AcuSense — Installation & Operation Guide Engineered for Australian commercial sites Every M Series NVR sold by CCTV Guru ships from our Australian warehouse with local stock, local firmware, and full Australian Hikvision warranty. The DS-7732NI-M4/16P operates reliably from −10 °C to 55 °C, accepts standard 100–240 V AC mains, and is purpose-built to handle the heat, humidity and dust typical of Australian commercial, industrial, and outdoor-adjacent sites. Hik-Connect P2P Free remote viewing on iOS and Android via the Hik-Connect app — no static IP or port forwarding required. ONVIF Compatible Pairs with third-party ONVIF cameras as well as the full Hikvision IP range, giving you flexibility for hybrid and multi-vendor sites. RAID 0 / 1 / 5 / 6 / 10 Quad-SATA design supports RAID configurations for redundancy and performance — critical for sites where footage loss is not an option. Smart Playback Search recordings across all 32 channels by face, human, vehicle, line-crossing or intrusion event — days of footage reviewed in seconds. Full technical specifications Hikvision M Series NVR — DS-7732NI-M4/16P Model DS-7732NI-M4/16P Series Hikvision M Series 8K NVR Form Factor 1.5U Desktop / Rack-Mount Compatible Video Inputs 32-channel IP, up to 32 MP per channel Incoming Bandwidth 320 Mbps Outgoing Bandwidth 400 Mbps Video Compression H.265+ / H.265 / H.264+ / H.264 Decoding Capability 2-ch @ 32 MP (30 fps) + 2-ch @ 8 MP (30 fps) · 10-ch @ 8 MP · 20-ch @ 4 MP · 32-ch @ 1080p Recording Resolution 32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA Synchronous Playback Up to 32-channel HDMI Output 8K (7680 × 4320) @ 30 Hz · 4K @ 60 Hz · 2K · 1080p VGA Output 1920 × 1080 @ 60 Hz (independent output) Audio Output 1-ch RCA, linear, 1 Vp-p, 1 kΩ IP Speaker Support Up to 8-ch IP speakers connectable Smart Function AcuSense — Human/Vehicle classification, perimeter protection, facial detection (with compatible cameras) Network Interface 2 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet PoE Interfaces 16 × Independent 10/100 Mbps PoE (IEEE 802.3 af/at) PoE Budget 200 W total, max 30 W per port Network Protocols TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF, OTAP HDD 4 × SATA, up to 16 TB per drive (64 TB total capacity) RAID RAID 0, 1, 5, 6, 10 supported USB Interfaces 1 × USB 3.0 (front) · 1 × USB 2.0 (rear) Alarm In / Out 16 in / 4 out Power Supply 100–240 V AC, 50/60 Hz Power Consumption ≤ 30 W (without HDD and PoE off) Working Temperature −10 °C to 55 °C Working Humidity 10% – 90% Dimensions (W × D × H) 445 × 400 × 73 mm Weight (without HDD) ≤ 5 kg Mobile Apps Hik-Connect, Hik-Central, iVMS-4200 Australian Warranty 3 Years — CCTV Guru / Hikvision Australia Downloads & resources Download official Hikvision documents for setup, specifications, and recorder details. DS-7732NI-M4/16P Datasheet Quick Start Guide PDF User Manual PDF LiveGuard Setup (Web GUI) LiveGuard Setup (NVR GUI) Frequently asked questions How does it handle 32 cameras with only 16 PoE ports? Sixteen cameras connect directly to the NVR's onboard PoE ports for power + data. The remaining 16 channels accept IP cameras from your wider network — either powered by an external PoE switch or by their own power supplies. Does the DS-7732NI-M4/16P come with hard drives? The recorder ships as a chassis only. CCTV Guru offers pre-fitted Seagate SkyHawk or WD Purple surveillance drives from 4 TB up to 16 TB per bay — choose your configuration at checkout. Can it be rack-mounted? Yes — the 1.5U chassis is compatible with optional rack-mount ears for standard 19" racks. Order the rack-mount kit alongside the NVR if required. What RAID levels are supported? RAID 0, 1, 5, 6 and 10 are all supported across the 4 SATA bays — letting you balance storage capacity, redundancy and performance for your site. Will it work with non-Hikvision cameras? Yes — the NVR is ONVIF compliant and works with most third-party ONVIF IP cameras. For full AcuSense smart features you'll need genuine Hikvision AcuSense-compatible cameras. Do you ship to my city? We ship Australia-wide from our local warehouse — Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra and Darwin — with most metro orders arriving in 1–3 business days. 3-Year Warranty Australia-Wide Shipping Australian Tech Support

Read more less

Hikvision M Series · 8K · 16 PoE Hikvision DS-7616NI-M2/16P 16 Channel 16 PoE 8K NVR The Hikvision DS-7616NI-M2/16P is a 16-channel plug-and-play 8K Network Video Recorder engineered for medium-sized Australian sites — warehouses, factories, retail stores, multi-tenant offices and large residences that need a single, reliable recorder running up to 16 high-resolution IP cameras. With 16 built-in PoE ports, support for up to 32 MP per channel, 256 Mbps incoming bandwidth and true 8K HDMI output, it's the natural step-up from 8-channel recorders without needing to move to a rack-mount system. Two internal SATA bays accept up to 16 TB drives each (32 TB total), delivering weeks of continuous 24/7 recording or months of motion-triggered footage at 4K. AcuSense-ready firmware brings deep-learning human and vehicle classification, line-crossing, intrusion and perimeter protection — drastically reducing false alarms and making playback genuinely fast across all 16 cameras. Channels 16 CH · Up to 32 MP PoE Ports 16 × PoE (af/at) Display True 8K HDMI Output Storage 2 × SATA · Up to 32 TB Why this 16-channel NVR is the right choice for serious sites Where the 8-channel models stop, the DS-7616NI-M2/16P keeps going. Sixteen built-in PoE ports mean you can power and connect every camera directly from the recorder — no extra PoE switches, no extra failure points. Combined with 256 Mbps of incoming bandwidth, you can run a full deployment of 4K ColorVu, AcuSense and PanoVu cameras simultaneously without throttling resolution or frame rate. True 32 MP Per Channel Every one of the 16 channels supports cameras up to 32 MP — the highest tier in any plug-and-play NVR — so you can mix PanoVu, fisheye and 4K+ AcuSense models freely. AcuSense Smart Detection When paired with AcuSense cameras, deep-learning algorithms classify humans and vehicles in real time, filtering nuisance alerts and turning playback searches into seconds. 16 PoE Ports Built-In Power and data over a single Cat6 run to each camera, up to 100 m. IEEE 802.3 af/at compliant — plug your cameras in and they appear automatically. Zero extra hardware. Dual-SATA, 32 TB Capacity Two internal SATA bays accept enterprise-grade surveillance HDDs up to 16 TB each, delivering long-duration 24/7 recording even with all 16 channels at full 4K. 8K HDMI Display Output Drive an 8K (7680 × 4320) monitor at 30 Hz, or a 4K display at 60 Hz, plus a secondary VGA output for a second workstation view in your control room. H.265+ Smart Compression Hikvision's H.265+ codec reduces bitrate by up to 75% compared to H.264 — meaning more days of footage on the same drive, or the same retention on a smaller drive. Watch the M Series 8K NVR in action AcuSense NVR + Standard Camera — Smart False-Alarm Filtering Hikvision AcuSense — Installation & Operation Guide Engineered for Australian conditions Every M Series NVR sold by CCTV Guru ships from our Australian warehouse with local stock, local firmware, and full Australian Hikvision warranty. The DS-7616NI-M2/16P operates reliably from −10 °C to 55 °C, accepts standard 100–240 V AC mains, and is built to handle the heat, humidity and dust typical of Australian commercial, industrial and outdoor-adjacent sites. Hik-Connect P2P Free remote viewing on iOS and Android via the Hik-Connect app — no static IP or port forwarding required. ONVIF Compatible Pairs with third-party ONVIF cameras as well as the full Hikvision IP range, giving you flexibility for hybrid sites. HDD Hot Standby Configure one drive as a hot spare to take over automatically if the primary HDD fails — zero footage loss. Smart Playback Search recordings by face, human, vehicle, line-crossing or intrusion event — hours of footage reviewed in seconds. Full technical specifications Hikvision M Series NVR — DS-7616NI-M2/16P Model DS-7616NI-M2/16P Series Hikvision M Series 8K NVR Video Inputs 16-channel IP, up to 32 MP per channel Incoming Bandwidth 256 Mbps Outgoing Bandwidth 256 Mbps Video Compression H.265+ / H.265 / H.264+ / H.264 Decoding Capability 2-ch @ 32 MP (30 fps) + 2-ch @ 8 MP (30 fps) · 10-ch @ 8 MP · 20-ch @ 4 MP · 40-ch @ 1080p Recording Resolution 32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA Synchronous Playback Up to 16-channel HDMI Output 8K (7680 × 4320) @ 30 Hz · 4K @ 60 Hz · 2K · 1080p VGA Output 1920 × 1080 @ 60 Hz (independent output) Audio Output 1-ch RCA, linear, 1 Vp-p, 1 kΩ Smart Function AcuSense — Human/Vehicle classification, perimeter protection, facial detection (with compatible cameras) Network Interface 1 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet PoE Interfaces 16 × Independent 10/100 Mbps PoE (IEEE 802.3 af/at) PoE Budget 200 W total, max 30 W per port Network Protocols TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF, OTAP HDD 2 × SATA, up to 16 TB per drive (32 TB total capacity) USB Interfaces 1 × USB 3.0 (front) · 1 × USB 2.0 (rear) Alarm In / Out 4 in / 1 out Power Supply 100–240 V AC, 50/60 Hz Power Consumption ≤ 15 W (without HDD and PoE off) Working Temperature −10 °C to 55 °C Working Humidity 10% – 90% Dimensions (W × D × H) 385 × 315 × 52 mm Weight (without HDD) ≤ 3 kg Mobile Apps Hik-Connect, Hik-Central, iVMS-4200 Australian Warranty 3 Years — CCTV Guru / Hikvision Australia Downloads & resources Download official Hikvision documents for setup, specifications, and recorder details. DS-7616NI-M2/16P Datasheet Quick Start Guide PDF User Manual PDF LiveGuard Setup (Web GUI) LiveGuard Setup (NVR GUI) Frequently asked questions Does the DS-7616NI-M2/16P come with hard drives? The recorder ships as a chassis only. CCTV Guru offers pre-fitted Seagate SkyHawk or WD Purple surveillance drives from 2 TB to 16 TB — choose your preferred capacity at checkout. Will it work with non-Hikvision cameras? Yes. The NVR is ONVIF compliant and works with most third-party ONVIF IP cameras. For full AcuSense smart features you'll need genuine Hikvision AcuSense-compatible cameras. Can I view all 16 channels on my phone? Yes — set up Hik-Connect on iOS or Android for free remote live view, multi-channel grid playback and motion alerts. No port forwarding required. What's the PoE power budget? The NVR delivers up to 200 W total across the 16 PoE ports, with up to 30 W per port (Hi-PoE). That's enough to drive 16 standard PoE cameras simultaneously. How many days of recording will I get? At full 4K H.265+ across all 16 channels with 24/7 recording, expect roughly 4–6 days per 8 TB drive. Motion-only recording typically triples that figure. Do you ship to my city? We ship Australia-wide from our local warehouse — Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra and Darwin — with most metro orders arriving in 1–3 business days. 3-Year Warranty Australia-Wide Shipping Australian Tech Support

Read more less

Hikvision M Series · 8K · AcuSense Ready Hikvision DS-7608NI-M2/8P 8 Channel 8 PoE 8K NVR The Hikvision DS-7608NI-M2/8P is an 8-channel plug-and-play 8K Network Video Recorder built for Australian homes, retail sites, warehouses and multi-site commercial installs. With 8 built-in PoE ports, up to 32 MP per channel, 128 Mbps incoming bandwidth and true 8K HDMI output, this M Series NVR is engineered to record, decode and display the latest generation of Hikvision IP cameras — including AcuSense, ColorVu, TandemVu and PanoVu models — with zero compromise on image quality. Two SATA bays accept up to 16 TB drives each (32 TB total), giving you weeks of high-resolution continuous recording or months of motion-triggered footage. Smart features inherited from Hikvision's AcuSense ecosystem — including human and vehicle classification, false alarm filtering, line-crossing and intrusion detection — drastically reduce nuisance alerts and make playback searches genuinely fast. Channels 8 CH · Up to 32 MP PoE Ports 8 × PoE (af/at) Display True 8K HDMI Output Storage 2 × SATA · Up to 32 TB Why Australian installers choose the DS-7608NI-M2/8P The M2/8P sits at the sweet spot for small-to-medium IP camera deployments: enough PoE ports for a complete 8-camera build, enough bandwidth for the latest 4K and 4K+ ColorVu cameras, and enough decoding muscle to display 2 × 32 MP streams simultaneously on a single 8K monitor. It's a future-proof recorder you won't outgrow on the next camera upgrade. True 32 MP Input Support Record every channel at up to 32 MP — the highest resolution tier supported in any consumer-grade NVR — so you can deploy Hikvision PanoVu, fisheye and 4K+ AcuSense cameras without throttling. AcuSense Smart Detection When paired with AcuSense cameras, the NVR runs deep-learning human and vehicle classification to filter out leaves, animals and shadows — slashing false alarms and making playback searches almost instant. 8 PoE Ports Built-In Power and data over a single Cat6 run to each camera, up to 100 m. IEEE 802.3 af/at compliant with auto-detection — plug your cameras in and they appear automatically. Dual-SATA, 32 TB Capacity Two internal SATA bays accept enterprise-grade surveillance HDDs up to 16 TB each, giving you long-duration 24/7 recording even at full 4K bitrates. 8K HDMI Display Output Drive an 8K (7680 × 4320) monitor at 30 Hz, or a 4K display at 60 Hz, plus a secondary VGA output for a second workstation view in your control room. H.265+ Smart Compression Hikvision's H.265+ codec reduces bitrate by up to 75% compared to H.264 — that means more days of footage on the same drive, or the same retention on a smaller drive. Watch the M Series NVR in action AcuSense NVR + Standard Camera — Smart False-Alarm Filtering Hikvision AcuSense — Installation & Operation Guide Engineered for Australian conditions Every M Series NVR sold by CCTV Guru ships from our Australian warehouse with local stock, local firmware, and full Australian Hikvision warranty. The DS-7608NI-M2/8P operates reliably from −10 °C to 55 °C, accepts standard 100–240 V AC mains, and is built to handle the heat, humidity and dust typical of Australian commercial, residential and industrial sites. Hik-Connect P2P Free remote viewing on iOS and Android via the Hik-Connect app — no static IP or port forwarding required. ONVIF 2.2 Compatible Pairs with third-party ONVIF cameras as well as the full Hikvision IP range, giving you flexibility for hybrid sites. HDD Hot Standby Configure one drive as a hot spare to take over automatically if the primary HDD fails — zero footage loss. Smart Playback Search recordings by face, human, vehicle, line-crossing or intrusion event — hours of footage reviewed in seconds. Full technical specifications Hikvision M Series NVR — DS-7608NI-M2/8P Model DS-7608NI-M2/8P Series Hikvision M Series 8K NVR Video Inputs 8-channel IP, up to 32 MP per channel Incoming Bandwidth 128 Mbps Outgoing Bandwidth 256 Mbps Video Compression H.265+ / H.265 / H.264+ / H.264 Decoding Capability 2-ch @ 32 MP (30 fps) + 2-ch @ 8 MP (30 fps) · 10-ch @ 8 MP · 20-ch @ 4 MP · 40-ch @ 1080p Recording Resolution 32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA HDMI Output 8K (7680 × 4320) @ 30 Hz · 4K @ 60 Hz · 2K · 1080p VGA Output 1920 × 1080 @ 60 Hz (independent output) Audio Output 1-ch RCA, linear, 1 Vp-p, 1 kΩ Smart Function AcuSense — Human/Vehicle classification, perimeter protection, facial detection (with compatible cameras) Network Interface 1 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet PoE Interfaces 8 × Independent 10/100 Mbps PoE (IEEE 802.3 af/at) PoE Budget 120 W total, max 30 W per port Network Protocols TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF 2.2, OTAP HDD 2 × SATA, up to 16 TB per drive (32 TB total capacity) USB Interfaces 1 × USB 3.0 (front) · 1 × USB 2.0 (rear) Alarm In / Out — Power Supply 100–240 V AC, 50/60 Hz Power Consumption ≤ 15 W (without HDD and PoE off) Working Temperature −10 °C to 55 °C Working Humidity 10% – 90% Dimensions (W × D × H) 385 × 315 × 52 mm Weight (without HDD) ≤ 3 kg Mobile Apps Hik-Connect, Hik-Central, iVMS-4200 Australian Warranty 3 Years — CCTV Guru / Hikvision Australia Downloads & resources Download official Hikvision documents for setup, specifications, and recorder details. DS-7608NI-M2/8P Datasheet Quick Start Guide PDF User Manual PDF LiveGuard Setup (Web GUI) LiveGuard Setup (NVR GUI) Frequently asked questions Does the DS-7608NI-M2/8P come with hard drives? The recorder ships as a chassis only. CCTV Guru offers pre-fitted Seagate SkyHawk or WD Purple surveillance drives from 2 TB to 16 TB — please choose your preferred capacity at checkout. Will it work with non-Hikvision cameras? Yes. The NVR is ONVIF 2.2 compliant and works with most third-party ONVIF IP cameras. For full AcuSense smart features you'll need genuine Hikvision AcuSense-compatible cameras. Can I view recordings on my phone? Yes — set up Hik-Connect on iOS or Android for free remote live view, playback and motion alerts. No port forwarding required. What cameras does it pair best with? Any Hikvision IP camera — but to unlock AcuSense smart features pair it with Hikvision AcuSense cameras such as the ColorVu, AcuSense Pro and DarkFighter ranges. How many days of recording will I get? At full 4K H.265+ on all 8 channels with 24/7 recording, expect roughly 7–10 days per 4 TB drive. Motion-only recording typically triples that figure. Do you ship to my city? We ship Australia-wide from our local warehouse — Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra and Darwin — with most metro orders arriving in 1–3 business days. 3-Year Warranty Australia-Wide Shipping Australian Tech Support

Read more less

WizMind · 6-Series Flagship · 128-Channel · 8-HDD · 2U 128CH WizMind NVR The Dahua DHI-NVR608H-128-AI/ANZ is the 128-channel enterprise flagship of Dahua's WizMind range — an Ultra-series AI NVR engineered for the largest single-recorder deployments. AcuPick now runs across up to 64 channels simultaneously (double the smaller 608H-32), the AI by Recorder workload includes 8-channel face detection with a 40-database, 300,000-image face library, and total recording bandwidth scales to 1280 Mbps incoming / 1024 Mbps outgoing. Eight SATA bays with RAID 0/1/5/6/10 and drawer-style hot-swap deliver up to 128 TB on-board; iSCSI and eSATA take you well beyond that. This is the official Australia / NZ-market SKU (the AI/ANZ suffix). It's a headend NVR with no built-in PoE — cameras connect via your managed network and PoE switch stack. Internal 100–240 VAC universal PSU, AS/NZS-compliant kettle cord, and a local 5-year warranty backed by CCTV Guru in Sydney. Built for shopping centres, transport hubs, hospitals, universities, casinos, large carparks and any single-site deployment that needs the maximum 128-camera ceiling on one recorder. WizMind 6-Series — enterprise-grade deep-learning at 128-camera scale AI Tier WizMind — Dahua's flagship AI Face Database 40 DBs · 300,000 images · 48 GB AcuPick on up to 64 channels Twice the AcuPick capacity of the smaller 608H-32. Click any person or vehicle in recorded video, and the NVR scans the active 64 channels for matches across hours, days or weeks — clothing colour, body shape, vehicle make / model / colour / direction included. Face Recognition at scale 8 NVR-side face detection channels feeding face recognition against a 40-database, 300,000-image library. Or 20 channels of camera-side detection + NVR-side recognition at 20 face snapshots/sec — large enough for staff registers, watchlists and visitor logs combined. Perimeter Protection (32 ch by NVR) 32 NVR-side channels of tripwire and intrusion analytics (10 IVS rules each) — 8× the 5-Series capacity. Plus all-channel perimeter via camera-side processing — every camera benefits from human/vehicle classification. SMD Plus on 32 channels by NVR The AI chip's full SMD Plus capacity — 32 NVR-side channels of deep-learning second-pass classification, classifying targets as person or vehicle so only real events make it to your phone or VMS. Video Metadata by NVR (8 channels) NVR-side metadata extraction — top colour, bottom colour, hat, bag, umbrella, gender, age, vehicle make / model / colour / plate, helmet wear. Works regardless of camera brand (camera-side metadata requires Dahua WizSense or WizMind IPCs). ANPR by camera (32 channels) Pair with Dahua ANPR cameras for 32 channels of licence-plate recognition feeding a 20,000-plate database with blocklist / allowlist control. Carpark, fleet yard, toll-point and multi-site ANPR. 1280 Mbps recording · 8K HDMI · ~128 TB RAID storage Bandwidth 1280 Mbps in / record · 1024 out Storage 8 SATA · RAID 0/1/5/6/10 · hot-swap 1280 Mbps recording bandwidth Higher than any other 5-Series or smaller 6-Series sibling. Spread across 128 cameras, plan for ~10 Mbps per camera average — perfect for 4 MP H.265+ on motion-record. For higher-bitrate workloads, prioritise the high-traffic channels and reserve the rest for lower-resolution sub-streams. 32-channel 1080p decoding The decoder handles 32 cameras at 1080p simultaneously for the live wall, or 2 × 32 MP @ 30 fps for the highest-res cameras. Reserve high-resolution decoding for the channels you actually display. 4× HDMI + 2× VGA outputs Drive up to six independent displays. HDMI3 supports 8K display; HDMI1 / HDMI2 deliver 4K each. Heterogeneous mode lets each HDMI run an independent layout — ideal for control rooms with multi-monitor walls. 8 SATA bays · drawer hot-swap Eight surveillance-grade HDDs (WD Purple Pro, Seagate SkyHawk AI) up to 16 TB each in a drawer-style chassis — swap drives during operation without taking the recorder down. Total ~128 TB on-board. Hardware RAID 0/1/5/6/10 Survive single-drive (RAID 5) or dual-drive (RAID 6) failures with zero footage loss. RAID 10 for performance + redundancy. Rebuilds run in the background while recording continues. eSATA + iSCSI + ESS1504C expansion External SATA archive port, iSCSI network storage, plus optional Dahua ESS1504C 4-HDD eSATA storage tray — essential for the long-retention workloads that 128-camera sites typically require. See AcuPick in action Dahua AcuPick — Video search technology demonstration AcuPick — how to configure and search on a Dahua NVR Enterprise I/O — 2.5 GbE dual NIC, 16 alarm-in, hot-swap chassis Dual 2.5 Gigabit NICs Two independent RJ-45 ports running at 10/100/1000/2500 Mbps — 2.5× faster than the gigabit NICs on the 5-Series. Bondable for multi-address, load-balance and fault-tolerance modes (critical at 128-camera scale). 16 alarm-in / 8 alarm-out Physical terminal block for 16 alarm inputs and 8 alarm outputs — wire in PIRs, door sensors, glass-break detectors, panic buttons, sirens or gate triggers for hardware-level event linkage. 4 × USB (2 × 2.0 + 2 × 3.0) Two front USB 2.0 plus two rear USB 3.0 ports — plug in backup drives, USB mice, keyboards or service tools without juggling cables behind the rack. RS-232 + RS-485 One RS-232 plus one RS-485 (A/B) — integrate with POS systems, gate controllers, access control panels, PTZ joysticks or third-party VMS that need legacy serial. N+M cluster failover Pair multiple 6-Series NVRs in an N+M cluster — backup recorders automatically take over if a primary fails, ensuring zero footage loss. Particularly important at 128-camera scale where a single-recorder outage would breach SLA. ONVIF (T / S / G) + DSS Pro Full ONVIF profile support plus Dahua's DSS Pro VMS for multi-site centralised control. Native integration with Sony, Axis, Pelco, Arecont, Canon, Samsung and any ONVIF-compliant camera. NVR608H-128 vs the family — how it compares The 608H-128 (this model) is the maximum channel-count single recorder in Dahua's AU/NZ NVR range — four times the channels of the 608H-32 sibling with twice the AcuPick capacity and 25% higher recording bandwidth. Choose this when you need every camera on one recorder. For sites running 32 cameras or fewer with the same WizMind feature depth, step down to the 608H-32. WizMind vs WizSense Top-Tier Comparison Specification NVR608H-128-AI/ANZ (this model) NVR608H-32-AI/ANZ NVR5864-AI/ANZ (WizSense) AI tier WizMind (enterprise) WizMind (enterprise) WizSense (SMB / enterprise) IP channels (licence) 128 32 64 AcuPick channels Up to 64 Up to 32 Up to 32 Bandwidth (AI off) 1280 / 1024 Mbps 1280 / 1024 Mbps 384 / 200 Mbps Face DBs · images 40 · 300,000 40 · 300,000 20 · 20,000 Face Detection (NVR) 8 channels 8 channels 2 channels Perimeter Protection (NVR) 32 channels 32 channels 4 channels SMD Plus (NVR) 32 channels 32 channels 8 channels Video Metadata (NVR-side) 8 channels 8 channels Camera-side only Built-in PoE None None None HDD bays · RAID · hot-swap 8 SATA · RAID · Yes 8 SATA · RAID · Yes 8 SATA · RAID · No Network ports 2 × 2.5 GbE (bondable) 2 × 2.5 GbE (bondable) 2 × Gigabit (bondable) Video outputs 4 × HDMI (incl. 8K) + 2 × VGA 4 × HDMI (incl. 8K) + 2 × VGA 2 × HDMI 4K + 2 × VGA Form factor 2U 2U 2U Warranty (Australia) 5 years 5 years 3 years Full Specifications Model DHI-NVR608H-128-AI/ANZ Series WizMind · NVR600-AI/ANZ (Australia / NZ market) Form factor 2U · 8-HDD · rack or desktop · drawer-style HDD hot-swap · NO built-in PoE IP channels 128 · up to 32 MP per channel Supported resolutions 32 MP · 24 MP · 16 MP · 12 MP · 8 MP · 5 MP · 4 MP · 1080p · 720p · D1 Bandwidth (AI off) 1280 Mbps incoming / 1280 Mbps record / 1024 Mbps outgoing Decoding capability 32 × 1080p @ 30 fps · 2 × 32 MP @ 30 fps · 4 × 16 MP @ 30 fps · 8 × 8 MP @ 30 fps · 16 × 4 MP @ 30 fps · 72 × 720p @ 30 fps · 160 × D1 @ 30 fps Video compression Smart H.265+ · H.265 · Smart H.264+ · H.264 · MJPEG Audio compression G.711a · G.711u · PCM · G.726 AI engine WizMind (industrial processor + built-in deep-learning modules) AcuPick Up to 64 channels · 1 combined event per channel/sec Face Detection (NVR) 8 channels · up to 12 face snapshots/sec each Face Recognition (NVR) 20 ch (FD by camera + FR by recorder, 20 fps) · or 8 ch (FD+FR by recorder) Face Database 40 databases · 300,000 images · 48 GB · gender / age / glasses / expression / mask / beard attributes Perimeter Protection 32 channels by NVR · 10 IVS rules per channel · all-channel by camera SMD Plus 32 channels by NVR · all-channel by camera Video Metadata (NVR) 8 channels (NVR-side processing — 6-Series exclusive) Video Metadata (Camera) 32 channels — human / motor / non-motor vehicle attributes ANPR (by camera) 32 channels · 20,000-plate database · blocklist / allowlist AI by Camera (passthrough) Face detection · Face recognition · Video metadata · Perimeter protection · SMD Plus · Stereo analysis · Crowd distribution · People counting · ANPR · Vehicle density · Heat map · Object monitoring EPTZ · One-click arming / disarming Yes N+M cluster · iSCSI · eSATA Yes / Yes / Yes HDD bays 8 × SATA · up to 16 TB per drive (~128 TB max) · drawer-style hot-swap RAID modes RAID 0 · RAID 1 · RAID 5 · RAID 6 · RAID 10 Optional storage expansion Dahua ESS1504C 4-HDD eSATA storage tray Video output 4 × HDMI + 2 × VGA · HDMI1/2 up to 4K · HDMI3 up to 8K · HDMI4 up to 1080p · VGA1/2 up to 1080p · heterogeneous or simultaneous routing Multi-screen display Main screen: 1 / 4 / 8 / 9 / 16 / 25 / 36 · Sub screen: 1 / 4 / 8 / 9 / 16 / 25 / 36 Audio I/O 1 × RCA in · 2 × RCA out Alarm I/O 16 × alarm in · 8 × alarm out USB 4 ports: 2 × front USB 2.0 + 2 × rear USB 3.0 Network ports 2 × RJ-45 Multi-Gigabit Ethernet (10 / 100 / 1000 / 2500 Mbps) · multi-address / load-balance / fault-tolerance bonding PoE None (use external PoE switch) RS-232 / RS-485 1 RS-232 · 1 RS-485 (A/B) eSATA 1 port (external archive) Network protocols HTTP / HTTPS · TCP/IP · IPv4 · RTSP · UDP · NTP · DHCP · DNS · SMTP · UPnP · DDNS · Alarm Server · Multicast · P2P · Auto Registration · iSCSI ONVIF Profile T / S / G · CGI · SDK · RTSP Third-party camera support ONVIF · RTSP · Sony · Axis · Arecont · Pelco · Canon · Samsung Mobile app DMSS (iOS / Android) Record modes Manual · alarm · motion detection · scheduled Backup Portable HDD · eSATA disk · burner · USB device · network Power supply 100 – 240 VAC · 50 / 60 Hz Power consumption < 18 W (without HDD) Operating temperature −10 °C to +55 °C Operating humidity 10% – 93% RH Dimensions 444 × 456.6 × 95 mm (2U) Net weight 6.4 kg (without HDD) Installation Rack or desktop Certifications FCC Part 15 Subpart B Class A · CE-EMC · CE-LVD · Security Baseline 2.3 Warranty 5 years (CCTV Guru Australia · WizMind series) Downloads & documentation Download official Dahua documents for setup, specifications, and recorder details. DHI-NVR608H-128-AI/ANZ Datasheet Dahua NVR608 Quick Start Guide Dahua NVR608 User Manual Dahua NVR HDD Installation Guide Frequently asked questions What's the real difference between the 608H-128 and the 608H-32? Same hardware platform — same 2U chassis with 8 HDD bays, same WizMind AI processor, same dual 2.5 GbE NICs, same 4 × HDMI outputs (including the 8K port). The differences are the IP channel licence (128 vs 32) and the AcuPick capacity (64 channels vs 32). At 128 channels, the recording bandwidth (1280 Mbps) is shared across four times as many cameras, so plan camera resolutions accordingly — 4 MP H.265+ is the sweet spot. Does the WizMind series get a longer warranty? Yes — WizMind 6-Series enterprise NVRs ship with a 5-year warranty in Australia, two years longer than the 3-year warranty on Dahua's WizSense (4-Series and 5-Series) products. The longer cover reflects the project-grade build and is part of why WizMind units carry a premium over WizSense. Why does AcuPick only run on 64 channels when the NVR supports 128? AcuPick is heavy on AI-chip resources — running attribute extraction and image-search against 128 channels simultaneously isn't possible on the current 6-Series silicon. You choose which 64 of the 128 channels run AcuPick (the rest still record, and still get ANPR / SMD Plus / perimeter via camera-side AI on Dahua WizSense or WizMind IPCs). Why doesn't it have built-in PoE? The 6-Series is purpose-built for enterprise headend deployments. 128 cameras through built-in PoE ports would mean a 4U+ chassis with extreme power draw. At this scale, sites always have a managed switching layer — pair this NVR with a stack of 24 or 48-port managed PoE+ switches across two or more network closets. How big a PoE switch stack do I need for 128 cameras? Allow about 7–15 W per camera for Dahua WizSense bullets/turrets, more for active-deterrence and PTZ cameras. Three 48-port PoE+ switches with ~370–500 W each will run 128 typical cameras comfortably, with spare ports for VoIP and APs. CCTV Guru can quote a complete switch + NVR + camera bundle. How much storage do I need for 128 cameras at 30 days retention? For 128 × 4 MP cameras at H.265+ on motion-record, expect ~80–110 TB for 30 days. Eight 16 TB surveillance-grade drives (WD Purple Pro, Seagate SkyHawk AI) in RAID 5 gives ~112 TB usable — exactly the right size with single-disk redundancy. For longer retention or higher resolution, add the ESS1504C eSATA expansion tray or use iSCSI to a NAS. Is the DHI-NVR608H-128-AI/ANZ NDAA Section 889 compliant? No. Dahua products are not currently NDAA Section 889 compliant. If NDAA compliance is required (federal, government or defence installs), choose a Uniview, Hanwha, Axis, Bosch or IDIS NVR instead — CCTV Guru can recommend an equivalent. Can it be rack-mounted? Yes — 2U / 444 mm wide fits a standard 19-inch rack with ears (rack ears sold separately). At 6.4 kg empty (without HDDs), plan for ~13–15 kg fully loaded with eight drives. The drawer-style HDD bays support hot-swapping, so you can replace failed drives without unmounting the chassis from the rack. 5-Year Warranty Australia-Wide Shipping Australian Tech Support

Read more less
