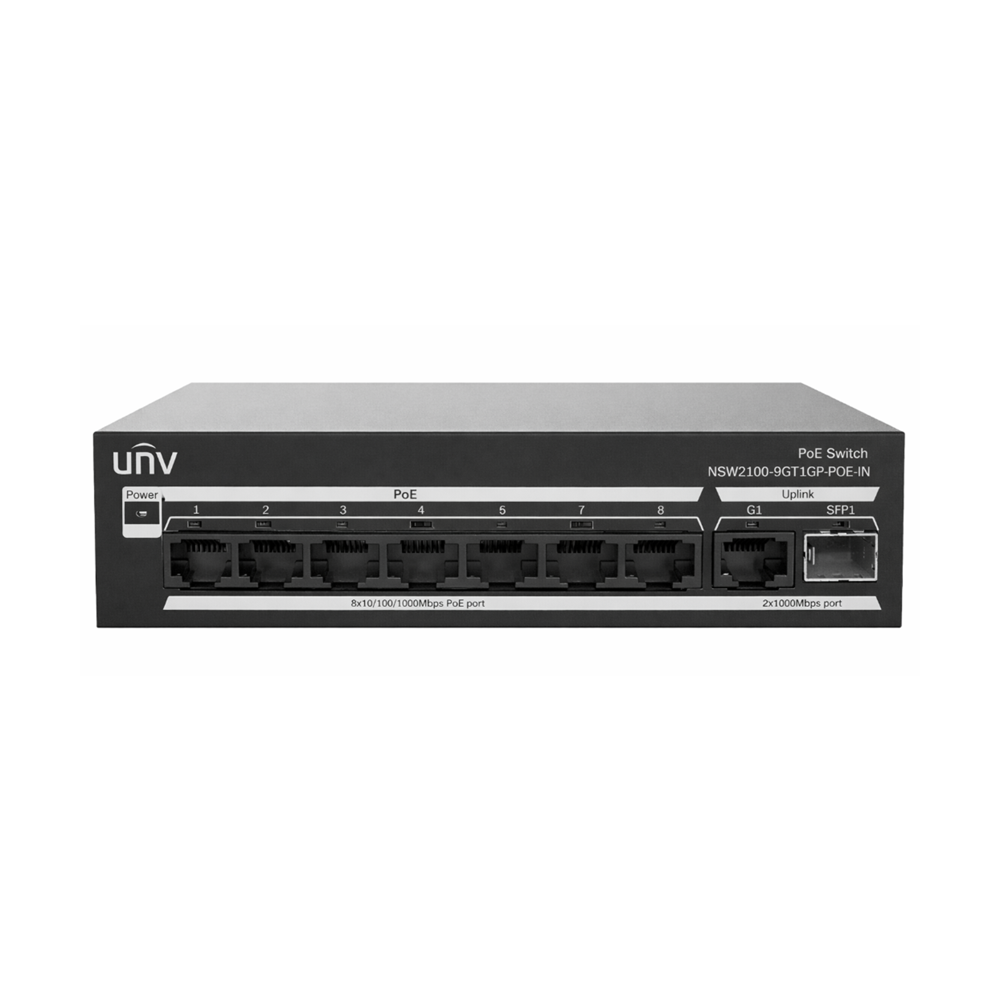

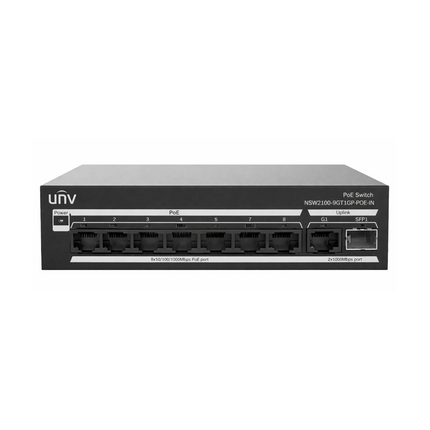

Uniview NSW2100-9GT1GP-POE-IN 8-Port Gigabit Cloud Managed PoE+ Switch - 120W, SFP

Description

UNIVIEW · CLOUD MANAGED POE SWITCH

Power up to eight PoE devices and manage the network remotely

The Uniview NSW2100-9GT1GP-POE-IN is a cloud-managed Gigabit PoE+ switch with eight PoE ports, a dedicated Gigabit RJ45 uplink and a Gigabit SFP port. It suits IP camera, intercom and small-business networks that need 120 W of shared PoE power and simple web or app management.

PoE ports
8 × Gigabit PoE+
PoE budget
120 W total
Management
Web & app cloud

Designed for the right installation

Connect cameras without a separate power run

IEEE 802.3af/at support provides up to 30 W per PoE port, subject to the 120 W total budget and connected-device demand.

Reach more remote cameras where appropriate

Extend mode supports a stated 250 m PoE communication range at 10 Mbps using standard network cable in suitable installations.

Manage the details

Web and app management provide device status, PoE restart, VLAN, port isolation, aggregation, loop detection and mirroring functions.

Technical Specifications
Model NSW2100-9GT1GP-POE-IN
Ports 8 × Gigabit PoE RJ45; 1 × Gigabit RJ45; 1 × Gigabit SFP
Switching / forwarding 20 Gbps / 14.88 Mpps
PoE standards / budget IEEE 802.3af/at; 120 W total; 30 W maximum per PoE port
Priority ports Ports 1-2
Management Web and QR-code cloud/app management
Network functions VLAN, link aggregation, PoE status, loop detection, port isolation and N:1 mirroring
Housing / cooling Metal enclosure; fanless
Power / maximum consumption AC 100-240 V, 50/60 Hz / 125 W
Dimensions / weight 169 × 132 × 40 mm / 0.85 kg
Operating environment 0°C to +45°C; 10%-90% RH non-condensing
Before you install

Allow for the total 120 W PoE budget, cable length and each device's peak draw. The SFP module, patch leads and powered devices are not included.

Downloads

NSW2100-9GT1GP-POE-IN Datasheet (PDF)

Uniview NSW2100-9GT1GP-POE-IN 8-Port Gigabit Cloud Managed PoE+ Switch - 120W, SFP

Product form

SKU: NSW2100-9GT1GP-POE-IN

$94.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Price Beat Guarantee
    Found it cheaper? We'll beat it by 5% — message us.

    Add Ons & Accessories

    • Shipped today? Order within: Oct 16, 2026 14:00:00 +1100
    • Warranty: 60 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    UNIVIEW · CLOUD MANAGED POE SWITCH

    Power up to eight PoE devices and manage the network remotely

    The Uniview NSW2100-9GT1GP-POE-IN is a cloud-managed Gigabit PoE+ switch with eight PoE ports, a dedicated Gigabit RJ45 uplink and a Gigabit SFP port. It suits IP camera, intercom and small-business networks that need 120 W of shared PoE power and simple web or app management.

    PoE ports
    8 × Gigabit PoE+
    PoE budget
    120 W total
    Management
    Web & app cloud

    Designed for the right installation

    Connect cameras without a separate power run

    IEEE 802.3af/at support provides up to 30 W per PoE port, subject to the 120 W total budget and connected-device demand.

    Reach more remote cameras where appropriate

    Extend mode supports a stated 250 m PoE communication range at 10 Mbps using standard network cable in suitable installations.

    Manage the details

    Web and app management provide device status, PoE restart, VLAN, port isolation, aggregation, loop detection and mirroring functions.

    Technical Specifications
    Model NSW2100-9GT1GP-POE-IN
    Ports 8 × Gigabit PoE RJ45; 1 × Gigabit RJ45; 1 × Gigabit SFP
    Switching / forwarding 20 Gbps / 14.88 Mpps
    PoE standards / budget IEEE 802.3af/at; 120 W total; 30 W maximum per PoE port
    Priority ports Ports 1-2
    Management Web and QR-code cloud/app management
    Network functions VLAN, link aggregation, PoE status, loop detection, port isolation and N:1 mirroring
    Housing / cooling Metal enclosure; fanless
    Power / maximum consumption AC 100-240 V, 50/60 Hz / 125 W
    Dimensions / weight 169 × 132 × 40 mm / 0.85 kg
    Operating environment 0°C to +45°C; 10%-90% RH non-condensing
    Before you install

    Allow for the total 120 W PoE budget, cable length and each device's peak draw. The SFP module, patch leads and powered devices are not included.

    Downloads

    NSW2100-9GT1GP-POE-IN Datasheet (PDF)
