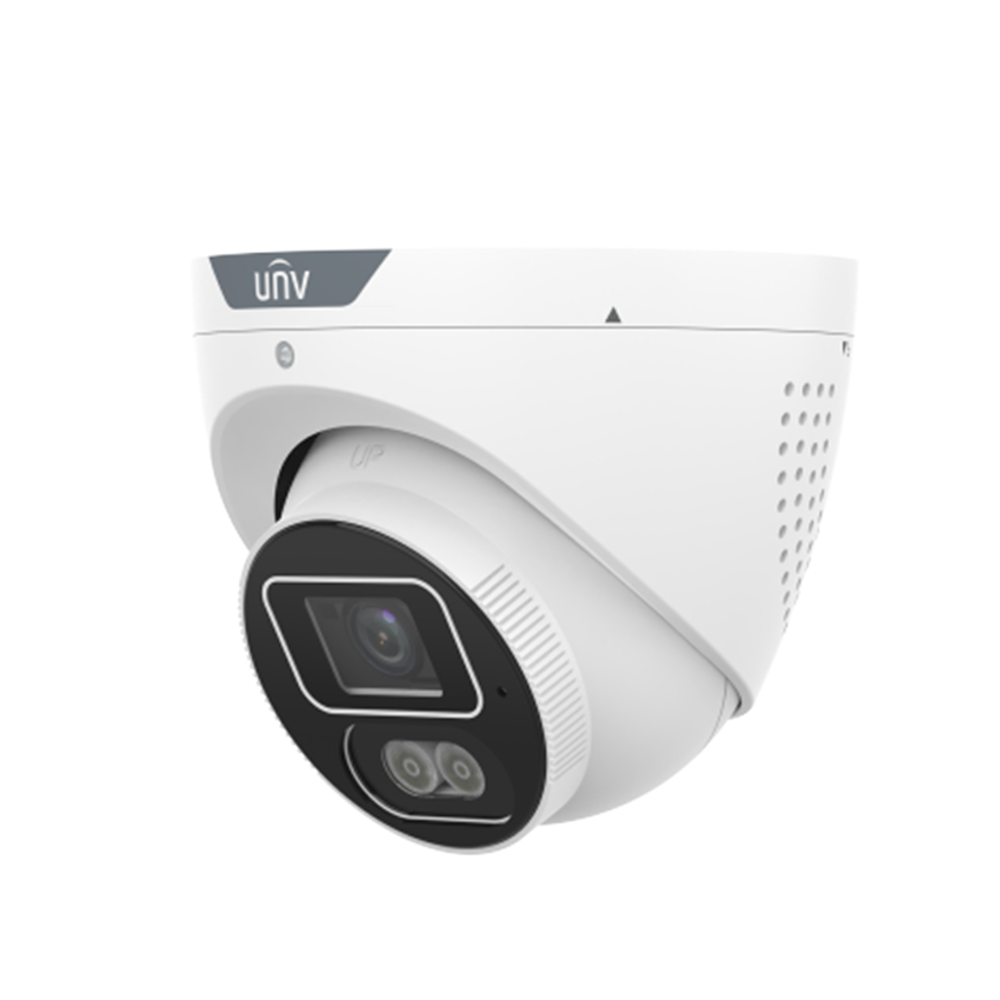

UNIVIEW · IP SECURITY CAMERASUniview IPC3618SB-ADF28KMC-I1 8MP 4K ColorHunter Wise-ISP Turret Camera
Record detailed 4K video with intelligent low-light processing and active warnings. The Uniview IPC3618SB-ADF28KMC-I1 combines ColorHunter Wise-ISP, a 2.8 mm fixed lens, dual-light illumination and a built-in microphone and speaker in an IP67 turret body.
Resolution
8MP, 3840 × 2160 at up to 25/30 fps
View
98.7° horizontal, 53.6° vertical
Designed for your installation
Human, motor-vehicle and non-motor-vehicle classification helps refine perimeter alerts. Two-way audio and audible/light warnings give the camera an active role at entrances, while local microSD recording offers an additional storage option.
IR and warm light up to 30 m
Humans, motor vehicles and non-motor vehicles
Technical Specifications
| Model |
IPC3618SB-ADF28KMC-I1 |
| Resolution |
8MP, 3840 × 2160 at up to 25/30 fps |
| Sensor |
1/2.7-inch CMOS |
| Lens |
2.8 mm fixed, F1.4 |
| View |
98.7° horizontal, 53.6° vertical |
| Image technology |
ColorHunter Wise-ISP |
| Dynamic range |
130 dB WDR |
| Illumination |
IR and warm light up to 30 m |
| Classification |
Humans, motor vehicles and non-motor vehicles |
| Analytics |
Intelligent perimeter rules and people counting |
| Deterrence |
Audible and light warnings |
| Audio |
Built-in microphone and speaker, two-way talk |
| Storage |
microSD up to 512 GB, sold separately |
| Interoperability |
ONVIF profiles S/G/T/M |
| Power |
Compatible PoE |
| Weather protection |
IP67 |
Setup and compatibility
Use a compatible Uniview recorder for the intended analytics and two-way-audio workflow. ONVIF support does not guarantee every proprietary feature on another brand. Fit a suitable microSD card only if local storage is required and weatherproof the cable entry.
Downloads
IPC3618SB-ADF28KMC-I1 Datasheet (PDF)
Frequently asked questions
Can IPC3618SB-ADF28KMC-I1 record to a microSD card?
Yes. microSD up to 512 GB, sold separately. The card is separate; configure recording and retention for the installation.
What should I check before installation?
Use a compatible Uniview recorder for the intended analytics and two-way-audio workflow. ONVIF support does not guarantee every proprietary feature on another brand. Fit a suitable microSD card only if local storage is required and weatherproof the cable entry.
Where can I download the IPC3618SB-ADF28KMC-I1 datasheet?
The manufacturer PDF is hosted on CCTV Guru’s Shopify file library and linked in Downloads on this product page.
