Ubiquiti PowerBeam 5 AC 500 27dBi 5GHz airMAX ac Bridge Antenna PBE-5AC-500

Description

airMAX ac Bridge

Ubiquiti PowerBeam 5 AC 500 — 27 dBi 5 GHz airMAX ac CPE Antenna (PBE-5AC-500)

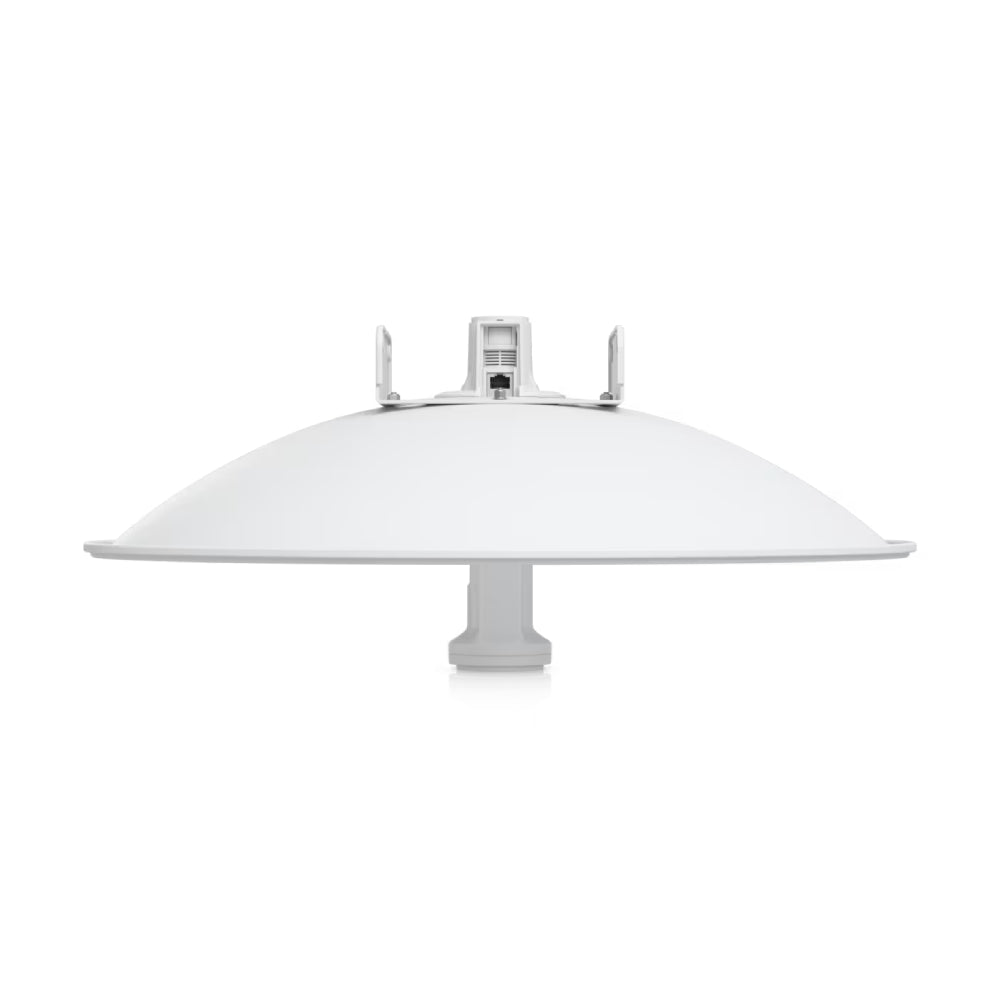

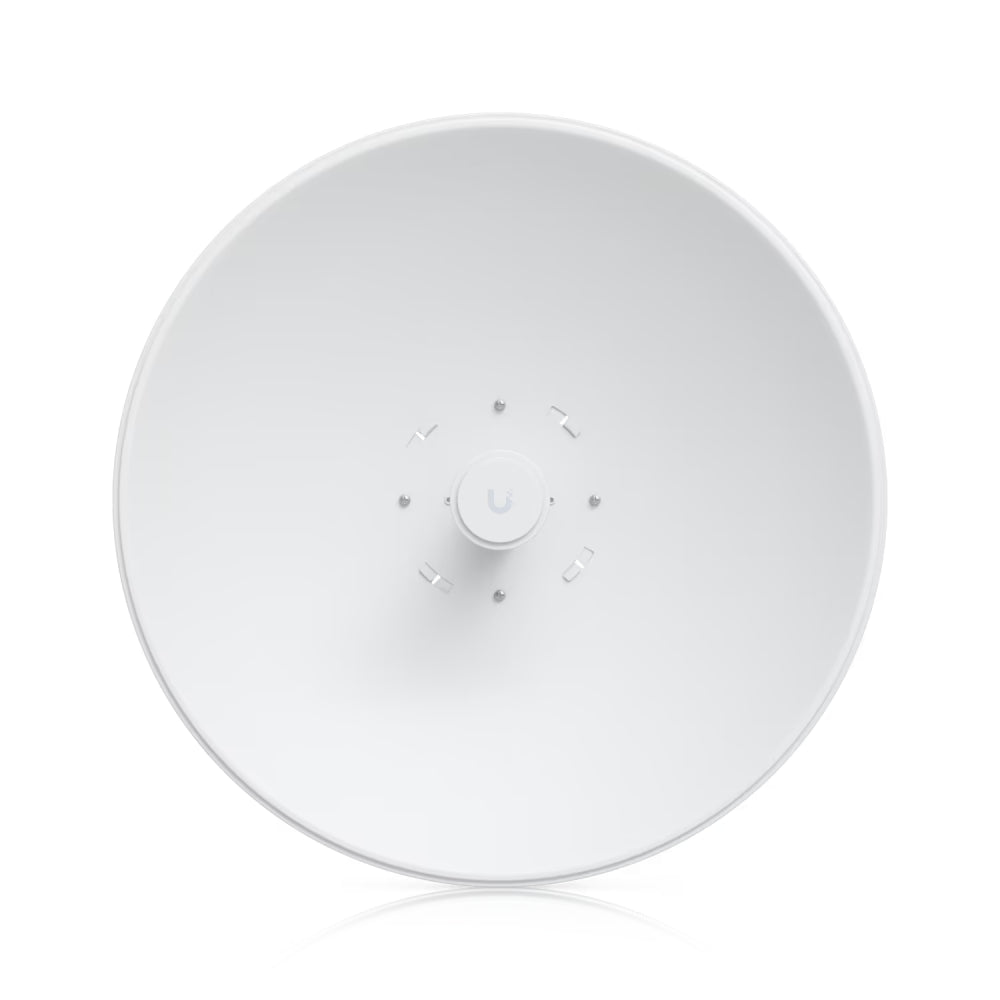

The Ubiquiti PowerBeam 5 AC 500 (PBE-5AC-500) is a high-performance 5 GHz airMAX® ac point-to-point bridge built for long-range wireless links. A 500 mm dish reflector delivers 27 dBi of gain and up to 450+ Mbps real TCP/IP throughput, while Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn to eliminate cable losses. Ideal for WISPs, CPE deployments, and site-to-site backhaul across Australia — genuine Ubiquiti stock with fast AU-wide shipping.

27 dBi High-Gain Dish

A 500 mm dish reflector focuses RF energy into a tight beam for stronger, more reliable point-to-point links over longer distances.

450+ Mbps Throughput

Proprietary airMAX® ac technology with 256QAM modulation delivers up to 450+ Mbps real TCP/IP throughput — up to triple standard airMAX.

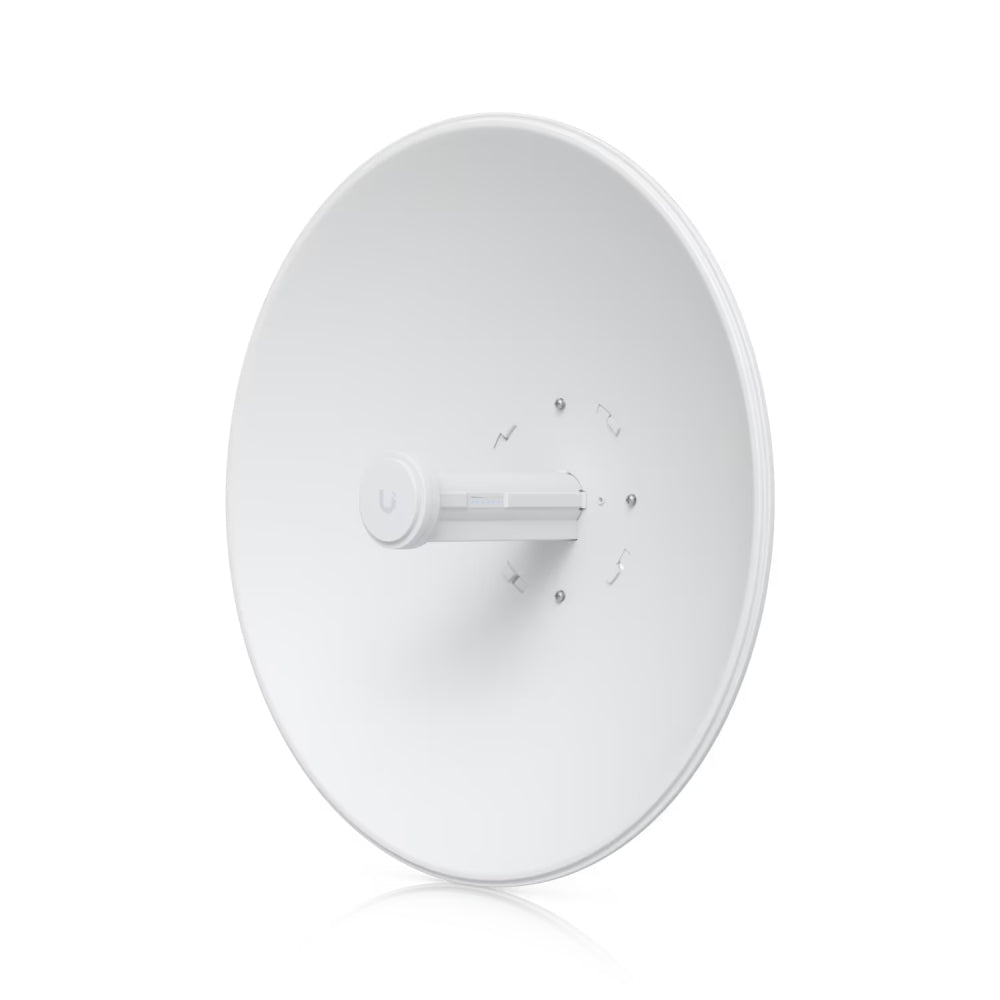

InnerFeed & Snap-Lock Design

The radio is integrated into the feedhorn to cut cable losses, and the antenna feed detaches with the push of a button for quick assembly.

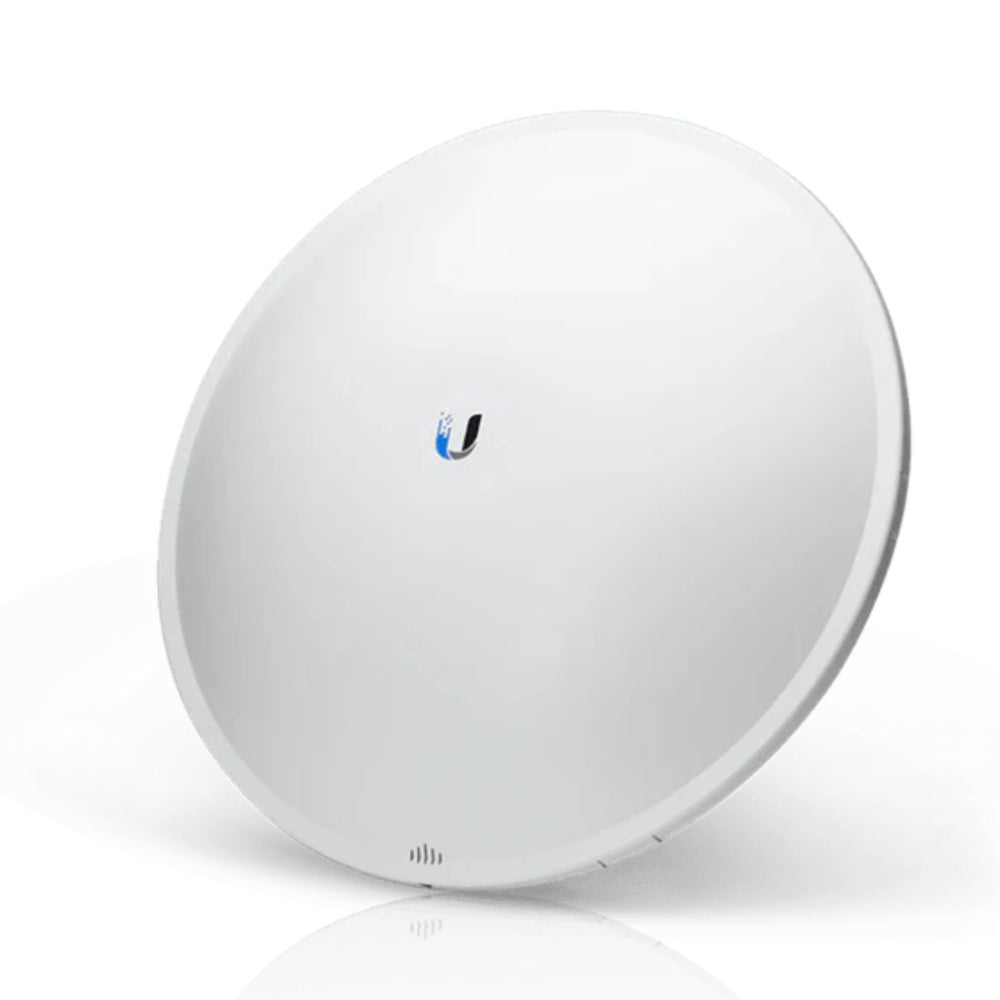

Built for the Outdoors

A protective radome is included, with galvanized powder-coated brackets and a −40°C to 70°C range for tough Australian conditions.

Model PBE-5AC-500
Operating Frequency 5 GHz (5150–5875 MHz worldwide)
Gain 27 dBi
Dish Reflector 500 mm
Throughput Up to 450+ Mbps real TCP/IP
Protocol airMAX® ac TDMA (256QAM)
Networking Interface (1) 10/100/1000 Gigabit Ethernet port
Processor Atheros MIPS 74Kc, 720 MHz
Memory 128 MB DDR2, 16 MB Flash
Channel Sizes PtP: 10/20/30/40/50/60/80 MHz • PtMP: 10/20/30/40 MHz
Polarization Dual Linear
Power Supply 24V, 0.5A Gigabit PoE (adapter included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption 8.5 W
Supported Voltage 20–26V DC
Dimensions 525 × 525 × 315 mm (radome included)
Weight 3.15 kg (radome included) / 2.35 kg (excluded)
Wind Survivability 96 km/h (60 mph)
Mounting Pole-mount (kit included) • 20° uptilt / 10° downtilt
Enclosure Outdoor UV-stabilised plastic
Operating Temperature −40°C to 70°C
Operating Humidity 5 to 95% non-condensing
Software airOS® v7 with airView® spectrum analyzer
Certifications FCC, IC, CE • RoHS
PowerBeam ac Datasheet Ubiquiti Quick Start Guide
Fast AU Shipping
Genuine Ubiquiti Stock
Expert AU Support

Ubiquiti PowerBeam 5 AC 500 27dBi 5GHz airMAX ac Bridge Antenna PBE-5AC-500

Product form

SKU: PBE-5AC-500

$292.10  $285.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Shipped today? Order within: Jul 01, 2026 14:00:00 +1000
    • Warranty: 12 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    airMAX ac Bridge

    Ubiquiti PowerBeam 5 AC 500 — 27 dBi 5 GHz airMAX ac CPE Antenna (PBE-5AC-500)

    The Ubiquiti PowerBeam 5 AC 500 (PBE-5AC-500) is a high-performance 5 GHz airMAX® ac point-to-point bridge built for long-range wireless links. A 500 mm dish reflector delivers 27 dBi of gain and up to 450+ Mbps real TCP/IP throughput, while Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn to eliminate cable losses. Ideal for WISPs, CPE deployments, and site-to-site backhaul across Australia — genuine Ubiquiti stock with fast AU-wide shipping.

    27 dBi High-Gain Dish

    A 500 mm dish reflector focuses RF energy into a tight beam for stronger, more reliable point-to-point links over longer distances.

    450+ Mbps Throughput

    Proprietary airMAX® ac technology with 256QAM modulation delivers up to 450+ Mbps real TCP/IP throughput — up to triple standard airMAX.

    InnerFeed & Snap-Lock Design

    The radio is integrated into the feedhorn to cut cable losses, and the antenna feed detaches with the push of a button for quick assembly.

    Built for the Outdoors

    A protective radome is included, with galvanized powder-coated brackets and a −40°C to 70°C range for tough Australian conditions.

    Model PBE-5AC-500
    Operating Frequency 5 GHz (5150–5875 MHz worldwide)
    Gain 27 dBi
    Dish Reflector 500 mm
    Throughput Up to 450+ Mbps real TCP/IP
    Protocol airMAX® ac TDMA (256QAM)
    Networking Interface (1) 10/100/1000 Gigabit Ethernet port
    Processor Atheros MIPS 74Kc, 720 MHz
    Memory 128 MB DDR2, 16 MB Flash
    Channel Sizes PtP: 10/20/30/40/50/60/80 MHz • PtMP: 10/20/30/40 MHz
    Polarization Dual Linear
    Power Supply 24V, 0.5A Gigabit PoE (adapter included)
    Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
    Max. Power Consumption 8.5 W
    Supported Voltage 20–26V DC
    Dimensions 525 × 525 × 315 mm (radome included)
    Weight 3.15 kg (radome included) / 2.35 kg (excluded)
    Wind Survivability 96 km/h (60 mph)
    Mounting Pole-mount (kit included) • 20° uptilt / 10° downtilt
    Enclosure Outdoor UV-stabilised plastic
    Operating Temperature −40°C to 70°C
    Operating Humidity 5 to 95% non-condensing
    Software airOS® v7 with airView® spectrum analyzer
    Certifications FCC, IC, CE • RoHS
    PowerBeam ac Datasheet Ubiquiti Quick Start Guide
    Fast AU Shipping
    Genuine Ubiquiti Stock
    Expert AU Support
