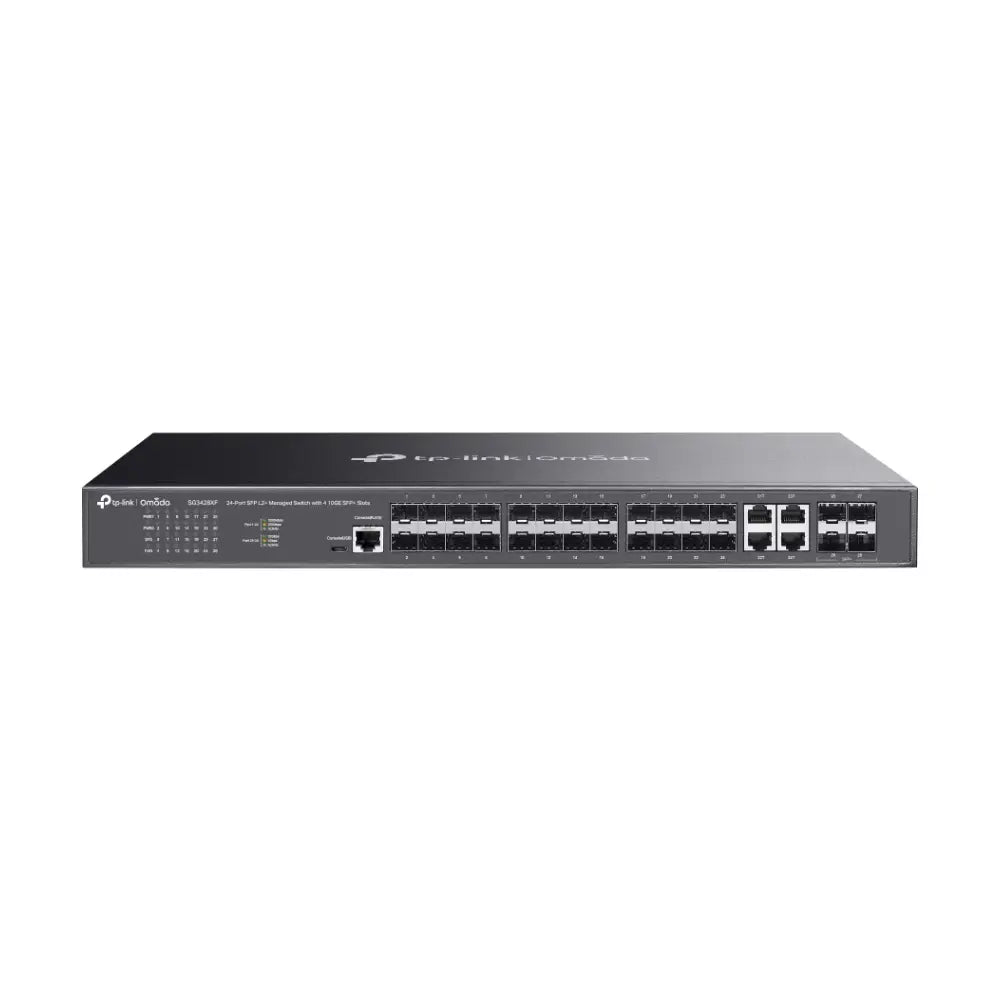

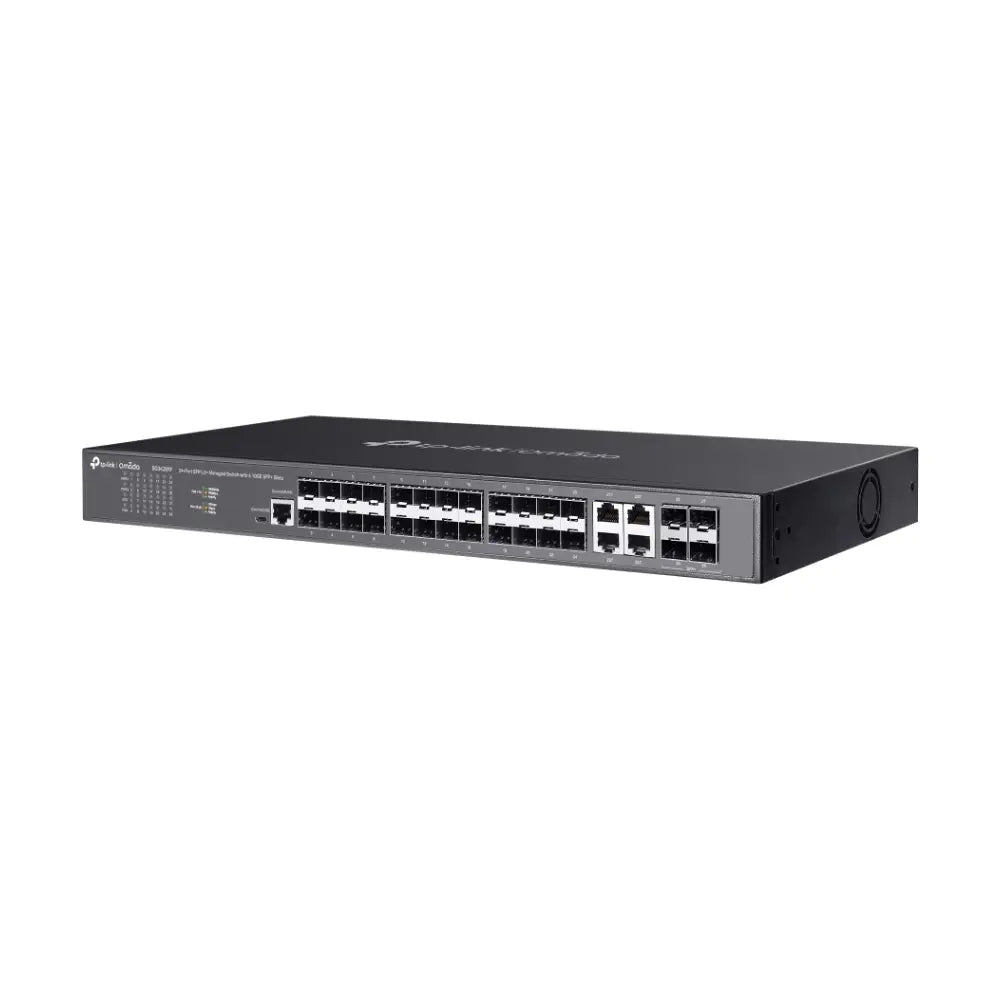

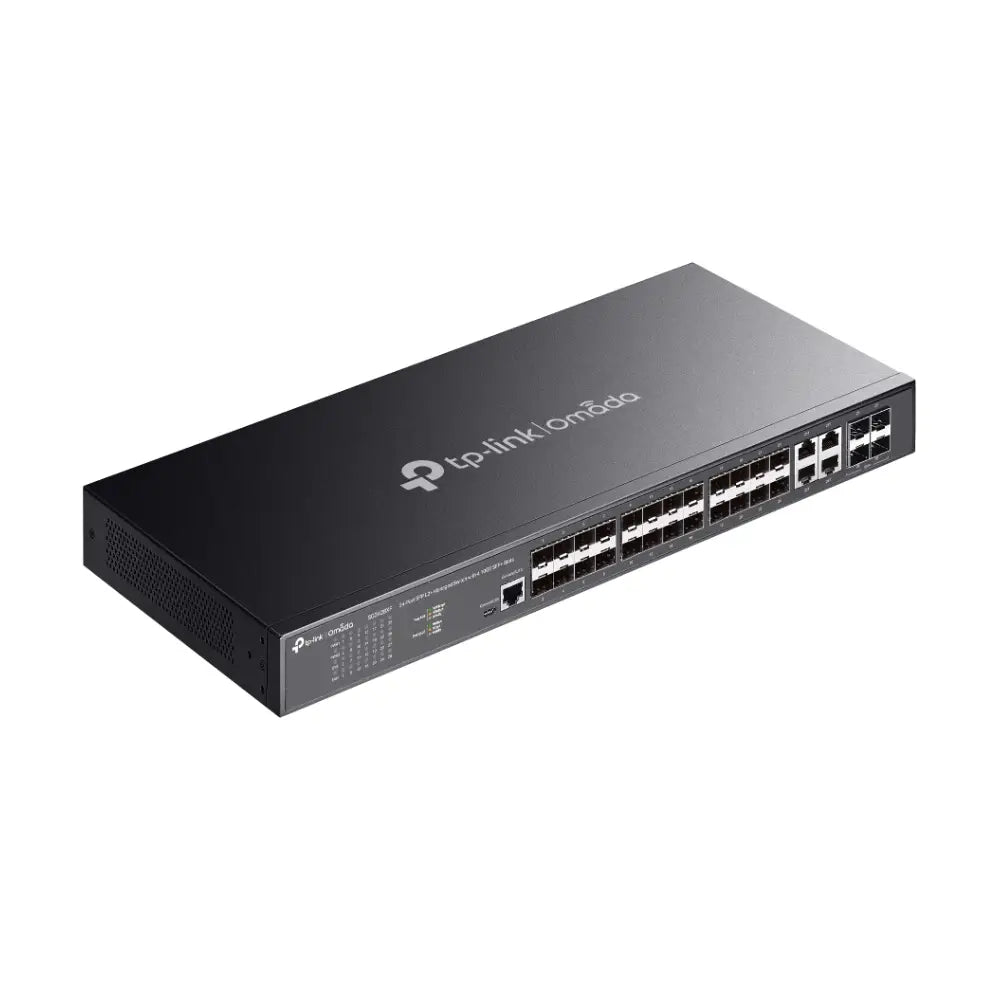

TP-Link TL-SG3428XF — 24-Port Full-Fibre L2+ Managed Switch with 10G Uplinks
The TP-Link JetStream TL-SG3428XF is a fully managed, full-fibre Layer 2+ switch built for enterprise networks, campus deployments, and ISP infrastructure. With 20× Gigabit SFP ports, 4× Gigabit SFP/RJ45 combo ports, and 4× 10G SFP+ uplink slots, it delivers non-blocking switching performance and seamless integration into the Omada Software Defined Networking (SDN) platform.
Key Features
-
10G Lightning-Fast Uplinks: 4× 10 Gbps SFP+ slots provide high-bandwidth backbone connectivity and non-blocking switching capacity.
-
Full-Fibre Gigabit Ports: 20× Gigabit SFP ports and 4× Gigabit SFP/RJ45 combo ports for flexible, high-speed fibre or copper connections.
-
Omada SDN Integration: Zero-Touch Provisioning (ZTP), centralised cloud management, and intelligent monitoring via the Omada Controller or app.
-
Dual Redundant Power Supplies: Two PSUs back each other up for maximum uptime in mission-critical environments.
-
Advanced L2+ & L3 Features: Static Routing, 802.1Q VLAN, RSTP/MSTP, Link Aggregation (LACP), Port Mirroring, and IGMP Snooping.
-
Robust Security: IP-MAC-Port-VID Binding, ACL (L2–L4), Port Security, DoS Defence, Storm Control, DHCP Snooping, 802.1X, and RADIUS Authentication.
-
Advanced QoS: L2/L3/L4 QoS prioritisation for smooth voice and video traffic, even under load.
-
ISP-Ready Features: sFlow, QinQ, L2PT, PPPoE ID Insertion, IGMP Authentication, 802.3ah OAM, and DLDP.
-
IPv6 Ready: Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, and IPv6 Neighbour Discovery.
-
Flexible Management: Web GUI, CLI (Console, Telnet, SSH), SNMP, RMON, and Dual Image for firmware redundancy.
Use Cases
-
Enterprise Networks: Ideal as an aggregation or distribution switch in multi-floor office environments requiring high-throughput fibre uplinks.
-
Campus & Education: Centralised Omada SDN management simplifies large-scale deployments across buildings and campuses.
-
Hospitality & Retail: VLAN segmentation and QoS ensure reliable guest Wi-Fi and POS traffic separation.
-
ISP Infrastructure: QinQ, sFlow, PPPoE ID Insertion, and IGMP Authentication make it a strong fit for service provider edge deployments.
-
CCTV & Surveillance Networks: IGMP Snooping and QoS prioritise video multicast streams, reducing unnecessary bandwidth consumption.
-
Data Centres & Server Rooms: Dual PSU redundancy and 10G uplinks support high-availability server connectivity.
Specifications
| Model |
TL-SG3428XF |
| Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3x, 802.1p, 802.1q, 802.1x, 802.1s, 802.1w, 802.3ad, 802.3ah |
| SFP Ports |
20× Gigabit SFP |
| Combo Ports |
4× Gigabit SFP/RJ45 Combo |
| 10G Uplink Slots |
4× 10G SFP+ |
| Switching Capacity |
128 Gbps |
| Packet Forwarding Rate |
95.24 Mpps |
| MAC Address Table |
32K |
| Jumbo Frame |
9216 Bytes |
| Power Supply |
Dual Redundant PSU |
| Console Port |
RJ45 |
| Management |
Web, CLI, SNMP v1/v2c/v3, RMON, Telnet, SSH, Omada App & Cloud |
| L3 Features |
Static Routing, ARP Proxy |
| IPv6 |
Dual Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping |
| Weight |
3.98 kg |
| Form Factor |
1U Rack-Mount |
| Certifications |
CE, FCC, RoHS |
Frequently Asked Questions
Is the TL-SG3428XF compatible with Omada SDN?
Yes. The TL-SG3428XF is fully supported by the Omada SDN platform, enabling Zero-Touch Provisioning, centralised cloud management, and monitoring via the Omada Controller (hardware, software, or cloud-based) and the Omada mobile app.
Does this switch support stacking?
The TL-SG3428XF does not support hardware stacking. However, it supports Link Aggregation (LACP) for combining multiple uplinks and can be managed centrally alongside other Omada devices through the Omada Controller.
What fibre transceivers are compatible?
The switch is compatible with TP-Link SFP and SFP+ modules. For best results and warranty support, use TP-Link branded transceivers. Third-party modules may work but are not officially supported.
Can this switch be used without the Omada Controller?
Yes. The TL-SG3428XF supports standalone management via Web GUI, CLI (Console, Telnet, SSH), SNMP, and RMON — no Omada Controller is required for basic operation.
Does it support PoE?
No. The TL-SG3428XF is a full-fibre SFP switch and does not include PoE functionality. For PoE requirements, consider TP-Link's JetStream PoE switch range.
Is this switch suitable for CCTV and IP camera networks?
Yes. IGMP Snooping, QoS prioritisation, and VLAN segmentation make it well-suited for managed CCTV and IP surveillance networks, particularly in larger deployments requiring fibre backbone connectivity.
