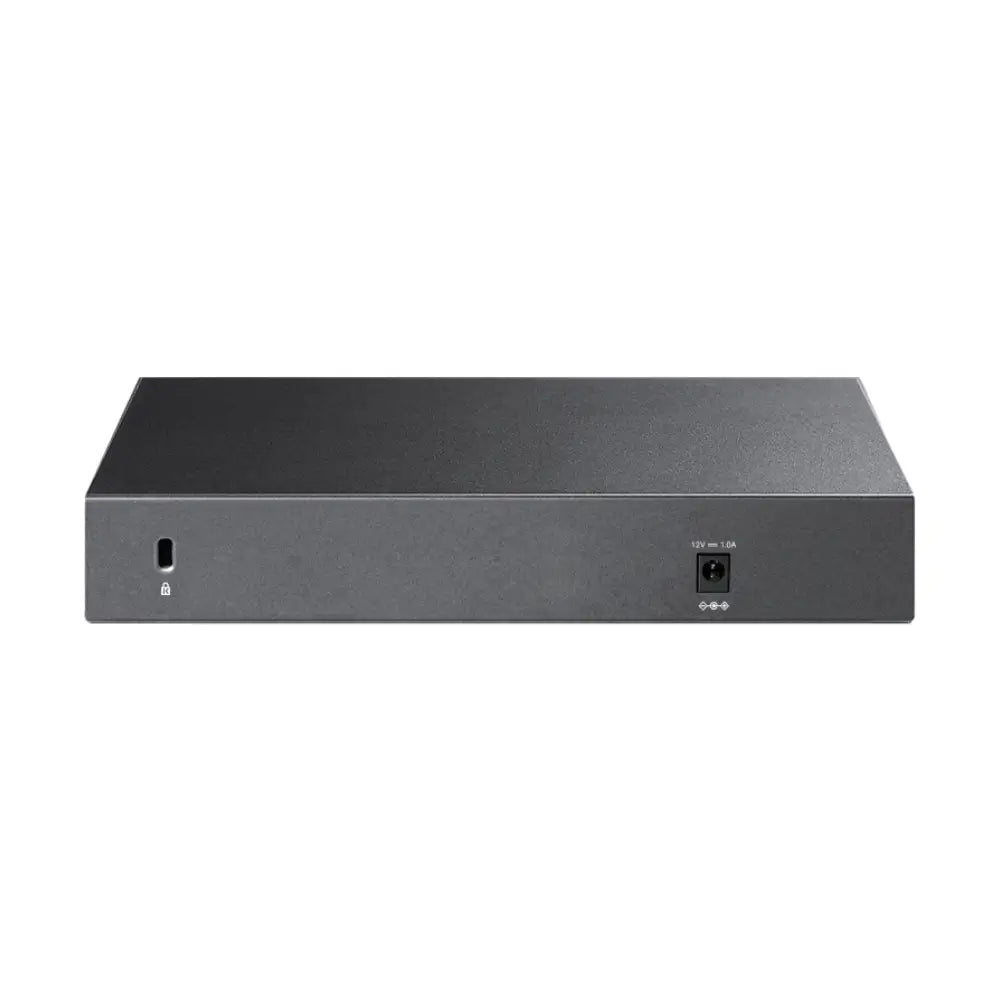

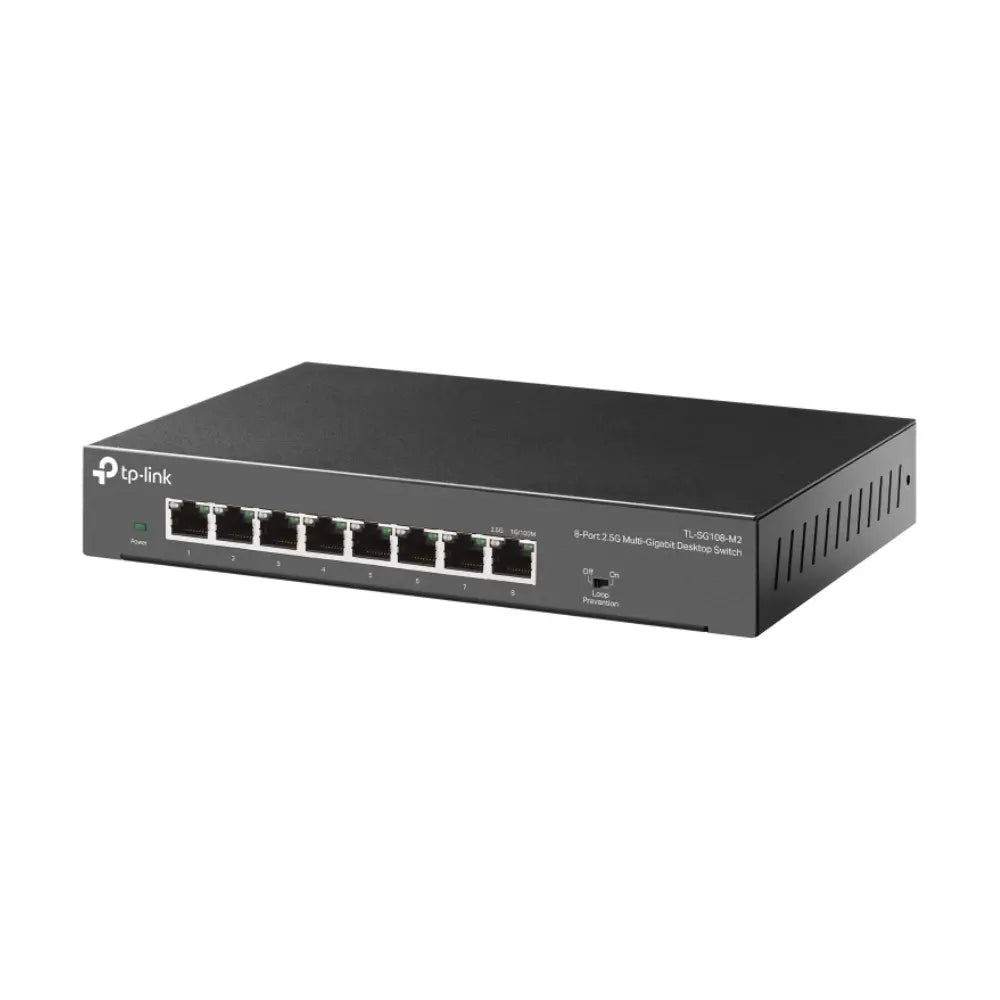

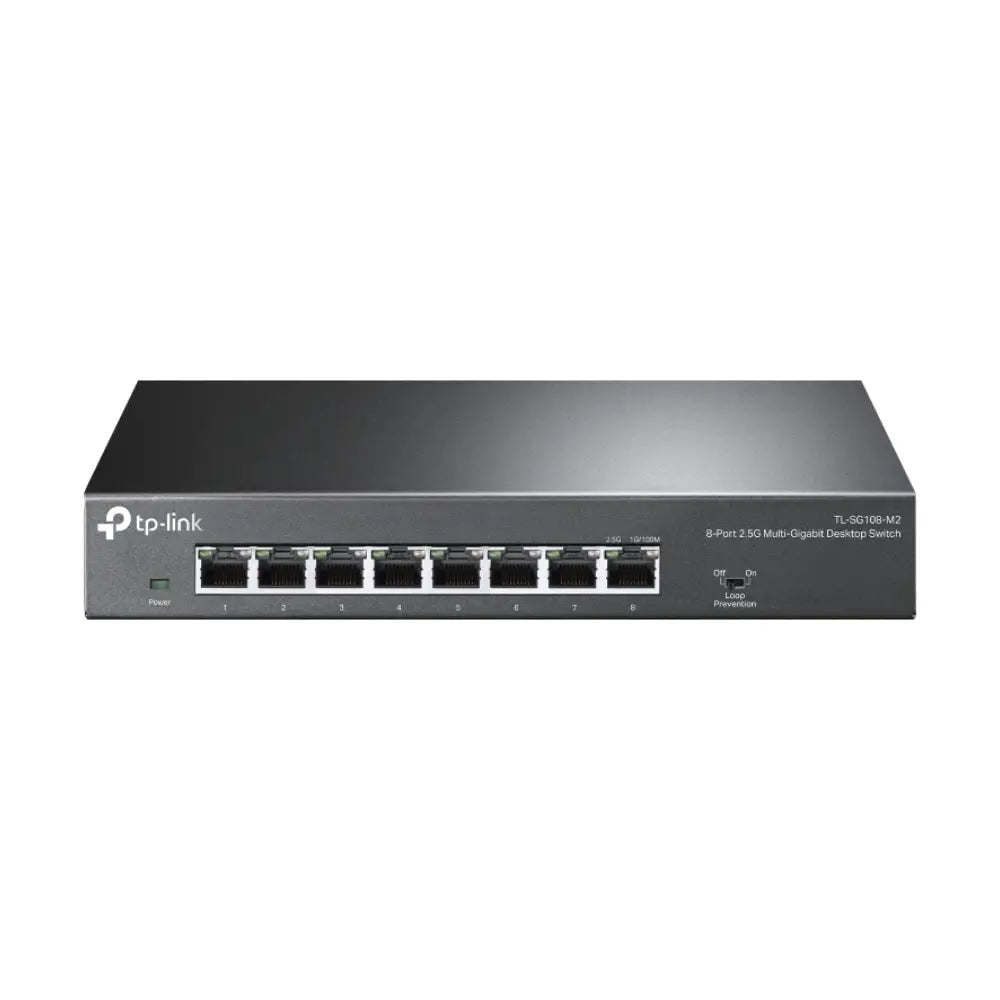

TP-Link TL-SG108-M2 8-Port 2.5G Multi-Gigabit Desktop Switch
Unlock 2.5G Speeds Over Your Existing Cat5e Cabling
The TP-Link TL-SG108-M2 delivers 8 ports of 2.5 Gbps connectivity with 40 Gbps total switching capacity — all over your existing Cat5e cabling. No rewiring required. Its fanless metal chassis sits on a desktop or mounts on a wall, making it a quiet, flexible upgrade for home offices, LAN setups, small businesses, and anyone whose network has outgrown standard Gigabit speeds. Plug in and go — no configuration or software required.
Key Features
- 8 × 100 Mbps / 1 Gbps / 2.5 Gbps auto-negotiation RJ45 ports — backward compatible with existing Gigabit devices
- 40 Gbps switching capacity with 29.8 Mpps packet forwarding rate
- Works on existing Cat5e cabling — upgrade to 2.5G without rewiring
- 10K Jumbo Frame support for high-throughput large file transfers
- 802.1p / DSCP QoS for prioritising latency-sensitive traffic
- IEEE 802.3x flow control for reliable, congestion-free data transfer
- 16K MAC address table with 1.5 Mb packet buffer memory
- Store-and-forward switching for error-free packet delivery
- Fanless design — completely silent operation, ideal for home and office environments
- Durable metal casing with desktop and wall-mount support
- Plug-and-play — no configuration or software required
Use Cases
-
Wi-Fi 6 Access Points: Connect Wi-Fi 6 APs at full 2.5G uplink speed to eliminate the Gigabit bottleneck and unlock true AX-class wireless performance.
-
NAS & Storage: Maximise throughput to a 2.5G NAS for fast local file transfers, backups, and media streaming.
-
LAN Gaming: Low-latency, high-bandwidth wired connections for competitive gaming setups and LAN parties.
-
Home Entertainment: 4K video streaming, media servers, and smart home hubs all benefit from the extra headroom of 2.5G.
-
Small Office Networks: Multiple users transferring large files simultaneously without congestion on a shared switch.
-
Network Upgrades: Step up from Gigabit without replacing Cat5e cabling infrastructure — a cost-effective performance upgrade.
Specifications
| Specification |
Detail |
| Model |
TL-SG108-M2 |
| Ports |
8 × 100 Mbps / 1 Gbps / 2.5 Gbps RJ45 (Auto-Negotiation, Auto MDI/MDIX) |
| Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
| Switching Capacity |
40 Gbps |
| Packet Forwarding Rate |
29.8 Mpps |
| MAC Address Table |
16K |
| Packet Buffer Memory |
1.5 Mb |
| Jumbo Frame |
10 KB |
| QoS |
802.1p / DSCP |
| Flow Control |
IEEE 802.3x |
| Transfer Method |
Store-and-Forward |
| Cooling |
Fanless (silent) |
| Power Supply |
External adapter — 12 V DC / 1.5 A |
| Max Power Consumption |
15.65 W |
| Mounting |
Desktop or wall-mount |
| Casing |
Metal |
| Dimensions (W × D × H) |
226 × 131 × 35 mm |
| Operating Temperature |
0°C – 40°C |
| Certifications |
CE, FCC, RoHS |
| Weight |
1.3 kg |
Frequently Asked Questions
Do I need to upgrade my cabling to use 2.5G speeds?
No. The TL-SG108-M2 supports 2.5 Gbps over existing Cat5e cabling up to 100 metres, so you can upgrade your switch speed without rewiring. Cat6 or Cat6a cabling will also work and may provide better performance in electrically noisy environments.
Is the TL-SG108-M2 backward compatible with my existing Gigabit devices?
Yes. Each port auto-negotiates at 100 Mbps, 1 Gbps, or 2.5 Gbps, so you can mix standard Gigabit devices with 2.5G devices on the same switch without any configuration.
Does the TL-SG108-M2 support PoE?
No. The TL-SG108-M2 does not support Power over Ethernet. If you need PoE for Wi-Fi 6 access points or IP cameras, consider a TP-Link PoE switch such as the TL-SG2210MP or TL-SG3210XHP-M2 which combines 2.5G ports with PoE+.
Can the TL-SG108-M2 be wall-mounted?
Yes. The metal chassis includes wall-mount support, making it easy to install in a comms room, behind a TV, or on any flat surface for a tidy, space-saving setup.
Does it require any software or configuration?
No. The TL-SG108-M2 is a plug-and-play unmanaged switch — simply connect your devices and it works immediately. There is no web interface, app, or driver required.
