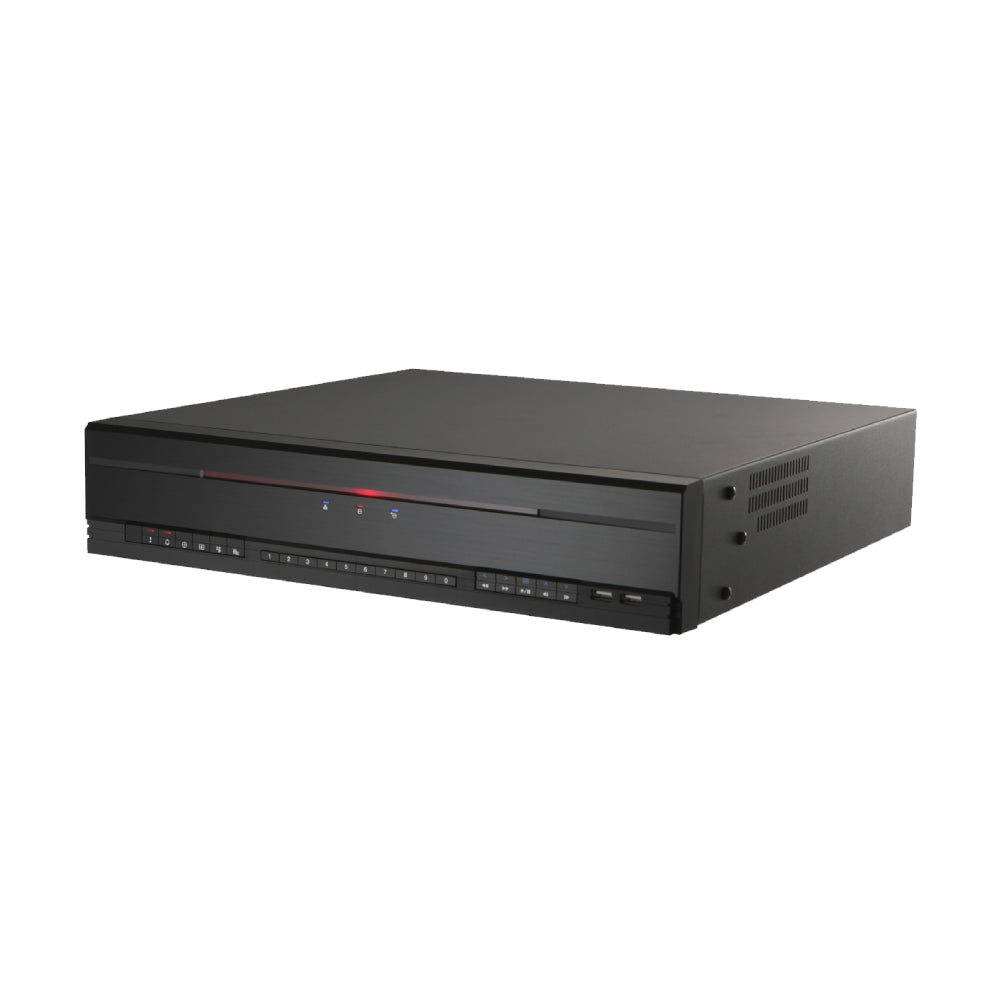

IDIS DR-3516P 16-Channel 4K H.265 DirectIP Network Video Recorder (0TB)

Description

IDIS DIRECTIP 3500 SERIES · 0TB STORAGE COMPONENT · NDAA & TAA COMPLIANT

Mid-Tier Commercial 16-Channel 4K Surveillance Base (0TB)

The IDIS DR-3516P (0TB variant) is an enterprise-grade 16-channel network video recorder configured with zero pre-installed storage, giving system designers complete freedom to deploy custom, high-durability hard drive combinations tailored to specific data retention targets. Built on the iconic IDIS DirectIP® architecture, this 4K surveillance powerhouse completely cuts out the specialized IT labor typically needed for IP system integration. It automatically configures connected IP cameras the moment they are plugged in, handling IP mapping, data routing, and stream optimization silently in the background. It is highly optimized for mid-market corporate hubs, logistics centers, school campuses, and large-scale retail layouts.

Throughput Performance
320Mbps Total Incoming
Storage Flex
0TB Base / 4 Internal Bays
Built-In Switch
16-Port Integrated PoE
Regulatory Status
Full NDAA Core Compliance

4-Bay Expandable Storage Footprint with High-Efficiency H.265 Decoding

Where smaller recorders cap your long-term storage options, the 4-bay chassis structure of the IDIS DR-3516P opens up extensive configuration flexibility. By deploying your own selection of enterprise surveillance drives into its 4 internal SATA bays alongside its dual eSATA expansion interfaces, you can build a highly resilient storage pool capable of weeks of uncompressed video logs. To keep that physical drive footprint lean, IDIS combines hyper-efficient H.265 video compression with their signature Intelligent Codec technology. This algorithmic approach drops required bitrates and recording data overhead by up to 90% over standard H.264 formats, meaning your custom hard drive arrays hold much more footage without sacrificing crisp 4K visual accuracy.

130W Integrated PoE Power Budget

The integrated 16-port PoE switch drops directly into standard IEEE 802.3at parameters, providing a steady 130W distributed power layer to supply high-definition dome, bullet, and panoramic camera links over standard network cables without requiring separate power blocks.

Real-Time 4K UHD Direct Monitoring Matrix

Equipped with independent HDMI and VGA display channels, the unit natively pushes smooth, real-time 4K output matrices directly into command center consoles. Security operators can track 16 multi-screen tiles at up to 480ips (images per second) to easily capture critical perimeter details.

Technical Specification Matrix
NVR Product Model DR-3516P (0TB)
Video Input Feeds 16 IP Channels (DirectIP, AXIS, Panasonic, ONVIF Profile S Compatible)
Total Network Bandwidth 320Mbps Max Incoming Throughput / 180Mbps Recording Performance Bound
Max Local Output Resolution HDMI: 3840 x 2160 (4K UHD) | VGA: 1920 x 1200 Max Display Scaling
Live Display Frame Speed Up to 480ips Real-Time Video Matrix Rendering
Supported Compression Codecs H.265, H.264, and IDIS Intelligent Codec Stream Control
Built-In Network Switch Base 16x Fast Ethernet Ports with Embedded PoE (IEEE 802.3at Class 4)
PoE Power Delivery Limits 130W Distributed Active PoE System Allocations
Internal Hard Drive Capabilities 4x SATA Mechanical Interfaces (Shipped 0TB - Hard Drives Available Separately)
External Storage Interfaces 2x Specialized High-Bandwidth eSATA External Ports
Physical I/O Layout 1x Gigabit Client LAN, 1x Gigabit Ext IP Port, 2x USB 2.0, 1x USB 3.0
Alarm & Audio Connectivity 4 Terminal Inputs / 1 Relay Output; Local RCA Audio In-Out Lines
Chassis Form Calculations 430mm (W) x 88mm (H) x 420.5mm (D) | 2U Rackmount Frame Size
Federal Certification Profiles Fully Certified NDAA Compliant Frameworks & TAA Manufacturing Protocols
What does "0TB" mean for this specific NVR listing?

This unit is supplied as an unpopulated chassis containing 0TB of pre-installed storage. This allows your team to buy and source your own choice of surveillance-certified SATA hard drives to perfectly fit the precise data retention goals of your business footprint.

How many internal hard drives can be installed simultaneously?

The DR-3516P features 4 internal SATA drive bays. If you need even more storage space down the track, the dual eSATA ports on the back panel allow you to connect external IDIS storage expansion units.

What is the difference between the DR-2516P-A and this DR-3516P?

While both support 16 video channels at 320Mbps incoming throughput, the DR-3516P upgrades your physical storage capacity with 4 internal SATA bays (compared to only 2 on the DR-2516P-A) and features dual external eSATA storage expansion links for much longer video archives.

Can this recorder run smart video analytics?

Yes. The DR-3516P supports advanced metadata trigger events when paired with compatible IDIS edge cameras. This includes tracking object detection, line crossing, loitering, zone intrusion, face alerts, and occupancy counting.

Technical Datasheet Quick Start Guide
Operation Manual Installation Manual
Official IDIS Stock
NDAA & TAA Certified
Aust-Wide Delivery
