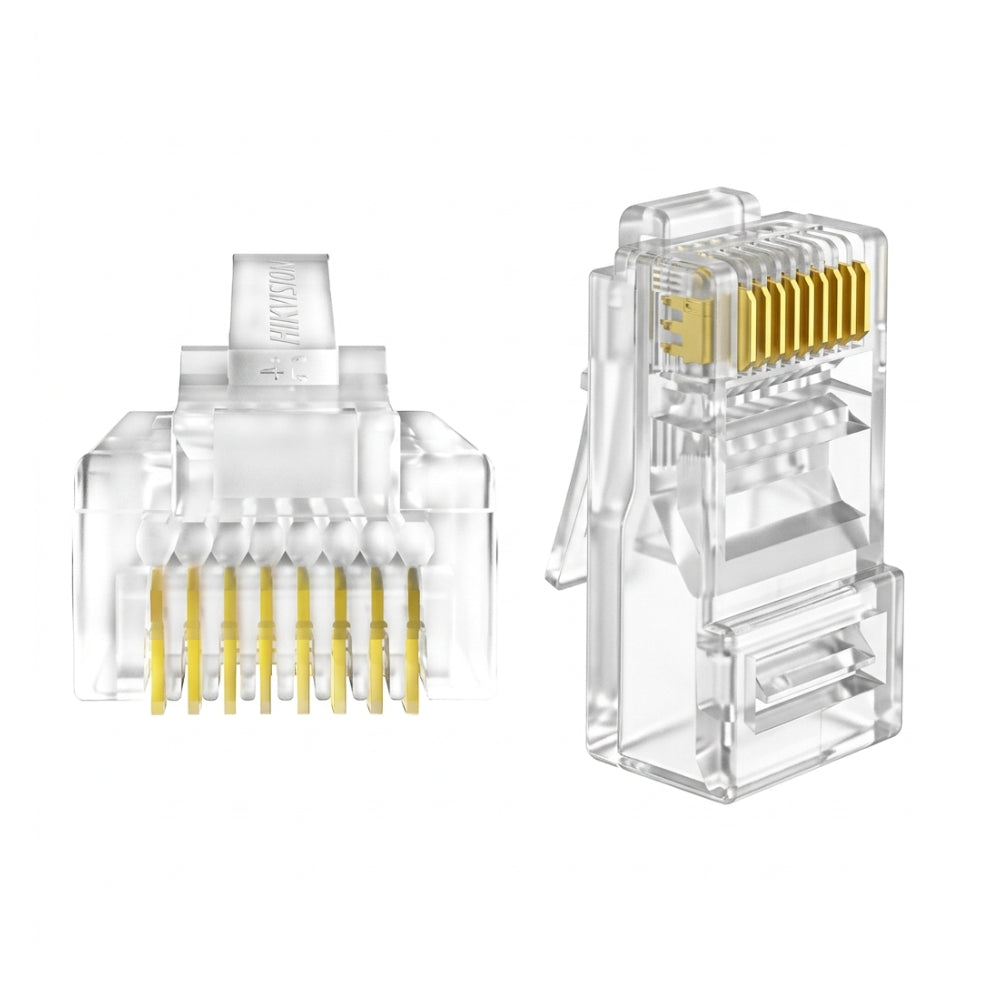

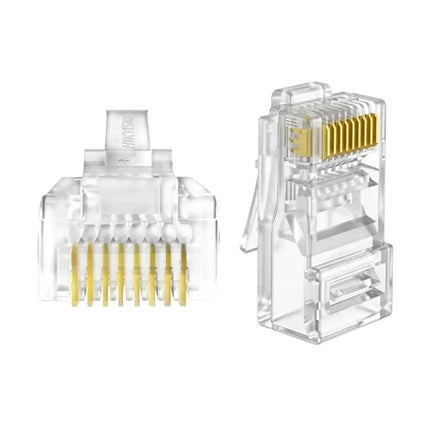

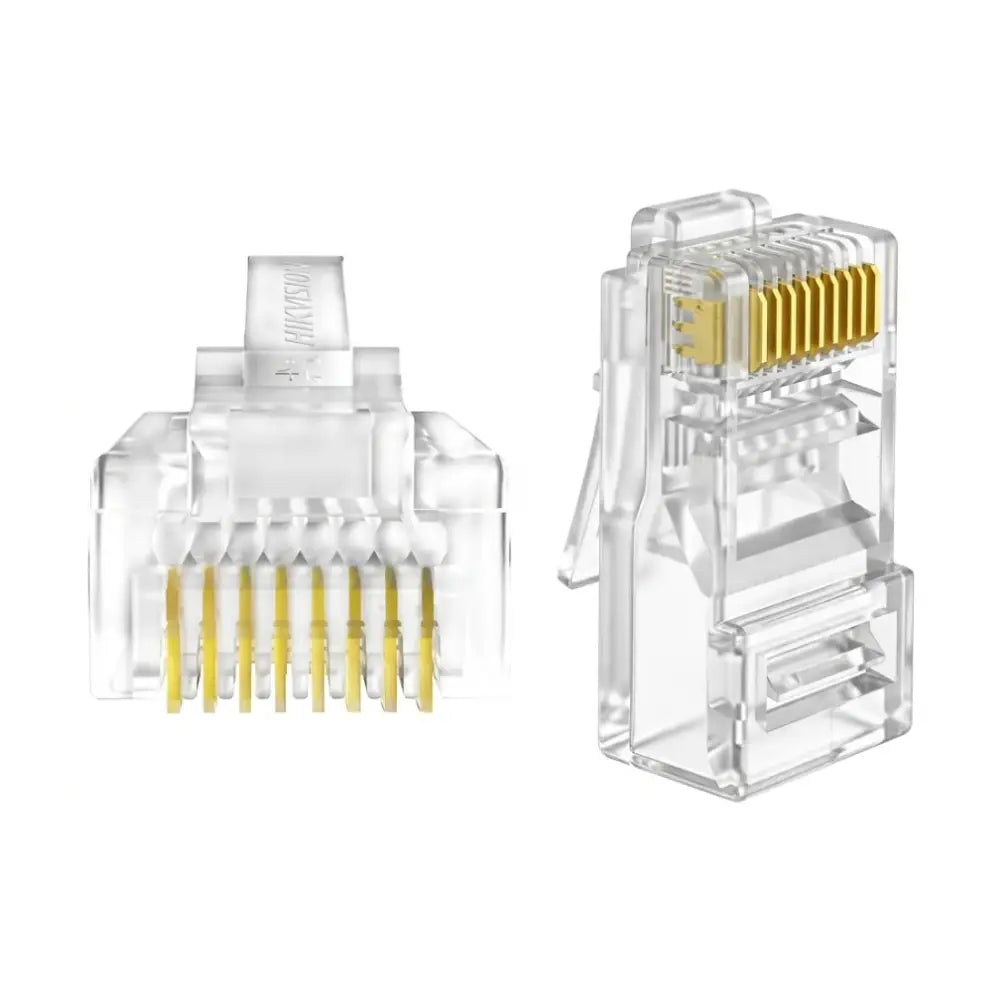

The Hikvision DS-1M6UA-30U-100 is a high-grade bulk pack of unshielded Cat6 RJ45 male connectors, purpose-built for commercial networking, data transmission, and IP surveillance cabling. Featuring premium 30-micron (30μ) gold-plated contacts, these connectors deliver superior conductivity, minimize signal degradation, and resist corrosion over time—making them ideal for heavy-duty terminations and professional environments.
Bulk Trade Pack Only

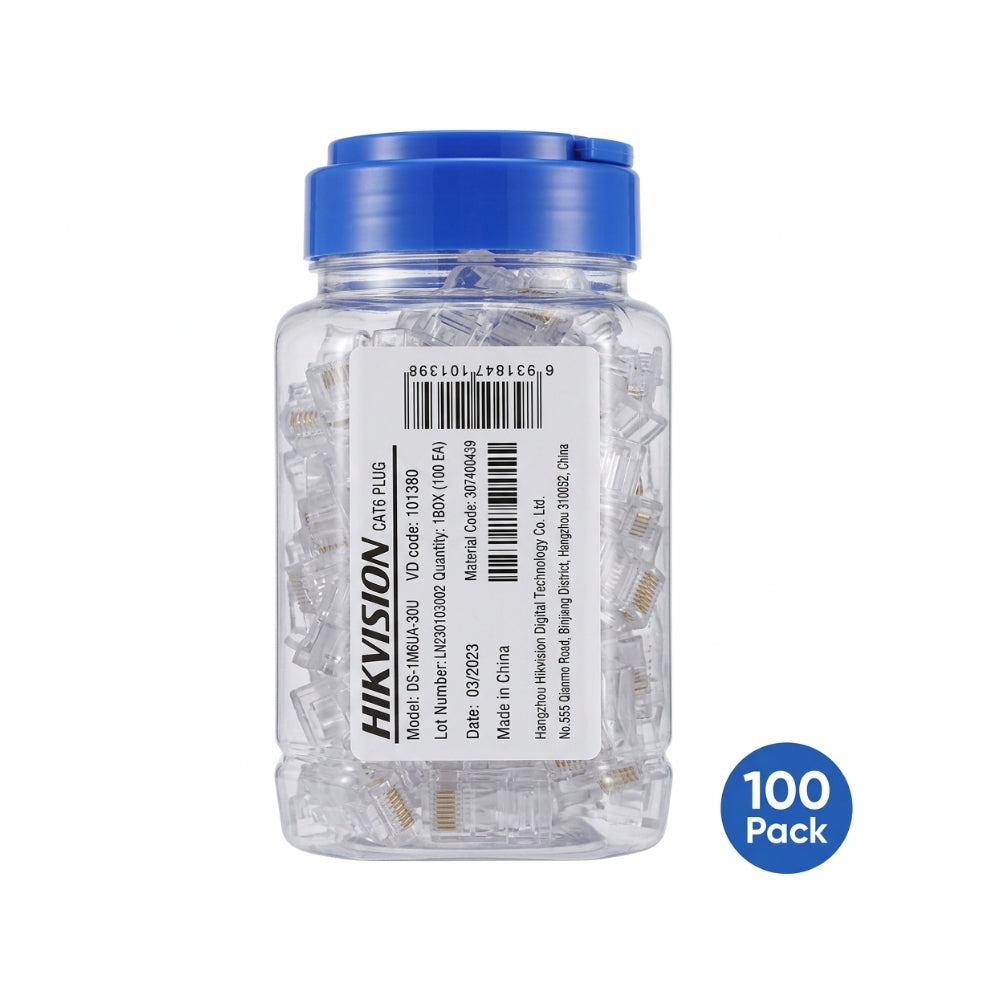

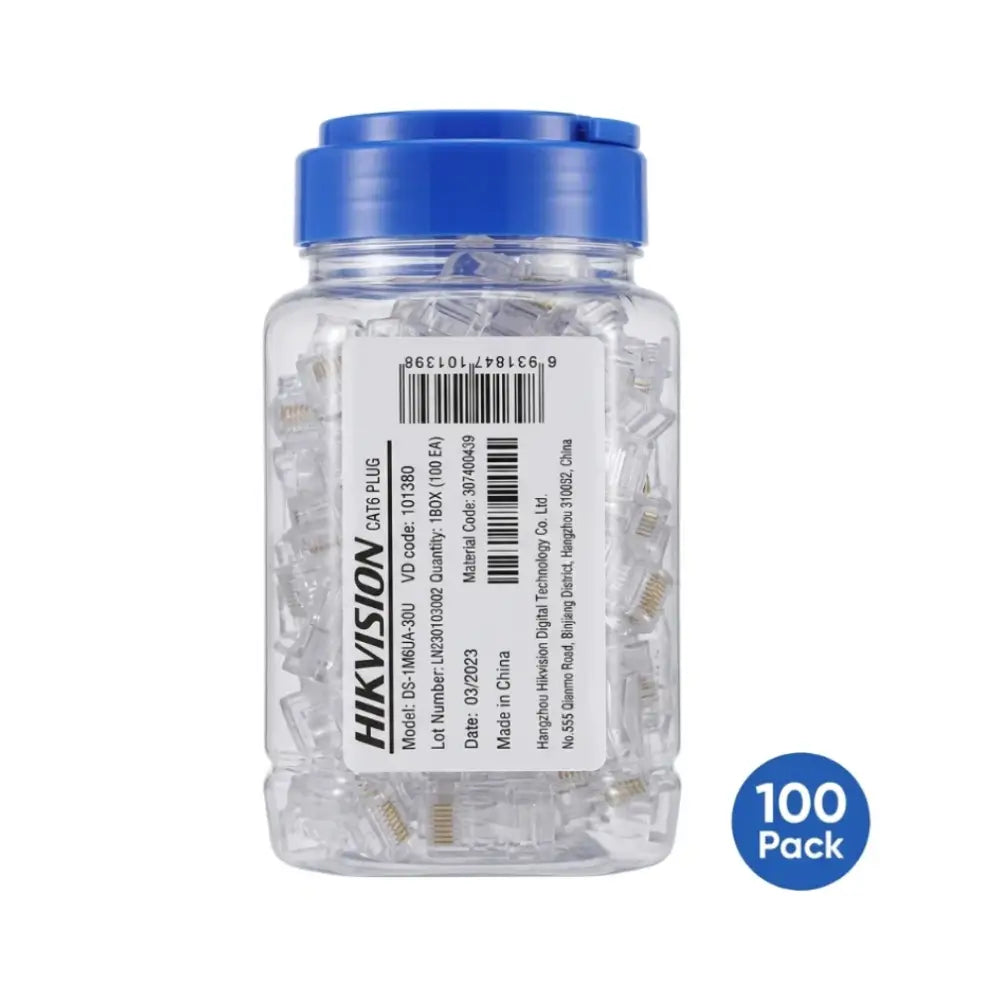

Please note: This premium installation accessory is sold exclusively as a 100-piece trade pack (100 plugs per box/bottle), providing network integrators and CCTV installers with consistent performance for large-scale structured cabling deployment.
What's Included:
-
1 x Hikvision DS-1M6UA-30U-100 – Box of 100 x Cat6 Unshielded RJ45 Plugs (30μ Gold-Plated)
Key Features
-
Premium 30μ Gold Plating: Enhanced 30-micron gold coating on contact surfaces prevents oxidation, provides exceptional durability, and ensures ultra-low contact resistance.
-
Gigabit Ethernet Support: Fully optimized for 1000Base-T networks across all 8 pins and 8 conductors.
-
Flame-Retardant Housing: Manufactured from transparent, heavy-duty polycarbonate rated UL94V-2 for physical durability and fire safety.
-
PoE Ready: Rated to securely handle the current requirements of typical Power over Ethernet applications (PoE, PoE+).
-
Robust Build Quality: Rigorously tested to withstand at least 750 mechanical insertion/extraction cycles and up to 50N of tensile pull-out strength.
Technical Specifications
| Feature |
Specification |
| Manufacturer Model |
DS-1M6UA-30U-100 |
| Connector Type |
Cat6 Unshielded RJ45 (8P8C) |
| Contact Plating |
30 Micro-Inch (30μ) Gold Plated |
| Pack Quantity |
100 Plugs per Pack |
| Maximum Operating Voltage |
≤ 150 VAC |
| Maximum Current Rating |
1.5 A @ 25 °C |
| Housing Material |
Polycarbonate (Transparent, UL94V-2) |
| Compliance |
RoHS 2.0 Standard |
More Information
Frequently Asked Questions
Can I buy these connectors individually?
No, this model is exclusively supplied and sold in bulk packs of 100 units to ensure the best commercial value for professional network installations.
What is the advantage of 30μ gold plating over 15μ?
The thicker 30-micron gold coating provides significantly higher wear resistance and corrosion protection. If you are frequently testing, connecting, or running infrastructure in humid climates, the 30μ configuration remains stable over longer lifecycles.
Are these connectors suitable for shielded Cat6 (STP) cable?
This model is unshielded (UTP). For shielded copper installations featuring a grounding drain wire, we recommend choosing a dedicated shielded RJ45 pass-through or standard shielded connector housing.
