Dahua · DH-CS4218-16ET-190 · 18-Port Cloud Managed · 190W
16-PoE Cloud Switch

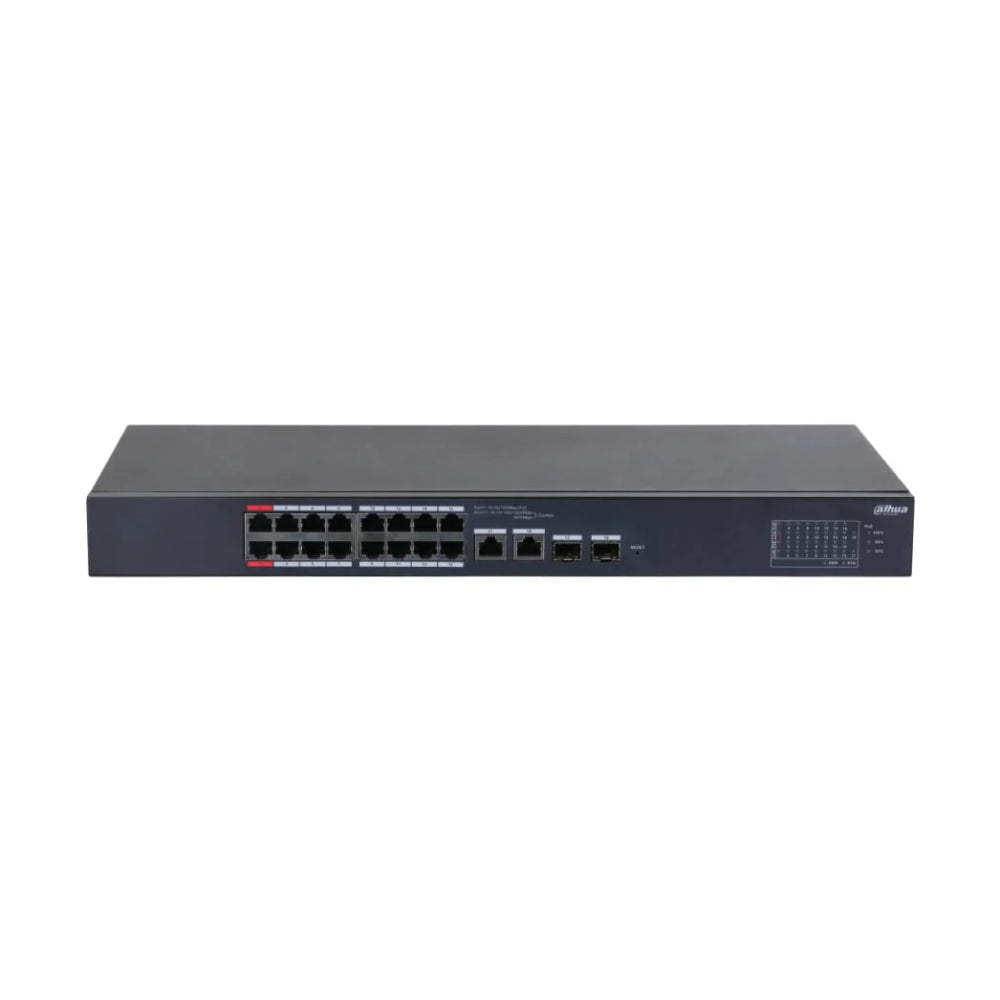

Dahua DH-CS4218-16ET-190 18-Port Cloud Managed PoE Switch
The Dahua DH-CS4218-16ET-190 powers up to 16 PoE cameras from a 190W budget, with 2 SFP uplinks for fibre or fast copper backhaul. Managed locally by web UI or remotely through DoLynk Care, it powers Dahua and standard IP PoE cameras and supports Hi-PoE up to 90W for PTZ models. The full-metal, dust-proof body suits retail, offices and hotels.
Management
Cloud (DoLynk Care)
16 Cameras, 190W

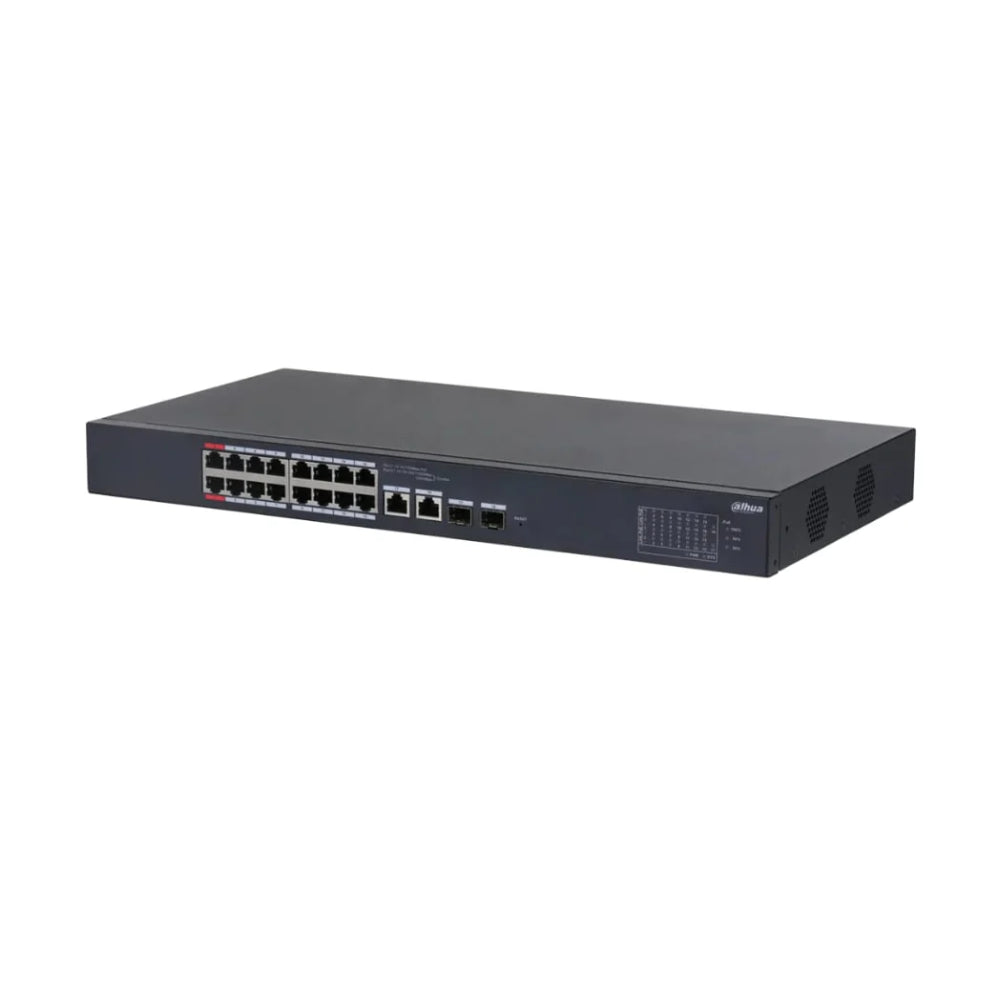

A 190W budget powers a full 16-camera load, with Hi-PoE up to 90W on the red port for a PTZ or high-draw camera.
Fibre-Ready Uplinks
Two SFP optical ports let you run a fibre backbone to the NVR or core, ideal for longer building-to-building links.
Cloud Managed
DoLynk Care provides remote monitoring, alarms, topology and port reboot — manage and troubleshoot from your phone.
Rugged Metal Build
Fully-enclosed dust-proof metal casing with a wide operating temperature range for reliable 24/7 operation.
Specifications — DH-CS4218-16ET-190
| Model / SKU |
DH-CS4218-16ET-190 |
| Ethernet Ports |
18 (16 PoE) |
| Optical (SFP) Ports |
2 |
| Uplink Ports |
2 |
| PoE Standards |
IEEE 802.3af / 802.3at / 802.3bt, Hi-PoE |
| PoE Budget |
Total ≤ 190W (red port up to 90W Hi-PoE) |
| Power Consumption |
Idle 6W; Full load 212W |
| Layer |
Layer 2 |
| Management |
Cloud Managed — Web UI + DoLynk Care |
| Mounting |
Desktop |
| Warranty (Australia) |
3 years · CCTV Guru Australia |
Downloads & Resources
How many cameras can it power?
The 190W budget supports a full 16-port PoE load. The red port delivers up to 90W Hi-PoE for a PTZ or other high-draw camera.
Are the uplinks fibre?
Yes — it has two SFP optical ports for a fibre or high-speed backbone link to your NVR or core switch.
What is DoLynk Care?
Dahua's cloud platform and app for remote health monitoring, alarms, topology and remote port reboot.
Is this NDAA compliant?
No. Dahua products are not NDAA Section 889 compliant. If you need NDAA-compliant equipment for US federal or critical-infrastructure projects, contact our team about Uniview, Hanwha or Axis options.
