Dahua · DH-CS4010-8ET-110 · 10-Port Cloud Managed · 110W
8-PoE Cloud Switch
Dahua DH-CS4010-8ET-110 10-Port Cloud Managed PoE Switch

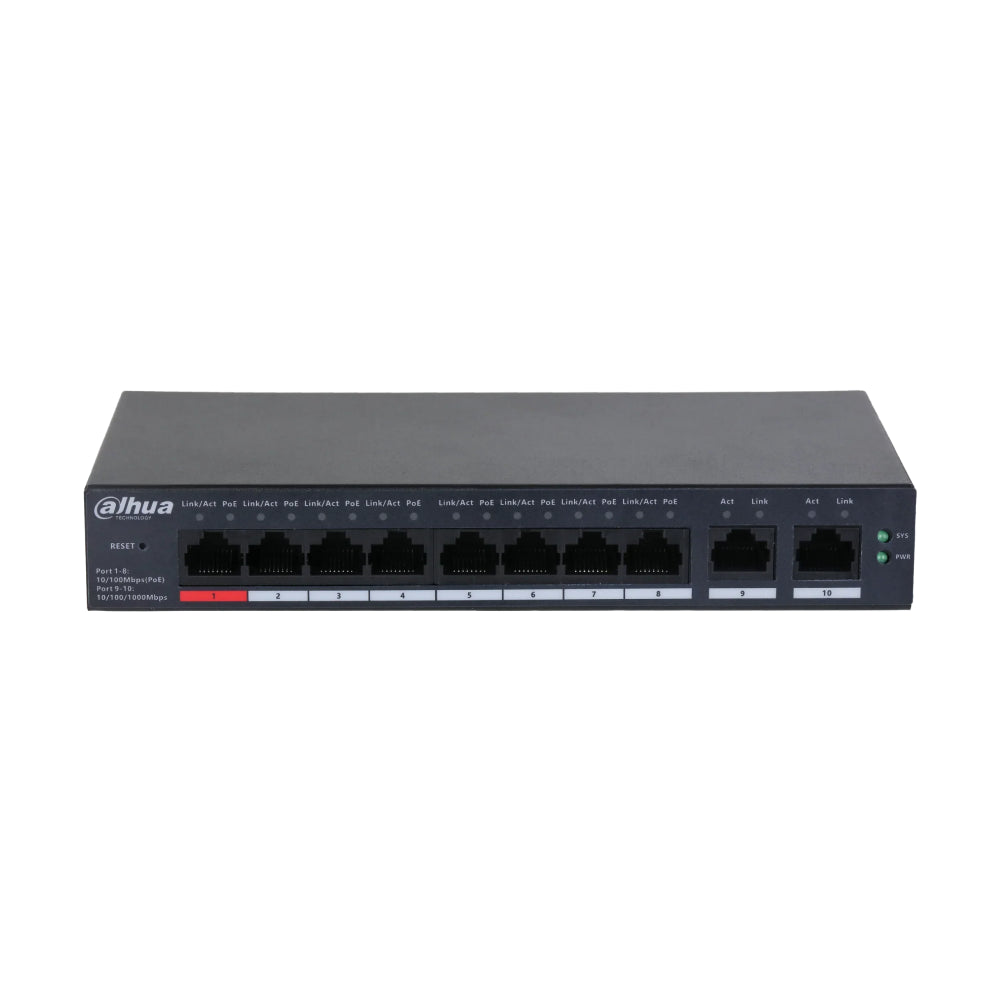

The Dahua DH-CS4010-8ET-110 powers up to 8 PoE cameras from a 110W budget, with 2 Gigabit uplinks back to the NVR or core. It powers Dahua and standard IP PoE cameras — the orange port supplies up to 60W and the red port up to 90W Hi-PoE for PTZ models. DoLynk Care cloud management adds remote monitoring and topology visualisation.
Management
Cloud (DoLynk Care)
8 Cameras, 110W
Powers a full eight-camera load with headroom — the red port delivers up to 90W Hi-PoE for a PTZ camera.
Cloud Managed
DoLynk Care provides remote monitoring, alarms, topology and port reboot, so faults can be handled without a site visit.
250m Long-Distance PoE
Power and data reach up to 250m, letting you place cameras well beyond the standard 100m Ethernet limit.
Rugged Metal Build
Full-metal, dust-proof casing with great heat dissipation and −10°C to +55°C operation plus surge protection.
Specifications — DH-CS4010-8ET-110
| Model / SKU |
DH-CS4010-8ET-110 |
| Ethernet Ports |
10 (8 PoE) |
| Optical Ports |
Not supported |
| Uplink Ports |
2 (Gigabit) |
| PoE Standards |
IEEE 802.3af / 802.3at / 802.3bt, Hi-PoE |
| PoE Budget |
Total 110W (orange port up to 60W; red port up to 90W Hi-PoE) |
| Power Consumption |
Idle 3W; Full load 110W |
| Long-Distance PoE |
Up to 250m |
| Layer |
Layer 2 |
| Management |
Cloud Managed — Web UI + DoLynk Care |
| Operating Temperature |
−10°C to +55°C |
| Mounting |
Desktop |
| Warranty (Australia) |
3 years · CCTV Guru Australia |
Downloads & Resources
How many cameras can it power?
Up to eight PoE cameras within the 110W shared budget. The red port delivers up to 90W Hi-PoE for a PTZ or high-draw camera.
Does it have fibre uplinks?
No — this model uses two Gigabit copper uplinks. For SFP fibre uplinks, see the CS4218-16ET-190.
What is DoLynk Care?
Dahua's cloud platform and app for remote monitoring, alarms, topology and remote port reboot.
