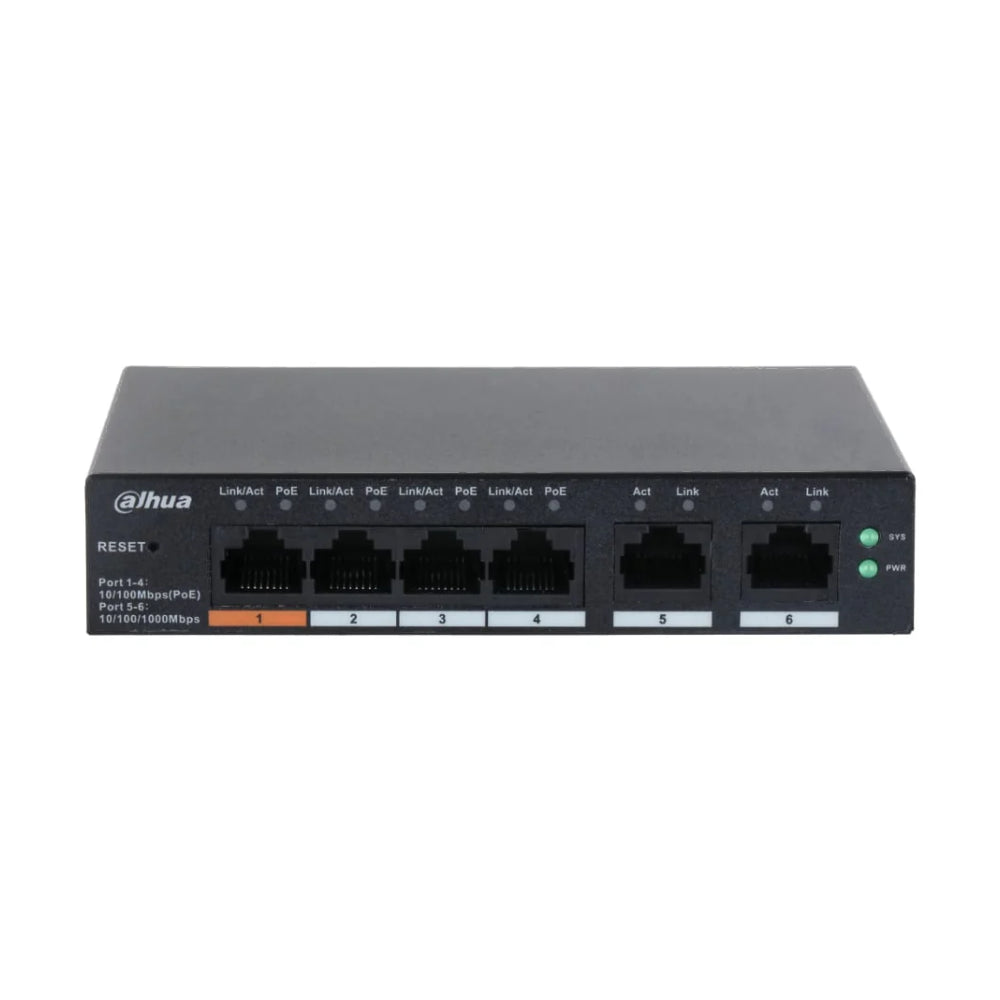

The Dahua DH-CS4006-4ET-60 is a highly intuitive 6-port Layer 2 smart managed switch designed for seamless IP surveillance management. Featuring DoLynk Care cloud integration, this switch allows installers to monitor network health, view topologies, and reboot ports remotely, significantly reducing on-site maintenance costs.

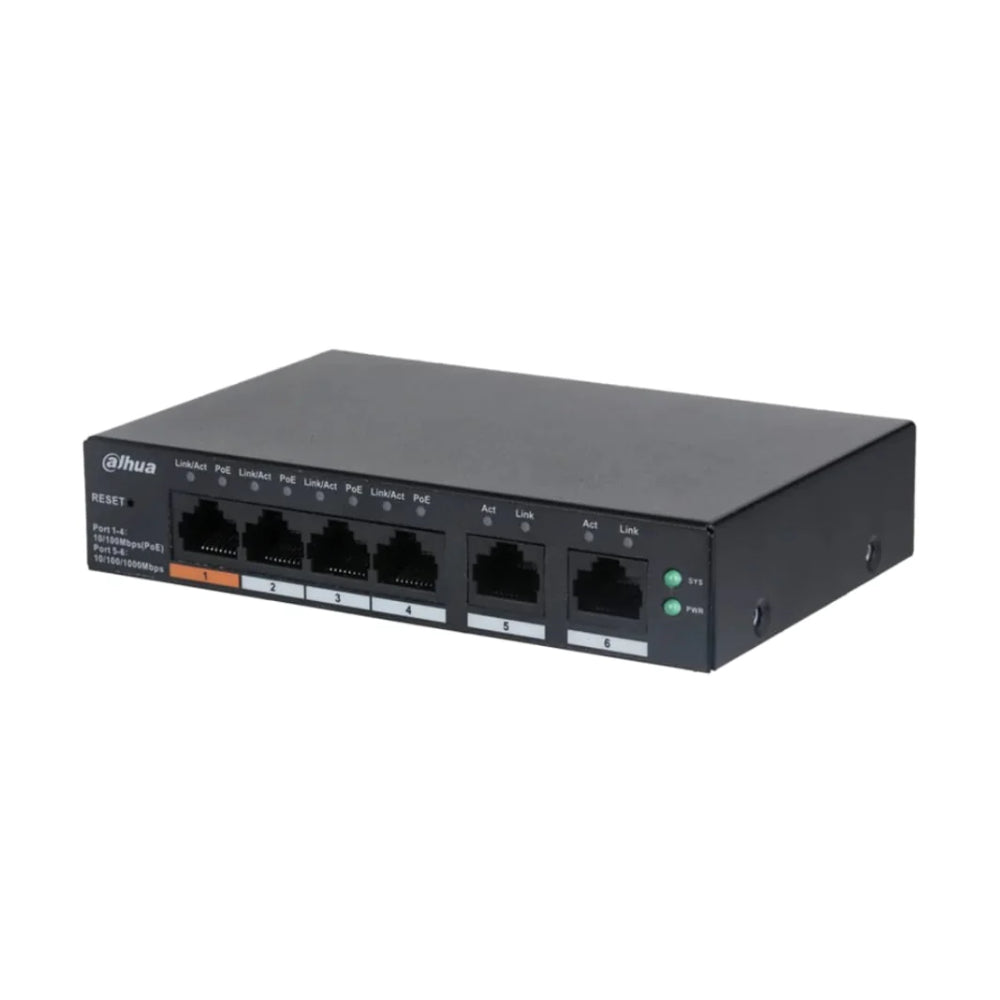

Power Your High-Demand Devices: Port 1 supports Hi-PoE (up to 60W), making it ideal for powering PTZ cameras or high-performance TiOC models that require more than standard PoE+.
Key Features
-
Cloud Management: Real-time monitoring and remote maintenance via the DoLynk Care app and web platform.
-
Intelligent PoE: Supports PoE Watchdog to automatically detect and restart crashed IP cameras, ensuring 24/7 uptime.
-
Long Distance Transmission: Extend your PoE reach up to 250 meters—perfect for large properties and long cable runs.
-
Network Topology: Automatically generates a visual map of your connected devices for fast troubleshooting.
-
Durable Design: Full metal casing with excellent heat dissipation and 6kV surge protection for reliable operation in Australian conditions.
Detailed Technical Specifications
| Hardware Feature |
Specification |
| Total Ports |
4 x 10/100 PoE Ports + 2 x Gigabit Uplink Ports |
| PoE Budget |
Total 60W (Port 1 ≤ 60W Hi-PoE; Ports 2-4 ≤ 30W PoE+) |
| PoE Protocols |
IEEE802.3af; IEEE802.3at; Hi-PoE |
| Switching Capacity |
4.8 Gbps |
| Packet Forwarding |
3.57 Mpps |
| Lightning Protection |
Common Mode 4kV / Differential Mode 2kV |
| Operating Temp |
-10°C to +55°C |
| Dimensions |
130 mm × 90 mm × 26 mm |
More Information
Dahua CS4006-4ET-60 Datasheet 20230807
Dahua Ethernet Switch (Cloud Managed Switch) User's Manual V1.0.0
Dahua Ethernet Switch (Cloud Managed PoE Switch) Quick Start Guide V1.0.1
Dahua CS4006-4ET-60 Dimension
Dahua CS4006-4ET-60 Port
Frequently Asked Questions
What is Hi-PoE?
Hi-PoE provides up to 60W of power on a single port (Port 1 on this model). This is essential for high-draw devices like PTZ cameras or outdoor heaters that exceed the 30W limit of standard PoE+.
Do I need a cloud subscription?
Basic management through DoLynk Care is generally available for Dahua devices to provide remote health monitoring and port control.
