AXIS P56 SERIES · NDAA & TAA COMPLIANT
Long-range precision tracking with advanced situational intelligence

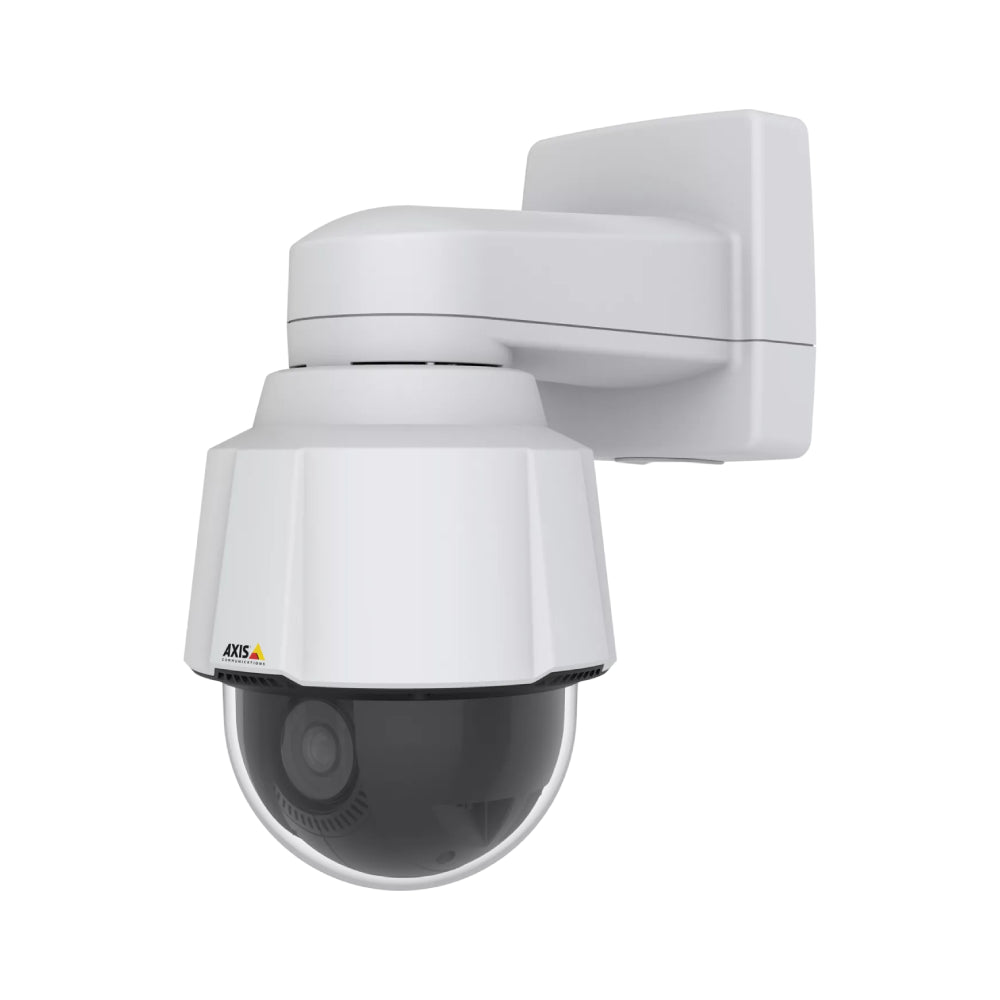

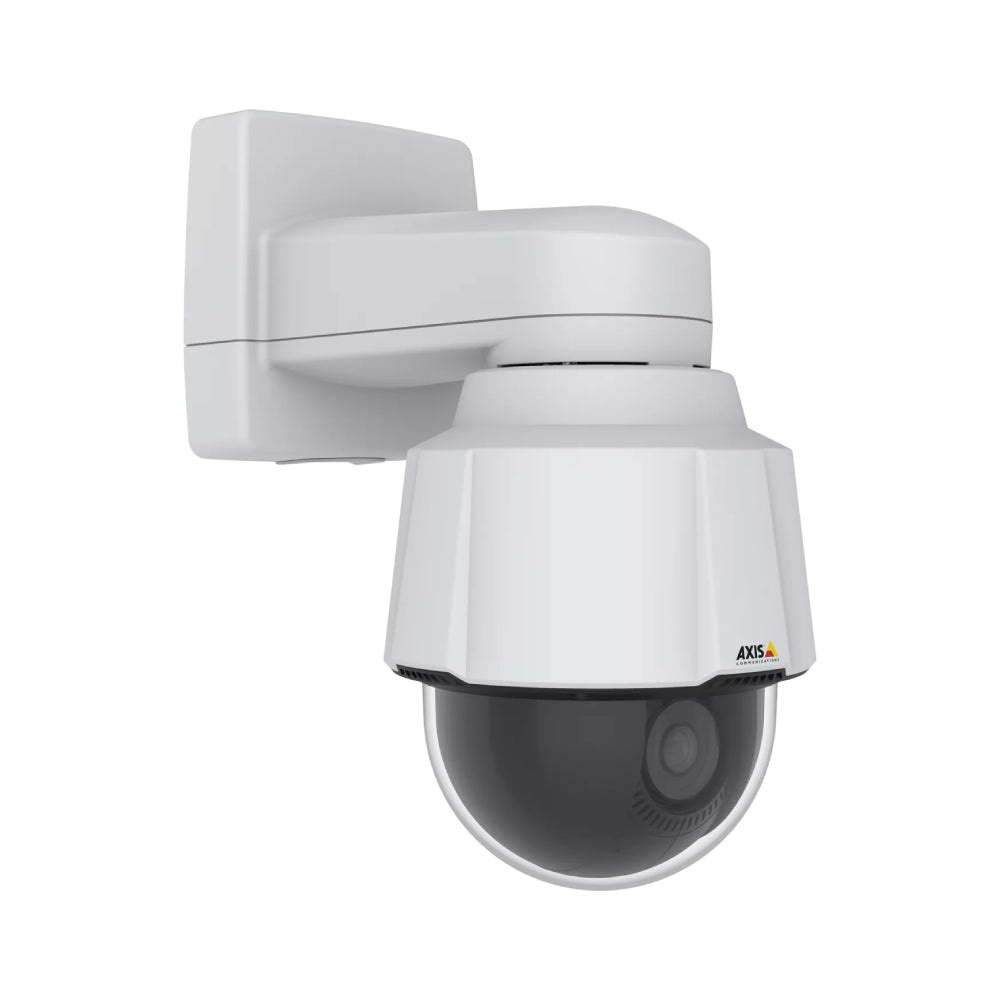

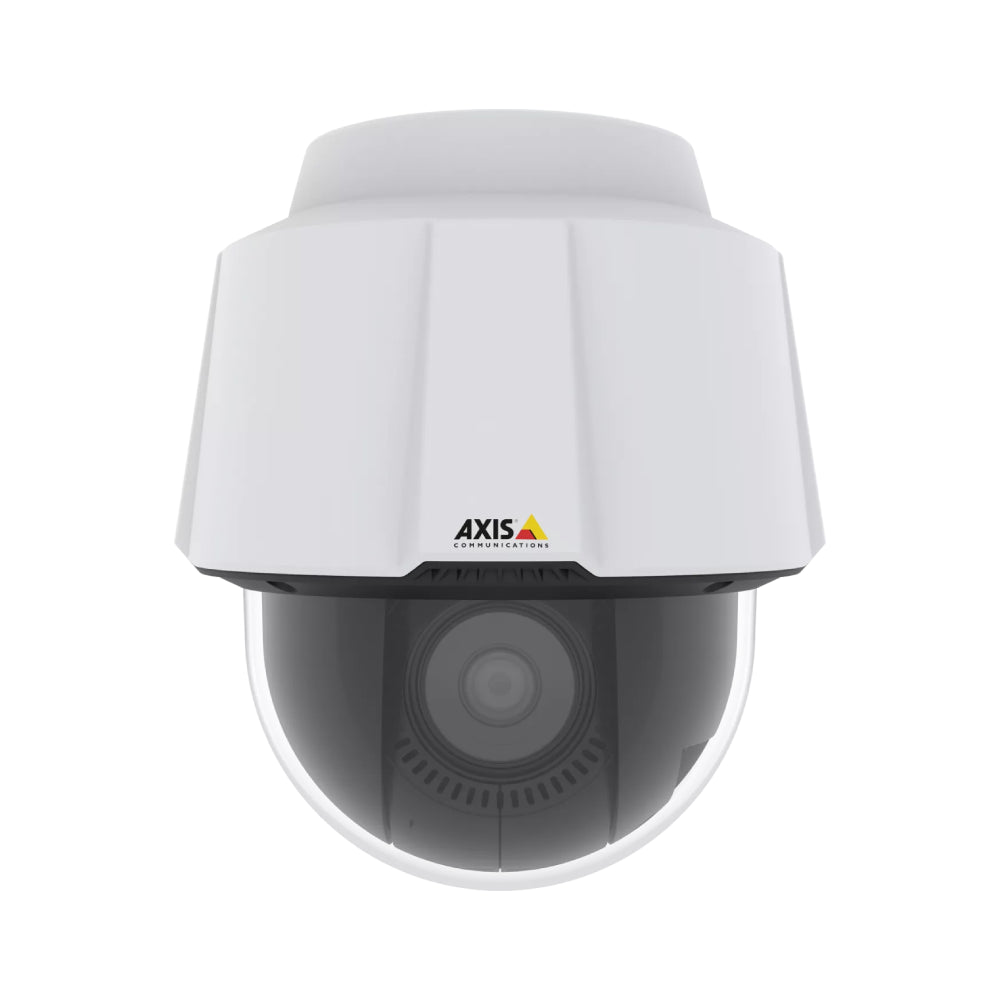

The AXIS P5655-E represents an elite tier of cost-effective, high-performance pan-tilt-zoom (PTZ) technology designed for wide-area deployment. Powered by the proprietary ARTPEC-7 processing core, this rugged domain asset captures fluid HDTV 1080p footage at up to 60 frames per second. Its massive 32x optical lens array enables swift shifts between broad panoramic sweeps and hyper-targeted long-distance forensics. Perfect for parking zones, city surveillance loops, and manufacturing centers, it delivers critical situational verification precisely when it matters most.
Resolution
1080p @ 60 FPS
Low-Light
Lightfinder 2.0
Protection
IP66 & IK10 Armor
Uncompromising video stability under extreme structural vibrations
When pushed to the absolute limits of its 32x telephoto extension, the AXIS P5655-E relies on its smart Electronic Image Stabilization (EIS) matrix to eliminate frame shake caused by wind shear or heavy industrial equipment. Integrated Focus Recall memory preserves focal distance setups instantly, ensuring that panning between priority security sectors delivers sharp target acquisition without awkward calibration lag. The network engine is secured via hardware-level protections, deploying Signed Firmware and Secure Boot paths to safeguard device streams against external breaches.
Autotracking 2 and target profiling
Equipped with smart automated detection tools, the camera intelligently identifies, locks onto, and tracks targets moving across peripheral bounds, optimizing localized resources without demanding round-the-clock manual supervision.
Zipstream data optimization
Leveraging specialized H.264 and H.265 compression, Axis Zipstream reduces global network bandwidth and storage usage by up to 50 percent while preserving facial characteristics, plates, and high-priority forensic data zones.
Technical Specification Matrix
| Camera Model |
AXIS P5655-E |
| Image Sensor |
1/2.8” progressive scan RGB CMOS |
| Lens Mechanics |
Varifocal, 4.3–137.6 mm, F1.4–4.0 with autofocus and auto-iris |
| PTZ Capabilities |
360° endless pan, 180° tilt, up to 350°/s movement speed |
| Minimum Illumination |
Color: 0.1 lux at 30 IRE (F1.4), B/W: 0.01 lux at 30 IRE (F1.4) |
| Wide Dynamic Range |
Forensic WDR up to 120 dB depending on environmental scene |
| Environmental Ratings |
IP66, NEMA 250 Type 4X, IK10 vandal-resistant casing |
| Power Delivery |
PoE+ IEEE 802.3at Type 2 Class 4 (typical 10.5W, max 19W) or 20–28V DC |
Frequently Asked Questions
What unique value does Focus Recall provide?
Focus Recall allows operators to pre-save sharp focus metrics for custom zoom zones. When the PTZ shifts to that angle, the optics establish instant focal alignment, bypassing slow autofocus hunt cycles typical in hazy or dark conditions.
Does the system support local audio tracking integration?
Yes, the hardware features true two-way audio support and dedicated multi-connector I/O pins, permitting external microphone or line-level inputs to prompt automated PTZ presets upon noise detection triggers.
Can this camera endure freezing winter conditions?
Absolutely. The AXIS P5655-E is robustly rated for harsh settings, operating reliably in an outdoor temperature envelope spanning from -30 °C up to 50 °C (-22 °F to 122 °F).
Is the lower clear dome bubble impact-resistant?
Yes, the lower dome assembly features a high-grade polycarbonate build backed by a certified IK10 physical impact rating, defending vital internal motorized elements from intentional vandalism or physical damage.
