AXIS P-SERIES · NDAA & TAA COMPLIANT
Wide-Angle Contextual Security Powered by Next-Gen ARTPEC-9
The AXIS P3285-LVE 10 mm delivers premium wide-area situational awareness over expansive outdoor zones. Powered by the groundbreaking ARTPEC-9 system-on-chip, this model features a highly adaptive 3.4–10 mm varifocal lens optimized for broad context gathering. Ideal for logistics hubs, multi-lane loading docks, and corporate parking plazas, it blends extreme optical performance with state-of-the-art edge processing to provide robust, continuous security monitoring under any environment.
Resolution
2MP (1080p) @ 60fps
Optics
3.4–10 mm Varifocal
Night Vision
OptimizedIR (40m)
Protection
IP66 / IK10 Weather
Intelligent Acoustic Sensors and Exceptional Codec Optimization
Equipped with a specialized deep learning processing unit, the AXIS P3285-LVE 10 mm natively processes AXIS Object Analytics to categorize humans, cars, and distinct vehicle shapes directly on the edge. Beyond advanced vision processing, this camera incorporates an acoustic sensor driving AXIS Audio Analytics, allowing it to actively detect off-screen sound threats like breaking windows or verbal aggression. Combined with cutting-edge AV1 and H.265 video encoding via Axis Zipstream, video data is compressed intelligently, preserving precious network storage without losing raw forensic value.
Lightfinder 2.0 & Forensic WDR
Integrating Axis Lightfinder 2.0 with up to 120 dB of Forensic WDR, this camera ensures crisp color imaging in near-complete darkness and balances high-contrast daylight scenes seamlessly. Moving targets passing through deep structural shadows remain perfectly readable for swift, reliable investigations.
Hardware-Rooted Cybersecurity Baseline
Axis Edge Vault provides a secure cryptographic foundation (CC EAL6+ and FIPS 140-3 Level 3 certified). It shields the camera network with signed firmware, secure boot controls, and tamper-proof device identity keys to intercept unauthorized system access attempts.
Technical Specification Matrix
| Camera Model |
AXIS P3285-LVE 10 mm |
| System on Chip (SoC) |
ARTPEC-9 with integrated Deep Learning Processing Unit (DLPU) |
| Image Sensor |
1/2.8" Progressive Scan RGB CMOS |
| Resolution & Framerate |
1920x1080 (2MP) at up to 50/60 fps |

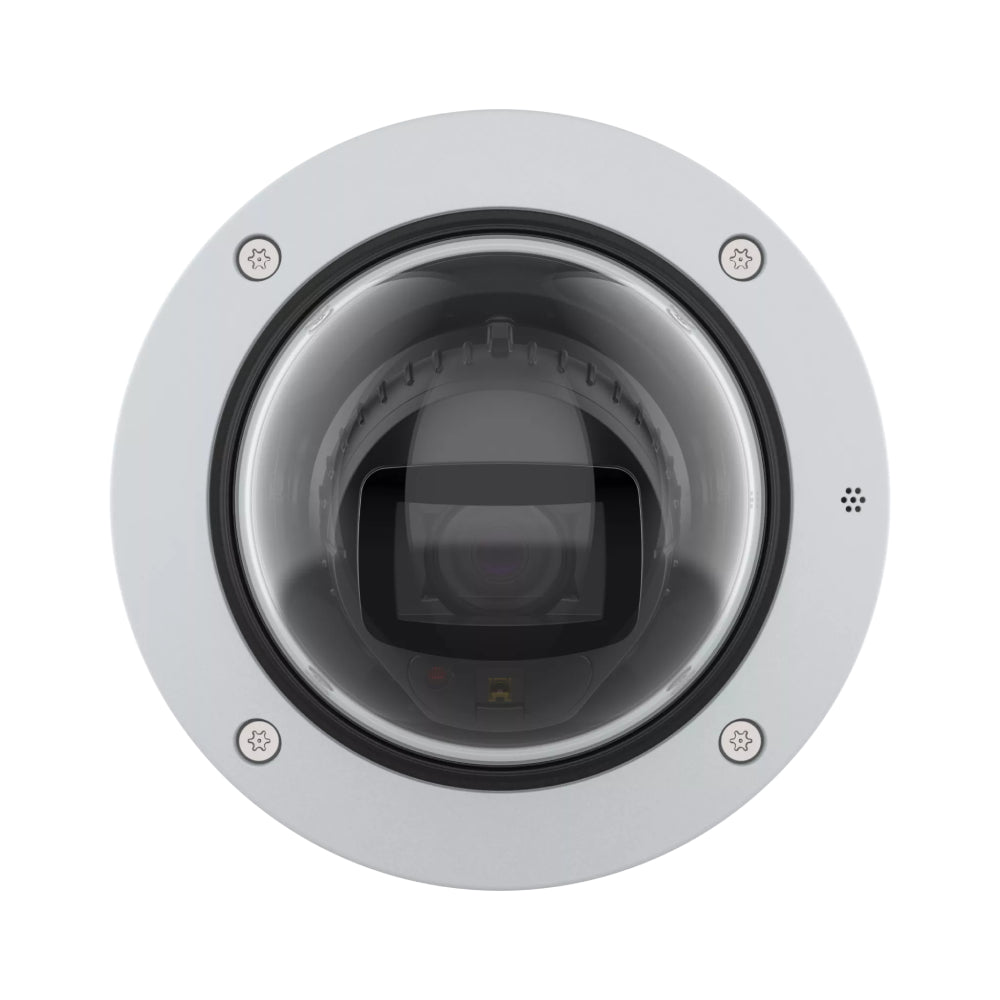

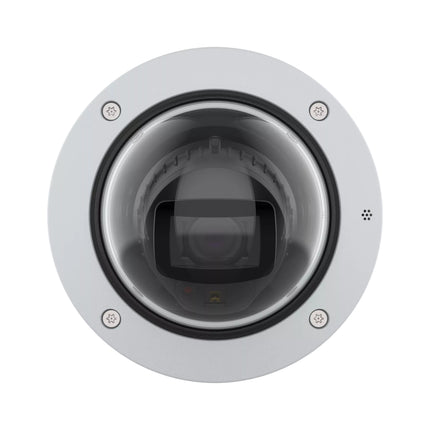

| Lens Configuration |
3.4–10 mm Varifocal, Remote Focus & Zoom, P-Iris |
| Field of View (Wide Option) |
Horizontal: 105°–36° / Vertical: 56°–20° |
| Infrared Technology |
OptimizedIR up to 40 meters (130 feet) range |
| Environmental Ratings |
IP66, IP67 weatherproof, NEMA 4X, and IK10 vandal-resistant |
Frequently Asked Questions
How does the 10 mm varifocal configuration differ from the telephoto model?
This 10 mm variant features a wide-angle 3.4–10 mm focal range, producing an expansive horizontal field of view up to 105°. It is specifically built for broad perimeter context and wide entry tracking rather than narrow long-range capture.
What advantages does the AV1 codec bring to this camera deployment?
The next-gen AV1 codec supported by the ARTPEC-9 chip delivers superior video compression efficiency over standard H.264 formats. It drastically decreases storage consumption and minimizes network bitrates without reducing forensic image quality.
Does the integrated acoustic sensor require additional microphones?
No. The acoustic sensor is built directly into the weather-sealed chassis, empowering the unit to parse environmental sound profiles and trigger edge alarms completely out of the box.
Is the camera fully protected against vandalism and physical tampering?
Yes. Encased inside an IK10 impact-rated dome shell, the unit withstands physical strikes and vandalism. It also includes electronic tampering alarms that alert systems immediately if the viewpoint is blocked or obscured.
