NDAA Compliant • 4MP Outdoor Dome
Axis M3116-LVE (01605-001) — Australian Stock & 5-Year Warranty
The Axis M3116-LVE is an affordable, flat-faced 4 MP outdoor mini dome built for clean, reflection-free footage day and night. Its discreet IK08-rated casing, built-in 850 nm IR, Lightfinder and Forensic WDR make it a reliable, low-fuss choice for hotels, retail stores, offices, schools and home perimeters. With Axis Zipstream over H.264/H.265, it keeps bandwidth and storage costs down without sacrificing detail.
Resolution4MP (2688×1512)
Clear, Reliable Footage Around the Clock
From bright doorways to pitch-dark car parks, the M3116-LVE adapts automatically. Forensic WDR balances harsh light and shadow, Lightfinder pulls colour out of low light, and the built-in IR takes over in total darkness — so you capture usable evidence at any hour.
Forensic WDR & Lightfinder
Forensic WDR (up to 120 dB depending on scene) preserves detail in high-contrast scenes, while Axis Lightfinder keeps colours true in very low light — ideal for entrances and mixed-lighting areas.
Built-in IR for Total Darkness
Power-efficient, long-life 850 nm IR LEDs reach 20 m or more depending on the scene, giving you clear, reflection-free footage even at 0 lux.
Zipstream Saves Storage
Axis Zipstream over H.264 and H.265 dramatically reduces bandwidth and storage needs without compromising the detail that matters.

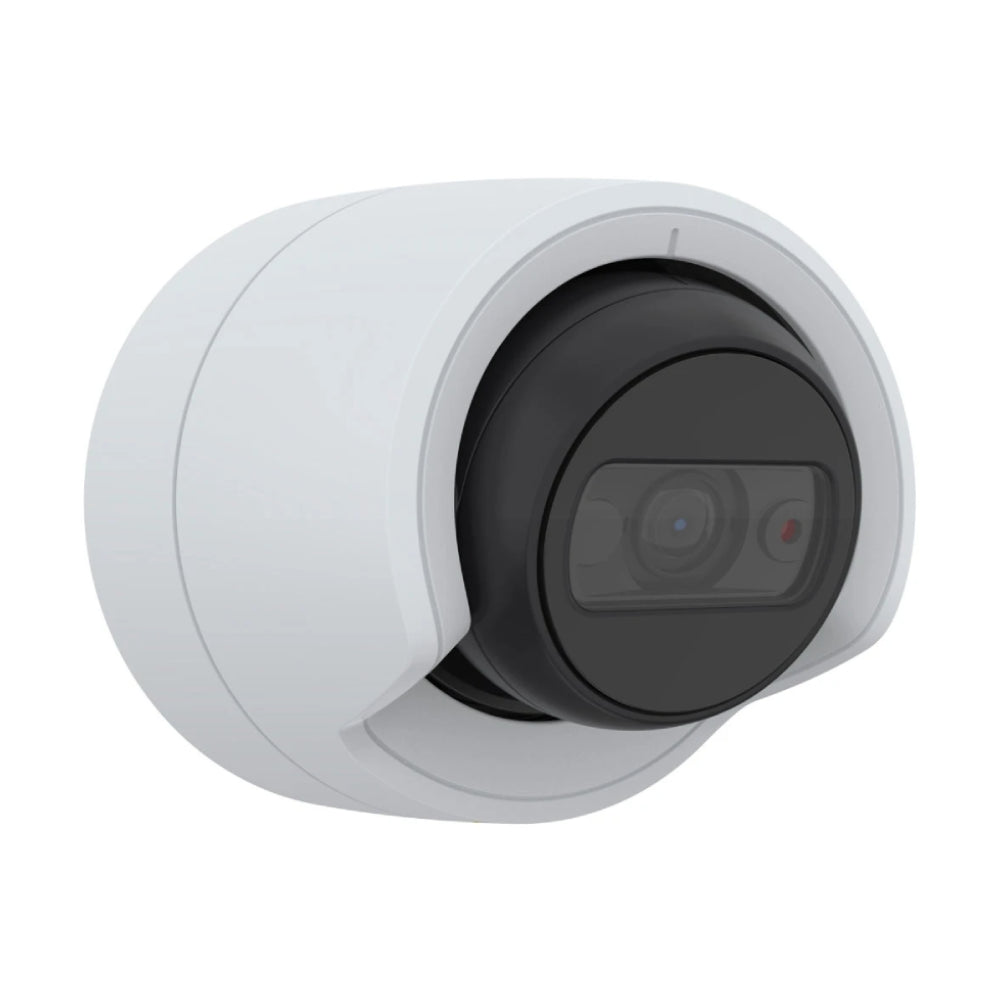

Discreet, Tough Design
The flat-faced, IK08 impact-resistant dome suppresses light reflections and can be re-painted to blend in. 3-axis adjustment makes wall or ceiling levelling quick.
Technical Specifications
CAMERA & LENS
| Image Sensor |
1/2.7" progressive scan RGB CMOS |
| Lens |
2.4 mm, F2.1, fixed iris, fixed focus, IR corrected |
| Field of View |
130° horizontal / 72° vertical |
| Day/Night |
Automatically removable infrared-cut filter |
| Min. Illumination |
Colour: 0.19 lux; B/W: 0.04 lux; 0 lux with IR on |
| Camera Angle Adjustment |
Pan ±180°, Tilt 0°–60°, Rotation ±95° |
VIDEO
| Resolution |
2688×1512 (4 MP) to 320×240 |
| Frame Rate |
Up to 25/30 fps (50/60 Hz) |
| Compression |
H.264 (Baseline/Main/High), H.265 (Main), Motion JPEG |
| Zipstream |
Axis Zipstream in H.264 and H.265 |
| WDR |
Forensic WDR up to 120 dB depending on scene |
| Multi-view Streaming |
Up to 2 cropped view areas at full frame rate |
| PTZ |
Digital PTZ, Corridor Format |
| SoC |
ARTPEC-7, 1024 MB RAM / 512 MB Flash |
ANALYTICS & AUDIO
| Included Analytics |
AXIS Motion Guard, Fence Guard, Loitering Guard, Video Motion Detection, active tampering alarm |
| ACAP |
Supports AXIS Camera Application Platform third-party apps |
| Audio |
Two-way audio via optional AXIS T61 Audio & I/O Interface (portcast) |
NETWORK & INTEGRATION
| ONVIF |
Profiles G, M, S and T |
| Security |
HTTPS, IEEE 802.1x (EAP-TLS), signed firmware, secure boot, SD card encryption |
| Storage |
microSD/SDHC/SDXC (AES-XTS 256-bit) + NAS recording |
| API |
VAPIX, AXIS Camera Application Platform, ONVIF, MQTT, SIP |
POWER & ENVIRONMENTAL
| Power |
PoE IEEE 802.3af/802.3at Type 1 Class 3; typ. 4.6 W, max 8.7 W |
| Connector |
RJ45 10BASE-T/100BASE-TX PoE |
| IR Illumination |
850 nm IR LED, range 20 m (65 ft) or more |
| Casing |
IP66, NEMA 4X, IK08 impact-resistant; PVC free |
| Operating Temp |
-30 °C to 50 °C |
| Dimensions / Weight |
H 94 mm, ø101 mm; 390 g |
| Warranty |
5-year Axis warranty (AU) |
Downloads
Frequently Asked Questions
What resolution does the Axis M3116-LVE record?It captures 4 MP video at 2688×1512 resolution, at up to 25/30 fps for smooth, detailed footage.
Is the M3116-LVE suitable for outdoor use?Yes. It carries an IP66 and NEMA 4X weatherproof rating plus an IK08 impact-resistant casing, and operates from -30 °C to 50 °C.
How far does the built-in IR reach?The 850 nm IR illumination reaches 20 m (65 ft) or more depending on the scene, with 0-lux performance in total darkness.
What is the field of view?The fixed 2.4 mm lens delivers a wide 130° horizontal and 72° vertical field of view.
How is the camera powered?Via Power over Ethernet (IEEE 802.3af/802.3at Type 1 Class 3) over a single network cable, typically drawing 4.6 W.
Does it support onboard recording?Yes. It accepts microSD/SDHC/SDXC cards with AES-XTS 256-bit encryption and can also record to network-attached storage (NAS).
Is it ONVIF compatible?Yes. It supports ONVIF Profiles G, M, S and T for broad compatibility with third-party VMS and recorders.
Does it support audio?Two-way audio is available via the optional AXIS T61 Audio and I/O Interface using portcast technology.
Is it NDAA compliant and what warranty applies?Yes, Axis cameras are NDAA (Section 889) and TAA compliant. This model is backed by a 5-year Axis warranty, supported locally in Australia.
