NDAA Compliant • Flat-Faced Outdoor Mini Dome
Axis M3115-LVE 2MP 1080p Outdoor IR Dome — Australian Stock & 5-Year Warranty

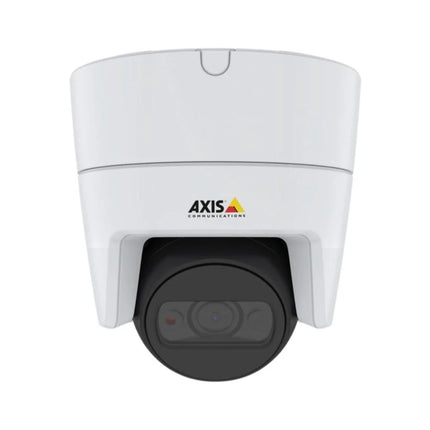

The Axis M3115-LVE (01604-001) is an affordable, flat-faced outdoor mini dome delivering HDTV 1080p from a 1/2.9″ CMOS sensor with a 2.8 mm F2.0 lens and a wide 105° horizontal field of view. It combines Axis Lightfinder, Forensic WDR (up to 120 dB) and built-in 850 nm IR with a 20 m reach for clear footage day and night, all in a discreet IK08 impact-resistant, IP66 weatherproof casing. NDAA (Section 889) and TAA compliant.
Clear, Sharp Video Day and Night
Built on the Axis ARTPEC-7 platform, the M3115-LVE delivers smooth 1080p at up to 25/30 fps with multiple individually configurable streams in H.264 and H.265. Axis Lightfinder preserves true colour in low light, Forensic WDR keeps detail in scenes with both bright and dark areas, and power-efficient 850 nm IR lights the scene to 20 m in complete darkness.
Lightfinder & Forensic WDR
Lightfinder technology captures clear colour in very low light, while Forensic WDR (up to 120 dB depending on scene) retains forensic detail across challenging high-contrast scenes.
Built-in 20m IR
Long-life 850 nm IR LEDs with adjustable intensity deliver reflection-free footage to 20 m or more, so there’s no need for extra lighting in total darkness.

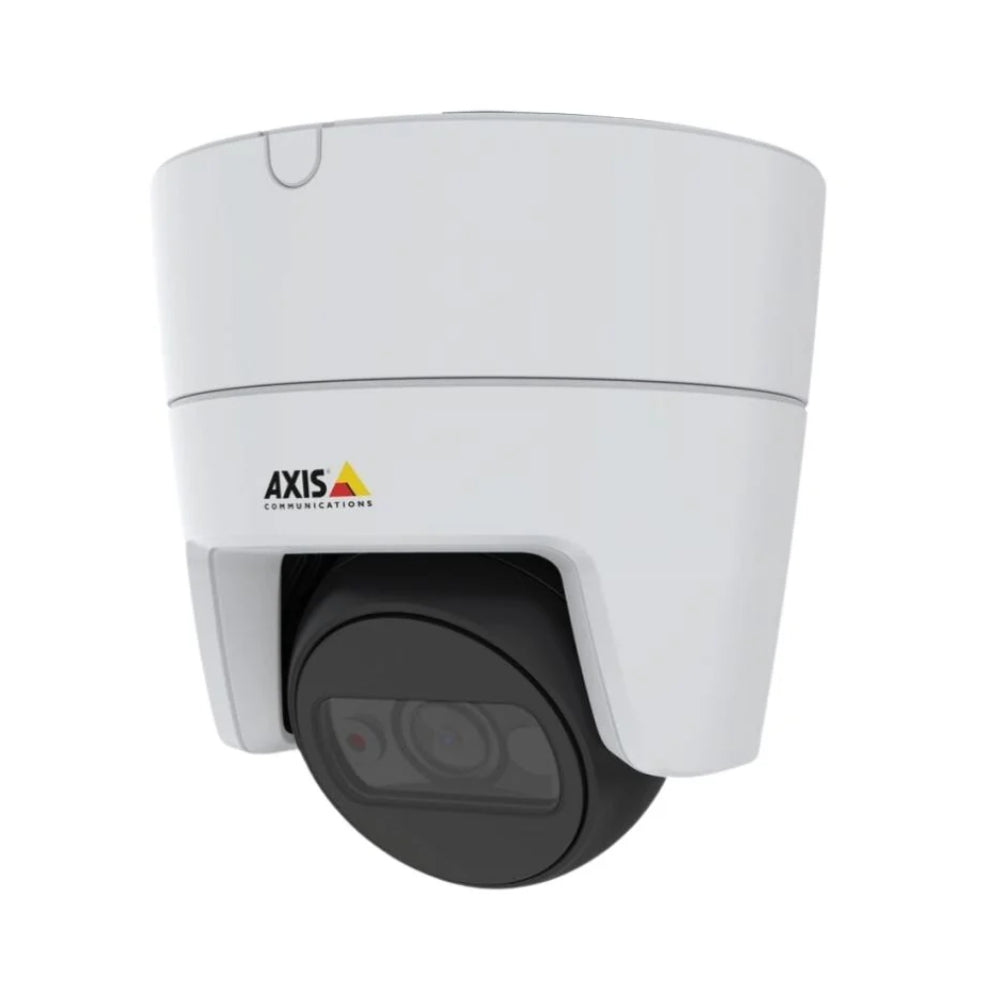

Flat-Faced & Rugged
The flat-faced dome suppresses light reflections, while the IK08 impact-resistant, IP66 and NEMA 4X-rated casing handles vandalism and the Australian outdoors.
Zipstream & Edge Storage
Axis Zipstream cuts bandwidth and storage in H.264/H.265, and a microSD/SDHC/SDXC slot (with AES-XTS 256-bit encryption) enables onboard edge recording.
Smart Analytics & Easy Installation
The M3115-LVE ships with AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard and AXIS Video Motion Detection, plus active tampering alarm. AXIS Camera Application Platform (ACAP) support allows third-party analytics to run on the edge. A 3-axis camera-angle adjustment (pan, tilt, rotation) makes wall or ceiling levelling quick, and the repaintable casing blends into any setting.
Technical Specifications
Camera & Lens
| Image Sensor |
1/2.9″ progressive scan RGB CMOS |
| Lens |
2.8 mm, F2.0, fixed iris, fixed focus, IR corrected |
| Field of View |
Horizontal 105°, Vertical 58° |
| Day/Night |
Automatically removable IR-cut filter |
| Min. Illumination |
Colour: 0.17 lux, B/W: 0.03 lux (F2.0); 0 lux with IR on |
| Shutter Speed |
1/33500 s to 2 s |
| Angle Adjustment |
Pan ±180°, Tilt 0–60°, Rotation ±95° |
| System on Chip |
ARTPEC-7, 512 MB RAM / 512 MB Flash |
Video
| Resolution |
1920×1080 (HDTV 1080p) to 160×90 |
| Frame Rate |
Up to 25/30 fps (50/60 Hz) |
| Compression |
H.264 (Baseline/Main/High), H.265 Main, Motion JPEG |
| Streaming |
Multiple configurable streams, Axis Zipstream, VBR/ABR/MBR |
| Multi-view |
Up to 2 cropped view areas at full frame rate |
| WDR |
Forensic WDR up to 120 dB depending on scene |
IR, Analytics & Audio
| IR Illumination |
850 nm IR LED, range 20 m (65 ft) or more |
| Analytics |
AXIS Motion Guard, Fence Guard, Loitering Guard, Video Motion Detection, tampering alarm, ACAP |
| Audio |
Two-way via optional AXIS T61 Audio & I/O Interface (portcast) |
| Edge Storage |
microSD/SDHC/SDXC with AES-XTS 256-bit encryption, NAS |
Network & Integration
| ONVIF |
Profile G, Profile S, Profile T |
| Security |
HTTPS, IEEE 802.1x (EAP-TLS), signed firmware, secure boot |
| API |
VAPIX, AXIS Camera Application Platform, One-Click Cloud Connection |
| Compliance |
NDAA (Section 889) & TAA compliant |
Power & General
| Power |
PoE IEEE 802.3af/802.3at Type 1 Class 3; typical 3.7 W, max 8.7 W |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
| Casing |
IK08 impact-resistant, IP66 & NEMA 4X-rated, PVC free, white |
| Operating Temp. |
-30 °C to 50 °C (start-up -20 °C to 50 °C) |
| Dimensions |
Height 94 mm, ø101 mm; Weight 390 g |
| Part Number |
01604-001 |
| Warranty |
5-year Axis warranty |
Downloads
Frequently Asked Questions
What resolution does the Axis M3115-LVE record?It captures HDTV 1080p (1920×1080, 2MP) at up to 25/30 fps from a 1/2.9″ CMOS sensor.
How far does the built-in IR reach?The power-efficient 850 nm IR LEDs illuminate to 20 m (65 ft) or more depending on the scene, giving usable footage in complete darkness.
Is the M3115-LVE suitable for outdoor use?Yes. It has an IK08 impact-resistant, IP66 and NEMA 4X-rated casing rated for -30 °C to 50 °C, ideal for Australian outdoor installs.
What is the field of view?The fixed 2.8 mm lens gives a wide 105° horizontal and 58° vertical field of view.
How is the camera powered?Via a single Power over Ethernet cable (IEEE 802.3af/802.3at Type 1 Class 3), typically 3.7 W and up to 8.7 W max.
Does it support edge recording?Yes. It accepts a microSD/SDHC/SDXC card with AES-XTS 256-bit encryption and can also record to network-attached storage (NAS).
What analytics are included?AXIS Motion Guard, Fence Guard, Loitering Guard, Video Motion Detection and active tampering alarm, plus ACAP support for third-party apps.
Is the M3115-LVE NDAA compliant?Yes. Like all Axis cameras it is NDAA Section 889 and TAA compliant, suitable for government and enterprise projects.
Does it work with third-party VMS via ONVIF?Yes. It supports ONVIF Profile G, S and T plus VAPIX, so it integrates with AXIS Camera Station and most major VMS platforms.
