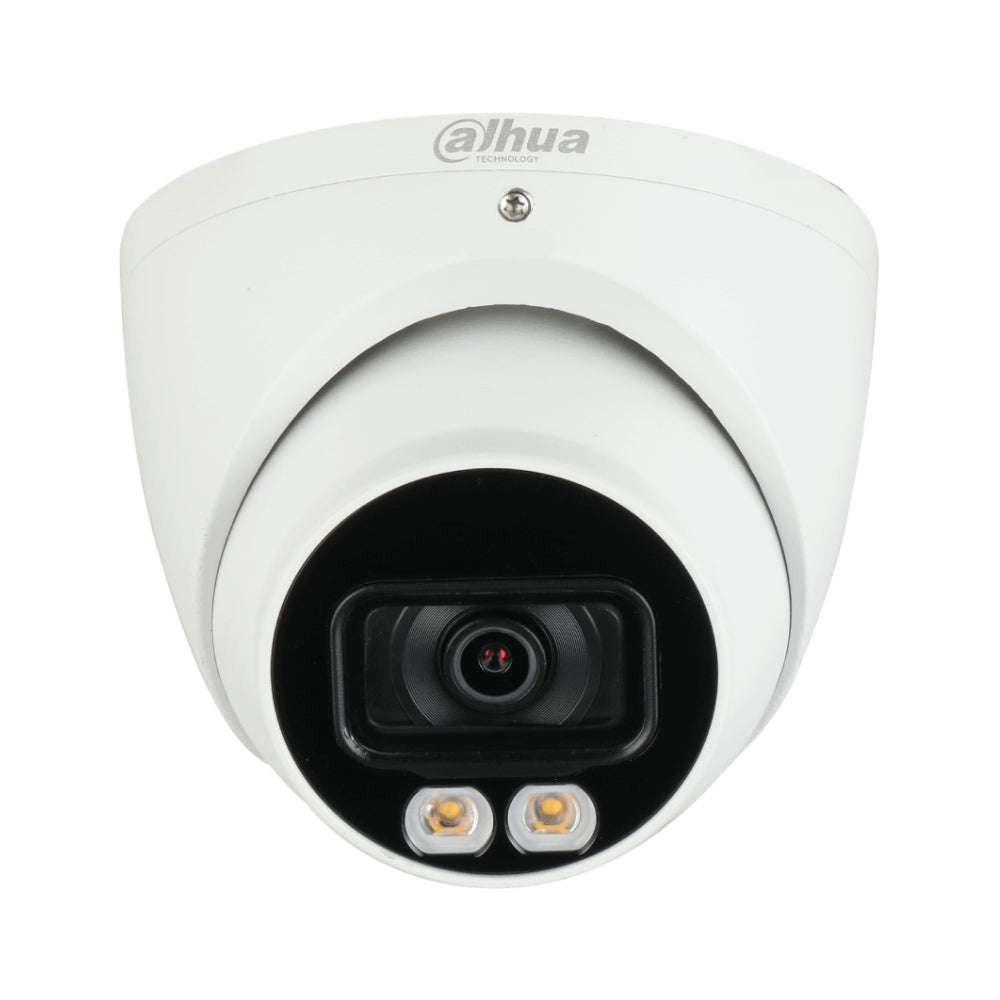

WizMind 5 · 4 MP Starlight+ · Warm LED Full Colour · 30 mDahua DH-IPC-HDW5442TMP-AS-LED-0280B — 4 MP Starlight+ Full-Colour Warm LED Fixed-Focal Turret WizMind 5 Network Camera (5442 Series)
The Dahua DH-IPC-HDW5442TMP-AS-LED-0280B is a WizMind 5 series 4 MP full-colour turret built around a 1/1.8" CMOS Starlight+ sensor with 2688 × 1520 native resolution at 25/30 fps. A built-in warm-LED array delivers up to 30 m of full-colour night-vision illumination — usable colour evidence at all hours, where standard IR cameras flip to black-and-white. The 2.8 mm F1.6 fixed lens provides a 105° horizontal field of view; WDR is 140 dB for high-contrast Australian outdoor scenes; the compact metal turret housing is IP67 sealed with IK10 vandal rating. WizMind 5 deep-learning edge AI runs the full suite — face detection, perimeter protection (tripwire, intrusion, loitering, parking detection) with human and vehicle classification, plus people counting and SMD Plus. Built for Australian retail interiors, school grounds, transport platforms, council reserves and commercial premises where full-colour night vision and project-grade WizMind AI are required. Backed by a 5-year Australian warranty through CCTV Guru as authorised Dahua AU reseller. SKU 5442 series.
Why Choose the Dahua HDW5442TMP-AS-LED-0280B WizMind 5 Full-Colour Turret
24/7 Full-Colour Night Vision — Warm LED
Built-in warm-LED array delivers up to 30 m of full-colour illumination at night. Captures evidence-grade colour footage where standard IR cameras only show grey shadows. Critical for identifying clothing, vehicle colour and signage.
WizMind 5 Edge AI — Full Suite
Face detection, perimeter protection, people counting, parking detection — all with accurate human and vehicle classification. The premium-tier Dahua AI platform on a 4 MP turret form factor.
1/1.8" Starlight+ Sensor
The large 1/1.8" CMOS Starlight+ sensor captures usable colour video at exceptionally low light levels — the warm LED kicks in only when ambient drops below the sensor's natural sensitivity threshold.
140 dB WDR for AU Conditions
High wide dynamic range holds detail in both the bright sky and the dark interior in a single frame — important for awning-shaded entries, glass shopfronts and high-contrast midday sun.
Discreet Eyeball Form Factor
Compact metal turret mounts cleanly to eaves, soffits, awnings and undercover ceilings. Modern minimalist aesthetic for retail, NDIS, architectural commercial and council environments.
IK10 Vandal & Audio I/O
Metal housing with IK10 impact rating and TVS lightning protection. Built-in RCA audio input/output for two-way talk or external mic/speaker integration. Alarm I/O for third-party alarm system connectivity.
Important Install Note
This camera is fixed-focal (2.8 mm) — frame at install time. The warm-LED array is bright at night — consider neighbouring properties when mounting. The eyeball gimbal allows ±75° pan, ±75° tilt and 0–360° rotation for flexible initial alignment.
AI & Smart Detection Capabilities
Face Detection
Captures face snapshots from the turret feed for forensic playback. Subject to local privacy law.
Perimeter Protection (IVS)
Tripwire, intrusion, fast-moving, abandoned/missing object, loitering, parking detection and people gathering — with accurate human/vehicle classification.
People Counting
Built-in panoramic analytics — track footfall and dwell time for retail and transport sites where local privacy law permits.
SMD Plus Motion Filtering
Filters out animal, foliage, weather and lighting changes — only people and vehicles raise alarms in DMSS.
Warm LED Auto-Switching
The warm-LED array auto-switches on when ambient illumination drops below the Starlight+ sensitivity threshold — full colour at night, no operator intervention.
Two-Way Audio & Alarm I/O
RCA audio in/out for external mic/speaker; alarm I/O for third-party alarm system integration. ONVIF Profile S, G, T compatible.
Technical Specifications
Camera & Image Sensor
| Model |
DH-IPC-HDW5442TMP-AS-LED-0280B |
| Form Factor |
Eyeball turret (HDW chassis) |
| Image Sensor |
1/1.8" CMOS Starlight+ |
| Maximum Resolution |
2688 × 1520 (4 MP) |
| Frame Rate |
4 MP @ 25/30 fps |
| WDR |
140 dB |
| Day / Night |
Auto (ICR) / Colour / B&W |
| Warm LED Illumination |
Up to 30 m (full-colour) |
Intelligence & Video
| AI Engine |
WizMind 5 Series |
| IVS Library |
Tripwire · intrusion · fast-moving · abandoned/missing object · loitering · parking detection · people gathering |
| Face Detection |
Yes |
| People Counting |
Yes |
| SMD Plus |
Yes |
| Video Compression |
H.265 · H.264 · Smart H.265+ · Smart H.264+ · MJPEG |
| Resolutions |
4 MP · 3 MP · 1080p · 720p · D1 · VGA · CIF |
Lens & Build
| Lens Type |
Fixed-focal |
| Focal Length |
2.8 mm |
| Maximum Aperture |
F1.6 |
| Field of View |
H: ~105° |
| Audio I/O |
1 in / 1 out (RCA) |
| Alarm I/O |
1 in / 1 out |
| Power Supply |
12 VDC / PoE (802.3af) |
| Operating Temperature |
−30 °C to +60 °C |
| Protection |
IP67 · IK10 vandal |
| Casing |
Metal |
| Network |
RJ-45 · ONVIF Profile S, G, T · CGI · SDK |
| Storage |
Micro SD up to 256 GB |
| Mobile Client |
DMSS (iOS / Android) |
| Australian Warranty |
5 Years (via CCTV Guru — WizMind tier) |
How It Compares — HDW5442TMP-AS-LED (Warm LED Turret) vs HDW5442TP-ZE-2712 (Motorised IR)
The natural sibling is the Dahua DH-IPC-HDW5442TP-ZE-2712 — the motorised vari-focal 2.7–12 mm IR version of this same 4 MP WizMind 5 turret. Choose this fixed warm-LED version for 24/7 full-colour evidence at a lower cost; choose the motorised IR version for adjustable zoom and discreet IR-only night vision.
| Feature |
HDW5442TMP-AS-LED (this — fixed warm LED) |
HDW5442TP-ZE-2712 (sibling — motorised IR) |
| Resolution |
4 MP (2688 × 1520) |
4 MP (2688 × 1520) |
| Sensor |
1/1.8" Starlight+ |
1/1.8" Starlight+ |
| Lens |
Fixed 2.8 mm F1.6 |
Motorised 2.7–12 mm vari-focal |
| Illumination |
Warm LED 30 m — full colour |
IR 40 m — black-and-white at night |
| Remote Re-Framing |
No — fixed install framing |
Yes — re-frame from DMSS app |
| WDR |
140 dB |
140 dB |
| WizMind AI |
Yes — full suite |
Yes — full suite |
| Best For |
Sites that need 24/7 colour evidence and predictable framing — retail, NDIS, council |
Variable framing requirements with discreet IR-only night vision |
Recommended NVR Pairings
Frequently Asked Questions
What does the "LED" in the SKU mean?
LED indicates the warm-LED variant — the camera uses warm white-light LEDs for 24/7 full-colour night vision instead of IR. Captures evidence-grade colour footage at night.
Is the warm light always on at night?
It auto-switches on when ambient illumination drops below the Starlight+ sensor's threshold. The Starlight+ captures usable colour at low ambient levels before the warm LED needs to engage.
Will the warm light disturb my neighbours?
The warm LED is brightness-configurable in the camera's web UI — tune to suit your install. Most residential installs run at 40–60% brightness.
Does it require PoE+ or will standard PoE work?
Standard 802.3af PoE works. Power consumption is well within standard PoE budget.
How is the warranty 5 years rather than 3?
WizMind series products carry a 5-year Australian warranty through CCTV Guru — reflecting their premium project-grade build.
Does it have audio?
Yes — 1× RCA audio input and 1× RCA audio output for external mic/speaker.
Does it work with third-party NVRs?
Yes — ONVIF Profile S, G and T compatible.
What temperature range is it rated for?
−30 °C to +60 °C. Suitable for most Australian sites.
Can I view it on my phone?
Yes — Dahua's free DMSS app on iOS and Android.
