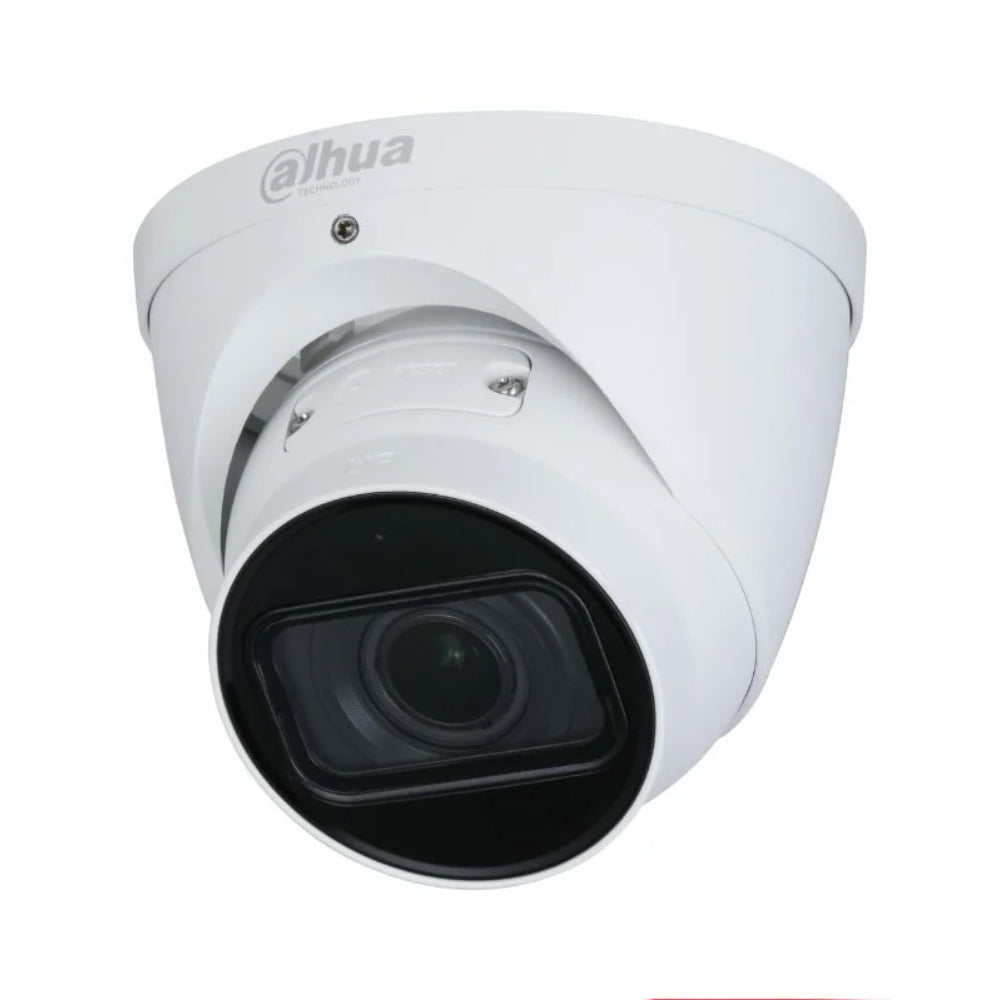

WizMind 5 · 4 MP · Motorised 2.7–12 mm · ePoEDahua WizMind 5 · 4 MP Pro AI TurretDahua DH-IPC-HDW5442TP-ZE-2712 — 4 MP Pro AI Motorised Vari-Focal Starlight+ IR Turret WizMind 5 Network Camera (2.7–12 mm)
The Dahua DH-IPC-HDW5442TP-ZE-2712 is the WizMind 5 Pro AI 4 MP motorised eyeball turret — the turret sibling to the flagship HFW5442EP-ZE bullet and HDBW5442EP-ZE vandal dome. Built around a 1/1.8" Starlight+ CMOS capturing 2688 × 1520 at 30 fps and 1080p at full 60 fps. The motorised 2.7–12 mm vari-focal lens with auto-focus delivers a wide 100° field at 2.7 mm down to a tight 33° pull at 12 mm — re-frameable from DMSS. Built-in IR reaches up to 40 m; WDR is 140 dB; the compact metal turret housing is IP67 sealed. WizMind 5 deep-learning Pro AI runs the full feature suite — face detection, perimeter protection (tripwire, intrusion, fast-moving, loitering, abandoned/missing object, parking, people gathering), people counting, heat map, SMD Plus and vehicle metadata. ePoE supports 800 m PoE runs on Cat6. Built-in microphone, 1/1 audio I/O. Built for project-grade Australian retail, commercial and architectural installs where a discreet eyeball form factor with Pro AI is required. Backed by a 5-year Australian warranty through CCTV Guru. SKU 5442 series.
Why Choose the Dahua HDW5442TP-ZE WizMind 5 Pro AI Turret
1/1.8" Starlight+ Sensor
Physically larger sensor with roughly twice the light-gathering area of WizSense's 1/2.7". Usable colour video in moonlight.
Motorised 4.4× Vari-Focal
2.7–12 mm motorised vari-focal with auto-focus — install wide, then pull tight on the area of interest remotely from DMSS.
WizMind 5 Full Pro AI
Face detection, perimeter protection, people counting, heat map, parking detection, SMD Plus, vehicle metadata.
ePoE — 800 m PoE
Extends PoE to 800 m on Cat6.
140 dB True WDR
True 140 dB WDR for harsh Australian sun — awning-shaded entries and glass shopfronts.
Discreet Eyeball Form
Compact metal turret mounts cleanly to eaves, soffits, awnings and undercover ceilings. Modern minimalist aesthetic.
AI & Smart Detection
Face Detection
Captures face snapshots from the turret feed for forensic playback.
Perimeter Protection (IVS)
Tripwire, intrusion, fast-moving, abandoned/missing object, loitering, parking and people gathering — with human/vehicle classification.
People Counting + Heat Map
Entry/exit counts and dwell-time heat maps.
SMD Plus
Motion alerts triggered only by humans and vehicles.
Vehicle Metadata
Vehicle classification with type, colour, direction.
Two-Way Audio
Built-in mic + RCA audio I/O.
Technical Specifications
Camera, Lens & Illumination
| Model |
DH-IPC-HDW5442TP-ZE-2712 |
| Form Factor |
Eyeball turret (HDW chassis) |
| Image Sensor |
1/1.8" CMOS Starlight+ |
| Maximum Resolution |
2688 × 1520 (4 MP) |
| Frame Rate |
4 MP @ 30 fps · 1080p @ 60 fps |
| WDR |
140 dB |
| Day / Night |
Auto (ICR) / Colour / B&W |
| Lens Type |
Motorised vari-focal with auto-focus |
| Focal Length |
2.7–12 mm |
| Field of View |
H: 100°–33° |
| IR Illumination |
Up to 40 m |
Pro AI, Audio & Network
| AI Engine |
WizMind 5 Series (Pro AI) |
| Face Detection |
Yes |
| IVS |
Full library (tripwire, intrusion, loitering, parking, etc.) |
| SMD |
SMD Plus |
| People Counting |
Yes |
| Heat Map |
Yes |
| Vehicle Metadata |
Yes |
| Built-in Mic |
Yes |
| Audio I/O |
1 in / 1 out |
| Network |
RJ-45 (10/100) · ePoE |
| Interoperability |
ONVIF (Profile S, G, T) · CGI |
| Storage |
Micro SD up to 256 GB |
| Mobile Client |
DMSS |
Power, Environment & Build
| Power Supply |
12 VDC / PoE (802.3af) / ePoE |
| ePoE Distance |
Up to 800 m on Cat6 |
| Operating Temperature |
−30 °C to +60 °C |
| Protection |
IP67 |
| Casing |
Metal |
| Australian Warranty |
5 Years (via CCTV Guru) |
Recommended NVR Pairings
Frequently Asked Questions
WizMind 5?
Dahua's flagship Pro AI tier — face detection, people counting, heat map, full IVS library.
Re-frame after install?
Yes — motorised vari-focal via DMSS.
ePoE?
Extends PoE to 800 m on Cat6.
Standard PoE?
Yes — 802.3af-compliant.
Audio?
Built-in mic + audio I/O.
Third-party NVRs?
Yes — ONVIF Profile S, G, T.
Temperature?
−30 °C to +60 °C.
Mobile viewing?
Yes — DMSS app.
Downloads
Order Your Dahua HDW5442TP-ZE from CCTV Guru
"Add to cart" to order, or contact our Australian team for project pricing. 5-year Australian warranty. cctvguru.com.au/pages/contact.
